2P 2X2X0.8MM2 Solid Bare Copper Conductor HDPE Insulation Shielded LSZH KNX Cable for GVS KNX
- $0.25 / >=5000 meters
- 5000 meters
- Zhejiang Tianjie Industrial Corp.
- Zhejiang, China
- Ms Cici Xiang
PRODUCT DETAIL
| Application: | COMPUTER; | Shielding: | 115% Polyester Foil; |
| Number of core: | 4; | Supply Ability: | 100000 Kilometers per Year; |
| Jacket: | LSZH,LSZH; | Brand Name: | TianJie/OEM; |
| Place of Origin: | Zhejiang, China; | Model Number: | 2X2X0.8MM2 KNX Cable; |
| Port: | NINGBO/SHANGHAI; | Packing: | wooden reel/carton; |
| Conductor Material: | Copper; | Fiol: | 100% Single Aluminum Foil; |
| Operating temperature: | -20℃ to 60℃; | Insulation: | PE; |
| Type: | twisted cable; | Color: | Green; |
| Insulation Material: | HDPE; | Payment Terms: | T/T; |
| Conductor: | BC; |
KNX 1P LSZH
1*2*0.8mm BC
KNX 2P LSZH
2*2*0.8mm BC
KNX 4C LSZH
1*4*0.8mm BC
VR

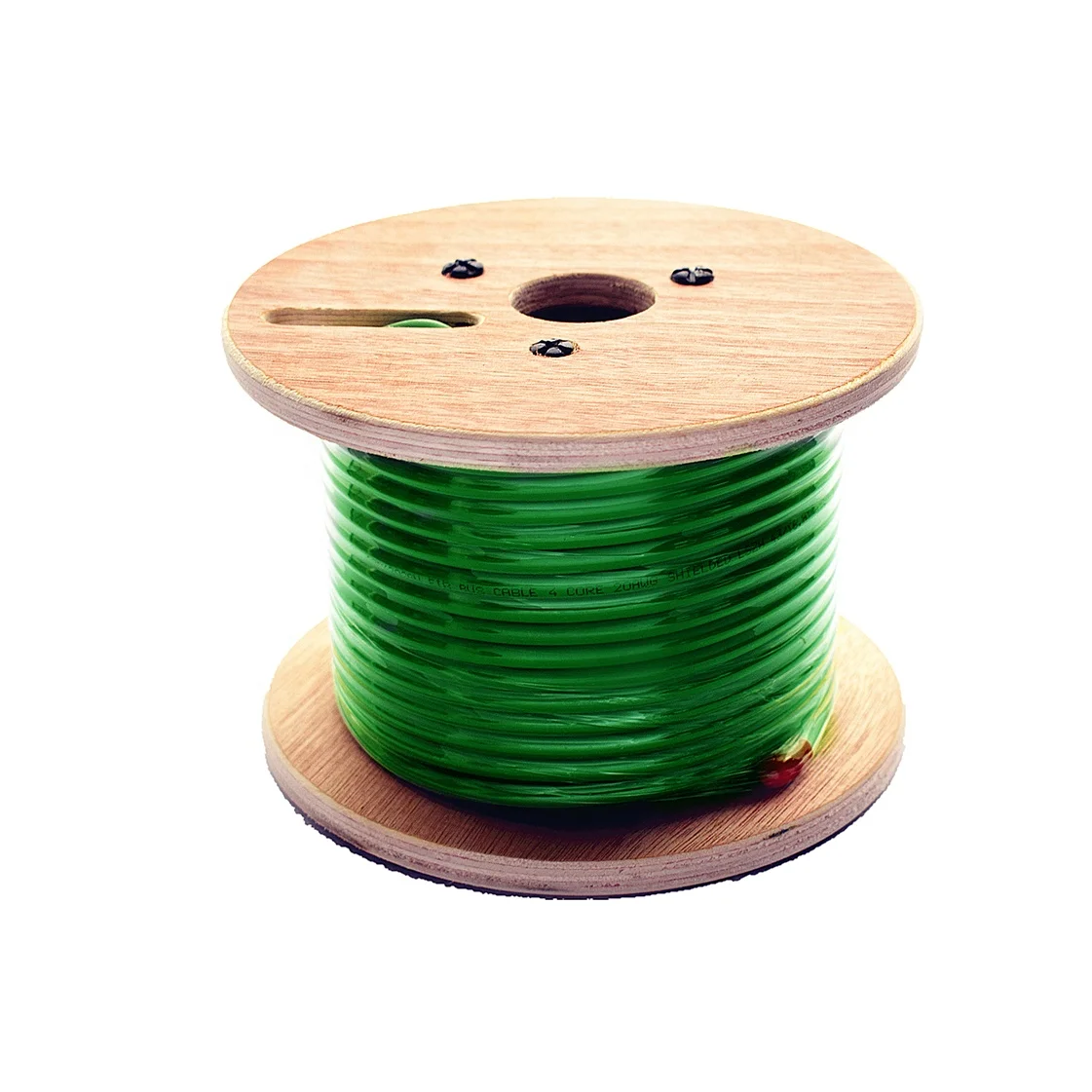

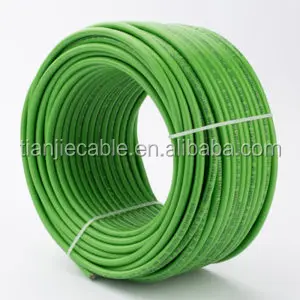

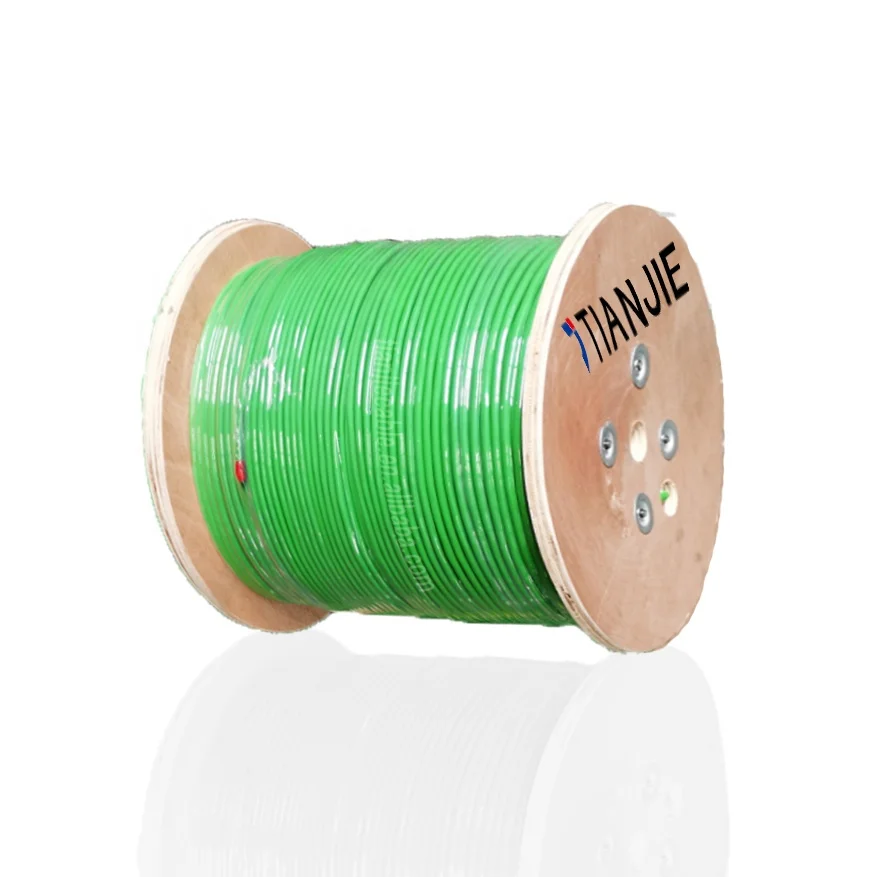

Product packaging
Products Description
KNX

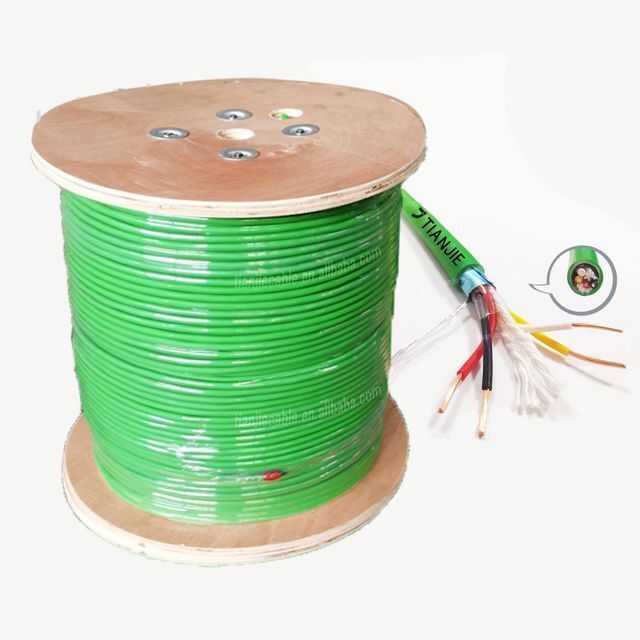

The KNX cable from TIANJIE features two twisted pairs of solid conductor with a foil screen and tinned copper drain wire in a green LSHF jacket.
It has been tested and certified as being suitable for use in KNX systems and bears the KNX logo.
Product Paramenters
Cable construction | ||
Conductor: | SOLID BARE COPPER | |
Size: | 2*2*0.8mm | |
Dielectric: | ||
Material: | HDPE | |
Dia.over Dielectric: | 1.40±0.05mm | |
Color Code: | Black&Red, Yellow&White | |
Foil Shield Coverage： | 115% Polyester Foil | |
Drain Wire: | 7*0.16±0.005mm Tinned Copper | |
Fiol Shield Coverage | 100% Single Aluminum Foil | |
Jacket: | ||
Material: | LSZH | |
Dia.over Jacket: | 6.80±0.30mm | |
Electrical Properties | ||
导体直流电阻 Conductor DC Resistance (Ω/km @ 20℃) | 37.7 | |
绝缘电阻 Insulation Resistance (MΩ·km @ 20℃) | 200 | |
工作电压 Operating Voltage (V) | 300 | |
阻燃 Flame Retardant | IEC 60332-1 | |
低烟Low Smoke Generation | IEC 61034-1&2 | |
卤素气体排放Halogen Gas Emission | IEC 60754-1&2 | |
符合RoHS compliant | YES | |
BMS - KNX Cables
KNX is an openstandard for commercial and domestic building automation. KNX devices can manage lighting, blinds and shutters, HVAC, security systems, energy management, audio video, white goods, displays, remote control, etc.
KNX evolved from three earlier standards; the EuropeanHome Systems Protocol, BatiBUS, and the European Installation Bus. It can use twisted pair, powerline, RF, or IP links. On this network, the devices form distributed applications and tight interaction is possible. This is implemented via interworking models with standardised datapoint types and objects, modelling logical device channels.
KNX systems, formerly known as EIB, allow the operation and control of heating, lighting and air condition among others to be aligned with external climate conditions or adjusted by an interface to pre-set levels.
When you are looking to buy KNX cable, look for the KNX logo. All KNX certified equipment has been tested and certified to meet this high standard and only equipment meeting this can carry the logo. This ensures the quality, reliability and guaranteed compatibility of all KNX devices and equipment.
Image representative of product style, product supplied may vary.
Our Advantages
Company Profile
Founded in 1993, Zhejiang Tianjie Industrial Corp. locates in the Green Beryl of Yangtze River Delta-Lin’ an Hangzhou,with superior location connected by convenient transportation.
With more than 300 employees including a professional R&D team of technology, and a modern standardized workshop of 33,000m³ including international advanced equipments. We are a science and technology innovated enterprise , which is specialized in designing, manufacturing and selling coaxial cables, combined fiber electrical cables, alarm and security cables, smart control cables, signal cables and other electronic communication products.
Sampling Room
After more than 27 years of pioneering and innovation, the company has been well-known at home and abroad for its technological innovation, brand quality and first-class service.
With excellent product quality, customer-satisfactory service and fast response capabilities, Tianjie Cable is exported to more than 40 countries and regions on six continents including Europe, North America, South America, Asia, Africa and Oceania, and has won widespread praise and trust from customers.
Hornors Room
The company takes professional innovation as the concept, focuses on the world, and strives to innovate and develop in the fifield of coaxial cable development and manufacturing, and wholeheartedly provide fifirst-class products and services to international and domestic customers.
* Won the Zhejiang Famous Brand Product in 2007
* Won the national key support high-tech enterprise in 2007
* Won the AAA credit of Zhejiang industrial and commercial
enterprises in 2010
* Won the national key support high-tech enterprise in 2007
* Won the AAA credit of Zhejiang industrial and commercial
enterprises in 2010
Smart Manufacturing
Zhejiang Tianjie Industrial Corp. has an enterprise technology center recognized by Zhejiang Province, an industry-leading UL bunched combustion test laboratory, and a CNAS certification laboratory.
Tianjie products are widely used in power management systems, public address and alarm systems, integrated wiring systems and other fields. Among them, the coaxial cable is the first in the industry to pass the "Made in Zhejiang" certification.
The company has authorized 43 patents and 6 invention patents.
QUALITY CONTROL
Tianjie has advanced production lines for coaxial cables, data cables, security cables, smart home cables and other production lines as well as the Internet of Things online detection system.
Set up an independent CNAS testing center, the center has advanced UL beam combustion, aging, high and low temperature, EMC electromagnetic compatibility, ROHS and other testing equipment.
Advanced testing equipment, professional testing personnel, and standardized testing methods provide a solid hardware platform for Tianjie product quality.Among them, there is currently the only UL combustion laboratory of a Chinese cable industry enterprise.
