450/750V 20x1.5mm2 Travelling Crane/Hoist Control Cable
- $1.66 / >=2 meters
- 2 meters
- Zhengzhou Hesheng Cable Co., Ltd.
- Henan, China
- Mr Jed Yuan
| Features: | Flexible, oil resistant; | Insulation Material: | PVC/NBR; |
| Rated voltage: | 300/300V 300/500V; | Application: | Hoist,Hoist; |
| Conductor Material: | Copper; | Certificate: | ISO9001; |
| Size: | 5x1.5 7x1.5 10x1.5 12x1.5 19x1.5 20x1.5; | Place of Origin: | Henan, China; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Model Number: | KVVRG; |
| Keywords: | Hoist Control Cable; | Standard: | IEC60502-1; |
| Supply Ability: | 300 Kilometers per Month; | Jacket: | PVC/NBR; |
| Brand Name: | Hesheng; | Packaging Detail: | Wooden Drum; |
| Port: | Qingdao China; |

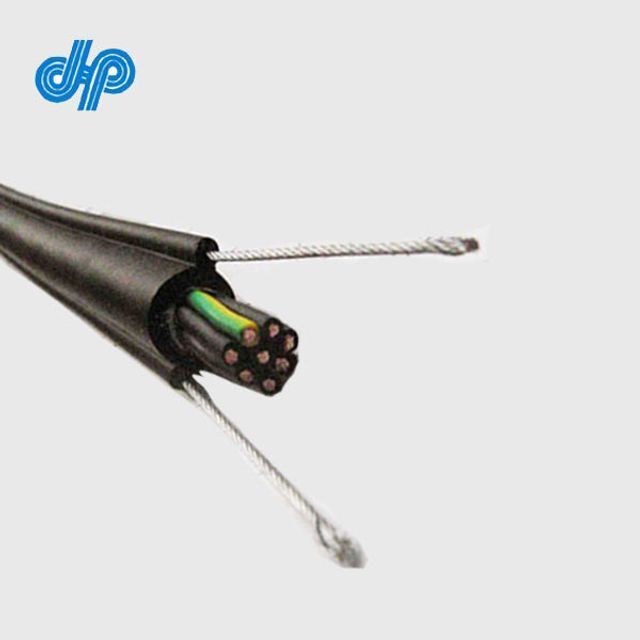

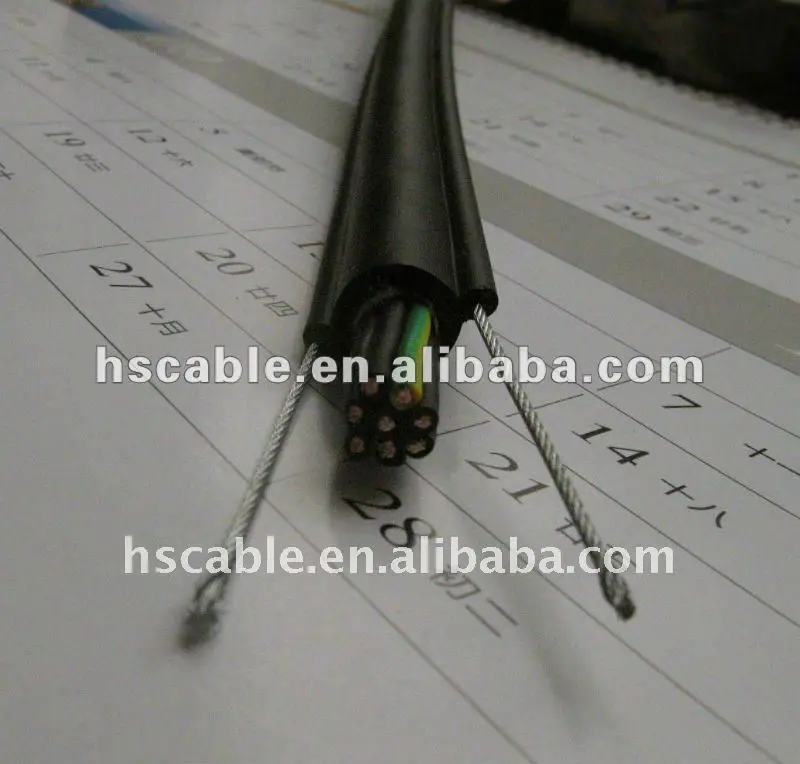

Travelling Crane/Hoist Control Cable
Special flexibility
Temperature range:-15 to +70
Bending radius :20 X outer diameter
one or two steel rope
Applications:

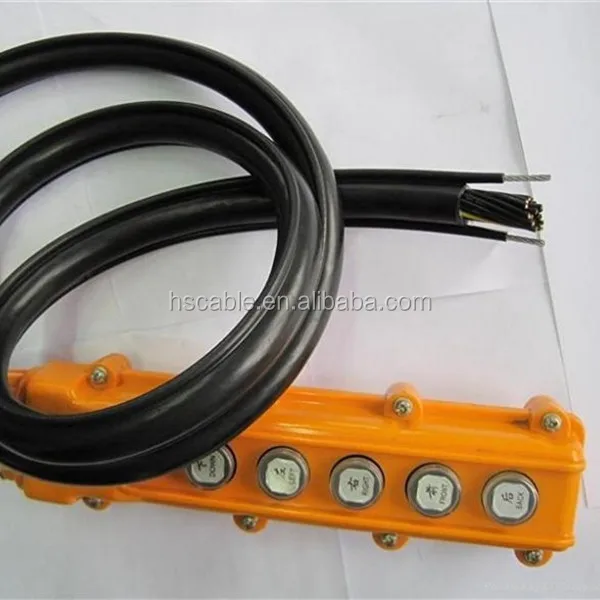

It is the control cable being used for cranes and other appliances in dry or wet indoor.
Properties:
In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4GN and the height 150m. For the adoption of modified PVC sheath,the product has an excellent properties and safty service.

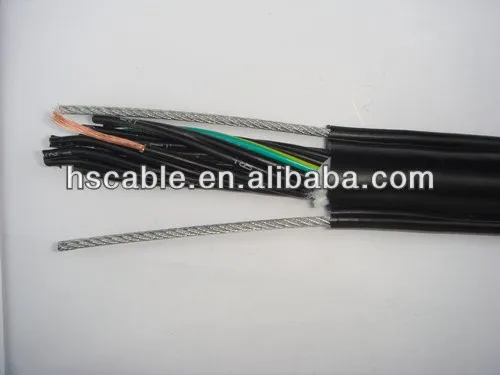

Structure:
Conductor: Fine strands of oxygen-free copper wire. According to VDE0295 CLASS 5.
Color: Various color cores with number Acc.to JISC3306
Black with white number and green/yellow acc.to IEC227
Inner liner: non-woven fabric wrapping to release impact
Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.
Outer sheath: special PVC, black (RAL9005)
|
KVVR |
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
....
