3D welding station with jigs and fixtures
- $99.00 /piece
- 1 piece
- Hebei Forward Measuring Tools Co., Ltd.
- Hebei, China
- Ms Amy Wang
| Packaging Details: | Plywood boxes | Roughness: | Ra1.6 |
| Supply capacity: | 1200 pieces per day | Hole distance: | 100±0.03 |
| Certification: | GS | brand: | forward |
| Warranty: | 1 year | payment terms: | T/T, Alibaba |
| series: | D28 | model: | 4002 |
| Gridlines: | 100*100 | Flatness: | 0.05mm/1㎡ |
| Customization support: | Processing | weight: | 450 kg |
| Material: | HT300 | Plate thickness: | 25mm |
| Origin: | Hebei | port: | Tianjin |
| Casting process: | chemical hard sand casting |

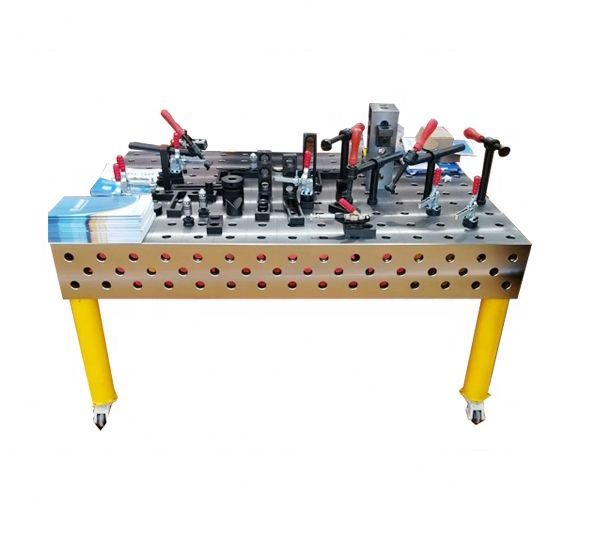

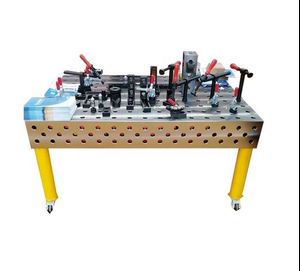

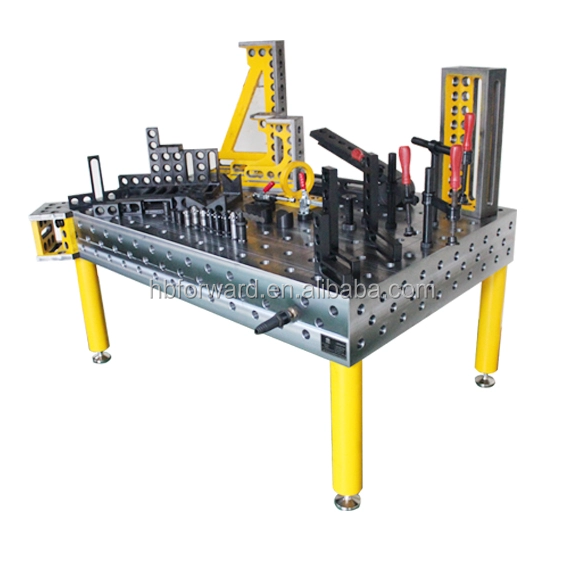

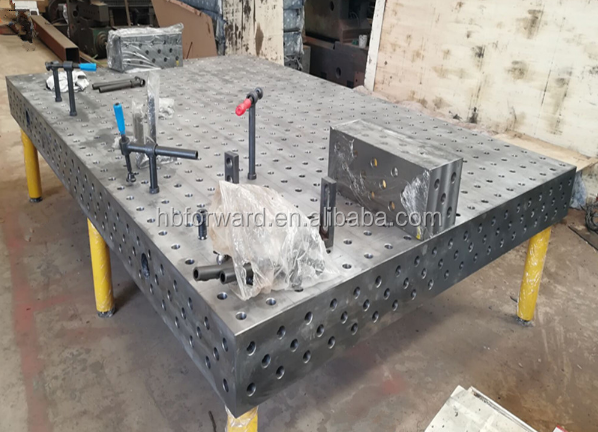

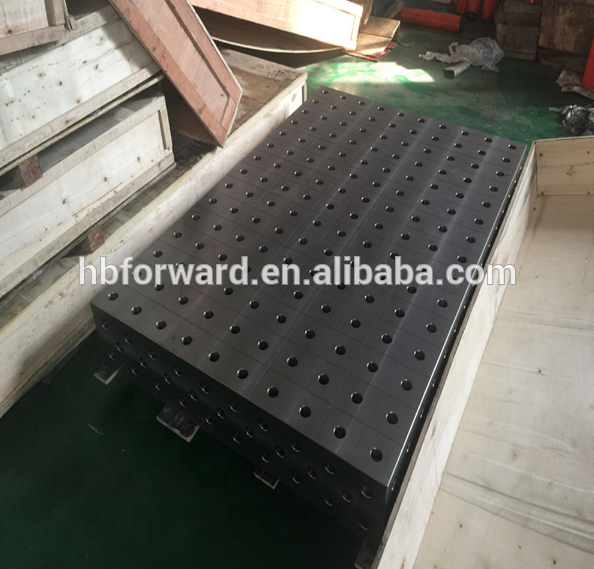

3D welding station with jigs and fixtures
3D welding table: positioning parts can be installed on five working surfaces. It can also be extended by any of its five work surfaces.

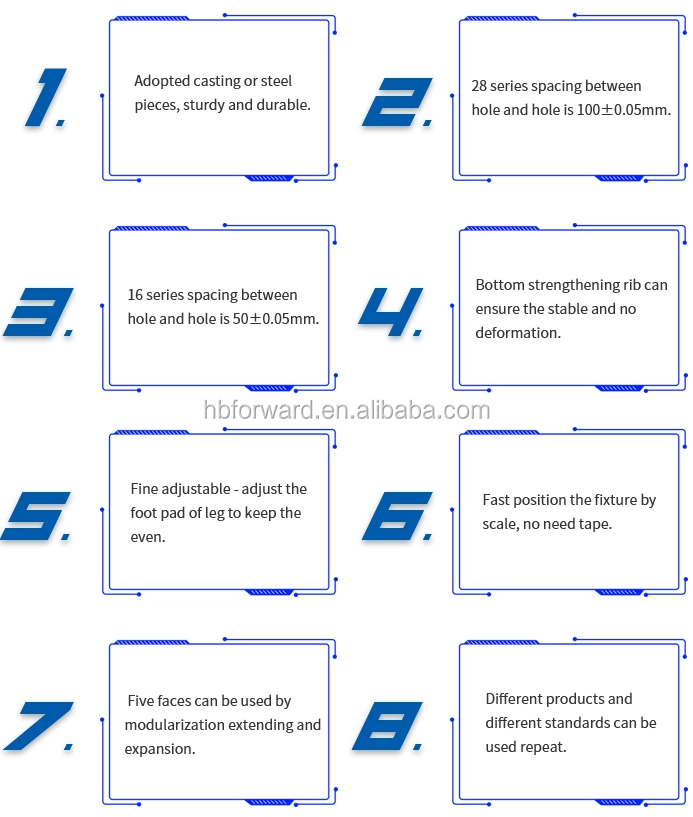

• Divided by material: steel welding workbench (Q345) and casting welding workbench (HT300).
• Divided by hole diameter: D28 series and D16 series.
Diagonal grid: D28 is 100*100mm; D16 is 50*50mm.

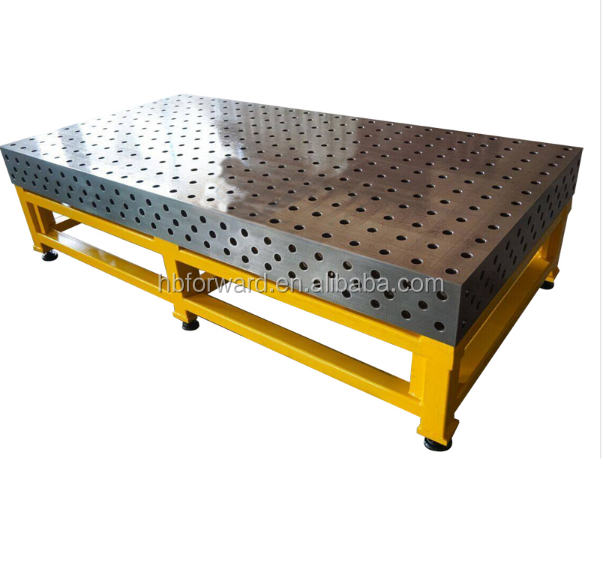

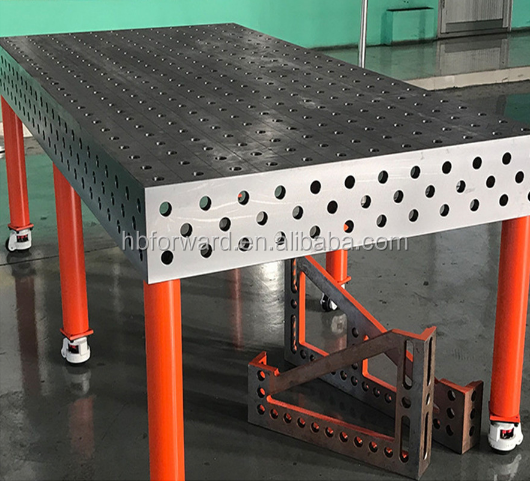

Support: outriggers, steel frames, hydraulic lift boxes as required.

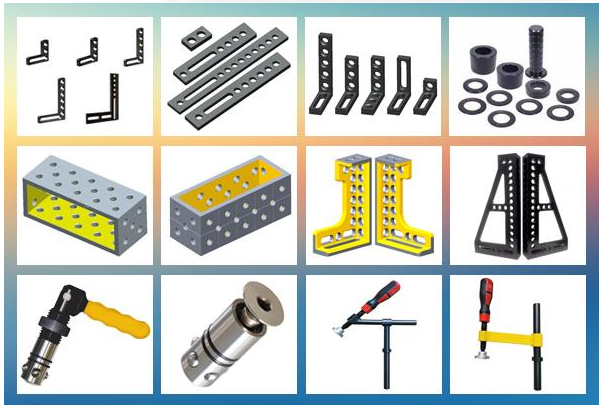

Once selected, the component can be equipped:
1. Support tools: U-shaped square box, L-shaped square box, angle support, angle gauge
2. Locating spare parts:
3. Clamping and fixing tools
4. Spare parts for locking workpieces
5. Auxiliary tools
feature:

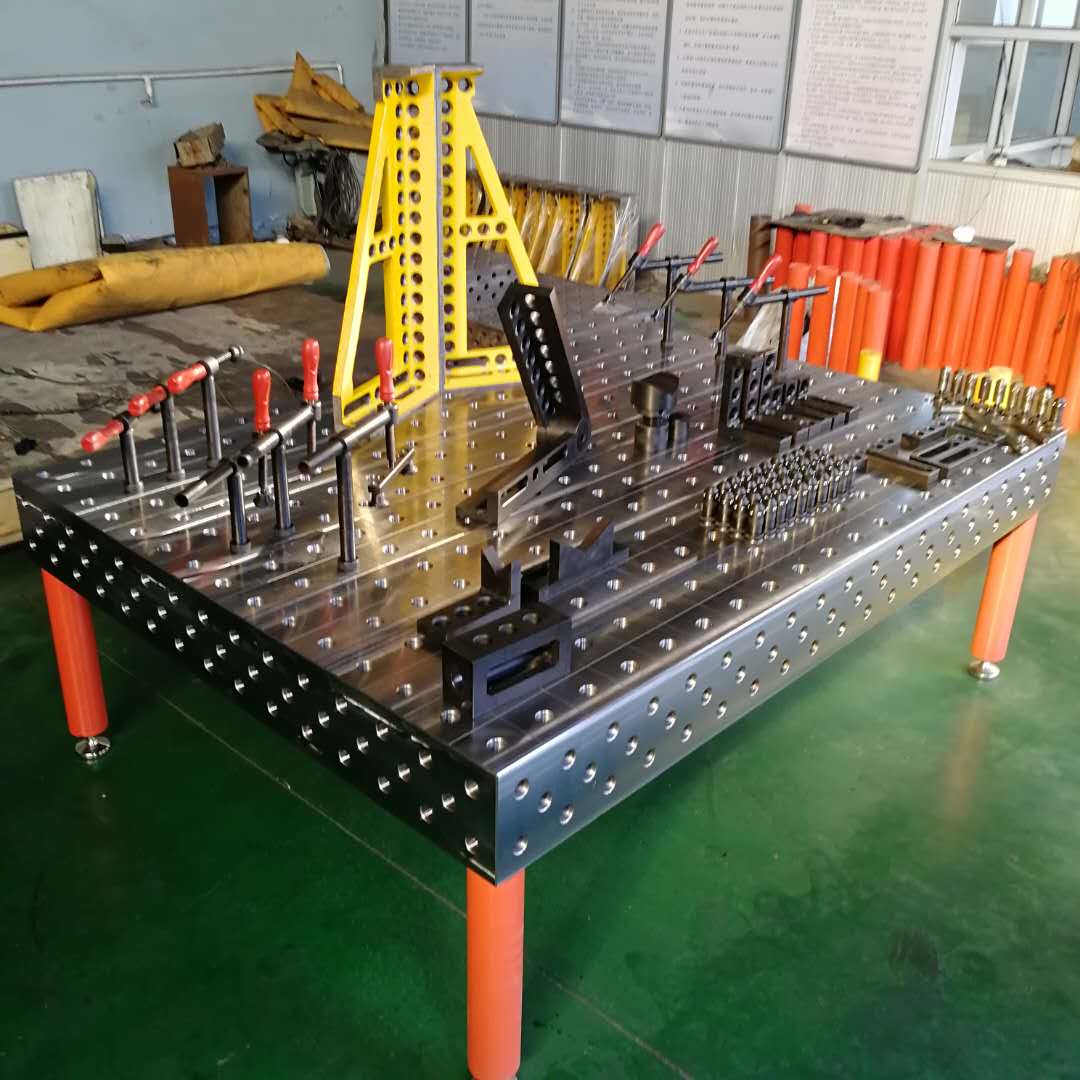

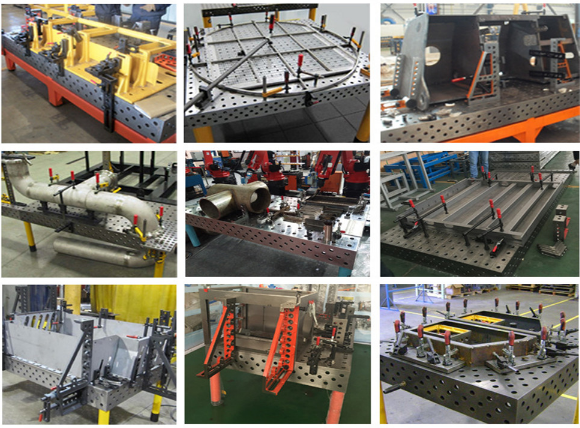

• Nearly all workpieces can be held precisely at certain points or surfaces during assembly or welding with locators, adapters, fasteners and supports.
• Inaccurate dimensions of workpieces can be adjusted during pre-machining.
• It is easy to use the existing parts in the workshop to simulate the assembly of workpieces through CAD.
