Cast iron bridge came back straight edge 1200 mm
- $116.00 /piece
- 1 piece
- Hebei Forward Measuring Tools Co., Ltd.
- Hebei, China
- Ms Amy Wang
PRODUCT DETAIL
| Payment Terms: | Western Union,T/T; | Model Number: | 3002; |
| raw material: | HT250; | Brand Name: | Forward; |
| Port: | tianjin; | Place of Origin: | Hebei; |
| certificate: | ISO9001; | Warranty: | 3month; |
| Customized support: | OEM; | size: | 1200; |
| Supply Ability: | 1200 Pieces per Day cast iron bridge ruler; | Product name: | Cast iron bridge edge ruler; |
| grade: | 1 grade; | Packaging Detail: | plywood HT200 Bridge Edge straight ruler cast iron 1000*60mm Standard Cast Iron 1 class; |
| Package: | plywood box; | Material: | HT250-350; |
| Keyword: | bridge ruler; | Shipping: | by sea or plane; |
Product Description
Detailed Images

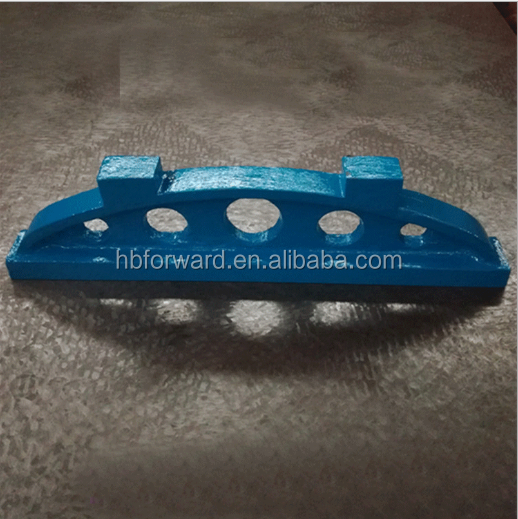

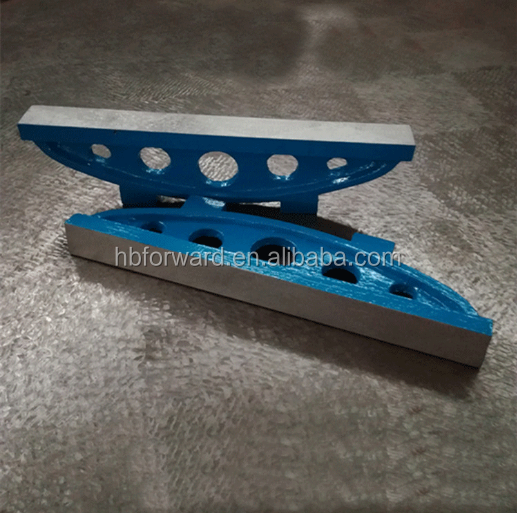

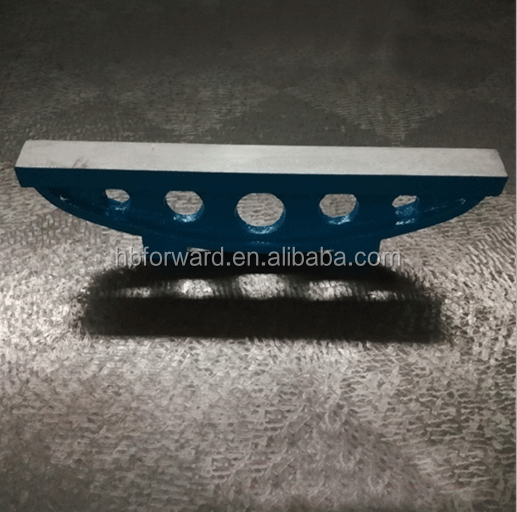

cast iron bridge/cameback straight edges 1200mm
cast iron bridge ruler
Material HT250, working surface made by skiving or precise rubbing. Used to test the straightness and flatness of workpiece and equipment installing. Working environment temperature (20 ± 5)
Type(mm) | Straightness and flatness of working surface | ||||
Precision grade ( μm) | |||||
0 | 1 | 2 | |||
500*50 | 3 | 6 | 12 | ||
750*50 | 4 | 8 | 15 | ||
1000*50 | 10 | 20 | |||
1600*70 | 15 | 30 | |||
2000*80 | 18 | 36 | |||
2500*90 | 22 | 44 | |||
3000*100 | 52 | ||||
3500*100 | 60 | ||||
4000*100 | 68 | ||||
5000*110 | 84 | ||||
6300*120 | 105 | ||||
