3MB9817 Cylinder head softening machine
- $1500.00 /set
- 1 set
- Zhengzhou Timeway Machine Tool Co., Ltd.
- Henan, China
- Mr David Cheung
PRODUCT DETAIL
| Health status: | new, new | Weight (kg): | 1000 |
| Power (W): | 1.5KW | place of origin; place of origin: | Henan, China |
| After-sales service provided: | Engineers can serve machinery overseas, online support, video technical support | Video external inspection: | if |
| weight: | 1000KG | Mechanical test report: | if |
| Dimensions (L*W*H): | 1640x1670x1920mm | After Warranty Service: | Video technical support, online support |
| Main selling point: | High security level | Warranty: | 1 year |
| Certification: | CE, ISO | Local service location: | Egypt, Italy, Peru, Russia, Morocco, Chile, Sri Lanka, South Africa, Kazakhstan, Uzbekistan |
| Core Components Warranty: | 1 year | Voltage: | as customer's request |
| Marketing Type: | New Products 2020 | Power (kW): | 1.5 |
| Supply capacity: | 1000 sets per year | Packaging Details: | Wooden case/Plywood case |
| Applicable industries: | Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Farms, Retail, Construction Engineering, Energy and Mining | CNC or not: | normal |
| Showroom location: | United States, Italy, Brazil, Peru, Mexico, Argentina, Colombia, Sri Lanka, Bangladesh, Kazakhstan, Kyrgyzstan, Uzbekistan, Australia | port: | Chinese port |
| brand: | timak | payment terms: | letter of credit, wire transfer |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |

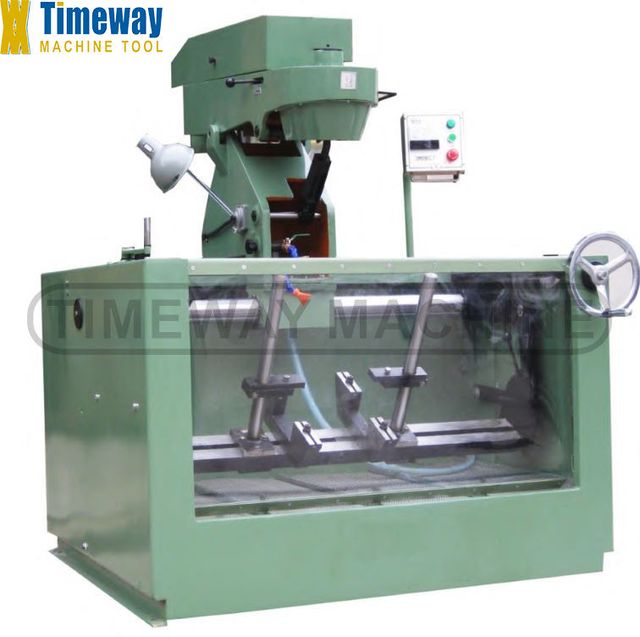

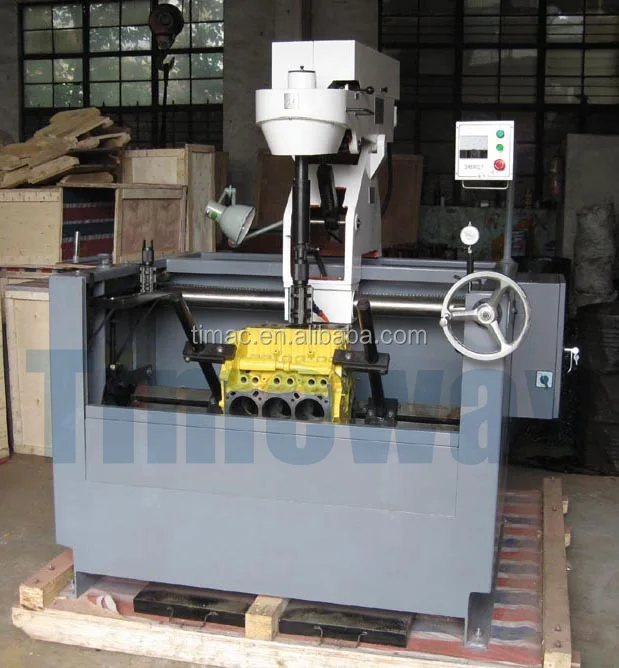

Vertical Honing Machine 3MB9817
feature:
1. This machine is mainly used for the honing of single-row engine cylinders and V-type engine cylinders of automobiles, motorcycles and tractors, and can also be used for honing of other machine tool components.
2. The machine tool table can move 0°, 30°, 45° fixture changes.
3. The machine can be easily moved up and down 0-180mm manually.
4. The reversal accuracy is 0-0.4mm.
5. Choose mesh degree 0°-90° or non-mesh.
6. Up and down reciprocating speed 0-30m/min.
7. The machine has reliable performance and widely used honing, which is easy to operate and has high productivity.
8. Good rigidity and large cutting amount.
| Specification | unit | 3MB9817 |
| maximum. Honing diameter | mm | 25-170 |
| maximum. Honing hole depth | mm | 320 |
| Spindle speed (4spets) | mm | 120,160,225,290 |
| Stork (3spets) | one/min | 35,44,65 |
| main motor power | kilowatt | 1.5 |
| Cooling pump motor power | kilowatt | 0.125 |
| Machined cavity size (LxW) | mm | 1400×870 |
| Dimensions (L×W×H) | mm | 1640×1670×1920 |
| machine weight | Kilogram | 1000 |
Packaging and Shipping
