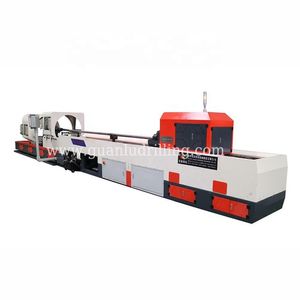

Hot selling cylinder honing machine
- $45000.00 /set
- 1 set
- Dezhou Guanlu Precision Machinery Co., Ltd.
- Shandong, China
- Ms Grace Lee
PRODUCT DETAIL
| Supply capacity: | 10 hot selling cylinder honing machines per year | Applicable industries: | Mechanical Repair Shop, Manufacturing Plant |
| Mechanical test report: | if | CNC or not: | normal |
| Core Components Warranty: | 1 year | External oil supply/internal oil supply: | 40L/min |
| Main selling point: | competitive price | Marketing Type: | normal product |
| Power (kW): | 37 | Core components: | PLC, engine, gearbox, gear |
| Honing box motor power: | 7.5Kw | Dimensions (L*W*H): | 1640*1670*1920mm |
| Video external inspection: | if | Motor Power: | 0.75Kw |
| brand: | official road | Packaging Preview: | |
| Certification: | ISO9001 | Coolant pump volume: | 600L |
| port: | Tianjin, Qingdao | Maximum depth of honing: | 12000 |
| Showroom location: | not any | Warranty: | Video technical support, 1 year |
| place of origin; place of origin: | Shandong China | service provided: | Free spare parts |
| payment terms: | letter of credit, wire transfer | Back and forth motor power: | 4.3Kw |
| Health status: | new | Local service location: | France |
| Weight (kg): | 4500 | Voltage: | customer request |
| Packaging Details: | General packaging for export shipments. |
product description
Hot selling cylinder honing machine

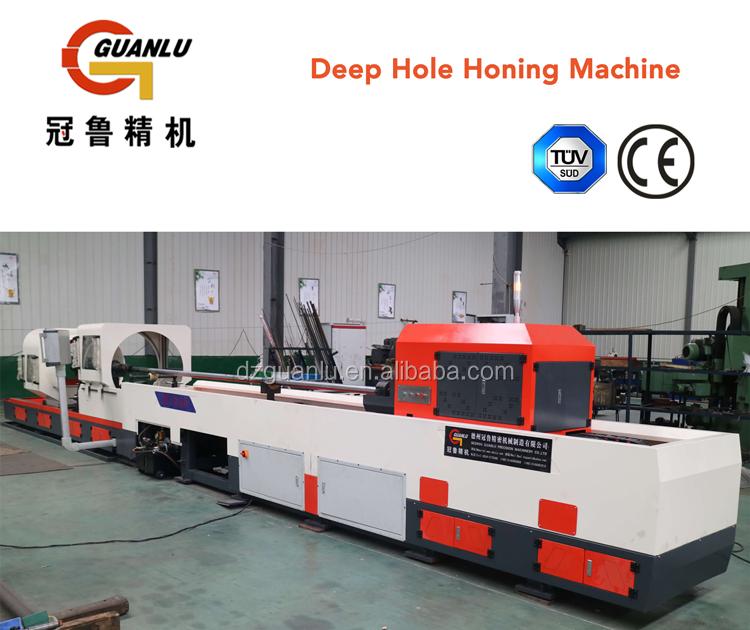

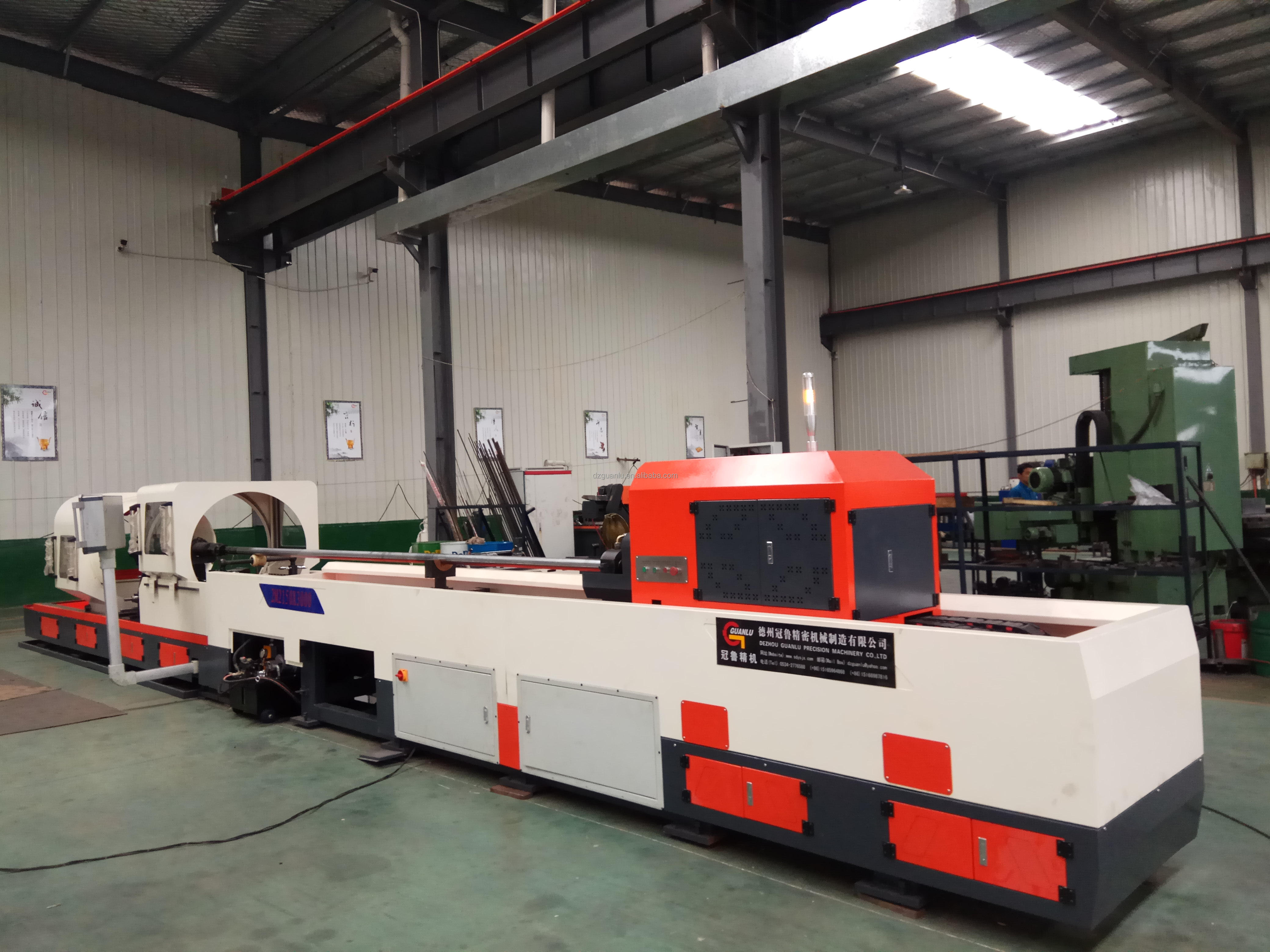

Machine features: 2M2120 deep hole honing machine is suitable for honing and polishing of cylindrical workpieces, as well as precision parts. After machining, the hole accuracy can reach IT6~IT7, and the surface roughness can reach Ra0. 2-0.4μm. Using local honing, the parts can be corrected by machining taper, ovality and local aperture errors. The honing machine is an ideal equipment with high precision and high efficiency. We use Delta PLC control, which runs smoothly and is easy to adjust the speed. It is easy to ensure hole size accuracy and reduce labor intensity. When working, the machine is honed with honing stones, and the honing stone box reciprocates to ensure efficiency.
Function list
The main parts and quantity of the machine:
Semi-automatic PET blow molding machine bottle machine bottle machine PET bottle making machine is suitable for producing PET plastic containers and bottles of various shapes.
series | Part name | unit | quantity |
1 | bed frame | put | 1 |
2 | Honing box | put | 1 |
3 | honing stick rest | put | 1 |
4 | Honing rod holder | put | 1 |
5 | Honing head frame | put | 1 |
6 | carrier | put | 1 |
7 | cooling system | put | 1 |
8 | work regular rest | put | 2 |
9 | Chip removal system | put | 1 |
10 | Electronic control system | put | 1 |
11 | Electric box | put | 1 |
12 | Accessories and Wrenches | put | 1 |
Product Specifications
Main technical parameters of the machine:
project | parameter |
Model | 2M2120*2000 |
Honing diameter range | 40-200mm |
Honing length | maximum. 2000mm |
Machine center height | 350mm |
Workpiece outer diameter range | 60-350mm |
Spindle speed range | 25-250 rpm |
Reciprocating speed range of honing box | 3-20m/min, stepless |
Honing box motor power | 7.5W, variable frequency motor |
Coolant pump flow | 100L/min |
Coolant tank volume | 950L |
Coolant pump motor power | 1.5Kw |
Reciprocating motor power | 5.5Kw |
Honing head expansion pump pressure | maximum. 4 MPa |
Honing head expansion pump motor power | 1.4Kw |
total power | 17kW |
8 | maximum. torque |
Product configuration
Sales and Service Network

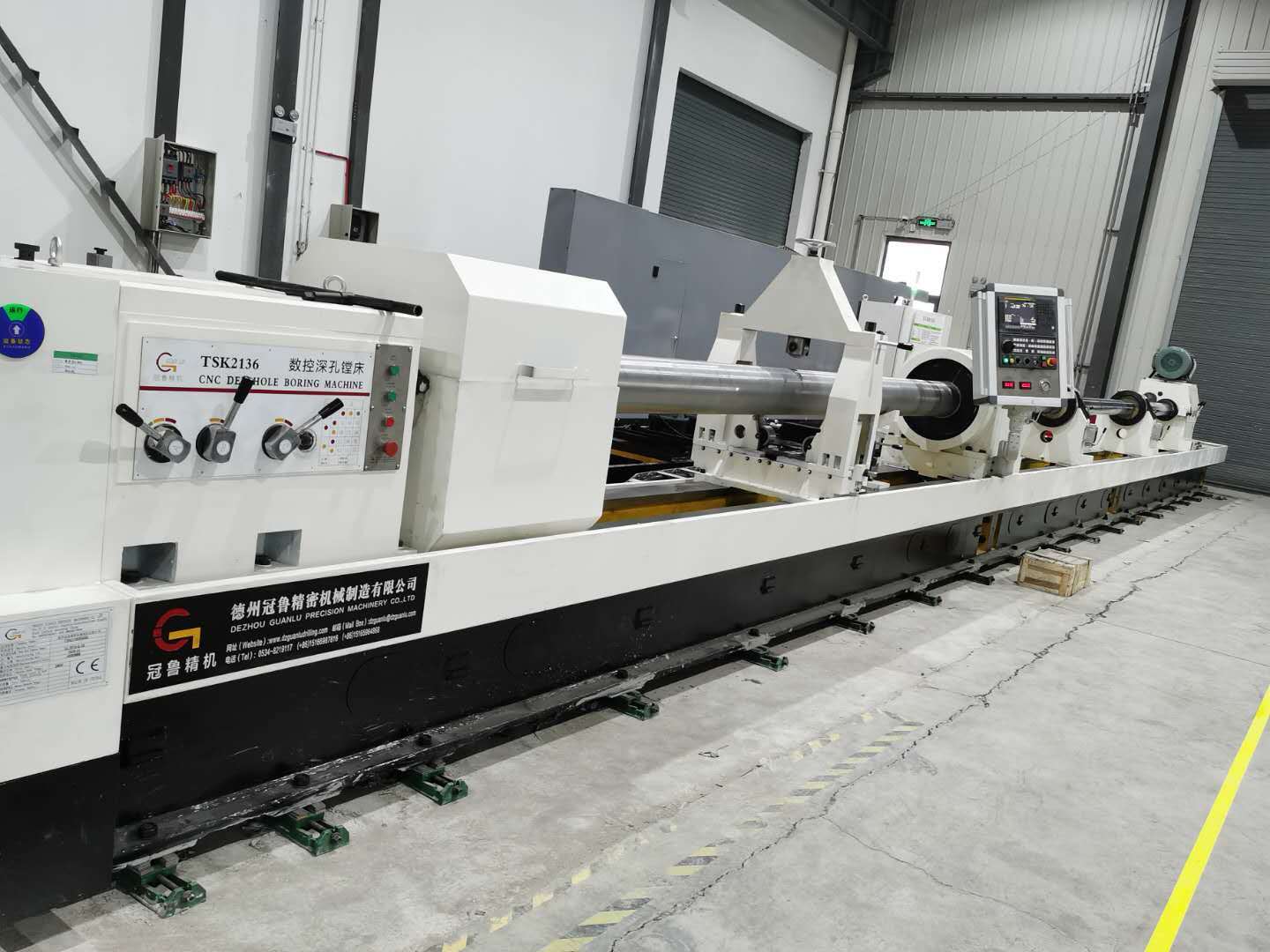

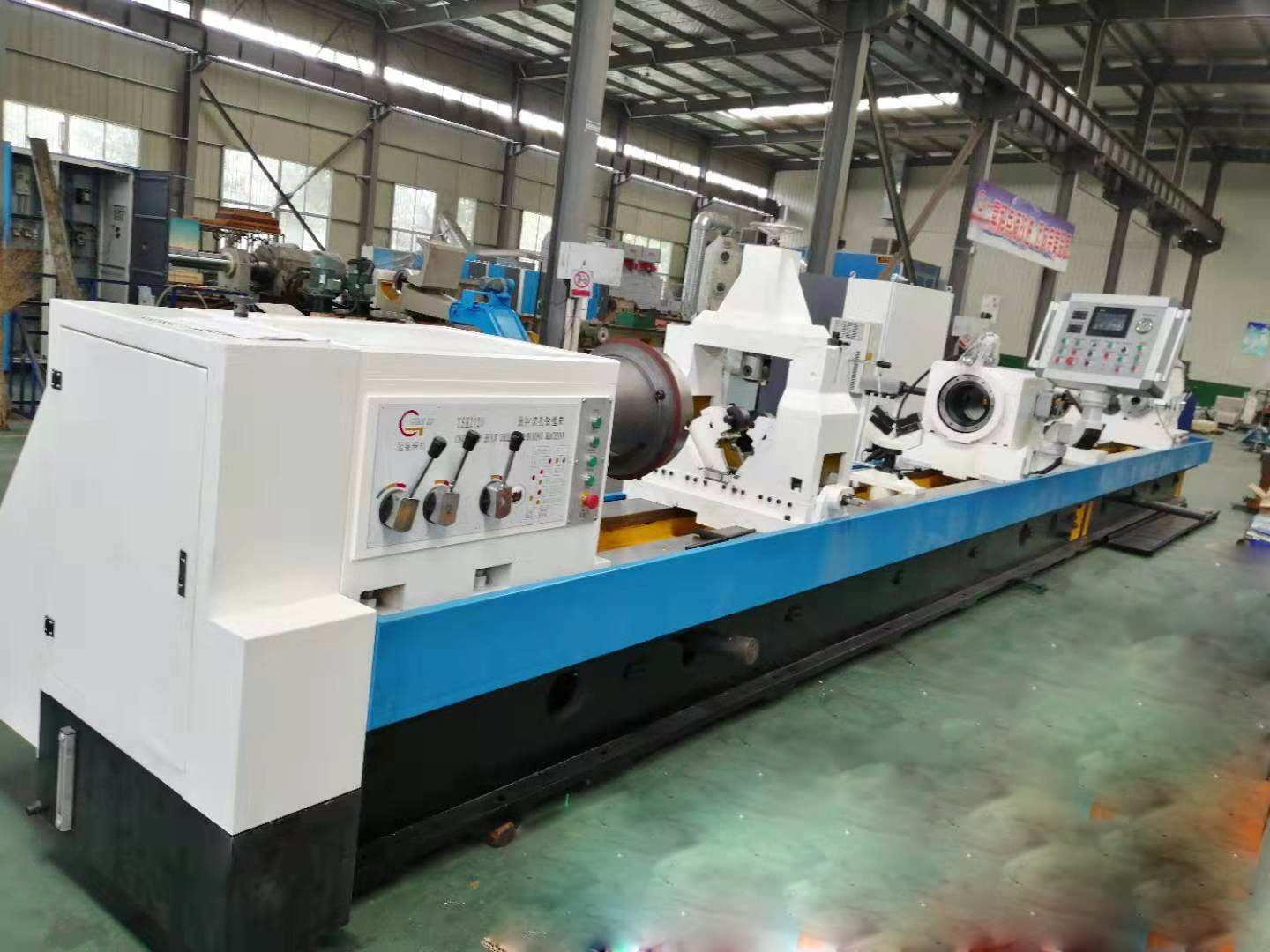

successful project
