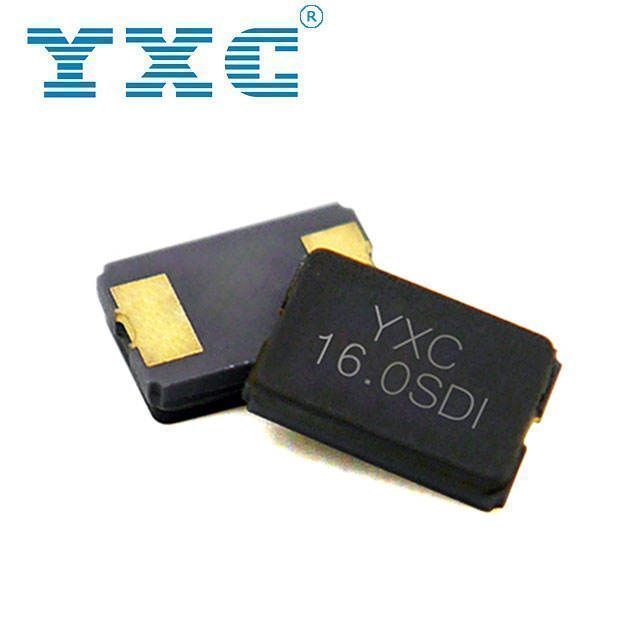

5032 SMD 2 pin 10PPM 20PF 16.000MHz Ceramic crystal resonators 16MHz
- $0.14 / 100 - 999 pieces
$0.13 / 1000 - 2999 pieces
$0.12 / 3000 - 5999 pieces
$0.11 / >=6000 pieces - 100 pieces
- Shenzhen Yangxing Technology Co., Ltd.
- Guangdong, China
- Ms Seal Xu
PRODUCT DETAIL
| stock available: | stock available | Packaging Details: | 1000pcs/roll |
| Frequency Tolerance: | ±10ppm | Operating temperature: | -40°C ~ 85°C |
| Custom frequency: | accept | type of packaging: | Mounter |
| model: | YSX530GA | Supply capacity: | 200000 pieces per month |
| product name: | Ceramic Resonator 16MHz | brand: | Yongxin City |
| Supplier type: | original factory | pack: | 2-patch |
| Aging (25'C): | ±3ppm/year | frequency: | 16.000000MHz |
| place of origin; place of origin: | Zhejiang, China | Types of: | crystal |
| Load Capacitance: | 12pF | Frequency Range: | 8-54MHz |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Factory Manufacturer: | yes |
Specification

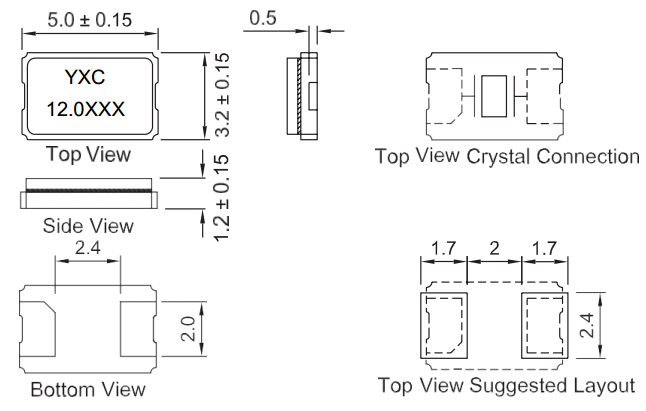

Dimensions
Electrical Specifications
item type | YSX530GA |
Nominal frequency range | 8~54MHz |
vibration mode | AT basics |
load capacitance | 12pF, 20pF or specify |
Frequency Tolerance (at 25°C) | ±10ppm, ±20ppm, or specify |
Frequency vs Temperature Characteristics | ±20ppm, or specify |
Operating temperature | -20°C ~ +70°C, -40°C ~ +85°C, or specify |
Storage temperature | -40°C ~ +85°C, or specified |
shunt capacitance | 7pF max |
driver level | 1~100 W max (10uW typ) |
Frequency aging (at 25°C) | ±3ppm/year |
Insulation resistance | Greater than 500MΩ at DC 100V |
Note: Specifications are subject to change without notice. Please confirm the PDF file with our sales engineer.
Packaging and Shipping
Shipping:
We have no shipping limit, you can specify the shipping method with your shipping account, or use our express account. us
Provide products to customers all over the world and provide technical support for customers to use our parts more
Conveniently.
Provide products to customers all over the world and provide technical support for customers to use our parts more
Conveniently.
application
