WTL 32.768KHz Quartz Crystal Fast Shipping Crystal Resonator 32.768KHz Pick Watch 32768KHz Crystal Resonator
- $0.07 / 1000 - 4999 pieces
$0.06 / 5000 - 9999 pieces
$0.05 / >=10000 pieces - 1000 pieces
- WTL International Limited
- Guangdong, China
- Mr Official WTL
PRODUCT DETAIL
| place of origin; place of origin: | Guangdong, China | Payment/Payment: | WTL2.04649ZX WA2 |
| Types of: | watch crystal unit | Load Capacitance: | 12.5pF |
| model: | 32.768KHz | Gross weight per piece: | 0.001 kg |
| Warranty: | 180-day returns worldwide | Single package size: | 1X1X1 cm |
| sample: | accepted | brand: | WTO |
| Certificate: | ISO9001, ISO14001, RoHS | frequency: | 32.768KHz, 32768KHz |
| Frequency Tolerance: | 20ppm, 20ppm | pack: | 2*6mm straight plug |
| Packaging Details: | Standard Package WTL 32.768KHz Quartz Crystal Fast Shipping Crystal Resonator 32.768KHz Pick Watch 32768KHz Crystal Resonator | Operating temperature: | 20+70'C |
| Frequency Stability: | 20ppm | range of working temperature: | 20+70'C |
| type of packaging: | dip | Frequency Range: | 30KHz~350KHz |
| Shipment: | DHL, UPS, Fedex, EMS, China Post | Sales unit: | single product |
| product name: | WTL 32.768KHz Quartz Crystal |
Product Description
Tuning fork crystal (2X6mm cylindrical crystal) | ||
thing | Specification | |
Part Number | WTL2.04649ZX | |
frequency | 32.768KHz | |
Load Capacitance (CL) | 12.5pF | |
Frequency Tolerance (at 25°C) | ± 20ppm | |
range of working temperature | -20℃+70℃ | |
storage temperature range | -55°C to +125°C | |
Shunt capacitor (C0) | 1.5pF typical | |
Driver Stage (Typical) | 1µW max | |
Aging 1st year at 25°C (maximum) | ± 3ppm, ± 5ppm/year | |

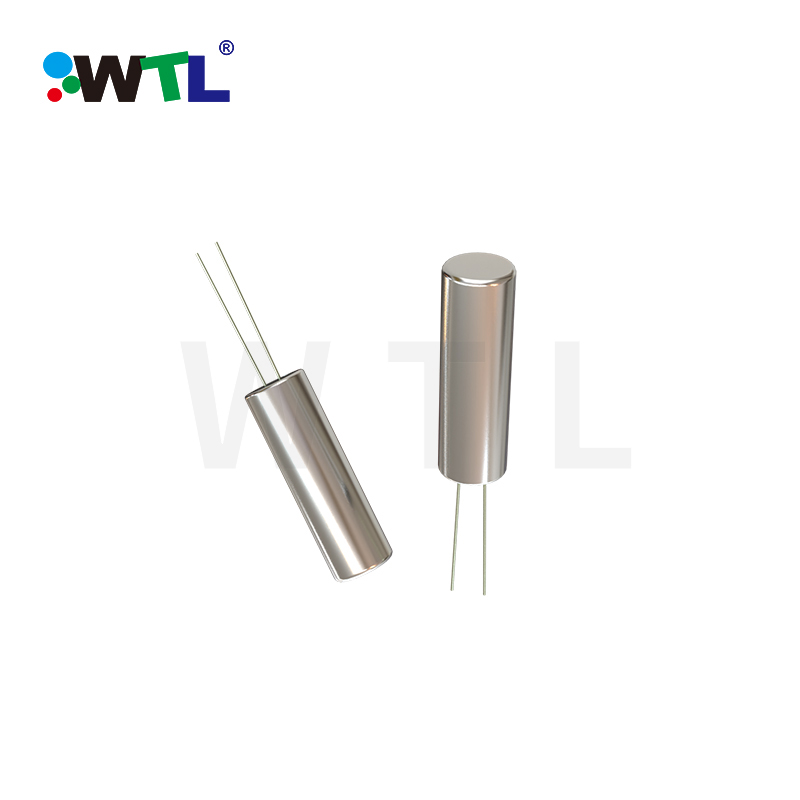

cylindrical crystal
Φ2×6 mm
feature
●Small size Φ2 x 6mm
●Wide frequency range
●Shockproof
●Excellent frequency stability
●Wide frequency range
●Shockproof
●Excellent frequency stability
