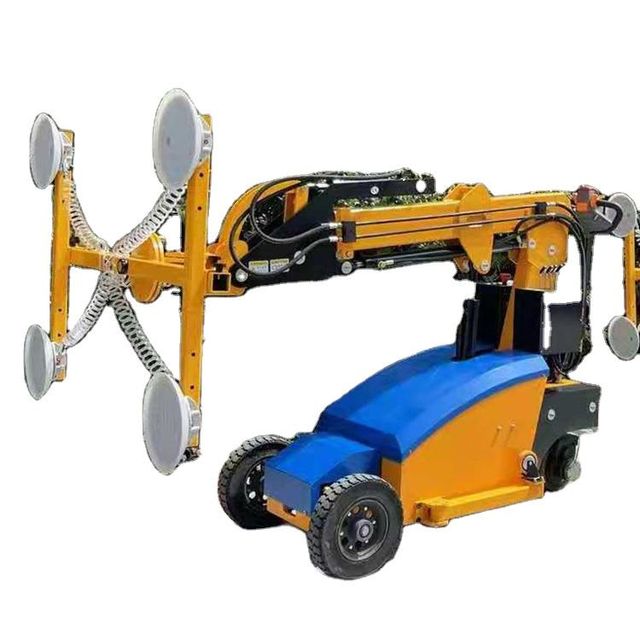

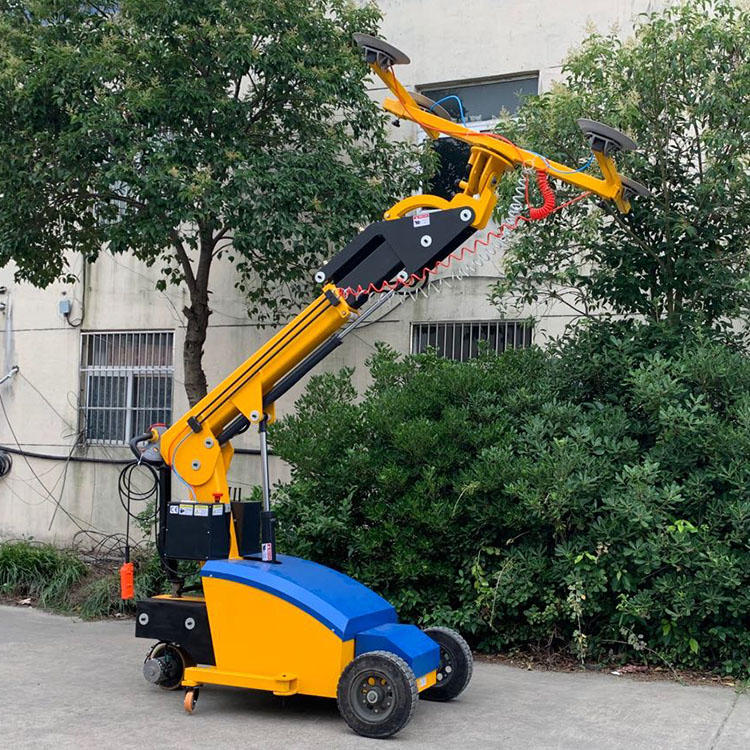

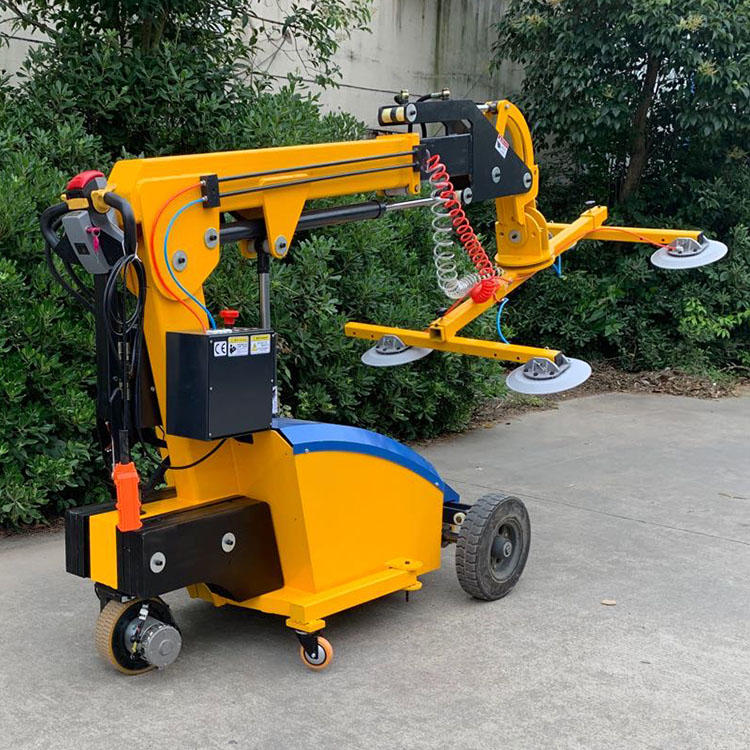

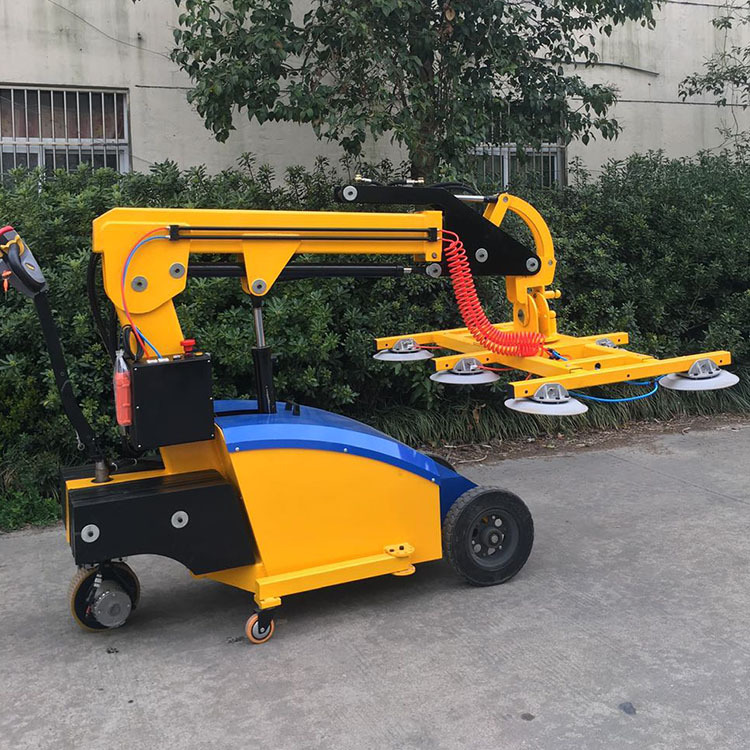

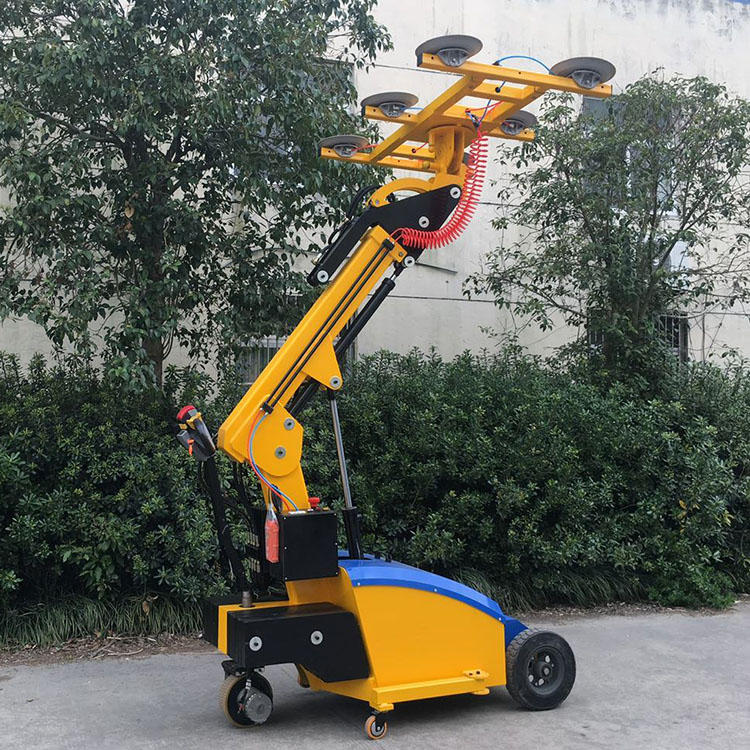

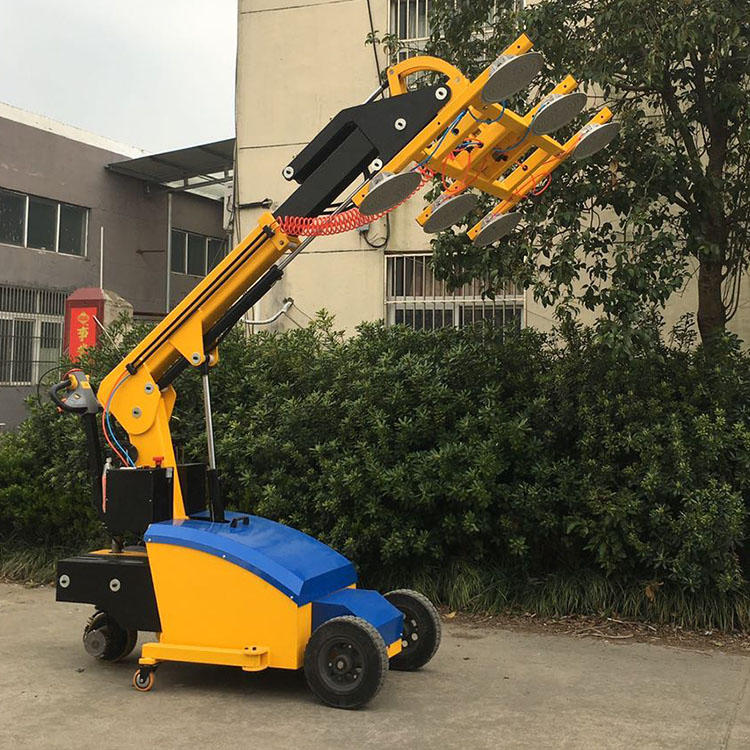

600KG Lifting Robot 8 Pump Vacuum Glass Lifting Robot AL-600 Glass Lifting Machinery with Battery for Sheet Metal
- $3380.00 / 1 - 4 sets
$3100.00 / 5 - 9 sets
$2800.00 / >=10 sets - 1 set
- Shandong Aolai Machinery Co., Ltd.
- Shandong, China
- Mr Xi Tengfei
PRODUCT DETAIL
| Key words: | vacuum suction cup | Supply capacity: | 100 sets per day |
| Health status: | new | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, construction works |
| Dimensions (L*W*H): | 2800*810*1745mm | usage: | Multipurpose use |
| type: | telescope | strength: | 2200W |
| weight: | 600 kg | payment terms: | L/C,Western Union,T/T |
| Payload: | 600kg | Core components: | Bearings, Gearboxes, Motors, Pressure Vessels, Pumps |
| place of origin; place of origin: | Shandong China | Key words: | Electric glass manipulator |
| axis: | 6 axes | Mechanical test report: | if |
| Weight (kg): | 1200 kg | product name: | Glass installation robot |
| Vertical stroke (mm): | 4.2M | Warranty: | 1 year |
| port: | Qingdao, China | brand: | proud |
| thing: | Industrial Robot Arm | Marketing Type: | New Products 2020 |
| application: | Glass Handling and Installation | Function: | glass installation |
| Packaging Details: | 1. The coil is wrapped by 8 steel strips; 2. It is wrapped with a waterproof cloth; 3. It is wrapped by 8 steel strips; 4. A wooden pallet is added. 5. According to customer requirements. | Showroom location: | Canada, USA, France, Peru, Indonesia |
| Video external inspection: | if | Core Components Warranty: | 1 year |
| Packaging Preview: | Horizontal stroke (mm): | 4.2M |
600KG Lifting Robot 8 Pump Vacuum Glass Lifting Robot AL-600 Glass Lifting Machinery with Battery for Sheet Metal

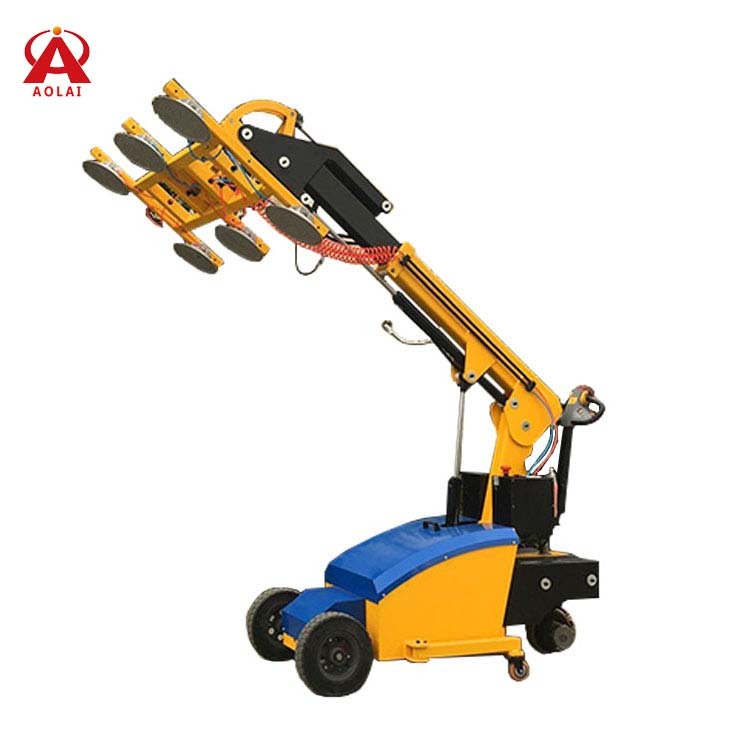

Glass installation robot

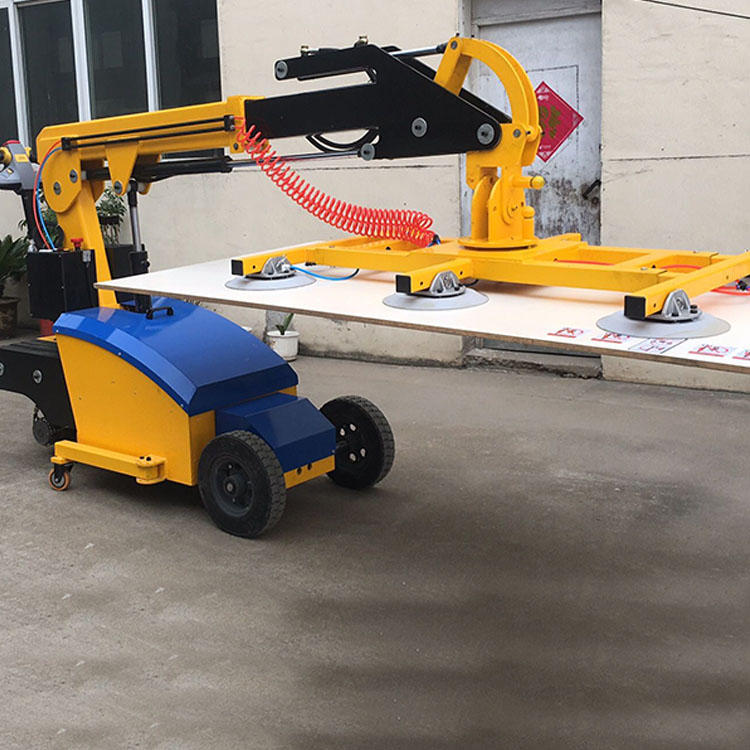

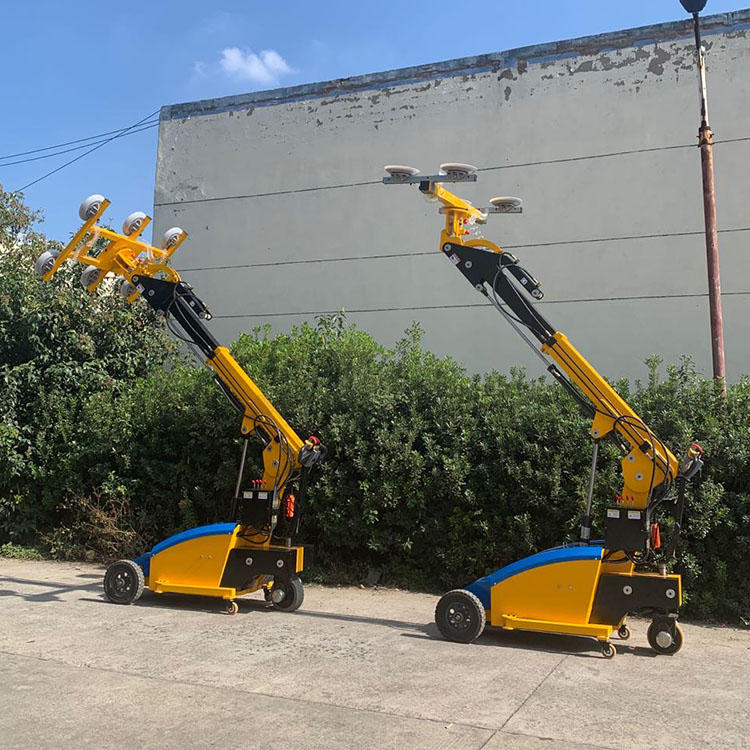

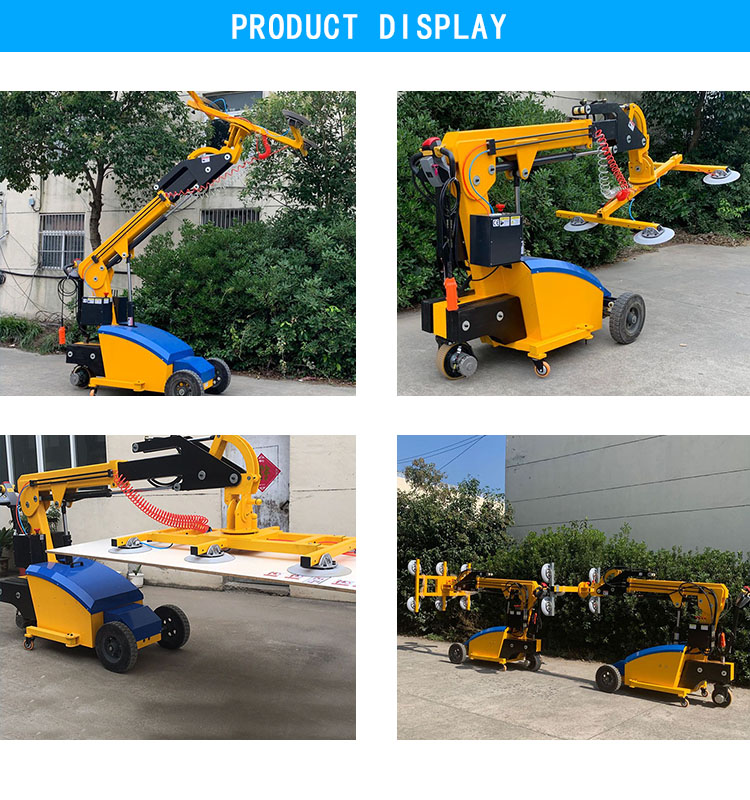

Product display
Glass installation robot

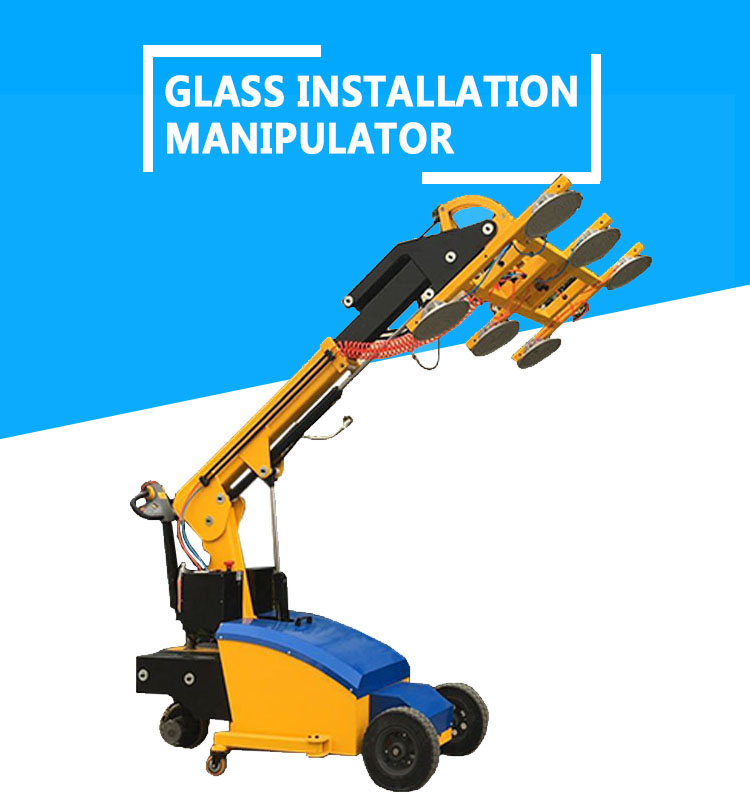

Main features of the glass installation manipulator
Using negative pressure vacuum circuit, negative pressure digital display. compared to traditional instruments
display, the sensitivity is improved. The display is more accurate and intuitive, and the glass suction is guaranteed
To a certain extent.
Equipped with low pressure alarm, negative pressure automatic replenishment, vacuum digital display
Pressure and battery gauges, allowing you to more clearly monitor the health of your equipment
Ultra-high sensitivity, including pinholes of 1/10 the size of the air leakage, can be visually displayed on the digital display.
Digital display built into operating electrical cabinet to better protect equipment from harsh engineering
environment and accidental damage. Suitable for on-site construction and installation of outdoor engineering glass
Using negative pressure vacuum circuit, negative pressure digital display. compared to traditional instruments
display, the sensitivity is improved. The display is more accurate and intuitive, and the glass suction is guaranteed
To a certain extent.
Equipped with low pressure alarm, negative pressure automatic replenishment, vacuum digital display
Pressure and battery gauges, allowing you to more clearly monitor the health of your equipment
Ultra-high sensitivity, including pinholes of 1/10 the size of the air leakage, can be visually displayed on the digital display.
Digital display built into operating electrical cabinet to better protect equipment from harsh engineering
environment and accidental damage. Suitable for on-site construction and installation of outdoor engineering glass

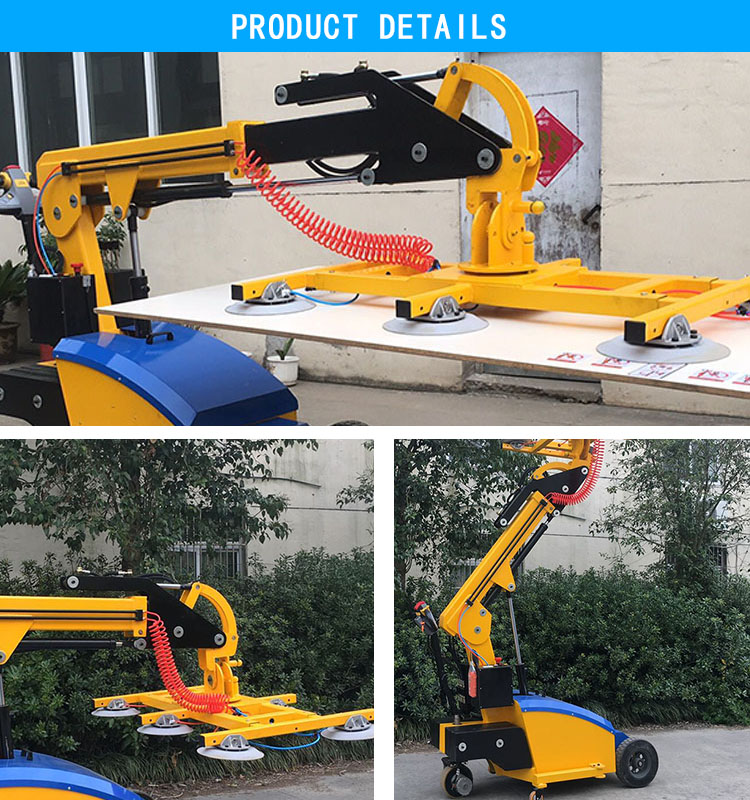

Product Details
Glass installation robot
Product Specifications
Glass installation robot | / | RYGCPD | ||||||||
Rated load capacity | Kilogram | 300 | 350 | 400 | 500 | 600 | ||||
Manual rotation | . | 360 | 360 | 360 | 360 | 360 | ||||
Lifting height | mm | 3500 | 3500 | 3500 | 3500 | 3500 | ||||
manipulate | / | walkie-talkie type | ||||||||
Battery | V/A | 2x12/80 | 2x12/90 | 2x12/100 | 2x12/120 | 2x12/120 | ||||
charger | V/A | 24/12 | 24/12 | 24/15 | 24/18 | 24/18 | ||||
motor | V/W | 24/1200 | 24/1200 | 24/1200 | 24/1500 | 24/1500 | ||||
lift motor | V/W | 24/2000 | 24/2000 | 24/2000 | 24/2200 | 24/2200 | ||||
overall width | mm | 810 | 810 | 810 | 810 | 810 | ||||
Overall length | mm | 2660 | 2660 | 2660 | 2800 | 2800 | ||||
drive wheel size | mm | 250*80 | 250*80 | 250*80 | 300*100 | 300*100 | ||||
Pad diameter | mm | 300 | 300 | 300 | 300 | 300 | ||||
glass size | mm | 3660*2440 | 3660*2440 | 3660*2440 | 3660*244 | 3660*2440 | ||||

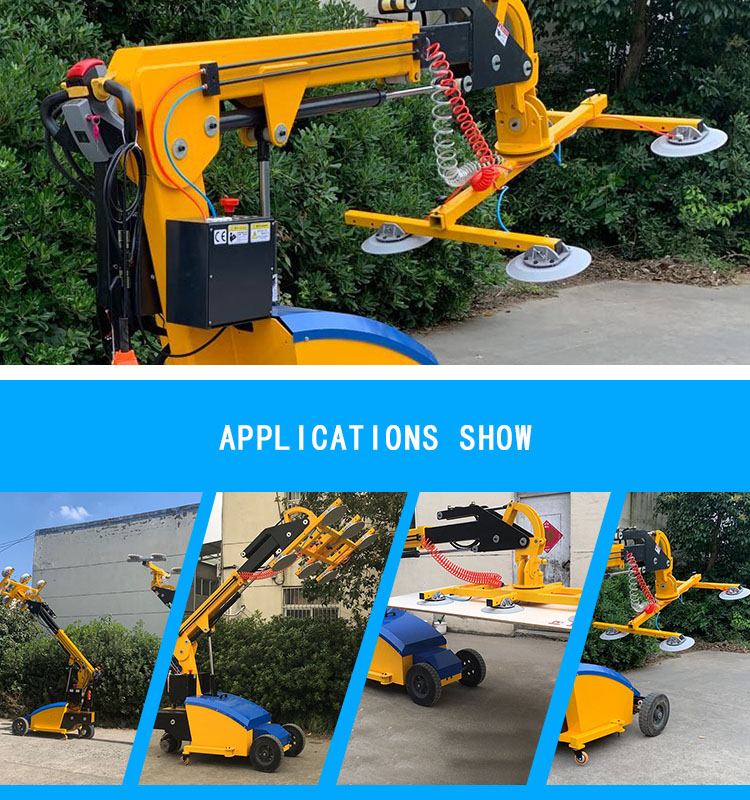

Applicable scene
