GSK RB06-900 Guangzhou CNC Robot Handling Industry General Robot Arm

PRODUCT DETAIL

Core Components Warranty:	1 year	Supply capacity:	1000 pieces per month
Applicable industries:	Building material stores, mechanical repair shops, manufacturing plants, construction works, others	port:	Shenzhen, China
Packaging Details:	carton	Mechanical test report:	Not available
Health status:	new	Warranty:	1 year
weight:	60 kg	Packaging Preview:
Weight (kg):	60 kg	Video external inspection:	Not available
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Marketing Type:	Hot Products 2022
Core components:	PLC, motor	Motion radius:	900
Drive mode:	AC Servo Drive	Payload:	6kg
place of origin; place of origin:	Guangdong, China	Showroom location:	not any
Repeatability:	±0.03mm	brand:	GlaxoSmithKline

Product Description

Widely used in logistics handling, machine tool loading and unloading, stamping automation, assembly, grinding, polishing, etc.

range of activities

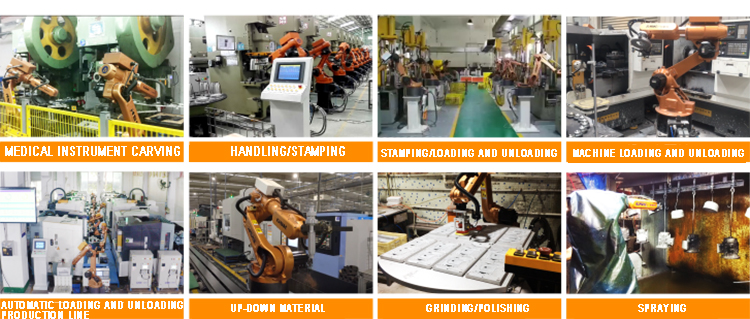

Application scenarios

technical parameter

degree of freedom			6
drive mode			AC Servo Drive
Payload (kg)			6
Repeat positioning accuracy (mm)			±0.03
range of activities	J1	±170
		J2	+135-100
		J3	+155-110
		J4	±170
		J5	±120
		J6	±360
Maximum speed	J1	337.5
		J2	270
		J3	375
		J4	300
		J5	375
		J6	468
Maximum allowable torque (NM)	J4	12
		J5	10
		J6	6
Movement radius (mm)			900
Weight (kg)			60
Note: Avoid contact with flammable, explosive, corrosive gases and liquids; Do not splash water, oil, dust; Keep away from electrical noise sources (plasma)
