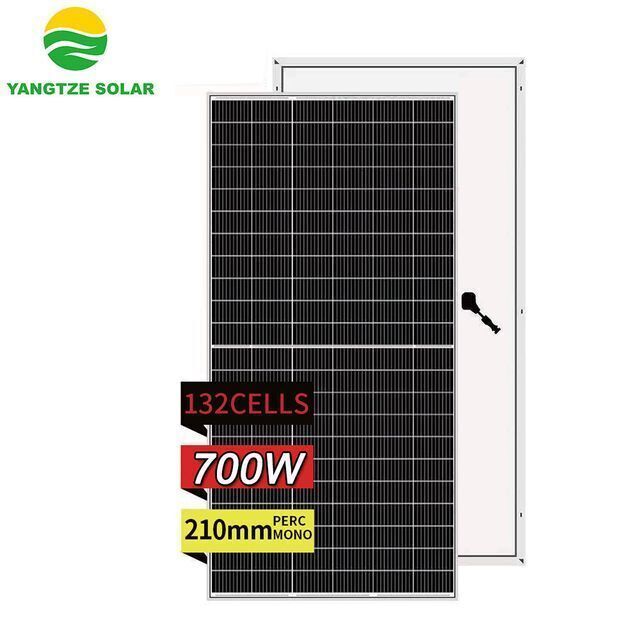

680w 690w 700w highest power best price per watt solar panel mono

Price:$0.18 /piece
Min. Order:1 piece
Supplier:Hefei Yangtze Solar Power Co., Ltd.
Region:Anhui, China
Contact:Mr William Xie

PRODUCT DETAIL

Supply Ability:	100000000 Watts per Month;	Brand Name:	Yangtze Solar;
OEM Order:	Acceptable;	Panel Dimensions:	2400130335mm;
Connector:	MC 4 Compatible Connector;	Payment Terms:	L/C,Western Union,D/P,T/T;
Backing Color:	Silvery or Black or Transparent;	Solar cell:	Mono 210*105mm;
Place of Origin:	Jiangsu, China;	Type:	solar panel mono,PERC,Half Cell,HJT;
Package Preview:	;	Warranty:	25 years;
Certificate:	TUV/IEC61215/IEC61730/CE/PID/ISO;	Model Number:	YS700M-66;
Panel Efficiency:	22.3%;	Frame color:	Silvery or Black;
Port:	Shanghai/Ningbo;	Front cover:	3.2mm High Transmission Low Iron Tempered Glass;
Frame:	Anodized Aluminium Alloy;	Junction Box:	IP68 Waterproof;
Packaging Detail:	packed by carton box and wooden pallet;	Output cable:	400mm or customized length;

Product Description

Model Type	YS660M-66	YS670M-66	YS680M-66	YS690M-66	YS700M-66
Rated Maximum Power at STC	660W	670W	680W	690W	700W
Maximum Power Voltage (Vmp)	38.38V	38.68V	38.98V	39.28V	39.58V
Maximum Power Current (Imp)	17.20A	17.33A	17.45A	17.57A	17.69A
Open Circuit Voltage ( Voc)	45.55V	45.85V	46.15V	46.45V	46.75V
Short Circuit Current (Isc)	18.45A	18.54A	18.66A	18.79A	18.92A
Module Efficiency	21.1%	21.4%	21.7%	22.0%	22.3%
Working Conditions&Working Conditions
Operating Temperature		-40°c~+85°c
Maximum System Voltage		DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse		25A
Power Tolerance		0~+5W
Temperature Coefficient of Pmax		-0.35%/°c
Temperature Coefficient of Voc		-0.29%/°c
Temperature Coefficient of Isc		+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S

♦ Founded in 1994, 300MW solar panel production capacity, millions of battery, charge controller and inverter production capacity

♦ Three factories, solar panel factory, battery factory, solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany), CE

♦ Turn-key solar systems are offered, to save time and money for the clients
♦ Rich experience in overseas construction of solar projects
