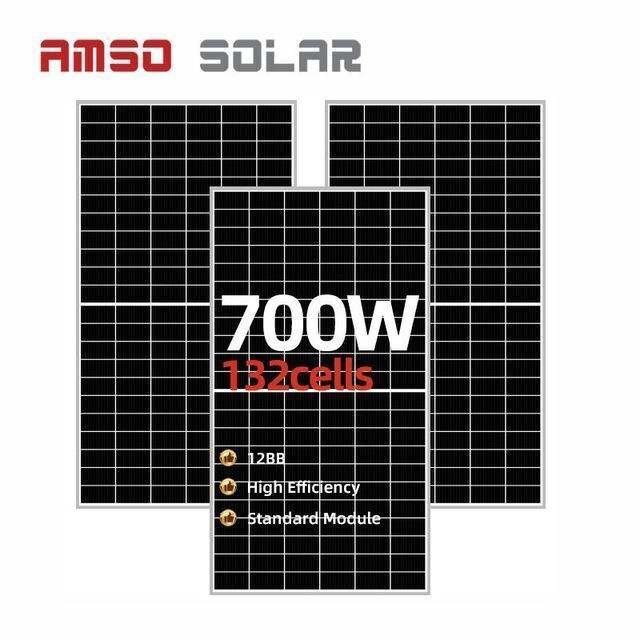

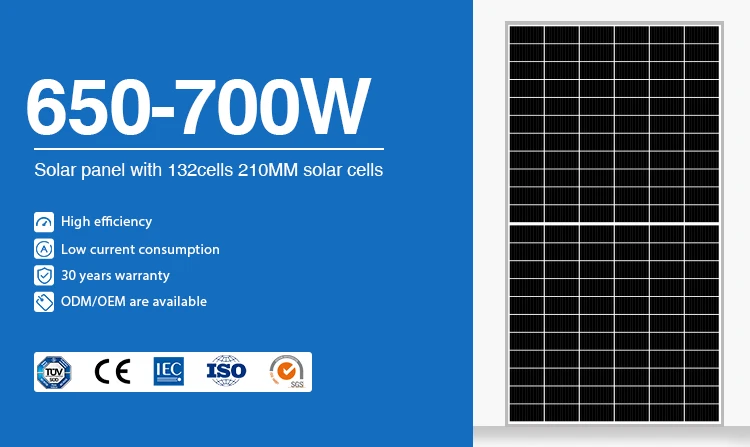

High quality 132 cell 210mm solar cell 650w 660w 670w 680w 690w 700w half cut cell solar panel for sale
- $0.23 / 700 - 499999 pieces
$0.19 / >=500000 pieces - 700 pieces
- Amso Solar Technology Co., Ltd.
- Jiangsu, China
- Ms Kelly Shen
PRODUCT DETAIL

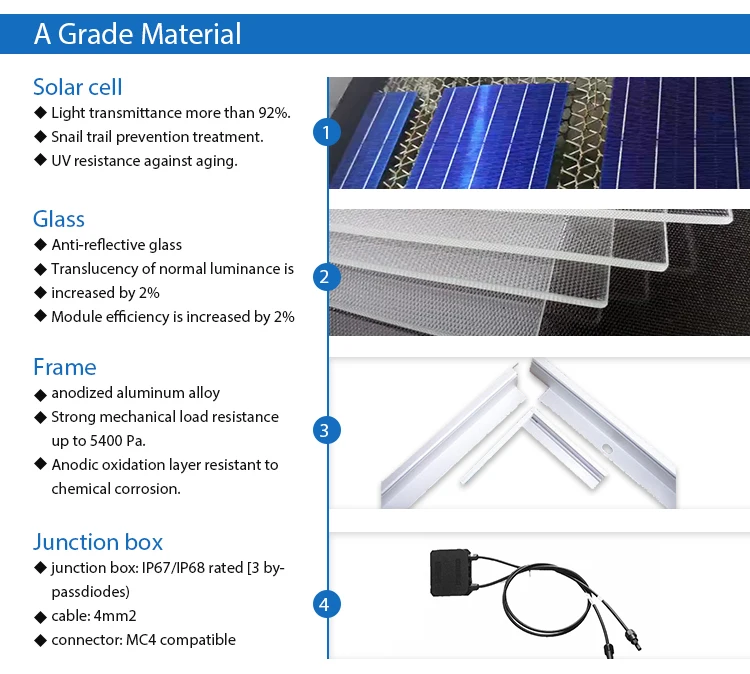

| junction box: | IP67 Rated Waterproof; | Warranty: | 25 Years,25 years; |
| Port: | shanghai; | Panel Dimensions: | 2411*1303*40mm; |
| Max. Power: | 700watt; | frame: | Anodized Aluminium Alloy; |
| Brand Name: | Amso solar; | Model Number: | AS700S9; |

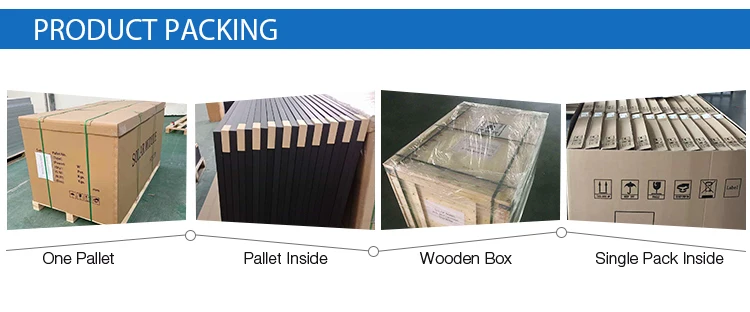

| Packaging Detail: | well packaged with carton, wood case, pallet or customization.; | Type: | Half Cell Solar Panel,PERC,Half Cell; |
| Place of Origin: | Jiangsu, China; | Keyword: | 132 cell solar panel; |
| Payment Terms: | L/C,Western Union,T/T; | Cell size: | 210mmx210mm; |
| Panel Efficiency: | 700w; | weight: | 34.5kg; |
| Front Cover: | 3.2mm Tempered Glass; | Keywords: | mono solar panel; |
| Supply Ability: | 100000 Watts per Week; | Package Preview: | ; |
| Certificate: | CE, TUV, IEC, IOS; | Connector: | mc 4 Compatible Connector; |
| Model Type | Power(W) | Number of Cells | Dimensions(MM) | Weight(KG) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) |
| AS650S9 | 650 | 132 | 2411*1303*40 | 34.5 | 37.9 | 17.15 | 45.5 | 18.32 |
| AS660S9 | 660 | 132 | 2411*1303*40 | 34.5 | 38.0 | 17.37 | 45.6 | 18.32 |
| AS670S9 | 670 | 132 | 2411*1303*40 | 34.5 | 38.1 | 17.59 | 45.7 | 18.33 |
| AS680S9 | 680 | 132 | 2411*1303*40 | 34.5 | 38.2 | 17.80 | 45.8 | 18.56 |
| AS690S9 | 690 | 132 | 2411*1303*40 | 34.5 | 38.3 | 18.02 | 45.9 | 18.79 |
| AS700S9 | 700 | 132 | 2411*1303*40 | 34.5 | 38.4 | 18.23 | 46.0 | 19.02 |
| Standard test conditions:measured values(atmosphiric mass AM.5,irradiance 1000W/m2,battery temperature 25℃) | ||||||||
| Temperature rating | ||||||||
| Rated battery operating temperature | 45±2℃ | |||||||
| Maximum power temperature coefficient | -0.4%/℃ | |||||||
| Open circuit voltage temperature coefficient | -0.29%/℃ | |||||||
| Short circuit current temperature coefficient | -0.05%/℃ | |||||||
| Limit parameter | ||||||||
| Operating temperature | -40-+85℃ | |||||||
| Maximum system voltage | 1000/1500VDC | |||||||
| Maximum fuse rated current | 25A | |||||||
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
| FOB | |||||
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
| CIF | |||||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
| West Union | Amount lower than 5000usd | ||||
| Delivery Time | 7-10 working days after receiving payment (should be decided according to quantity) | ||||
