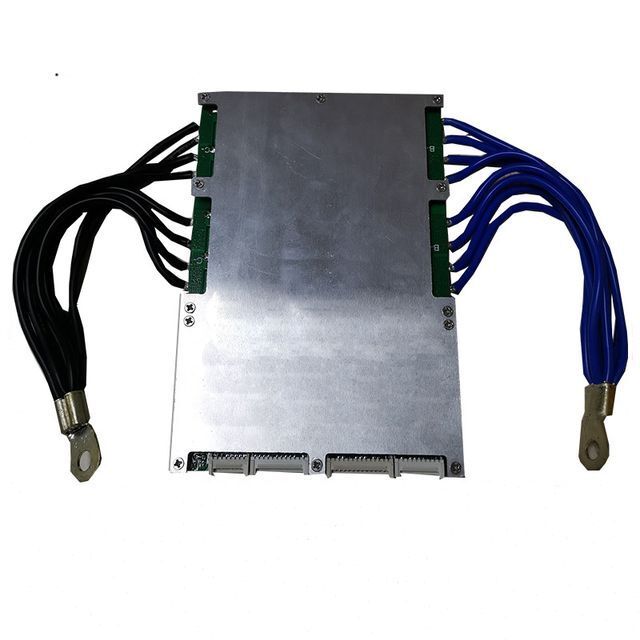

ANT 10~24S 70A 100A 200A 300A 450A Smart BMS Circuit Protection with BT
- $64.64 / >=2 pieces
- 2 pieces
- Hunan XiaoLithium Technology Limited
- Hunan, China
- Mr Alan Ren
PRODUCT DETAIL
| Packaging Detail: | 1 piece per opp bag, Safe carton pack; | Copper Thickness: | 1oz; |
| Port: | shenzhen; | Charging Current: | 50A; |
| Min. Line Spacing: | 0.15mm; | Base Material: | FR4; |
| Balance Current: | 200mA; | Surface Finishing: | Oxidation,HASL; |
| Weight: | 450g; | Min. Hole Size: | 0.25mm; |
| With Balance Function: | Yes; | Payment Terms: | Western Union,T/T,Paypal; |
| MOQ: | 2PCS; | Model Number: | ANT 10-24S; |
| Brand Name: | Xiaolithium; | Place of Origin: | Hunan, China; |
| Series: | 10~24S; | Supply Ability: | 1000000 Pieces per Month; |
| Board Thickness: | 0.4mm,17mm; | Product name: | ANT BMS 10~24S; |
| Min. Line Width: | 0.15mm; | Suitable Battery: | Li-ion Lipo Lifepo4 LTO Lithium; |
Products Description
ANT 10~24S 70A 100A 200A 300A 450A Smart BMS Circuit Protection with BT | ||||||||
Single cell voltage detection range 1V-4.6V. High precision detection cell voltage error is less than 5MA
Charging current: 50A
Discharge current: 70A 100A 150A 200A 300A to choose
Balance current :200MA . Controlled balance mode, when the charging is started, the voltage difference can be detected by the detected voltage difference to be greater than the set value.
High-precision coulomb counter function temperature control detection Hall speed measurement
BT connection : support for android & IOS phone
Support cells :Support Li-ion , Lipo , 18650, Lifepo4 , LTO and so on
Voltage accuracy :Single cell voltage detection range (1.5-4.6V), so support a variety of cell use, accuracy error within 3 mV
Drop wire protection :detect wire not weld well and cause the voltage is wrong.balance wire drop cell protection
Overcharge protection: Connect to BT to set high-precision detection voltage, single overcharge protection and total
voltage overvoltage protection
Over discharge protection : Connect BT to set up high-precision detection voltage, single-cell over-discharge protection and total voltage under-voltage protection
Short circuit protection: Can be connected to BT to set the short circuit protection value, change to 0 is turn off short circuit protection
Overcurrent protection: can be connected to BT to set up the overcurrent protection value (maximum 300A)
Current detection: within the current range of the purchased protection board
Temperature control protection: The protection board has built-in balanced temperature control, power temperature, and can be connected with 4 temperature controls to prevent high temperature danger.
Balance current: 200 mA, high voltage versus low voltage discharge balance
Discharge current: refer to the current in the purchase selection as the peak discharge current
Coulomb counter: compensation 1-24S battery connection between the chip resistance is too long, causing the wire resistance to be too large, the cell voltage is too large during the charging and discharging, can not be used normally
Connection internal resistance: based on current to time scoring, accurately calculate the remaining battery capacity and charging current
Charging current: 50A
Discharge current: 70A 100A 150A 200A 300A to choose
Balance current :200MA . Controlled balance mode, when the charging is started, the voltage difference can be detected by the detected voltage difference to be greater than the set value.
High-precision coulomb counter function temperature control detection Hall speed measurement
BT connection : support for android & IOS phone
Support cells :Support Li-ion , Lipo , 18650, Lifepo4 , LTO and so on
Voltage accuracy :Single cell voltage detection range (1.5-4.6V), so support a variety of cell use, accuracy error within 3 mV
Drop wire protection :detect wire not weld well and cause the voltage is wrong.balance wire drop cell protection
Overcharge protection: Connect to BT to set high-precision detection voltage, single overcharge protection and total
voltage overvoltage protection
Over discharge protection : Connect BT to set up high-precision detection voltage, single-cell over-discharge protection and total voltage under-voltage protection
Short circuit protection: Can be connected to BT to set the short circuit protection value, change to 0 is turn off short circuit protection
Overcurrent protection: can be connected to BT to set up the overcurrent protection value (maximum 300A)
Current detection: within the current range of the purchased protection board
Temperature control protection: The protection board has built-in balanced temperature control, power temperature, and can be connected with 4 temperature controls to prevent high temperature danger.
Balance current: 200 mA, high voltage versus low voltage discharge balance
Discharge current: refer to the current in the purchase selection as the peak discharge current
Coulomb counter: compensation 1-24S battery connection between the chip resistance is too long, causing the wire resistance to be too large, the cell voltage is too large during the charging and discharging, can not be used normally
Connection internal resistance: based on current to time scoring, accurately calculate the remaining battery capacity and charging current
Products Show
Then start from the black wire and start from the first white wire from right to left to the first cell, second cell, third cell
of the battery and so on, and connect to the positive electrode of each cell in sequence. The minimum number of cells to be connected is 8S, and the batteries of less than 32S are not left empty. After connecting, use a multi-meter to measure the voltage on the plug row. There is no problem to confirm that the voltage is correct before plugging into the protection board The same wire is connected to a red wire, regardless of its color), note that the last red wire on the third and last socket is B + which supplies power to the protection board. It is connected to the cable of the last cell of batteries. That is to say, two wires need to be connected to the bms on the last positive pole of the battery. There is a hole behind the last red wire of the third socket and B + is redundant. You can leave it alone. Other instructions are the same as the 24S protection board.
of the battery and so on, and connect to the positive electrode of each cell in sequence. The minimum number of cells to be connected is 8S, and the batteries of less than 32S are not left empty. After connecting, use a multi-meter to measure the voltage on the plug row. There is no problem to confirm that the voltage is correct before plugging into the protection board The same wire is connected to a red wire, regardless of its color), note that the last red wire on the third and last socket is B + which supplies power to the protection board. It is connected to the cable of the last cell of batteries. That is to say, two wires need to be connected to the bms on the last positive pole of the battery. There is a hole behind the last red wire of the third socket and B + is redundant. You can leave it alone. Other instructions are the same as the 24S protection board.
Recommend Products
Applications
Why Choose Us
Packing & Shipping
About us
Hunan XiaoLithium Technology Limited was located in Changsha City. We focus on designing, researching and developing,
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
These products are widely used on Electric Bikes, Electric Tricycle, Electric Scooter, Sweeper, Logistics Sorting
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Our company promises: The product quality is safe and reliable,Reasonable price, Fast delivery time and satisfactory after-sales service. Welcome to contact with us!
FAQ
1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connectionport, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
