API Oil Pump mechanical slip tube clamp
- $1500.00 / >=5 pieces
- 5 pieces
- Dongying Zhaoxin Industry And Trade Co., Ltd.
- Shandong, China
- Mr Frank Xiang
| Package preview: | model: | 115 | |
| Key words: | YouTube catcher | Minimum number: | 62-90 |
| port: | Qingdao/Beijing/Shanghai/Tianjin | Showroom location: | not any |
| Health status: | new | size: | 5-1/2",6-5/8",7",9-5/8" |
| Core components: | Tubing anchor | Name: | Tubing anchor |
| Connection thread: | 3-1/2 EU | After-sales service provided: | free spare parts |
| Applicable industries: | Energy and Mining | Operating temperature: | 180 degrees Celsius |
| Supply capacity: | 50 pieces per month | Packaging Details: | wooden box |
| payment terms: | wire transfer | type: | TAC, tubing anchor |
| Core component warranty: | 1 year | Maximum outer diameter: | 114-198 |
| Warranty: | 1.5 years | Video shipment inspection: | if |
| Material: | 4140 | Mechanical test report: | if |
| brand: | zx | Marketing Type: | normal product |

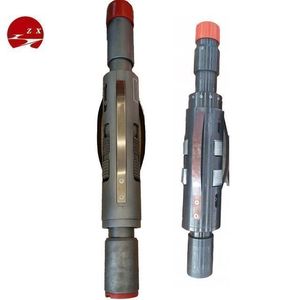

API oil well pump mechanical slip tubing anchor catcher
TonThe ubing anchor is one of the most important tools for efficient pumping operations.
The tubing anchor pulls and maintains tension on the tubing string during pumping, while jamming and preventing any separated tubing from falling into the well. It is used in most rod pumping applications where it is necessary to maintain tension in the tubing.

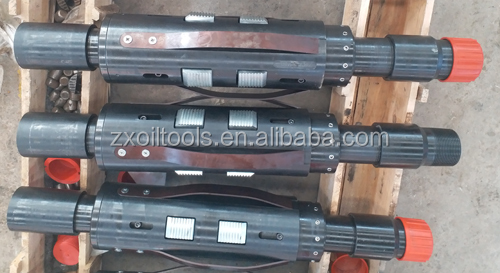

Mechanical Tubing Anchor is a model of Anchor Catcher Our Tubing Anchor is a retrievable dual handle tubing anchor designed to anchor a tubing string in tension or compression. When installed with proper tubing tension, the anchor prevents the tubing string from moving during rod pumping operations. This results in increased oil production per pump stroke, which in turn extends pump, rod and tubing life and reduces pumping costs. The anchor incorporates an emergency shear release system that is easily adjustable in the field.
Tubing anchor lowering
1. Install the anchor in the tubing string above or below the pump. Rotate the pipe to the left to set the anchor catcher
2. Lower the tube to release tension and turn to the right while working the tube up and down slightly.
Tubing anchor features:
• Rotate left to set, right to release
• Straight pull emergency shear release
• Improved pump efficiency
• Improve operating costs by reducing maintenance and downtime due to tubing or sucker rod wear
|
Casing outer diameter (inch) |
Predetermined area |
Tool outer diameter (inch) |
Tool inner diameter (inch) |
Connection thread |
|
|
Minimum inner diameter (mm) |
inner diameter(mm) |
||||
|
4 1/2 |
3.920 |
4.090 |
3.75 |
1.93 |
2-3/8" EU |
|
5 |
4.276 |
4.494 |
4.00 |
||
|
5 1/2 |
4.670 |
5.044 |
4.50 |
2.00 |
|
|
5 1/2 |
4.670 |
5.044 |
4.50 |
2.37 |
2-7/8" EU |
|
6 5/8 |
5.938 |
6.135 |
5.50 |
||
|
6 5/8 |
5.920 |
6.456 |
5.50 |
||
|
7 |
6.413 |
7.125 |
5.50 |
||
