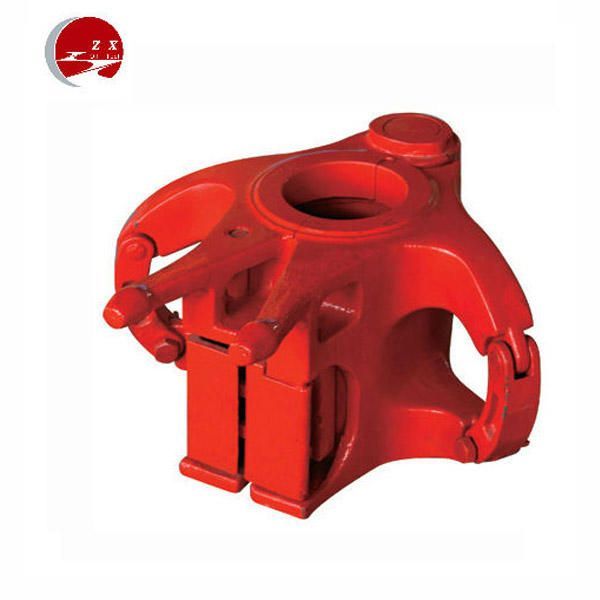

API 8C Oilfield Drilling Rig Wellhead Tubing Elevator/Drill Pipe Elevator
- $350.00 / >=5 pieces
- 5 pieces
- Dongying Zhaoxin Industry And Trade Co., Ltd.
- Shandong, China
- Mr Frank Xiang
| payment terms: | L/C, T/T | type: | CDZ |
| Supply capacity: | 200 pieces per month | Warranty: | 1 year |
| Showroom location: | not any | Local service location: | not any |
| Packaging Details: | Plywood boxes | port: | Tianjin Qingdao Shanghai Lianyungang |
| Applicable industries: | Energy and Mining |
1. High-quality alloy steel processing, light weight, small size, heavy load, greatly reducing the working intensity.
2. It is composed of main parts, hand door, lock pin assembly, handle and so on.
After the transformation, users can easily confirm whether the hand door is open, which greatly reduces the occurrence of accidents
safety incidents.
3. After years of research and practice, a double safety pin was invented,
It has won a good reputation from oilfield workers.
4. API Spe 8C
Specifications and main parameters
BD series technical parameters:
|
Model |
Pipe outer diameter (mm) |
load range |
Aperture(mm) |
Weight (kg) |
Length*width*weight(mm) |
|
BDY63 |
60 |
355-665 |
63 |
47 |
400*175*200 |
|
BDY76 |
70 |
355-665 |
76 |
40 |
440*168*200 |
|
BDY82 |
79 |
355-665 |
82 |
38 |
440*175*200 |
|
BDY92 |
89 |
355-665 |
92 |
48 years old |
480*196*200 |
|
BDY102 |
99 |
355-1335 |
102 |
46 |
480*196*200 |
|
BDY118 |
115 |
355-1335 |
118 |
106 |
490*218*205 |
Specification CD series:
|
Model |
Rated loadKn/US ton |
Tubing Specifications |
Elevator hole diameter |
Net weight (lbs) |
|
|
exist |
mm |
||||
|
CD2 7/8-150 |
1335/150
|
2 7/8 |
73.0 |
3 |
161 |
|
CD2 7/8EU-150 |
2 7/8 EU |
73.0 |
3 1/4 / 3 |
161 |
|
|
CD3 1/2-150 |
3 1/2 |
88.9 |
3 1/4 |
168 |
|
|
CD3 1/2EU-150 |
3 1/2 EU |
88.9 |
3 7/8 / 3 1/4 |
168 |
|
|
CD4-150 |
4 |
101.6 |
4 |
187 |
|
|
CD4EU-150 |
4 EU |
101.6 |
4 3/8/4 |
187 |
|
|
CD4 1/2-150 |
4 1/2 |
114.3 |
4 5/8 |
209 |
|
|
CD4 1/2EU-150 |
4 1/2 EU |
114.3 |
4 7/8 / 4 5/8 |
209 |
|
Specification DD series:
|
Model |
Rated loadkN/US ton |
OP (Oil Pipe) Specifications |
Elevator hole diameter |
Net weight (lbs) |
|
|
exist |
mm |
||||
|
DD2 3/8-150 |
1335/150 |
2 3/8 |
60.3 |
2 1/2 / 2 1/2 |
291 |
|
DD2 3/8EU-150 |
2 3/8 EU |
60.3 |
2 3/4 / 2 1/2 |
291 |
|
|
DD2 7/8-150 |
2 7/8 |
73.0 |
3/3 |
287 |
|
|
DD2 7/8EU-150 |
2 7/8 EU |
73.0 |
3 1/4 / 3 |
287 |
|
|
DD3 1/2-150 |
3 1/2 |
88.9 |
3 9/16 / 3 9/16 |
282 |
|
|
DD3 1/2EU-150 |
3 1/2 EU |
88.9 |
3 9/16 |
282 |
|
|
DD4-150 |
4 |
101.6 |
4/4 |
276 |
|
|
DD4EU-150 |
4 EU |
101.6 |
4 3/8/4 |
269 |
|
|
DD4 1/2-150 |
4 1/2 |
114.3 |
4 5/8 / 4 5/8 |
267 |
|
|
DD4 1/2EU-150 |
4 1/2 EU |
114.3 |
4 7/8 / 4 5/8 |
265 |
|

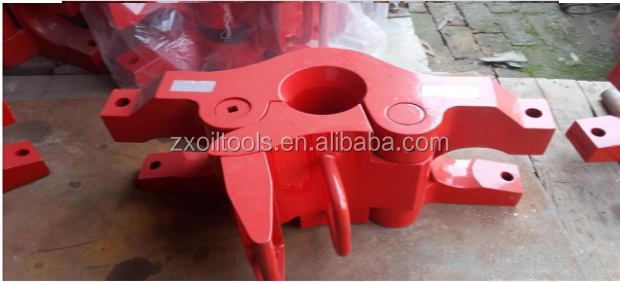

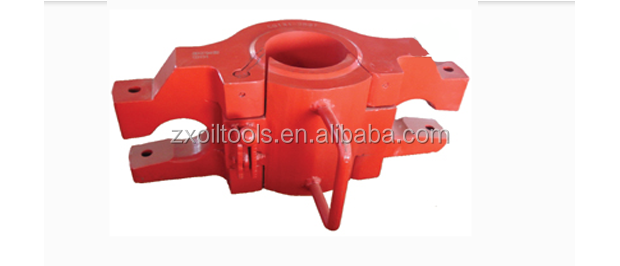

Product display:
