Aries 2.54mm universal test zif plug connector

  • $0.50 / 100 - 999 pieces
    $0.40 / 1000 - 9999 pieces
    $0.30 / >=10000 pieces
  • 100 pieces
  • Ningbo Kaifei Electronic Co., Ltd.
  • Zhejiang, China
  • Ms Cindy Hua
PRODUCT DETAIL
color:Blackbrand:KF
application:circuit boardTypes of:Adapter, DIP
model:KF1002-2Package preview:
housing:30% glass filled PBT UL94V-0describe:ZIF socket connector
Pack:cartonplating:gold plated or tin plated
Supply capacity:100000 pieces per monthContact:Phosphor bronze
port:Ningbo or ShanghaiPayment/Payment:Do not
Packaging Details:2.54mm aries universal ic test zif socket connector standard export packagegender:female
place of origin; place of origin:Zhejiang, Chinapayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal

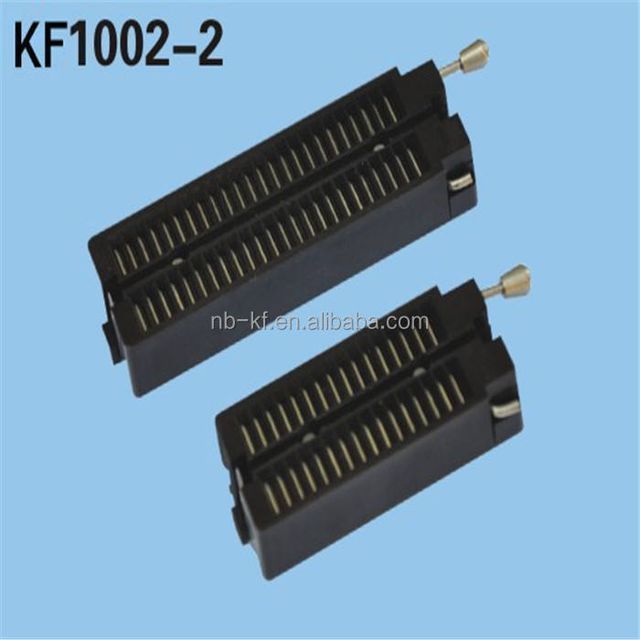

2.54mm aries universal ic test zif socket connector



Material:

Housing: 30% glass filled PBT UL94V-0

Contacts: Phosphor Bronze

Plating: Gold: 3u" over 50u" Nickel

Tin Plating: 100u" over 50u" Nickel



Electrical Characteristics:

Rated current: 1AMP

Insulation resistance: 5000MΩmin, at DC 500V

Contact resistance: 20MΩmax, at DC100mA

Working temperature: -55℃~+105℃



feature:

For DIPs with .100" lead spacing

Lever actuated zero insertion force mechanism

Receptacles are easily removable for easy servicing

Receptacle contacts 110" below top face of receptacle











Our advantage

1. Best quality, most of the products are produced by ourselves.

2. The price is good, the cheapest in the same order of magnitude.

3. Prompt reply within 24 hours.

4. Fast delivery, stock goods will be delivered within three days, customized goods will be delivered within five days after we receive T/T payment.

5. All kinds of products are exported through ROHS and REACH

6. Inspection: 100% test before delivery

7. Available for ODM/OEM orders

8. Please contact us so that we can provide you with the best quality, competitive price and prompt delivery.



Our main products

Our products include: Electrical Connectors and Terminal Blocks

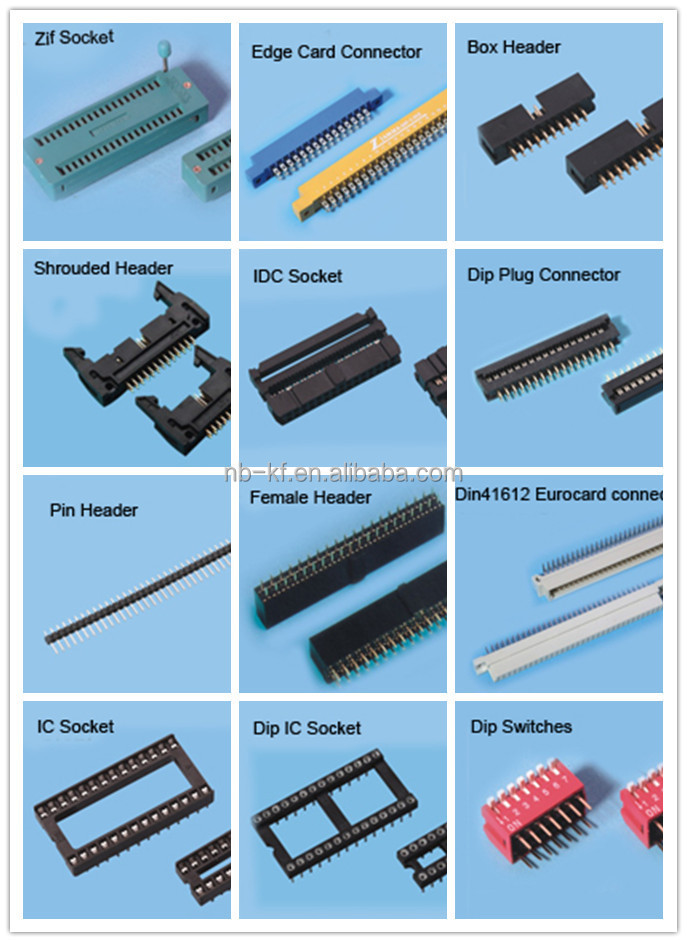

Electrical Connector:

Pin Connector, Female Connector, Box Connector,IC socket,

Shrouded Header Connectors, IDC Socket Connectors, DIP Plug Connectors,

Micro mating connector (red IDC socket), ribbon gray flat cable, edge card connector,

Zif Socket Connector,Sip IC Socket(Machine Pin Series),Dip Strip Adapter,

DIN41612 Eurocard Connector, Mini Jumper Connector, D-Sub Connector,

D-Sub metal and plastic housings, DIP switches, PLCC sockets, Scsi connectors,

Circular mini-jack connectors, waterproof connectors, breadboards, Pcb jacks, etc.

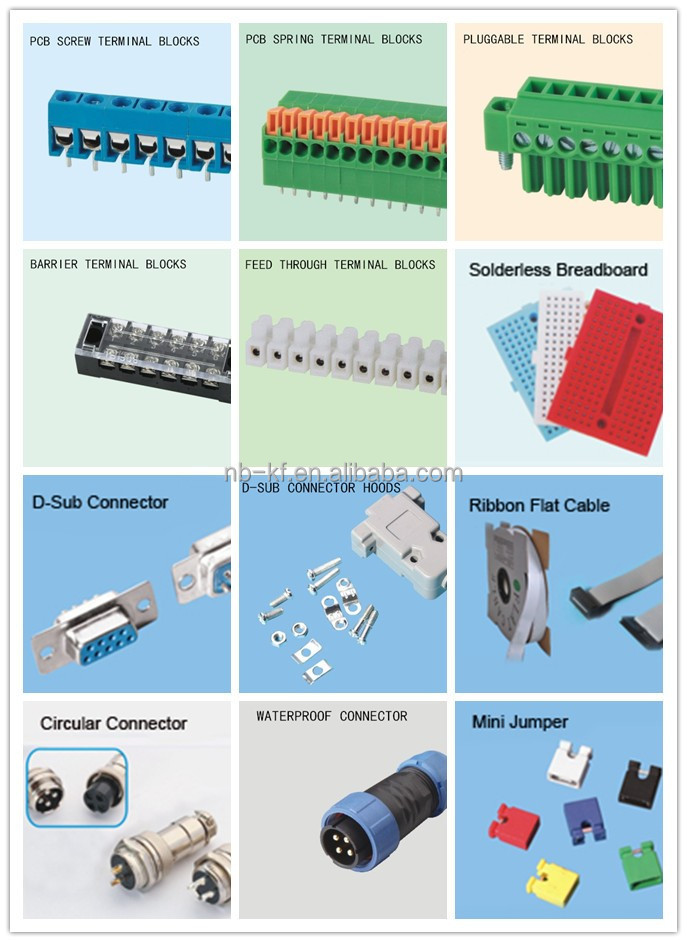

Terminals:



Pcb screw terminals, pluggable terminals, Pcb spring terminals,



Barrier Terminal Blocks, Feed-through Terminal Blocks, Wago Terminal Block Connectors





Package
