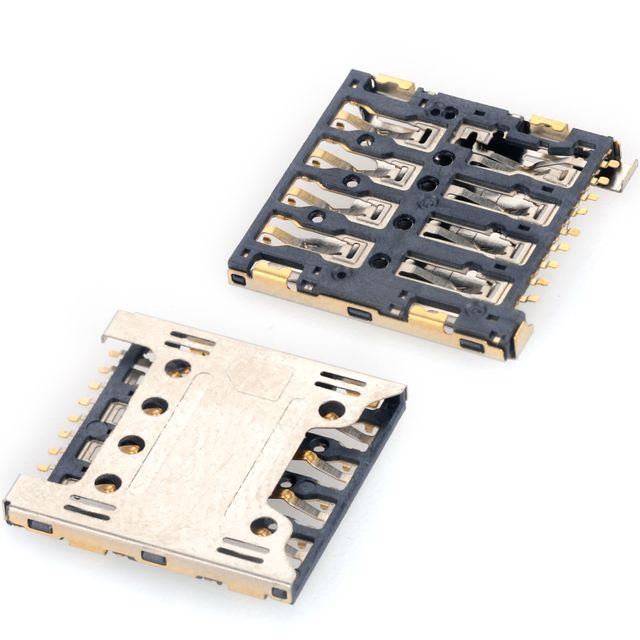

MUP SMT TYPE 8P Push-Pull Type Micro SIM Card Socket Connector Clamshell Type For GSM/GPRS

Price:$0.10 / >=2000 pieces
Min. Order:2000 pieces
Supplier:Shenzhen Mup Industrial Co., Ltd.
Region:Guangdong, China
Contact:Ms Jojo Wang

PRODUCT DETAIL

type:	Adapter, SMT;	payment terms:	Western Union, wire transfer;
aspect:	13.90LX16.30WX2.20H mm;	Contact Principles:	friction technology;
plating:	Gold, nickel, tin;	Bale:	tape and reel;
Durability:	at least 2,000 cycles;	Supply capacity:	16,000 pieces per day;
Plastic material:	LCD screen;	Terminal contacts:	phosphor bronze;
Card:	MUP;	place of origin; place of origin:	Guangdong, China;
Packaging Details:	1. Reel packing 2.1500PCS per roll, 10 rolls per carton, one carton contains 15000PCS. 3. Carton size 36.00 L33.00 W36.00 H CM 4. One box gross weight 10.0KG, net weight 8.0KG 5. One box volume 0.05CBM, 20 boxes 1 CBM;	Card size:	15.012.00.76mm;
Packaging Preview:	;	port:	Shenzhen/Hong Kong;
describe:	Connector;	gender:	female;
Metal:	Stainless steel;	model:	C793;

MUP Bestseller Micro SIM Card Connector 8P PCB Sim Card Holder Smart Socket

Hello, dear friends, the price we set is for reference only, the exact price is based on your specific requirements, so please do not leave directly because of the price. If you have any requirements, please contact us, the products you need and the best prices are waiting for you.

Product Description

Specification

General Features
Do not.	project	standard	illustrate
1	aspect		13.95LX13.30WX1.50H mm
2	weight		About 0.50±0.20g
3	Card size	GSM11.11	15.0×12.0×0.76mm
4	Contact Principle		friction technology
5	install the system		Mounter
6	Durability		2,000 cycles
Material
1	insulator		Thermoplastic UL94V-0
2	shell		SUS
3	touch		Phosphor bronze
4	plating		Gold to Nickel
data link
1	Number of contacts		8 pins
2	highly connected		0.50±0.20mm
3	Insulation resistance for pin	IEC512-2-3a	>1000 MΩ/500 VDC
4	Rated voltage		50V max
5	Rated current		1A max, 10μA min
6	Contact resistance	IEC512-2-2a	50 mΩ typical, 100 mΩ maximum.
7	Dielectric withstand voltage	IEC512-2-4a	500V AC rms value for 1 minute.

Packaging and Delivery

pack

♦ Inside: reel packaging, 1500PCS/Reel
♦ Outside: carton, 15000PCS/Carton

♦In order to better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services

will give.

payment terms&deliver goods

♦ T/T, Paypal, Western Union
♦ UPS, DHL, FEDEX, TNT, sea, air
♦ Choose the most cost-effective way.
♦ Tracking number will be sent to you after delivery.

Company Profile

1.17 years of experience in R&D and manufacturing of connectors.

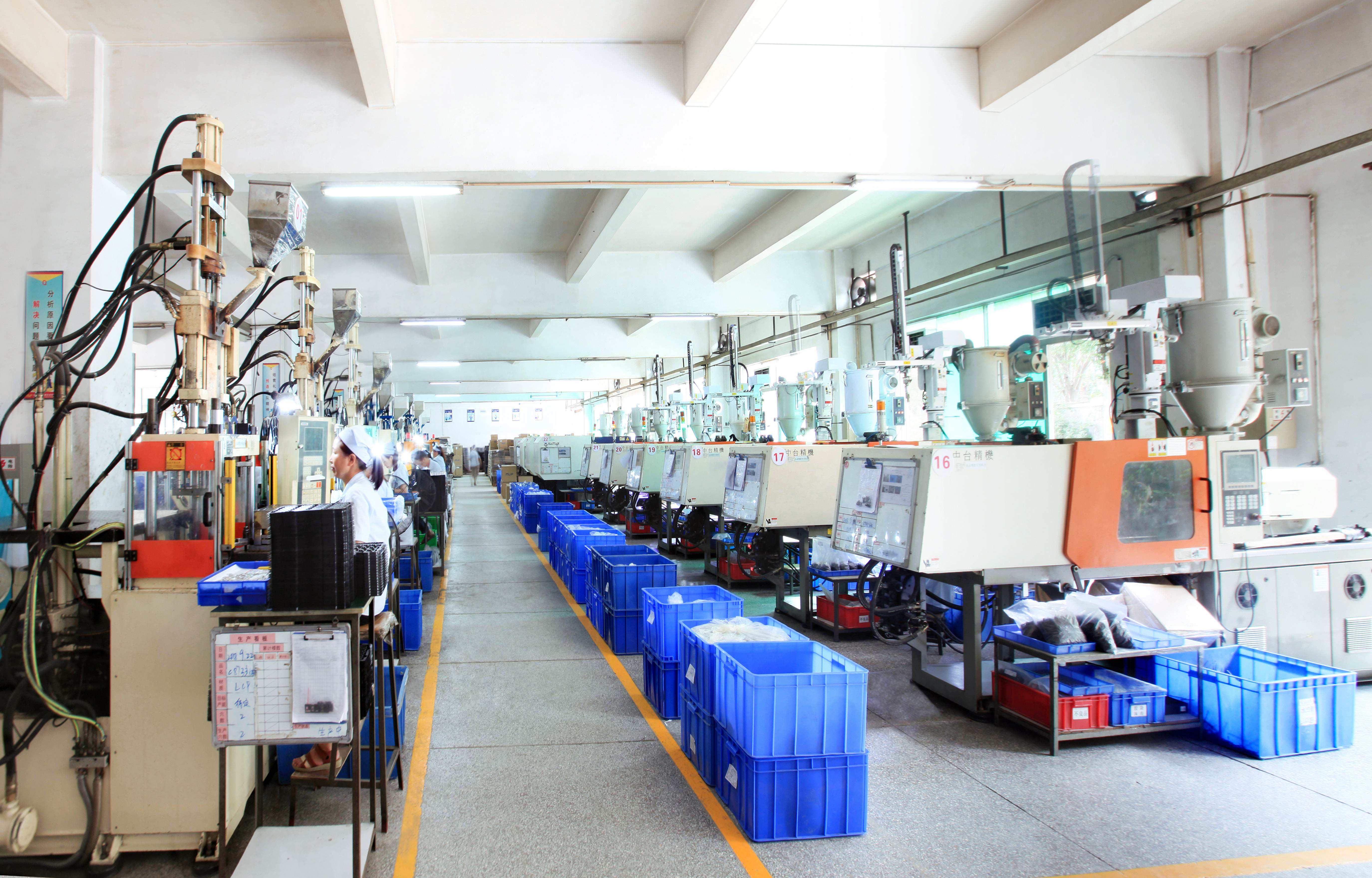

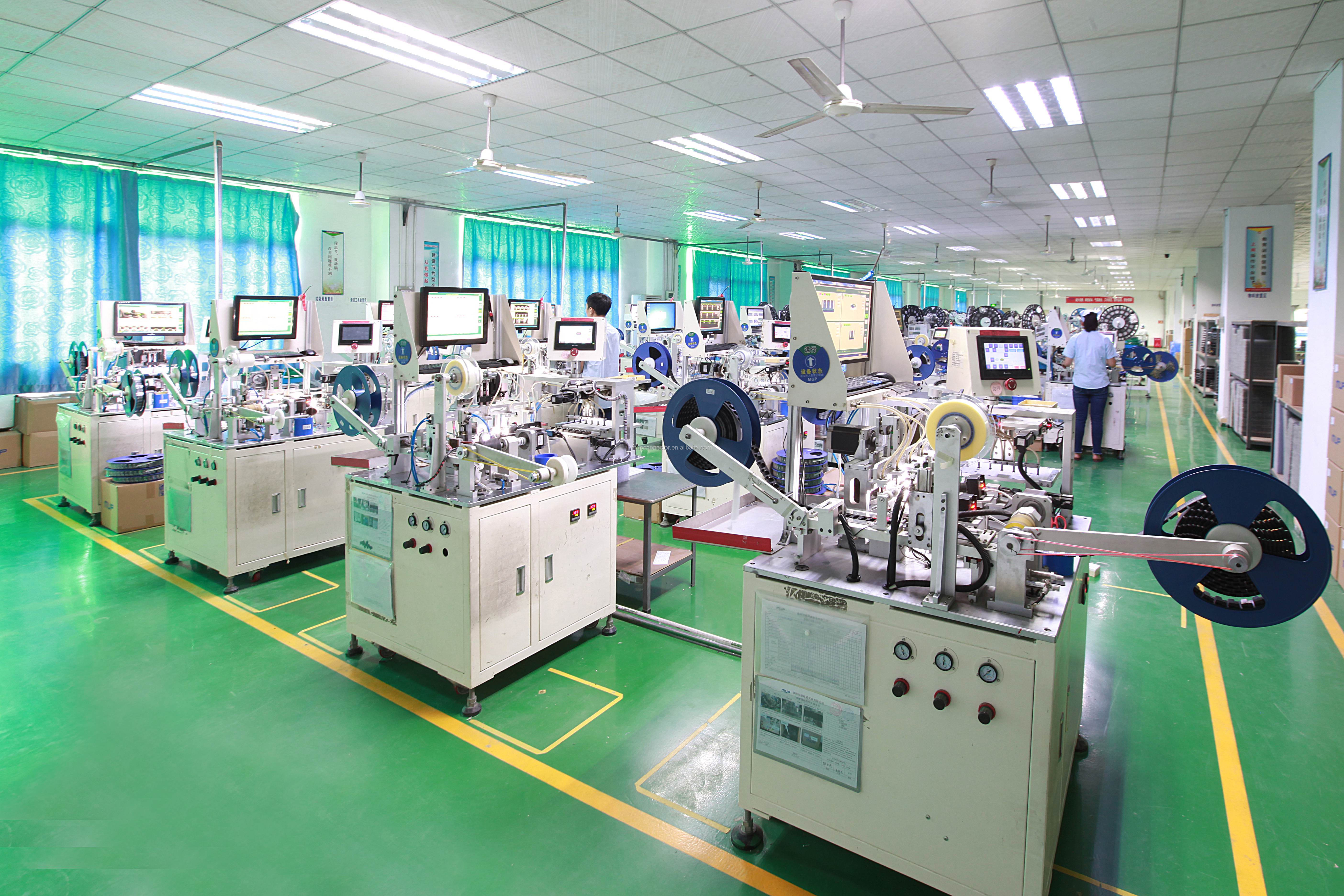

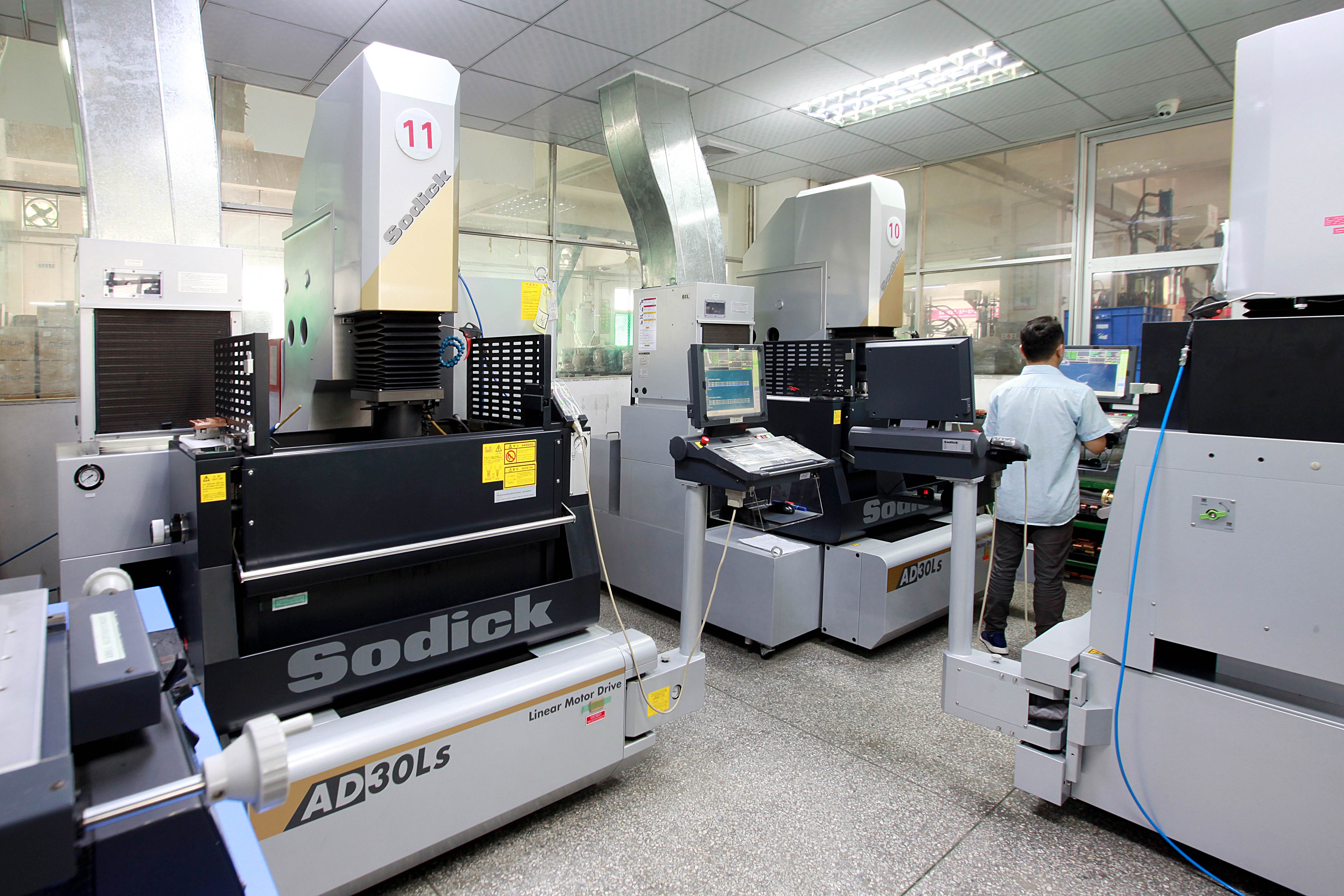

2. Four modern production bases with an area of more than 50,000 square meters, more than 800 employees and more than 50 R&D engineers.
3. Provide IC, SIM, memory card connector, HDMI, USB Type C, battery, RF, BTB and other precision connectors.
4. Widely used in POS, STB, DTV, automotive electronics, computer communications, smart meters and other electronic products.
5. Exported to more than 50 countries in Europe, America, Asia and Africa.
6. Supply Ingenico, Verifone, Sagemcom, Huawei, Teltonika and Pegatron..
7. ISO9001:2015 & ISO14001:2015 - Certification.

8. ROHS, EMV, NDS, PCI, HDMI&TID professional certification

Certification

application

major client

exhibition

FAQ

1. Shipping:Sea, Air DHL, TNT, UPS, FedEX

2. Guarantee and Warranty: One Year Warranty 3. Service: A. Reply within 12 B. OEM and ODM C. Business Confidentiality; Good after-sale service D. How about the samples? 1-20 free samples are available, only freight charges
