Best price 1kw,2kw,3kw,5kw,10kw Solar Power System pv sun tracker system for home in china energy factory
- $470.00 /unit
- 1 unit
- Foshan Jiaer Electronics Co., Ltd.
- Guangdong, China
- Mr Psmart Solar
| Model Number: | JIR1KW; | Output Voltage (V): | 110V/220V; |
| Load Power (W): | Ordinary; | Solar Power (W): | 150W; |
| Type: | Intelligent Solar Generator; | Battery: | Lead Acid Battery; |
| Inverter: | Pure Sine Wave Output; | Application: | Home; |
| Supply Ability: | 10000 Unit/Units per Month; | Controller: | MPPT Solar Charge Controller; |
| Packaging Detail: | Polyfoam + Carton Box Customized Packing welcomed; | Place of Origin: | Guangdong China; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Usage: | Residential; |
| Brand Name: | Jiaer; | Product name: | Off-grid Solar Power System; |
| Specification: | Normal; | Protection: | Overall; |
| Port: | Yantian / Huangpu; | Solar panel: | Poly; |
| Item: | 1000W Residential Stand; | Certificate: | ISO9001; |
| Work Time (h): | 11; |
| Top Quality Component | ||
| Best price 1kw,2kw,3kw,5kw,10kw Solar Power System pv sun tracker system for home in china energy factory | ||

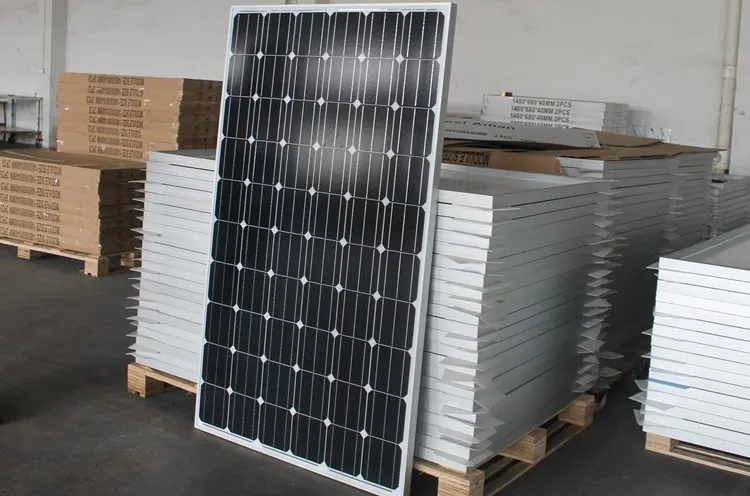

| 1 : PV Module | Grad A solar cell High PV conversion efficiency Quality diode,waterproof junction box High endurance under astrocious weather |  |

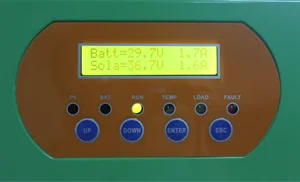

| 2: MPPT Charge Controller | LCD display shows running data
12/24/48V voltage auto recognition
MPPT charge mode,efficiency up to 95% |  |
| 3: Pure Sine Wave Inverter | DSPControl Low power consumption High transfer efficiency 85-90% Intelligent cooling fan and LCD display |  |

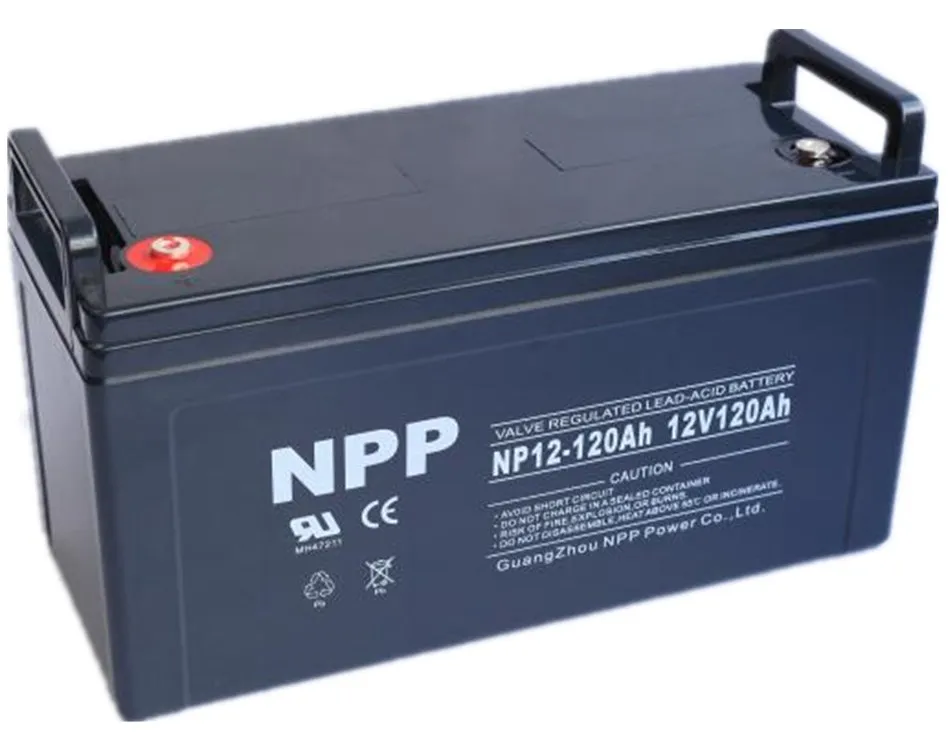

| 4: AGM / GEL Battery | Voltage 2V /12V
Capacity 50-250AH,100-3000AH
Maintenance free/Deep circle/Low self-discharge |  |

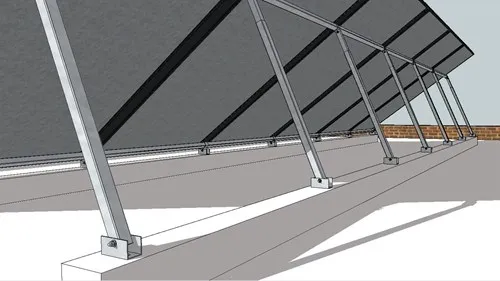

| 5: Bracket System | Customized design Rooftop or Ground install
Aluminium and stainless steel |  |
| 6: Accessory | Breaker & SPD PV cable(4MM2 , 6MM2 , 8MM2)
Battery cable & clap / MC4 connector |  |
________________________________________________________________________________________________________
1000W Off-Grid Solar System Components
| Item | Quantity | Specification |
| Solar Panel | 2PCS | 150W Poly |

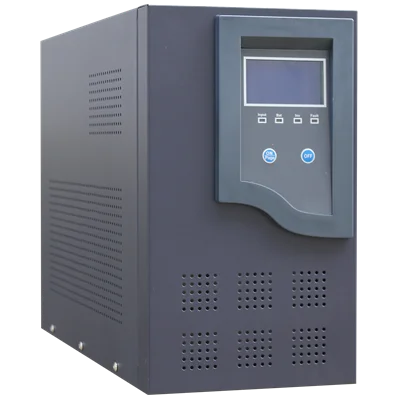

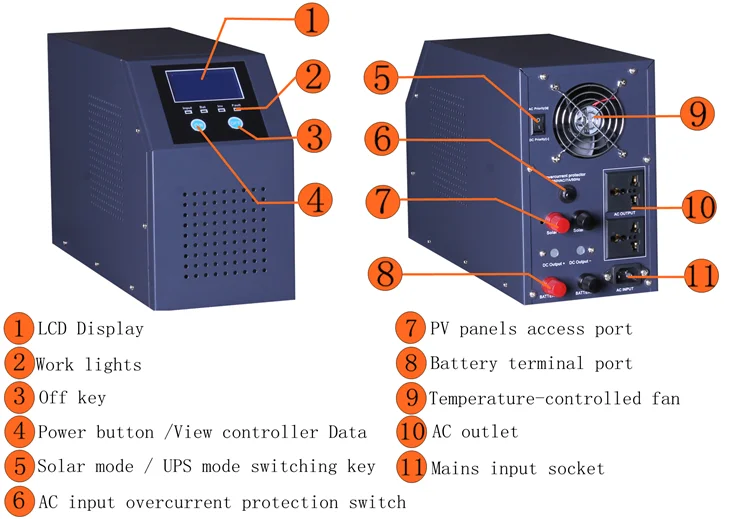

| Hybrid Inverter | 1PCE | Pure Sine Wave inverter with MPPT charge Controller |
| Battery | 1PCE | 12V/100AH Lead-Acid deep circle |
| Cable | 3M | 2 lines 3 meters with MC4 connector |
| System Size & Weight | ||
| Inverter G.W / Size | 8.5KG / 385*145*240mm | |
| PV panel G.W / Size | 20KG / 1642*992*50mm | |
| Battery G.W / Size | 36.5KG / 407*174*209mm | |
| Whole System G.W | Around 65KG ( Racket Excluded) | |
| Power Supply Time | |||
| Load Appliance | Power | Quantity | Rainny day power supply time |
| Lamp | 75W | 1PCE | 11hours |
| 29inch LCD | 150W | 1PCE | 5.5hours |
| Fan | 60W | 1Unit | 14hours |
| Computer | 220W | 1Unit | 3.5hours |
1: Professional consulting service to help clients select proper items
2: Offer spare parts & installing/maintance guidiance after sell
3: OEM & ODM service welcomed
4: container consolidate service
5: Test &Trial order welcomed
6: About warranty on system components:
a:Battery : 3 Years Warranty
b:Brackent: 5 Years Warranty
c:PV panel : 5 Years Warranty
d:Inverter / Controller : 1 Year warranty
Q: How much energy can my battery store? A: Battery capacity is measured by Amp hours(e.g 17AH),you need to convert this to Watt Hours by multiplying the AH figure by the battery voltage(e.g 12V), a simple calculation bellow: X (Battery size in AH) × Y (Battery voltage) = Z(Power available in watt hours) For a 20AH, 12V battery,the watt hour figure is 20(X) × 12(Y) = 240WH(Z) This means the battery could supply 240W for 1 hour,120W for 2 hours or 2W for 120hours....The more power you take,the faster the battery discharge.
Q: How to determine my inverter size?
A:The main consideration is the capacity. It's important to choose an inverter that has slightly more capacity than the peak power your home need.Simple way is to add up all the appliance power usage including:
1) Resistive loads like bulb,ovan --- Take same power as load
2) Capasitive loads like DVD,PC --- Take 2-3 times power as load
3) Inductive loads like Refrigerator ---Take 4-5 times power as load It's unlikely that you will running all these appliances at once but if it happends,we need to make sure that the inverter will be able to handle the load.
Q: How to connect the PV panels and inverter?
A: One of the factors that can affect your inverter performance is the distance between solar panel array and the battery bank,the longer the wire used here,the lower your inverter's voltage should be to perform otipmally,because with long wires,the voltage drops and current increases.
If you have any questions please do not hesitate to contact us, we will follow up as soon as we can.
