Manufacturers Solar Tracking System 12KW Dual Axis Solar Tracker Solar Tracker
- $0.20 / 1000 - 9999 pieces
$0.16 / >=10000 pieces - 1000 pieces
- Xiamen Solar First Energy Technology Co., Ltd.
- Fujian, China
- Ms Judy Zhou
PRODUCT DETAIL
| Operating temperature: | -30℃~65℃ | Tracking range: | X-axis ±120°, Y-axis 0-60° |
| Snow load: | 1.4kn/m2, 1.4kn/m2 | Warranty: | 10-year warranty and 25-year service life, 10 years |
| type: | Photovoltaic System Tracking Structure | Supply capacity: | 3,000,000 sets per month |
| payment terms: | L/C, Western Union, T/T | model: | SF-ST005 |
| Drive System: | rotary drive | product name: | 12KW Dual Axis Solar Tracker Sun Tracker |
| port: | Xiamen, China | Packaging Details: | wooden box. Wooden pallet, carton, or customer's request. |
| Wind load: | up to 60m/s, up to 60m/s | Origin: | Fujian China |
| Foundation type: | concrete base | brand: | solar first |
| Material: | anodized aluminum |
Product Description
Solar Tracking System
Solar tracking systems are one of the most promising product technology trends in solar energy today, helping users get more power. It can continuously optimize the tracking algorithm of each row according to the characteristics of the site and changing weather conditions, thereby increasing the output of the solar power generation system.
feature:
1. 5 support points for weightlifting structure, special-shaped table design combined with four-link structure, rotary drive.
2. Eliminate the effect of water waves, prevent the influence of wind on the structure, eliminate vibration, and ensure the output efficiency of solar modules.
3. The distribution is more reasonable and stable, reducing the cost of steel structures and avoiding structural deformation.
4. Independent design, adapt to various terrains, zero land leveling cost, suitable for solar agriculture, solar fishery projects and other applications, easy to install and maintain, and save maintenance costs.
2. Eliminate the effect of water waves, prevent the influence of wind on the structure, eliminate vibration, and ensure the output efficiency of solar modules.
3. The distribution is more reasonable and stable, reducing the cost of steel structures and avoiding structural deformation.
4. Independent design, adapt to various terrains, zero land leveling cost, suitable for solar agriculture, solar fishery projects and other applications, easy to install and maintain, and save maintenance costs.
technical details
trace structure | ||||||
tracking technology | Dual Single Axis Tracker | system voltage | 1000v/1500v | |||

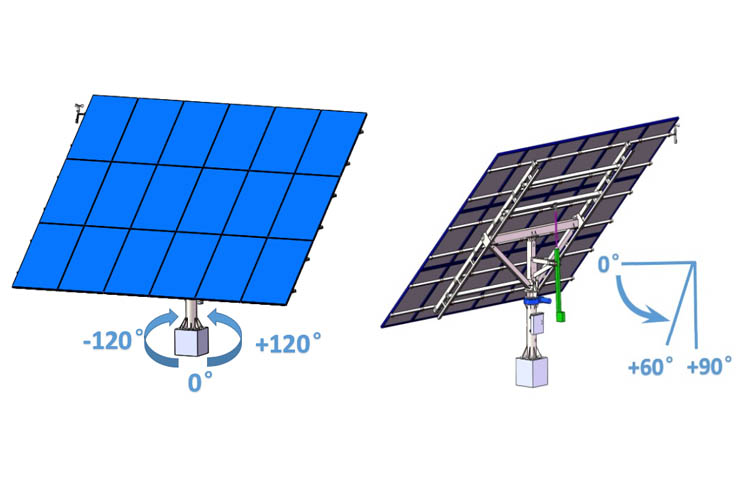

tracking range | X-axis ±120°, Y-axis 0-60° | Working wind speed | 18m/s (can be customized) | |||
Maximum wind speed (stowed position) | 35 m/s (ASCE 7-10) | Modules per tracker/table | ≤40 longitudinal (can be customized) | |||
Main material | HDG Q235B/ Q355B/ ZAM | Average Coating Thickness | ≥65 microns | |||
Drive System | rotary drive | basic type | concrete base | |||

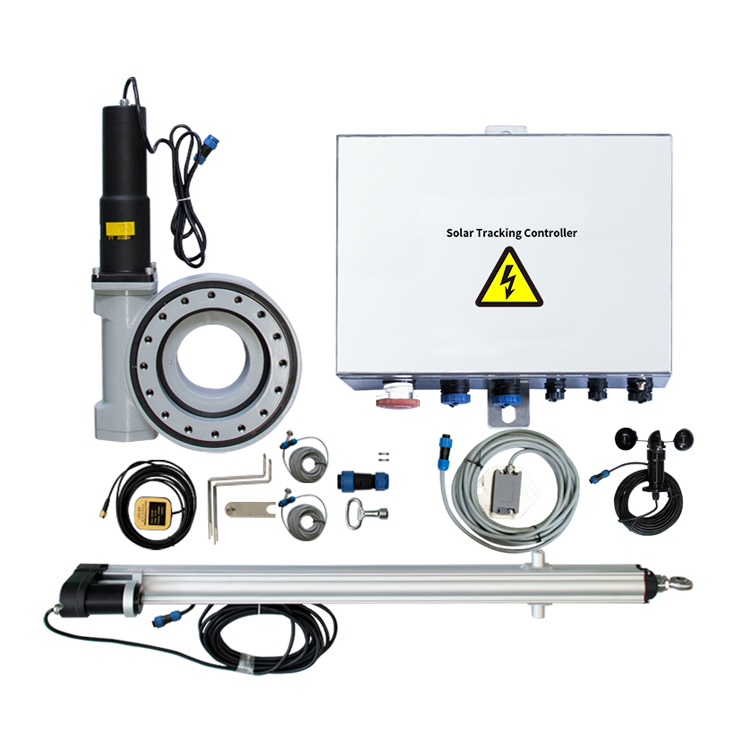

Control System | ||||||
track control | single chip microcomputer | tracking mode | Closed loop time control + GPS | |||
Tracking Accuracy | <1° | Communication Interface | Wired/Zigbee | |||
Powder collection mode | External Power / Self-Powered | Protocol | Modbus RTU | |||
Automatically close at night | Yes | Automatically stows away in high winds | Yes (response after 10 seconds) | |||
Optimizing Backtracking | Yes | protection level | IP65 | |||
Operating temperature | -30℃~65℃ | Anemometer | Yes | |||
energy consumption | 0.3KW/H per day | |||||
