CE certificate 8 channel digital battery tester car battery tester analyzer

electricity demand

110V AC 60Hz / 220V AC 50/60Hz, please select in the option bar

energy consumption

1.5W max per channel (<20W total)

current

• Range: 0.1mA – 300mA programmable
• Accuracy: ±(0.1% RD + 0.1% FS)
• Resolution: 0.1mA

Voltage

• Range: 0.5 - 5V programmable
• Accuracy: ±(0.1% RD + 0.1% FS)
• Resolution: 1mV

data sampling

maximum. Measurement period

9999 cycles

maximum. procedural steps

9999 steps

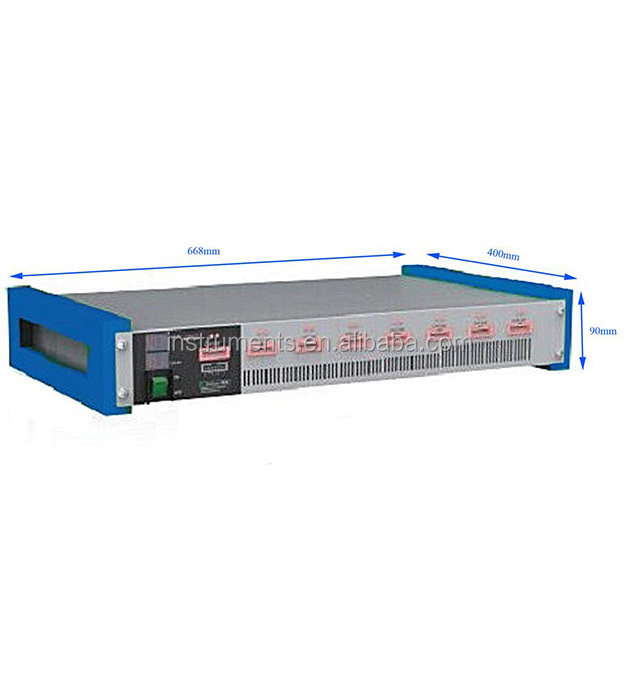

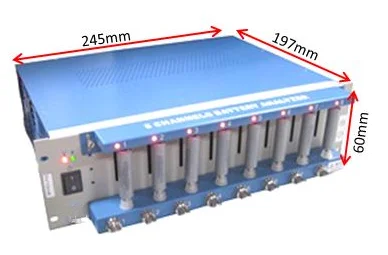

Product Size

Channels and Test Modes

• Eight independently programmable channels. Each channel can have different working modes and functions independently
• Working modes include:
• Charging: constant current charging (CC), constant voltage charging (CV), constant current and constant voltage charging (CCCV)
• Discharge: constant current discharge (CD), constant power discharge (CP), constant resistance discharge (CR)
• rest and cycle

Programs and Software

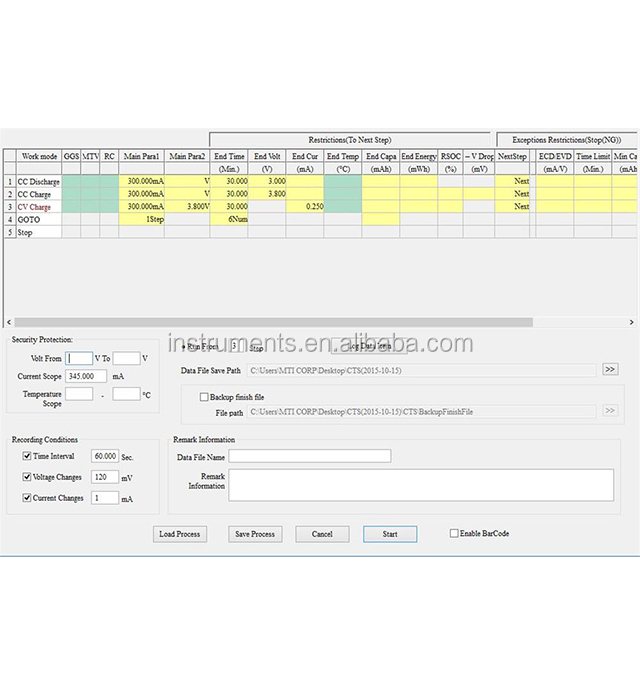

• The software can set various operating modes for evaluating the battery capacity and life cycle of all types of rechargeable batteries
• Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.

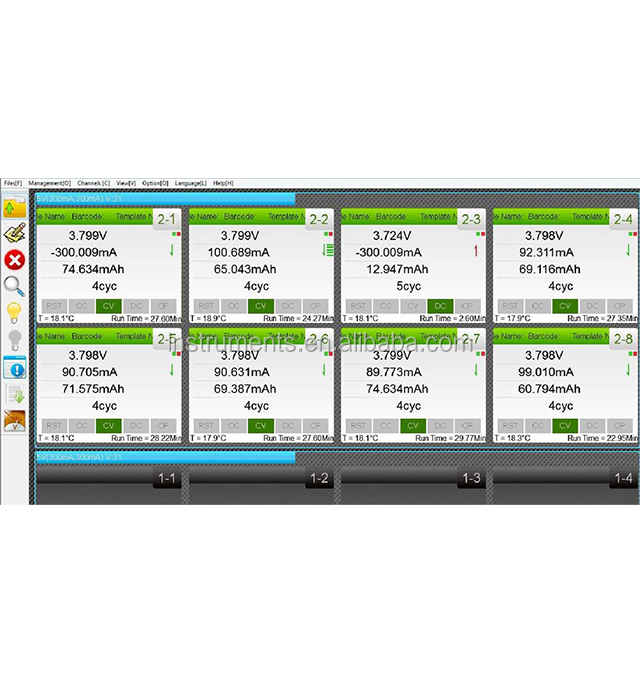

• View the test process more directly and efficiently with the real-time monitoring window and integrated graph/data window
• During the test, the software will provide guidance and warnings for assistance
• A 30-day free trial version of MS Excel 2013 is pre-installed for you to export Excel data files.

Test reports and curves for analysis

• The software can create various curves according to user definition. (voltage-time curve, current-time curve, capacity-voltage curve, cycle number-charge-discharge capacity curve, cycle number-charge-discharge efficiency curve, etc.)
• Data reports are created by the software (export to Excel or .txt). Users can easily visually and statistically compare the performance of batteries tested in the channel

Protection and automatic recovery

If a power failure occurs during the test, the system will shut down all working channels. Once power is restored, the system automatically resumes those channels that were stopped, ensuring that tests run without any data loss.

battery clip

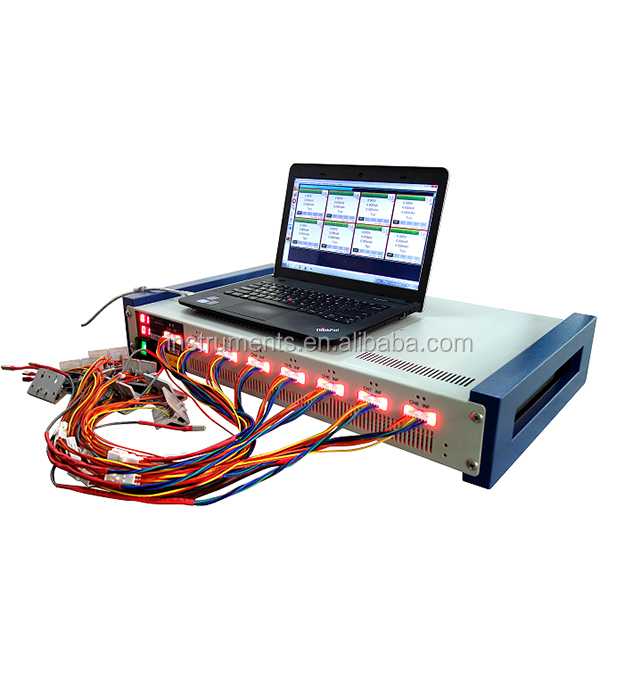

• New Laptop with MS Window 8, MS Excel 2013 Free 30 Day Trialalready includedand the latest version of the test software isInstalledand calibrated for immediate use
• One PC can control up to 20 analyzers simultaneously

obey

Warranty

• If you want to run multiple battery analyzers on one laptop, you can buy multiple analyzers on one laptop. If an analyzer is purchased without a basic laptop, $300 will be deducted from the sale price.
• Up to 20 battery analyzers can be controlled from a single computer and software.

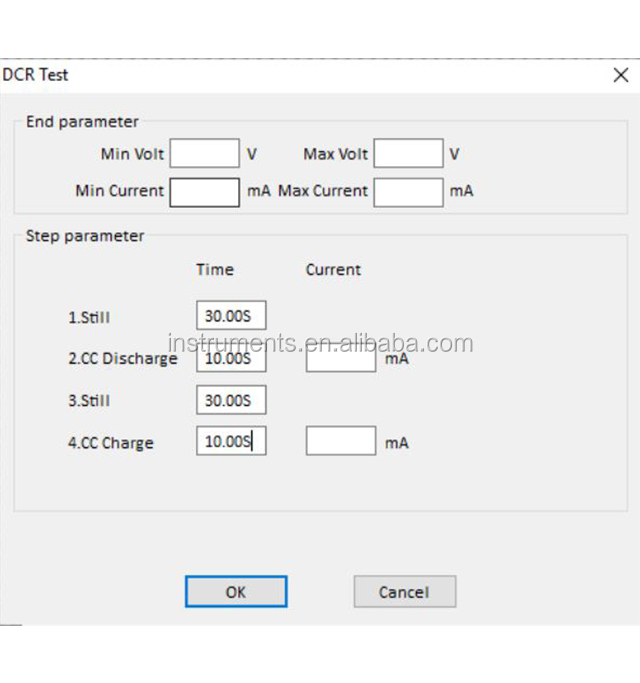

• You can order an internal resistance tester to measure DC resistivity (click the picture on the left for more information)
