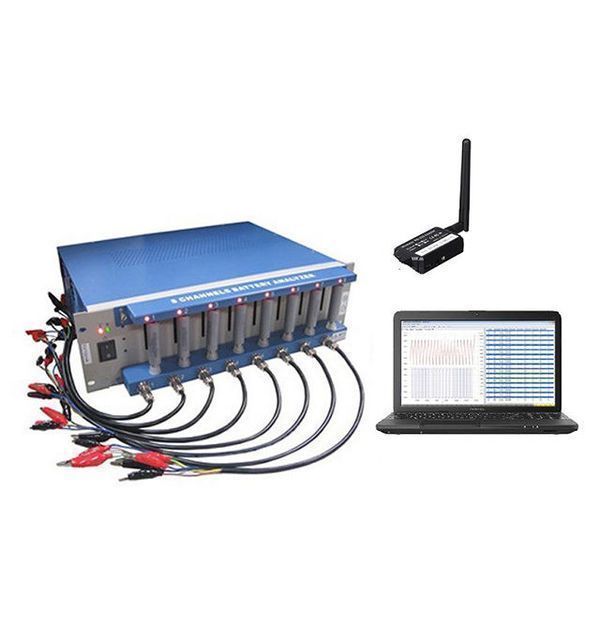

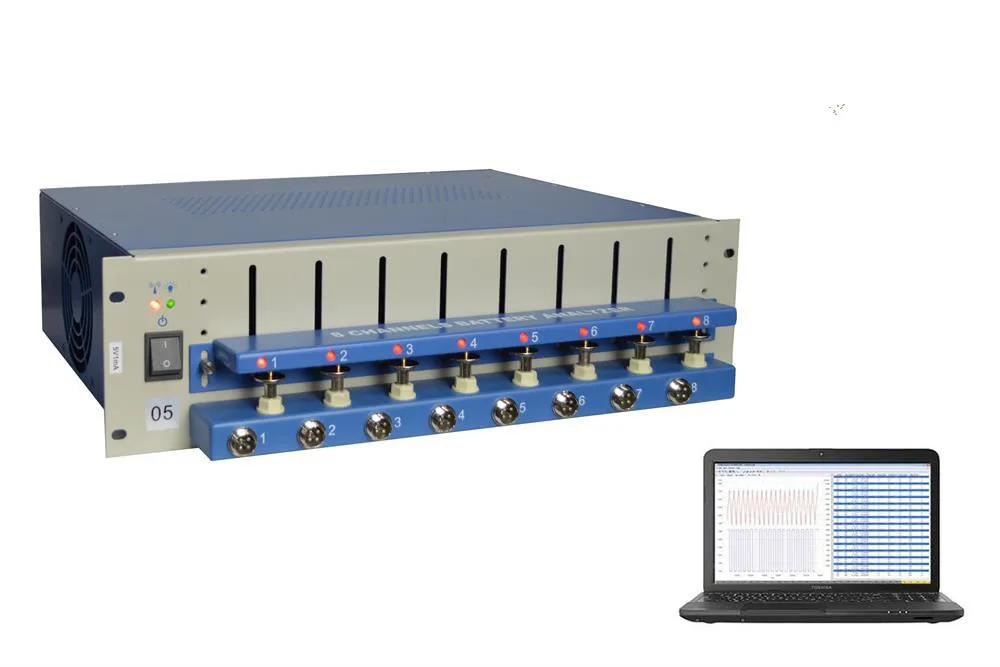

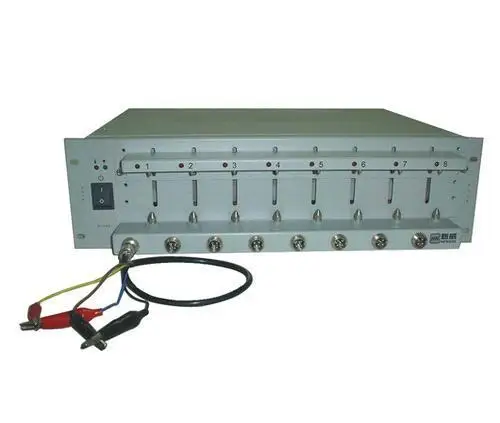

Car Notebook Battery Tester CE Certificate 8 Channels Battery Analyzer

electricity demand

110V AC or 220V AC optional universal

energy consumption

30W

Discharge
current

• Range: 0.02 mA - 10 mA
• Accuracy: ±(0.05% of reading + 0.1% of range)

Discharge
Voltage

• Range: 0.5 - 5V Programmable
• Accuracy: ±(0.05% of reading + 0.1% of range)

Data register condition

maximum. Measurement cycle

9999 cycles

Product Size

channel

• Eight Independently Programmable Channels
• Each channel can independently set different working modes and functions

Battery Holder

• There are two types of battery holders included in the BST8-WA standard package:

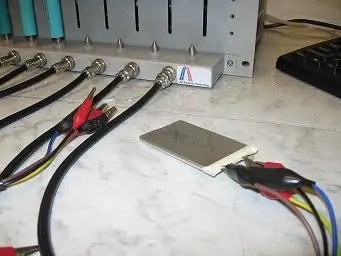

• 8 alligator clips with cable for universal connection

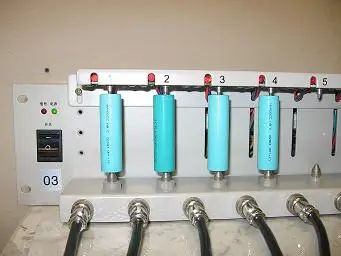

• 8 spring-loaded brackets, adjustable in height, for measuring cylindrical or button cells up to 70 mm (h)
• Optional bracket: 8-channel button battery test board, convenient for measuring button batteries

Programs and Software

• The software (TC5.3) with its own calibration function can set a variety of working modes to measure the capacity and life cycle of various rechargeable batteries
• Working modes include constant current discharge, constant current charge, constant voltage charge, rest, etc.
• Restricted threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.
• Real-time monitoring window, integrated graphics/data window, more intuitive and efficient observation of the test process
• During the test, the software provides help instructions and warnings
• Calibration software is available to calibrate the analyzer
• 30-day free trial of MS Excel 2013 is pre-installed, which is convenient for you to output Excel data files.

Test reports and curves for analysis

• The software can create different types of curves according to user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, cycle number-charge-discharge capacity curve, cycle number-charge-discharge efficiency curve, etc.)
• Data reports are created by the software. Users can easily compare the performance of batteries tested in the channel visually and statistically

Protection and Auto-Recovery

If a power failure occurs during the test, the system will shut down all working channels. When power is restored, the system automatically resumes the stopped channels, ensuring that the test proceeds without any loss of data.

laptop

• Brand new laptop with MS Window 8, MS Excel 2013 including 30 days free trial and the latest version of the test software isInstalland calibrated for immediate use
• One PC can control up to 20 analyzers at the same time

obey

Warranty

Two-year limited warranty, lifetime support

• New buyers must purchase a laptop with the software installed to avoid trouble with installation. If you want to run multiple battery analyzers on one laptop, you can buy multiple battery analyzers with one laptop at a discounted price.
• $500 will be deducted if an analyzer is purchased without the base laptop.
• Customers can easily combine up to 20 battery analyzers (0.002-1mA, 0.1-10mA, 6mA-3000mA) with one computer using common Ethernet cable connectors.
• You can order MTI's removable racks to organize your battery analyzer
