Cat5 Cat7 Cat 6A Cat6 Patch Panel Rj 45 12 Port

PRODUCT DETAIL
port:Shenzhen, Shanghai, Ningbo, etc.color:Black
Package preview:category:Six categories
high:1U distribution frameapplication:networking
brand:Wen Ruipayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
product name:cat5 cat 6 cat 6a cat 7 distribution frame rj 45 12 portsKey words:Ningbo network 8-port distribution frame
model:8P 12P distribution frameSupply capacity:3000 pieces per day
size:19 inchesPackaging Details:10PCS/box
port:8 12-port distribution framestandard:ANSI/TIA-568B
Origin:Guangdong, Chinatype:UTP FTP distribution frame
Product Description

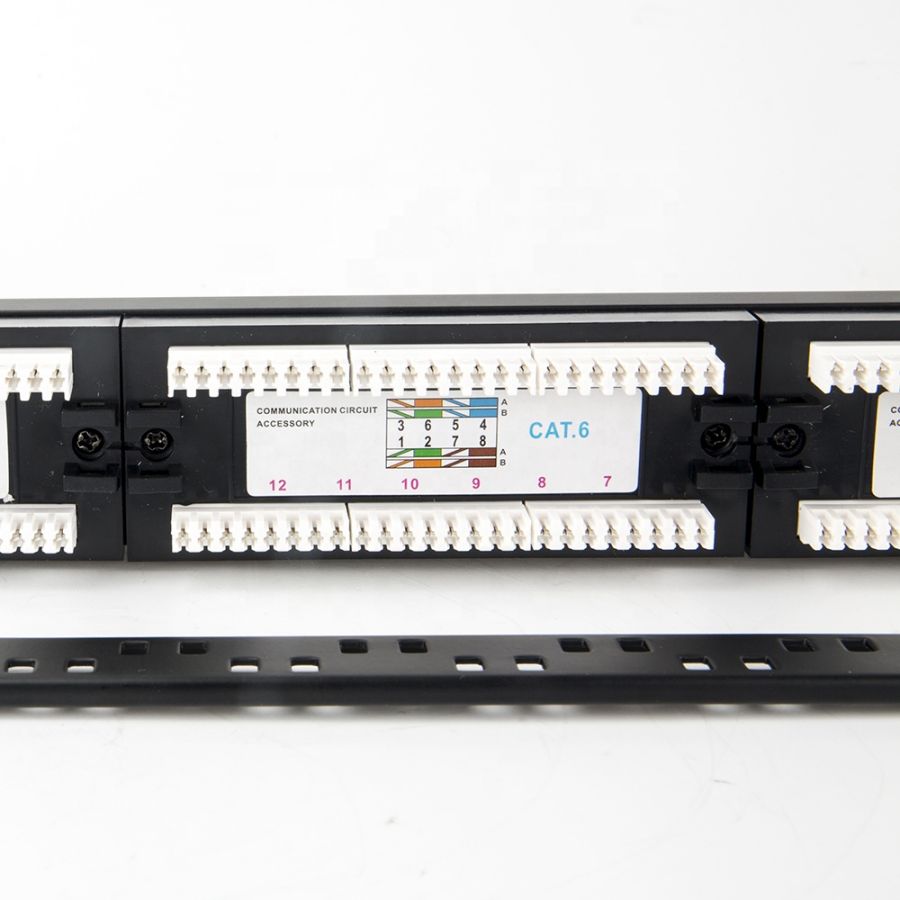

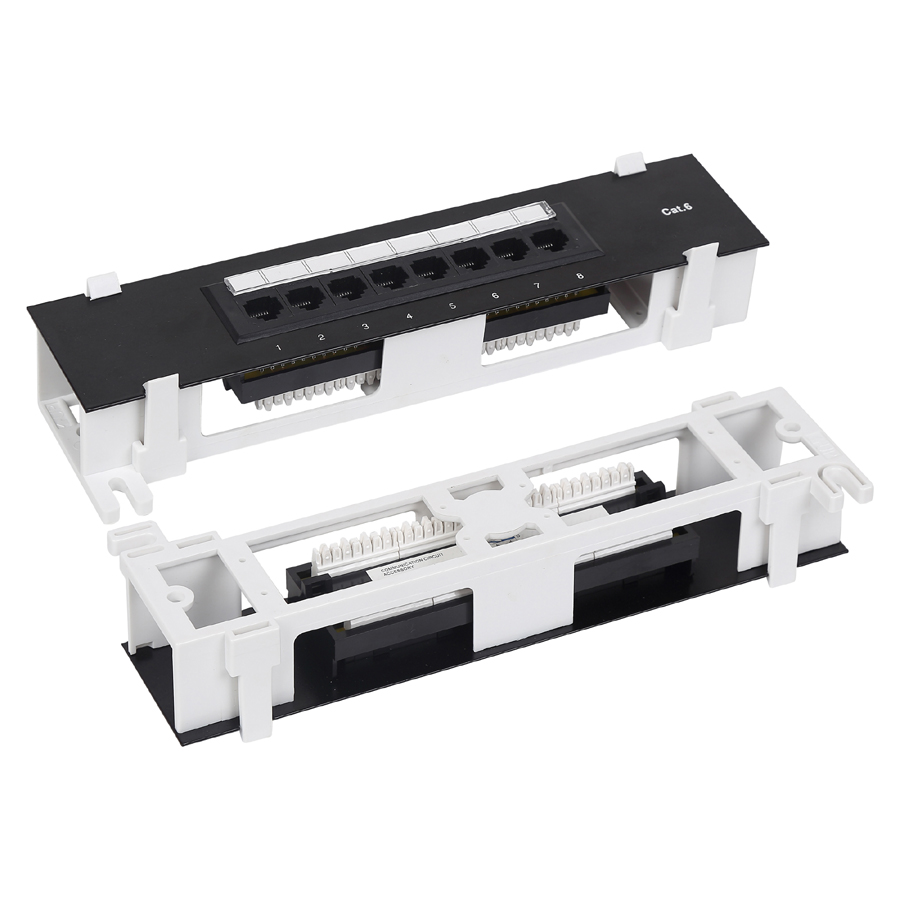

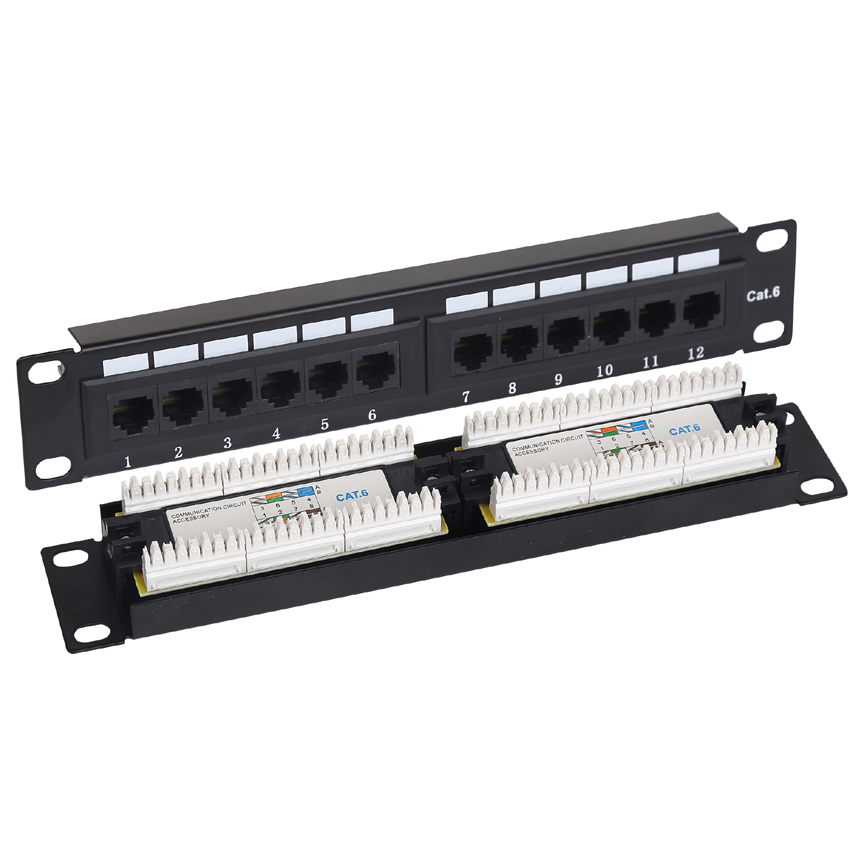

product name CAT6 8 ports 12 ports UTP FTP distribution frame
type UTP FTP distribution frame
port 8-port 12-port distribution frame
color Black
category Six categories
high 1U distribution frame
application networking
size 19 inches

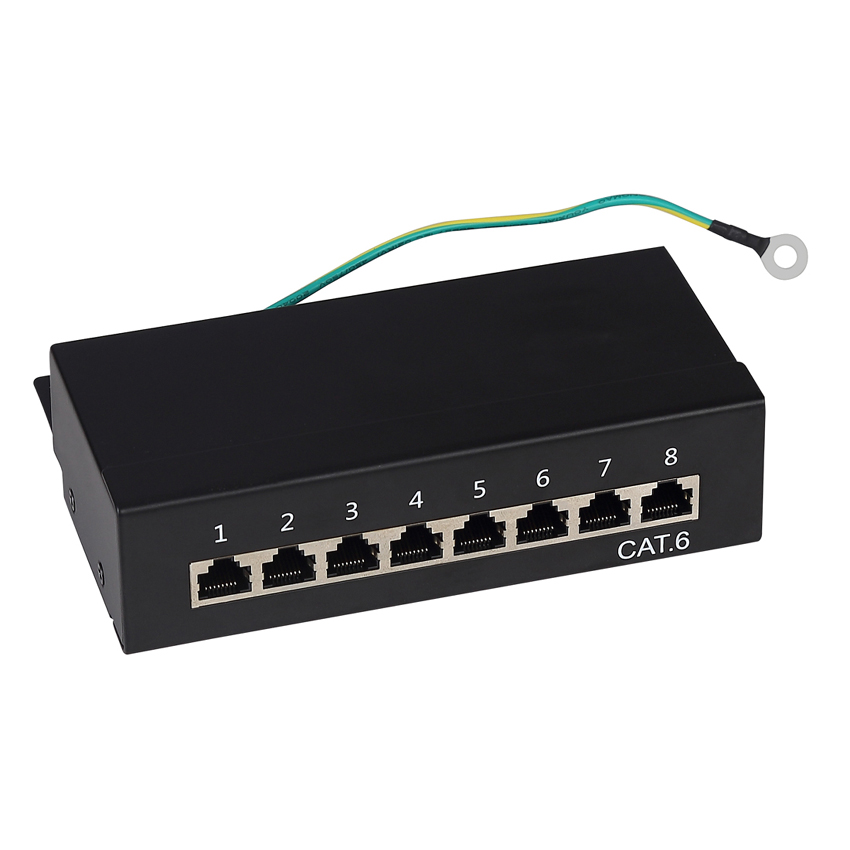

FTP 8 Port Patch Panel

Product description: CAT6 Type Krone IDC



Main electrical parameters:

Contact resistance: <20m ohms

Insulation resistance: >500M ohms

Dielectric strength: DC1000V (AC700V) without breakdown and flashover within one minute

Return loss: 100MHz, >8dB

Insertion loss: 100MHz, >35.9dB

Next loss: 100MHz, > 33.1dB

Attenuation: 100MHz, < 555ns

Main material: PC, phosphor bronze

Pin: 30-50"U" nickel-plated inside, gold-plated surface

Working temperature: -10℃-60℃

Storage temperature: -40℃-70℃



Main mechanical parameters: service life: more than 750 mating cycles

Number of contacts: >250 times

Allowable cable diameter: 0.57 0.01/-0.03MM
