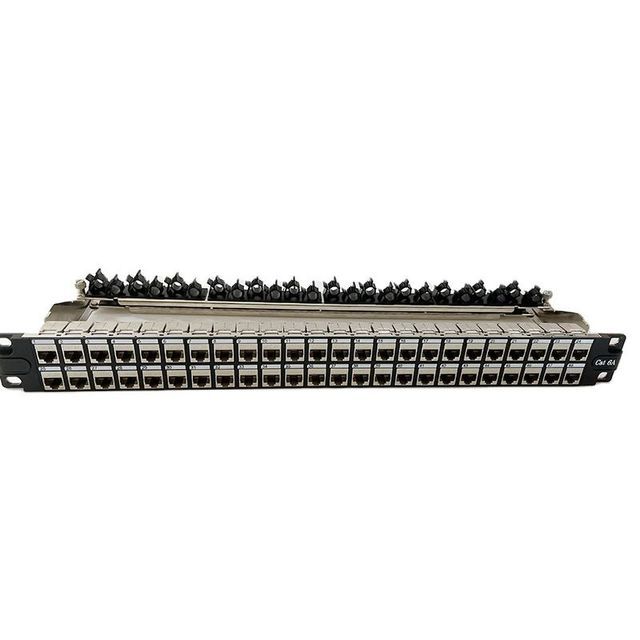

High Density Patch Panel 1U 48 Ports STP FTP Cat6A with RJ45 Keystone Jack
- $53.00 / 100 - 499 pieces
$51.00 / >=500 pieces - 100 pieces
- Ningbo Hyconnect Communication Technology Co., Ltd.
- Zhejiang, China
- Ms zyta zeng
| application: | Network cabling system | Package preview: | |
| Connector port: | 48 RJ45 jacks | product name: | 1U STP Cat6A 48-port patch panel |
| port: | Ningbo | Packaging Details: | Neutral packing, OEM packing are available 1 piece/box, 20 boxes/carton |
| Supply capacity: | 20000 pieces per month | model: | HPP-K4801F+HKJ-802-C6A |
| color: | Black | brand: | HY connection |
| Material: | SPCC | MOQ: | 100 |
| Origin: | Zhejiang, China | high: | 1U |
| Specification: | 48 ports | payment terms: | L/C, Western Union, T/T |
| category: | Cat6A |
| product name | 1U STP 48-Port Cat6A Patch Panel with Keystone Jacks |
| Material | SPCC |
| Specification | 48 ports |
| color | black+silver |
| used | Data center, work area, management room, equipment room, etc. |
1. Technical Features
• Nickel-plated brass shell, gold-plated phosphor bronze to prevent oxidation
• Front panel with port numbers and classes
• Front-end modules can be detached from the entire frame
• One-piece back bar provides good cable management, relieves cable tension, and makes the wiring system more stable and clear
• Metal structure ensures higher mechanical strength and good shape
• Standard 1U height 48-port panel supports T568A/B routing sequence
• Standard 19” wide range application enables faster assembly, maintenance and upgrades
2. Electrical characteristics
• Nominal voltage: 125 VAC RMS
• Rated current: 1.5AMP
• Contact resistance: 100 MΩ max.
• Insulation resistance: 1000MΩ@500 VDC
• Dielectric Strength: 750 VAC RMS 60Hz, 1MIN
3. Environment
• Storage: -40°C to +75°C
• Operation: -10°C to +60°C
• Meets TIA/EIA 568B Category 6
4. Machinery
• Housing material: PBT
• Panel frame: ST12, black powder coat
• IDC Material: PC, Terminal: Phosphor Bronze, Tin Plating
• RJ45 jack life: minimum 750 times
• IDC life: 200 times Min
• Wire: AWG23-26
• TIA Cat6 Perm .Link test: worst pair NEXT margin≥3.0dB
• Insertion structure holding force: 50N 60±5s
5. Apply
• Structured cabling to transmit data, voice, video
• Apply for Cat.6A
