Ceiling automatic main T-shaped grid T-shaped bar cross T-shaped grid T-shaped keel forming production line
- $80000.00 /piece
- 1 piece
- Botou Golden Integrity Roll Forming Machine Co., Ltd.
- Hebie, China
- Mr Jie Yang
| usage: | Make main T grid cross T grid, T runner | Cutting system: | Servo Tracking System |
| Control System: | Fully automatic computer control | Packaging Details: | Seaworthy standard packaging: covered with plastic film, fixed in a 20/40'gp container Suspended ceiling Automatic main T-shaped grid T-bar cross T-shaped grid T-shaped runner roll forming production line |
| brand: | Jia Xingsheng | Warranty: | 1 year |
| weight: | 12000 kg | product name: | T grid main T grid cross T grid T bar T runner machine |
| payment terms: | L/C, T/T | Showroom location: | not any |
| Core component warranty: | 1 year | Health status: | new |
| Roller material: | Cr12 | Production capacity: | 40-60m/min |
| Origin: | China | Mechanical test report: | if |
| strength: | 25 kW | Core components: | PLC, engine, motor, pressure vessel, gear, pump |
| Main selling points: | easy to operate | Uncoiler: | 2.5 tons*5 |
| Applicable industries: | Building material stores, construction projects | Video outbound inspection: | if |
| Marketing Type: | normal product | Punching and cutting: | fully automatic |
| Material Thickness: | 0.3mm-0.8mm | type: | Steel frame purlin machine |
Ceiling automatic main T-shaped grid T-shaped bar cross T-shaped grid T-shaped keel forming production line
1. Applicable material:
1) Material: galvanized steel
2) Material thickness: 0.28-0.5mm
3) Coil strength: Q195, 235B Mpa

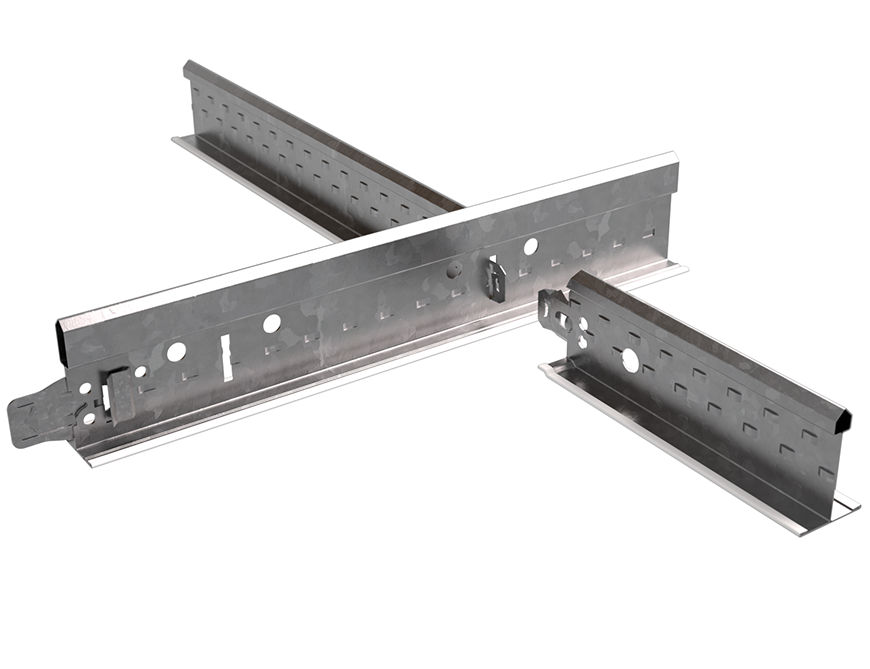

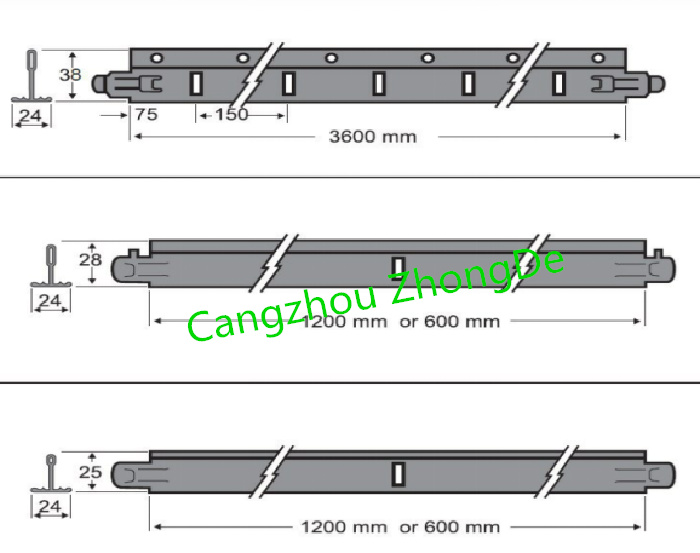

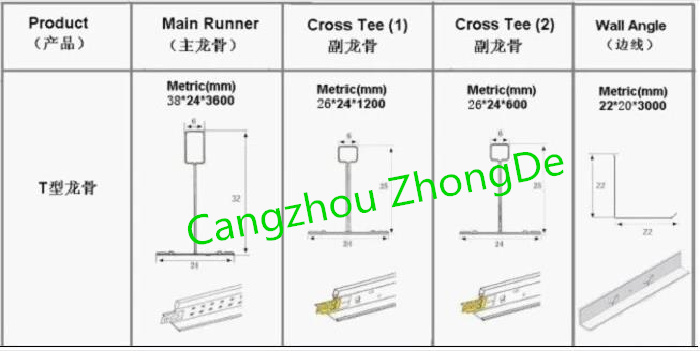

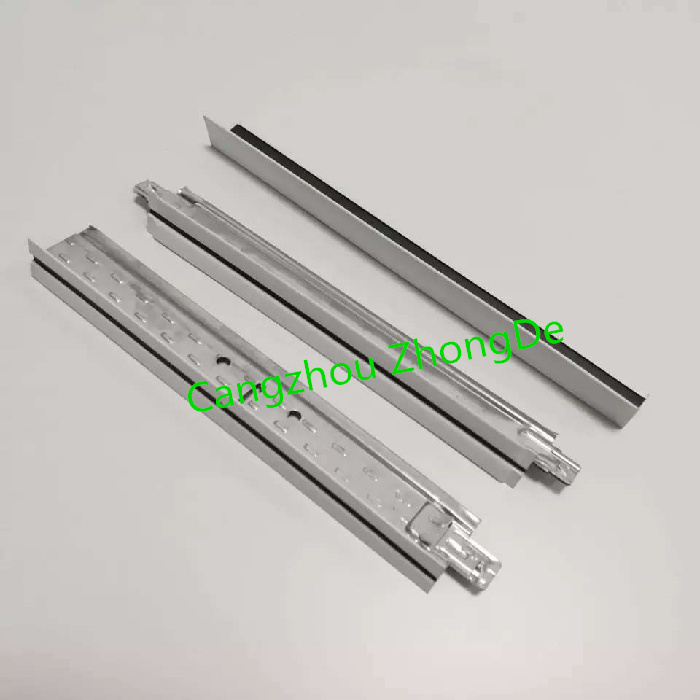

2.Outline design of ceiling main T-grid, cross T-grid, wall angel, T-runner, T-bar:
3. Technical specificationsCeiling automatic main T-shaped grid T-shaped bar cross T-shaped grid T-shaped chute forming production line:
Main parameters of T grid machine:
|
(1). Suitable processing materials: PPGI coiled material, GI coiled material; |
|
(2). Sheet thickness: 0.27-0.4mm; |
|
(3). Productivity: 15-30m/min; |
|
(4). Roller station: 16 rows; |
|
(5). Shaft diameter: φ40mm; |
|
(6). Roller material: Cr12; |
|
(7). Spindle material: 45# steel, quenched after grinding; |
|
(8). Frame: a square box structure welded by steel plates; |
|
(9). Wall structure: independent, thickness 30mm; |
|
(10). Main motor brand: Shanghai Lichao; |
|
(11). Main motor power: 5.5KW; |
|
(12). Power of hydraulic station: 11KW; |
|
(14). Tool material: Cr12MoV, hardened; |
|
(15). Drive mode: gear; |
|
(16). Punching: servo punching, servo motor power: 10KW; |
|
(17). Power supply: 380V, 50HZ, three-phase; or need to confirm with the buyer |
|
(18). Host weight: about 3 tons; |
|
(19). Main structure size: 6m * 0.9m * 1.0m (approximately).
|

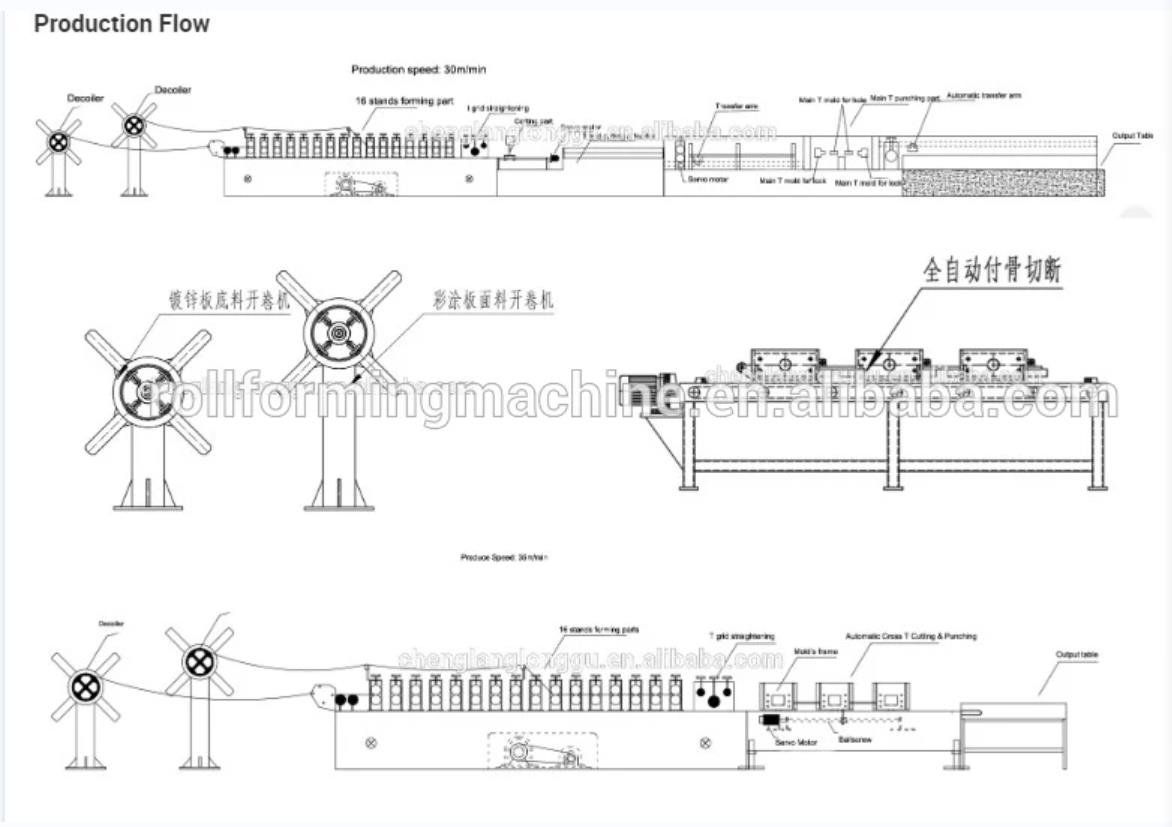

4. Workflow and layout:

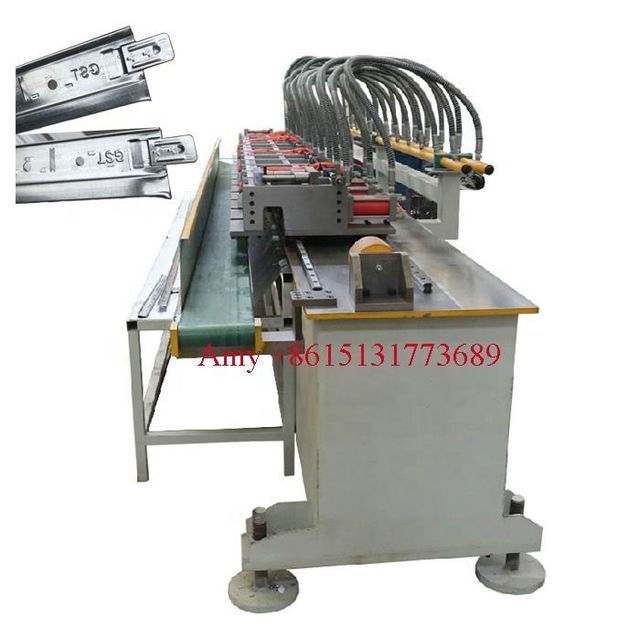

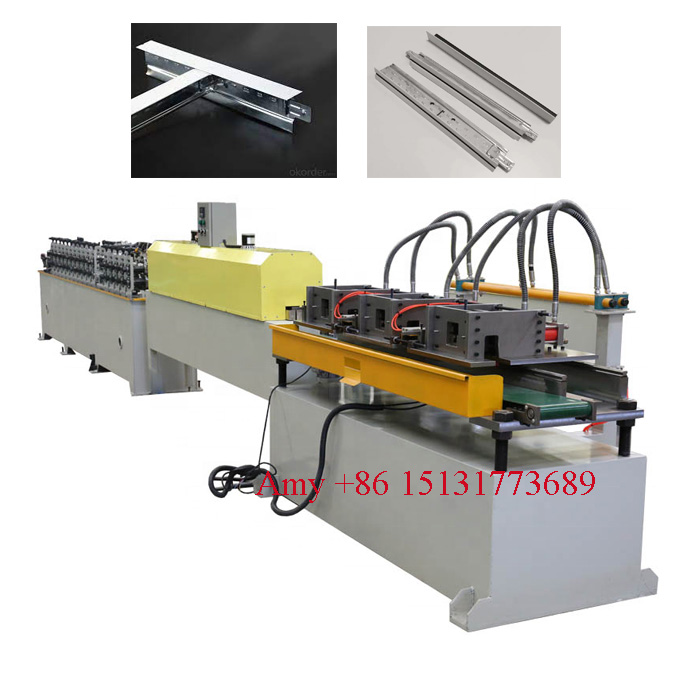

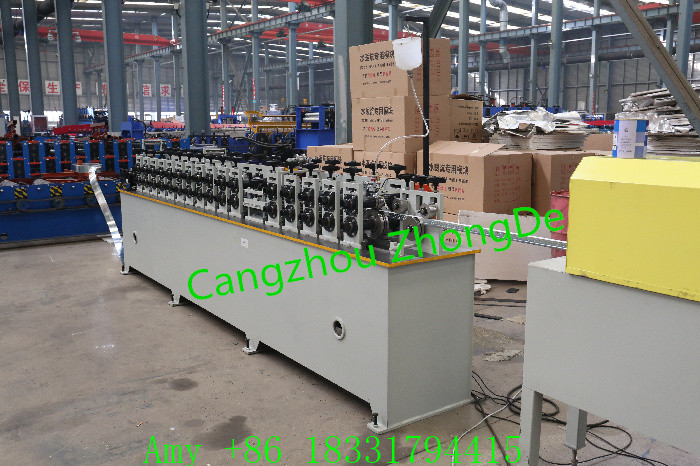

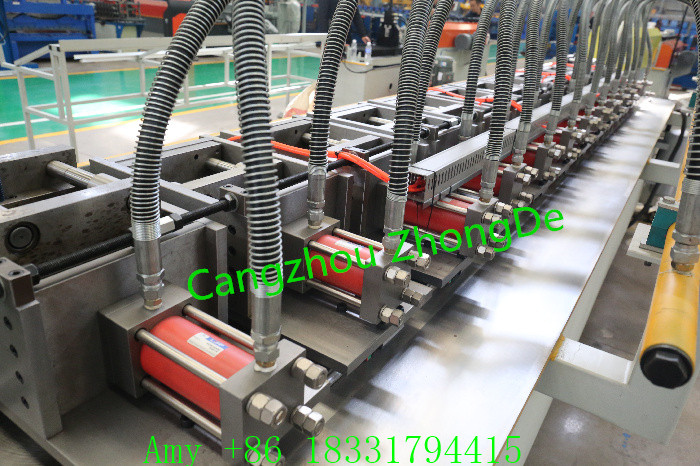

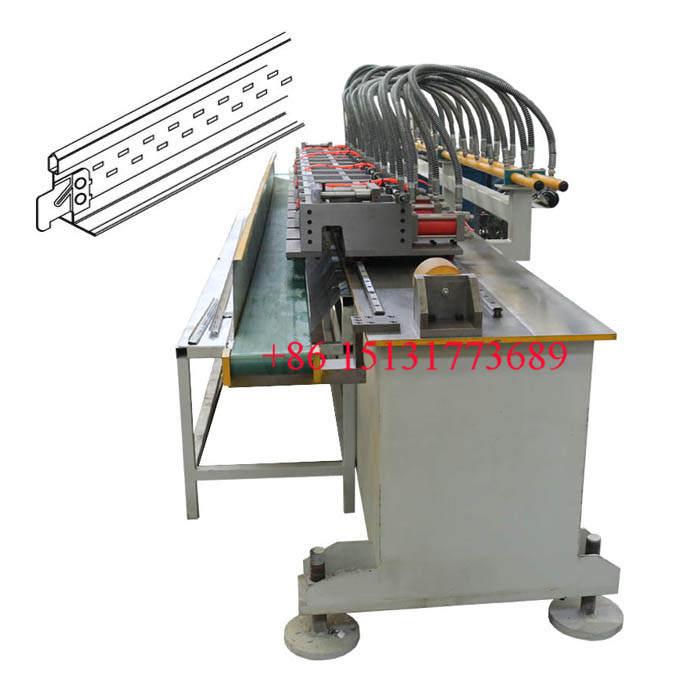

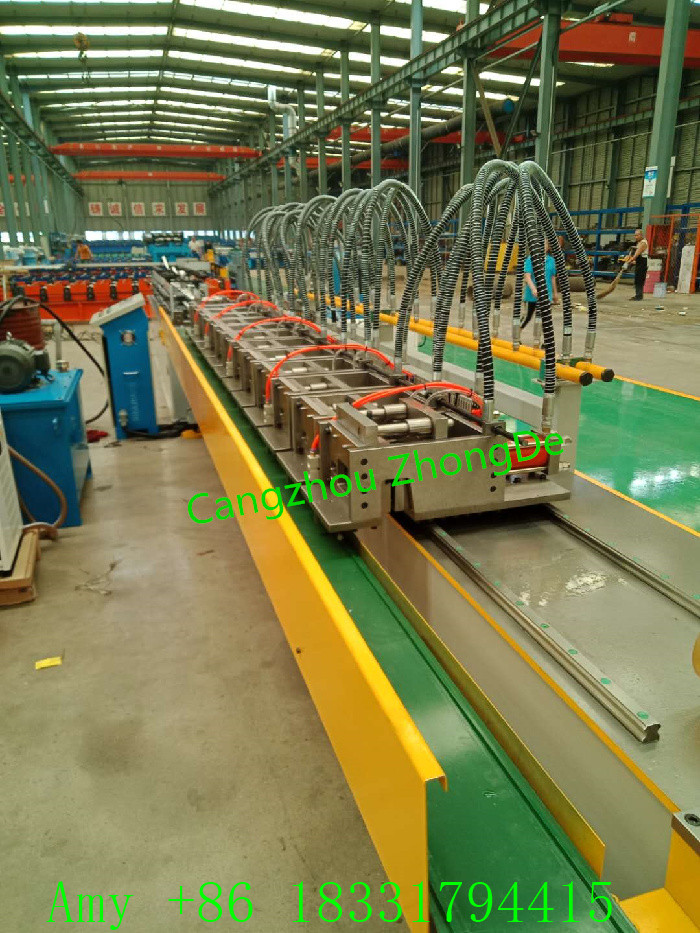

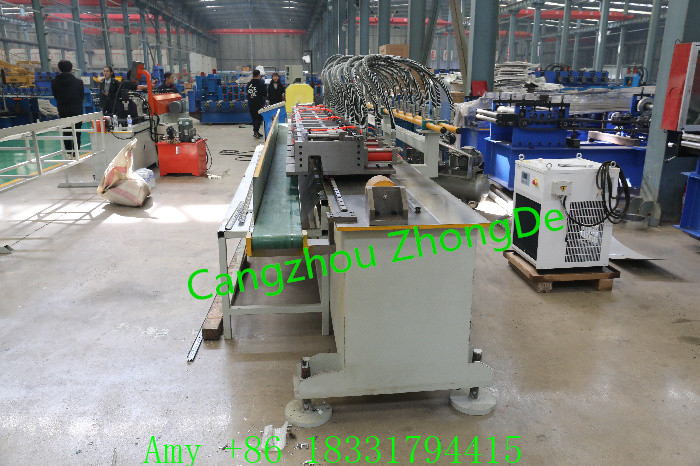

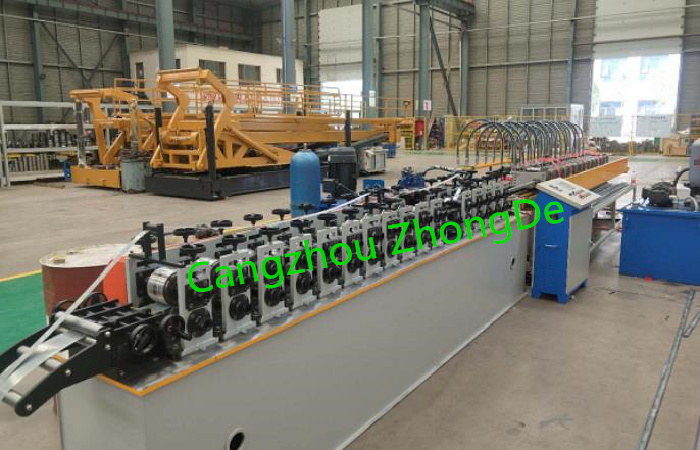

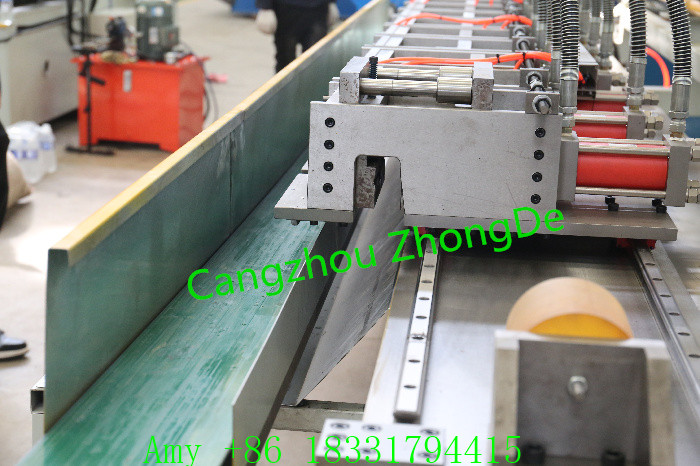

5. Picture of the ceiling automatic main T-shaped grid T-shaped bar cross T-shaped grid T-shaped chute forming production line:
