The ZT50 Drywall metal profile production line is for sale
- $20000.00 / 1 - 1 sets
$19500.00 / 2 - 2 sets
$19000.00 / >=3 sets - 1 set
- Cangzhou Zhongtuo International Trade Co., Ltd.
- Hebei, China
- Mr xu
| Origin: | Hebei china | Warranty: | 2 years |
| Name: | Metal profile production line | brand: | Zhongtuo |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Video outbound inspection: | if |
| frame: | 400H steel | Marketing Type: | Hot Products of 2020 |
| Dimensions (L*W*H): | 6.8*0.8*1.2m | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Household, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Advertising Agencies |
| strength: | 7.5-11 kW | Production capacity: | 8-30m/min |
| Number of rollers: | 12 rollers | Supply capacity: | 30 sets per month |
| Voltage: | 380V, 50HZ or as you need | port: | Tianjin |
| Main selling points: | easy to operate | Work pressure: | 550MPa---350MPa |
| Showroom location: | India | Mechanical test report: | if |
| Material Thickness: | 0.4---0.8 mm | Certification: | EU CE, ISO9001 |
| Adjustment method: | Half seam looper | Shaft diameter: | 50-80mm |
| speed: | 8-30m/min | Core component warranty: | 2 years |
| Drive mode: | gear | weight: | 3000 kg |
| Packaging Details: | Light steel frame forming machine/LGSF machine: standard and safe export packaging, suitable for long-term sea transportation | Shaft diameter: | 100 mm |
| Core components: | PLC, engine, bearing, motor, gear, pump | Health status: | new |
| type: | Steel frame purlin machine |
ZT50 drywall metal profile production line for sale
Drywall metal profile production line machine basic information:
1. The machine runs smoothly, without noise or vibration.
2. Computer control, PLC display, easy operation, stable and reliable operation, durable.
3. The cutting machine has the characteristics of stable transmission and convenient operation.
4. The hydraulic system adopts a hydraulic pump, which has a long service life and no noise.
Features of Zhongtuo drywall metal profile production line:
1. Continuous production, no need to replace the rollers in the rough forming section.
2. The finished product of the light steel truss machine has good flatness, good bending resistance, automatic fixed-length cutting, automatic punching, high degree of automation, quick and convenient installation,
3. The product can be used as the main structure of medium-sized industrial and civil buildings, such as factories, warehouses, hangars, hangars, exhibition halls, theaters, stadiums, exhibition roofs and wall plane load-bearing supports.
1. Processing technology and deploymentDrywall metal profile production linemachine

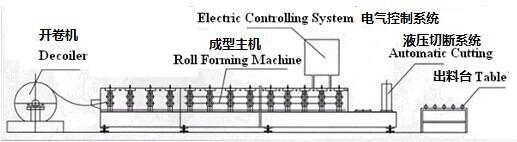

Flow chart: uncoiler--forming--PLC system--hydraulic system--cutting output table
2. Composition of the whole line
|
No. |
Name |
unit |
quantity |
|
1 |
Uncoiler |
put |
1 |
|
2 |
entrance beach |
put |
1 |
|
3 |
Roll Forming Host |
put |
1 |
|
4 |
cutting system |
put |
1 |
|
5 |
output table | put | 1 |
|
6 |
Control system (PLC) Siemens brand |
put |
1 |
|
7 |
Hydraulic station |
put |
1 |

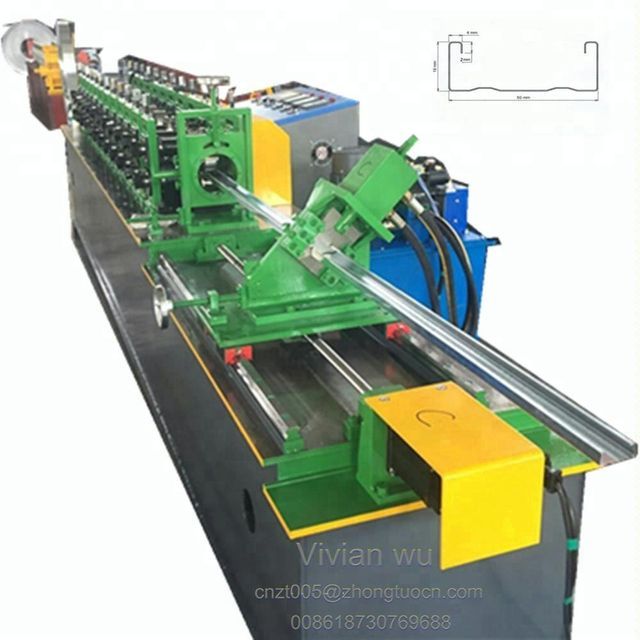

Host image (for reference only)
3. Host parameters
|
main part length |
6800mm*800mm*1200mm |
|
Main component weight |
3.5-7.2 tons |
|
Voltage |
380V 50HZ three-phase or according to your needs (220V, 440V) |
|
frame |
400 H steel or as your need |
|
drive mode |
gear |
|
Spindle material |
GR15 |
|
Shaft material |
45 # steel |
|
shaft diameter |
φ50-φ80mm |
|
Number of rollers |
12 rollers |
|
main power |
7.5-11 kW |
|
Forming speed |
20m-50m/min |
|
Adjustment method |
Half seam looper |

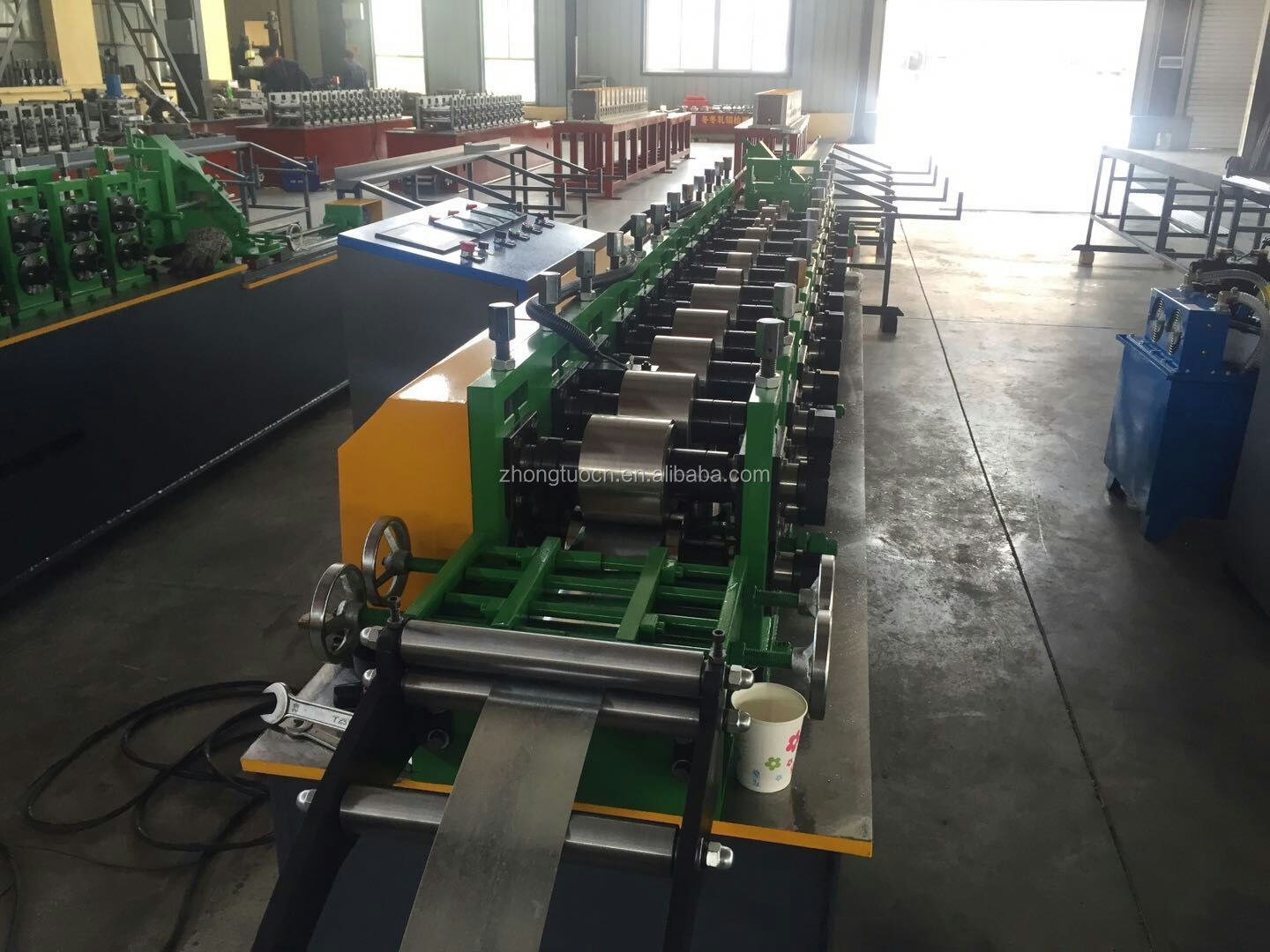

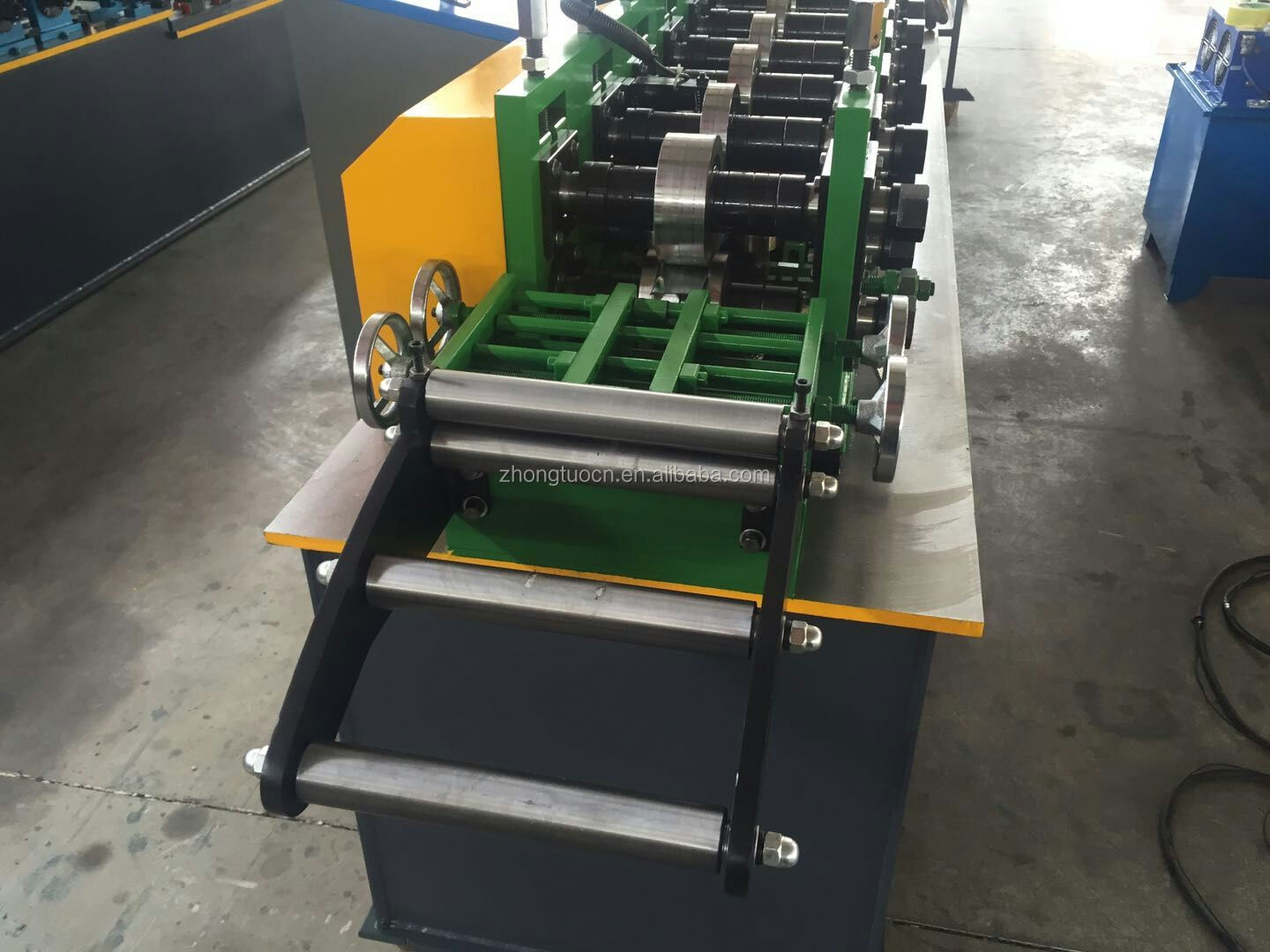

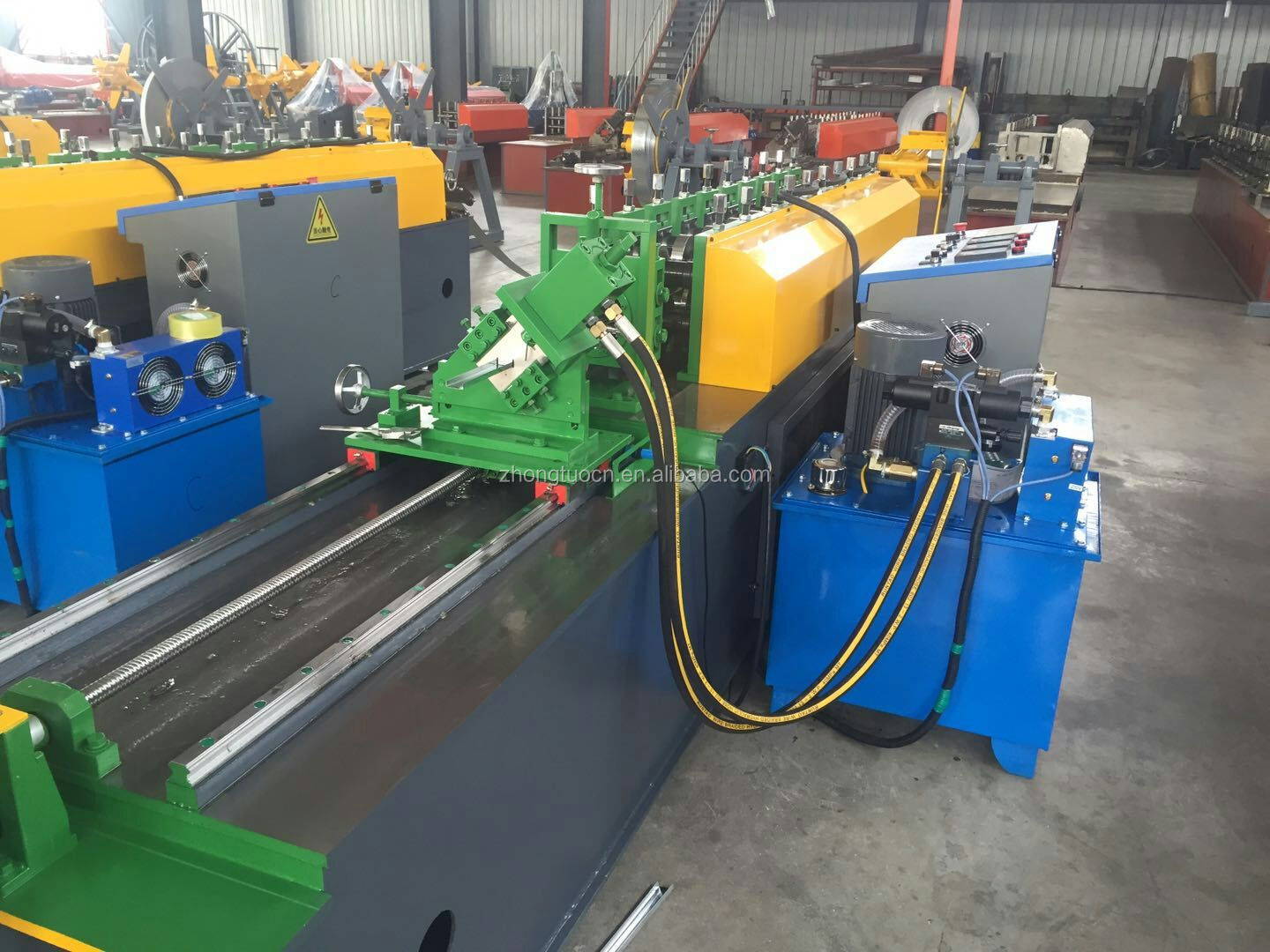

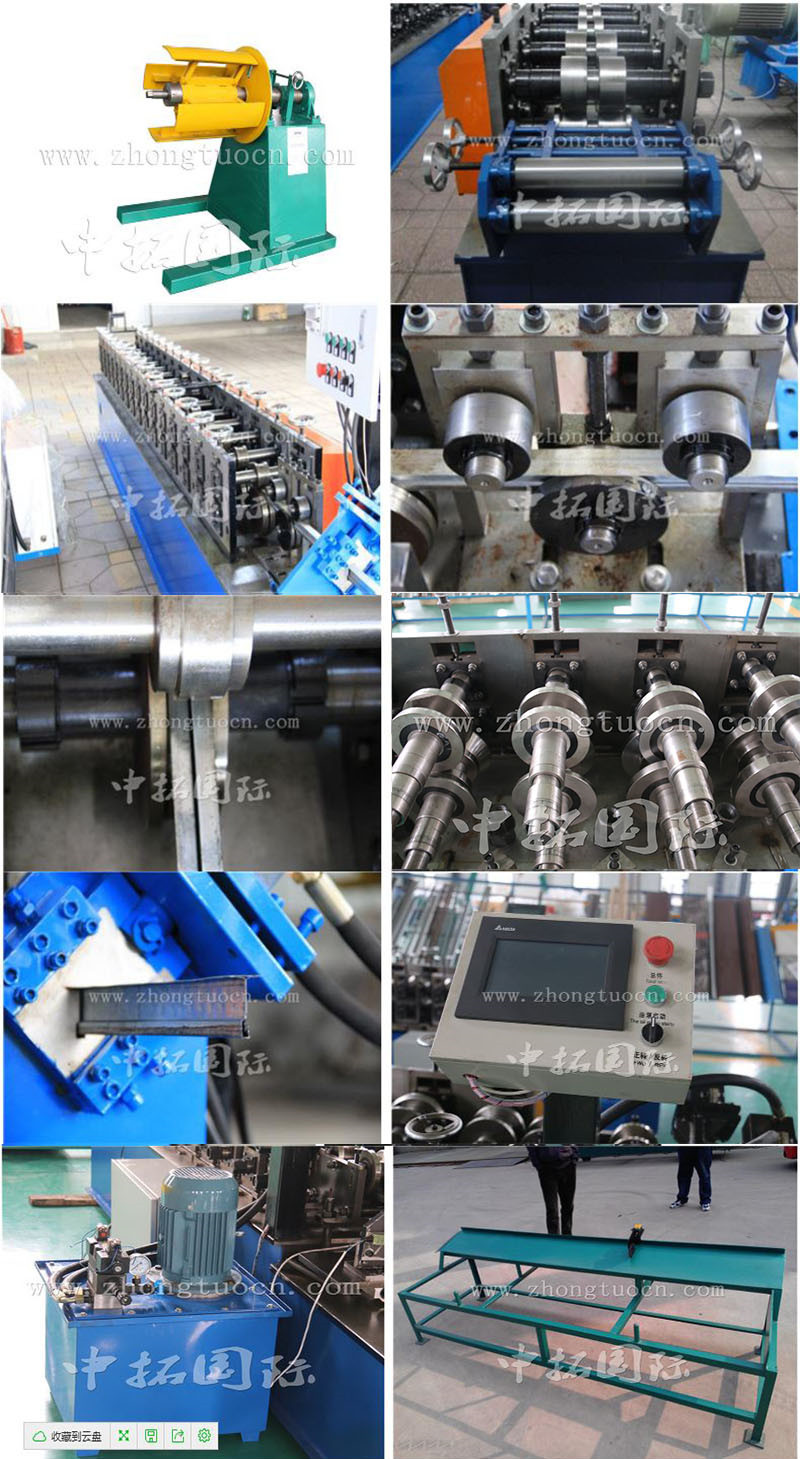

Details (reference)

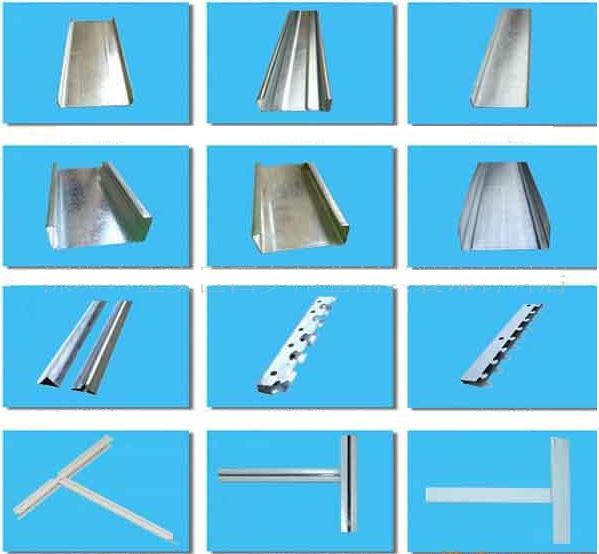

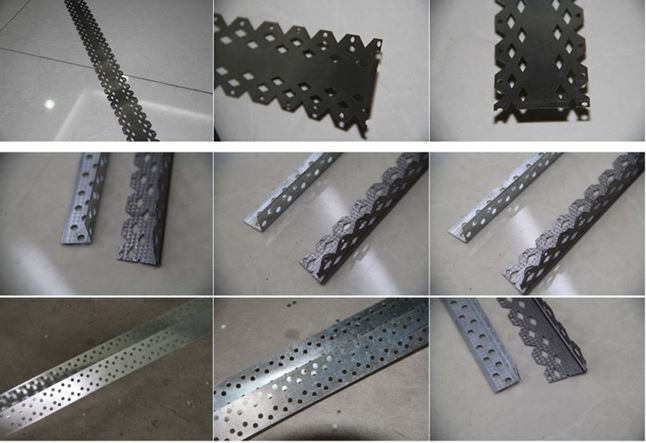

Purlin samples produced by Zhongtuo light steel truss machine:

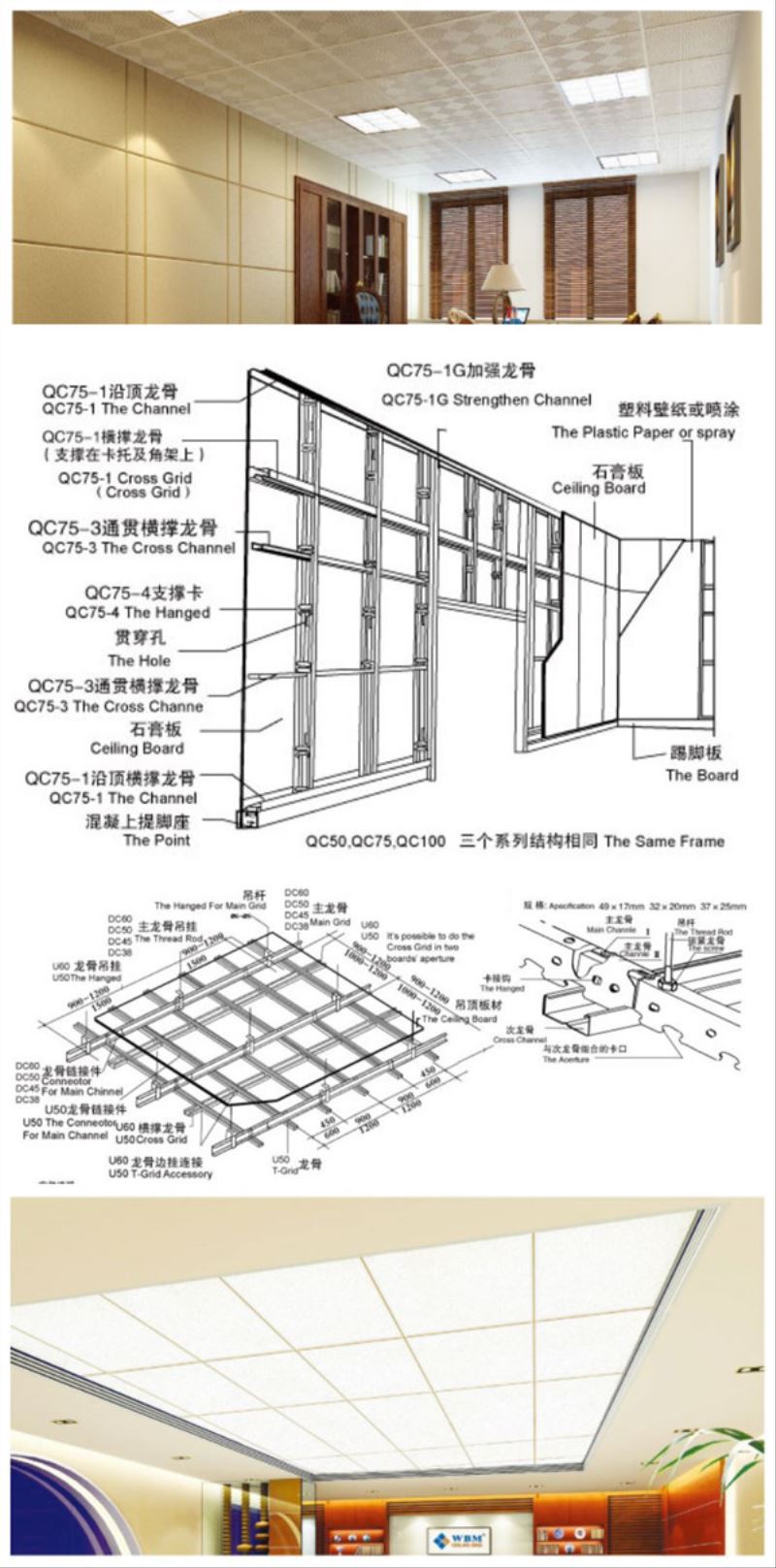

oneApplication of light steel truss:
Packaging details of light gauge steel frame forming machine/lgsf machine:
1. One 20ft container for loading one machine with manual uncoiler;
2. Wipe the anti-rust oil as a whole, and the PLC controller is covered with foam film;
3. Spare parts and some small parts are packed in plastic tooling boxes;
4. All parts are fixed with steel wire and container.
1). One year, we will provide lifetime technical support.
2).Training: buyers take care of their own visas, return air tickets, board and lodging
Overseas, the salary is 50 USD/person/day.
3). need a technician
4).Training time: one week (including installation and commissioning time)
