China Factory Drilling and Milling Machines ZAY7540/1 milling drilling machine
- $600.00 /set
- 1 set
- Xi'an Premier Machine Tools Co., Ltd.
- Shaanxi, China
- Mr Eric Hong
| Warranty of core components: | 1 Year; | Payment Terms: | L/C,Western Union,T/T,We can choose different payment methods accordingly; |
| CNC or Not: | Normal; | Certification: | ISO9001; |
| Port: | Qingdao; | Place of Origin: | Shaanxi, China; |
| Brand Name: | Premier Machines; | Model Number: | ZAY7540/1; |
| Max. Drilling Dia. (mm): | 40; | Power (kW): | 1.1; |
| Dimension(L*W*H): | 1020*1350*1850mm; | Supply Ability: | 200 Sets per Month; |
| Core Components: | Gearbox; | Weight (KG): | 1033 KG; |
| Packaging Detail: | Plywood Case; | Condition: | New; |
| Voltage: | 220V/380V; | Warranty: | 1 Year; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops; | Marketing Type: | Hot Product 2021; |
| Drilling Speed: | 90-1600 /38-1280 (r/min); | Video outgoing-inspection: | Provided; |
| Showroom Location: | None; | After-sales Service Provided: | Online support; |
| Machinery Test Report: | Provided; | Key Selling Points: | Multifunctional; |
| Range of Spindle Speed(r.p.m): | 90 - 1600 r.p.m; | type: | Drilling & Milling Machine; |

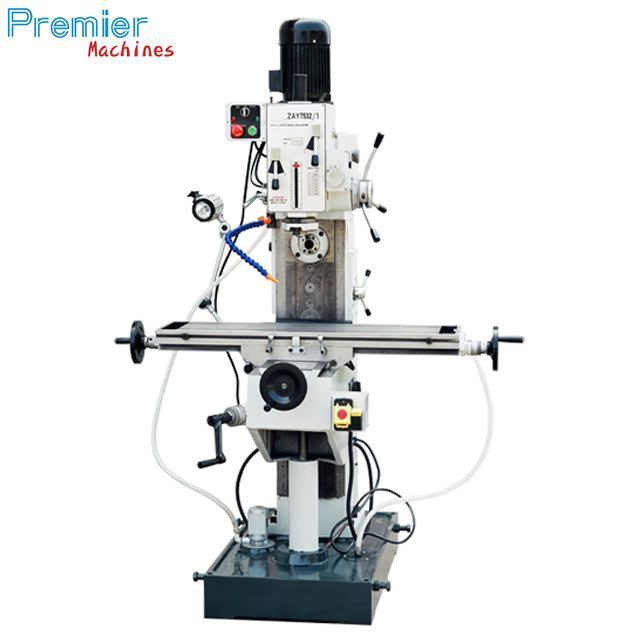

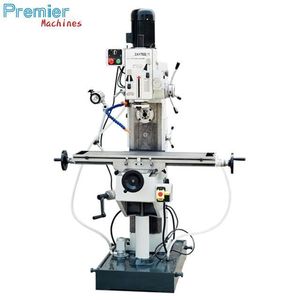

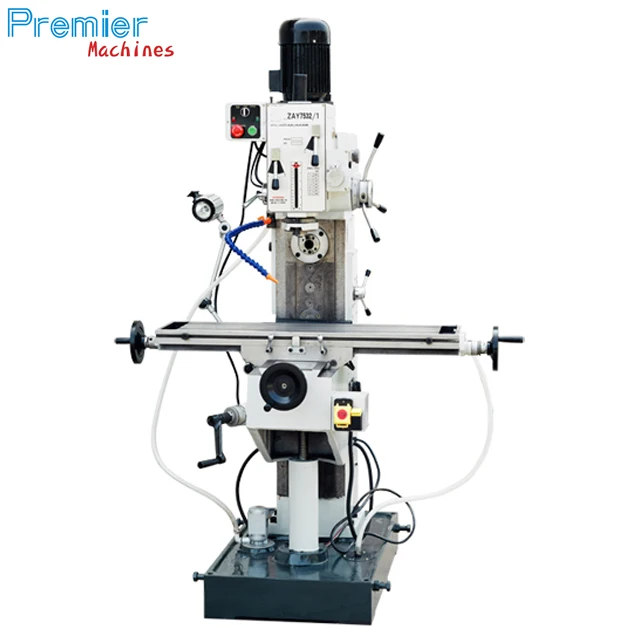

Drilling and Milling Machine
Model: ZAY7540/1
1. Vertical milling head can be moved forward or backward.
2. Vertical milling head can swivel 90 vertically and 360 horizontally.
3. Adjustable atops on table.
4. Manual quill feed.
5. High tensile casting iron elevative table.
6. Double motor with powerful force.
|
ITEM |
ZAY7532/1 |
ZAY7540/1 |
|
Max.drilling capacity |
32mm |
40mm |
|
Max.milling capacity(end/face) |
25/100mm |
32/100mm |
|
Swivel angle of headstock(perpendicular) |
±90° |
±90° |
|
spindle taper(end/face) |
M.T.3 M.T.4 |
M.T.4 |
|
Distance from spindle nose to worktable surface |
80-480mm |
80-480mm |
|
spindle travel |
130mm |
130mm |
|
beam travel |
500mm |
500mm |
|
step of spindle speed(end/face) |
6\12 |
6\12 |
|
Range of spindle speed(end/face) 50HZ |
90-1600 /38-1280 (r/min) |
90-1600 /38-1280 (r/min) |
|
60HZ (4 poles) |
110-1920 /45-1540 (r/min) |
110-1920 /45-1540 (r/min) |
|
Step of spindle auto-feeding(end/face) |
3 |
3 |
|
Range of spindle auto-feeding(end/face) |
0.12 0.18 0.25 |
0.12 0.18 0.25 |
|
Worktable size |
800×240mm |
800×240mm |
|
Forward and afterward travel of worktable |
300mm |
300mm |
|
Left anf right travel of worktable |
585mm |
585mm |
|
Vertical travel of worktable |
400mm |
400mm |
|
Min.distance from spindle axis to column |
290mm |
290mm |
|
Power(end/face) |
0.75KW(1HP)/1.5KW |
1.1KW(1.5HP)/1.5KW |
|
Voltage/Frequency |
As customer's requirement |
As customer's requirement |
|
Cooling pump power |
0.04KW |
0.04KW |
|
Net weight/Gross weight |
930kg/1030kg |
933kg/1033kg |
|
Packing size |
1020×1350×1850mm |
1020×1350×1850mm |
|
Loading amount |
8pcs/20'container |
8pcs/20'container |
