PBW50SG Automatic NC 2 In 1 Portable Line Boring and Bore Welding Machine boring machines portable
- $2500.00 /set
- 1 set
- Xi'an Premier Machine Tools Co., Ltd.
- Shaanxi, China
- Mr Eric Hong
| Table Travel (Y) (mm): | 0; | Place of Origin: | Shaanxi China; |
| Spindle Motor Power(kW): | 2.3; | Key Selling Points: | Multifunctional; |
| CNC or Not: | Normal; | Travel (W-axis) (mm): | 0; |
| Local Service Location: | None; | Warranty of core components: | 1 Year; |
| Number of Axes: | 2; | Marketing Type: | Hot Product 2019; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | Showroom Location: | None; |
| Machinery Test Report: | Provided; | Packaging Detail: | Plywood case; |
| Boring Diameter: | 35-350mm; | Range of Spindle Speed(r.p.m): | 200; |
| Condition: | New; | Certification: | ISO9001; |
| Table Travel (X) (mm): | 260; | Payment Terms: | Western Union,T/T; |
| Application: | Construction Machine Repairing; | Type: | 2 in 1,Horizontal; |
| Drive type: | Servo motor; | Warranty: | 1 Year; |
| Brand Name: | Premier Machines; | Video outgoing-inspection: | Provided; |
| After-sales Service Provided: | Online support,Video technical support; | Port: | Shanghai; |
| Package Preview: | ; | Weight (T): | 0.16; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining; | Production Capacity: | 50 sets; |
| Core Components: | Motor; | Transmission: | Gear box; |
| Voltage: | 220; | Table Size (mm): | 260x0; |
| Table Travel (Z) (mm): | 0; | Supply Ability: | 30 Set/Sets per Month; |

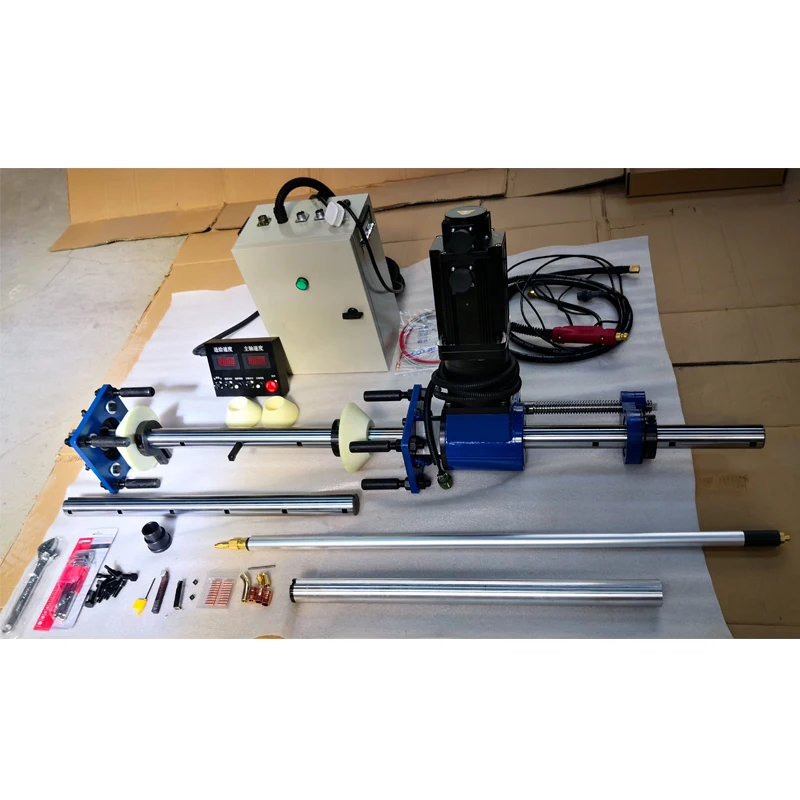

Automatic NC 2 In 1 Portable Line Boring and Bore Welding Machine Model: PBW50SG
Gear Transmission + Servo Motor Driven + Smart Controller
Automatic NC 2 in 1 portable line boring and welding machine is specially designed for on-site construction.
It is small in size, light in weight, good at both boring and welding.
It is not required for environment and space and easy to carry.
It is widely used in the repair of round holes such as pin holes and bearing holes of large-scale equipment and engineering machinery. It is an indispensable tool for industrial and mining enterprises and on-site maintenance.
1/ Main Driving Unit
This series adopts the servo motor driven with the feature of lower speed and higher torque.
The high precision gear unit of reduction equipped with machine ensures more powerful cutting.
2/ The new type of 2 in 1 borer and welder solves the problem of distortion of boring bar and
vibration during cutting process which are caused by the longer cantilever.
Also ensure there is no vibration during the process of axial moving and cutting process.
3/ Feeding and spindle rotation adopts stepless speed adjustment, the travel of feeding can be set
according to actual requirement. The machine will stop automatically after reaching the limit stop.
4/ The tool post can be fixed at any location within effective travel.
5/ Just one equipment solves both boring and welding processing.
6/ Separate electric cabinet equipped with the controller, convenient for remote operation, convenient and safe.
7/ This machine can be equipped with end face milling attachment as request.
|
Item |
PBW50SG |
|
Max. dia. of boring |
350mm |
|
Min. dia. of boring |
55mm (Optional from 35mm) |
|
Max. dia. of welding |
300mm |
|
Min. dia. of wedling |
40mm |
|
Servo motor power |
2.3Kw |
|
Rotation speed |
0.1 to 200rpm/min |
|
Max. cutting depth |
4mm single side (A3 steel) |
|
Roughness |
Ra3.2 |
|
Roundness |
≤0.02mm |
For more info, welcome to contact us for more info!
