DC to AC off grid 3000w solar photovoltaic inverter 24v 48v 3000w 5kw 5000w 3kva hybrid solar inverter 6000w 5kw 1000w price
- $240.00 / 1 - 39 pieces
$192.00 / 40 - 79 pieces
$168.00 / >=80 pieces - 1 piece
- Guangdong Xindun Power Technology Co., Ltd.
- Guangdong, China
- Ms Mickey Huang
| Supply capacity: | 500 pieces per month | brand: | Xindun |
| frequency: | High Frequency Solar Inverter | Inverter Efficiency: | 94% |
| weight: | Elective | Waveform: | Sine wave THD<3% |
| product name: | Hybrid Solar Inverter | port: | Foshan, Guangzhou, Shenzhen |
| Certificate: | ISO, CE, TUV, test report | Origin: | Guangdong, China |
| type: | DC/AC Inverter | Packaging Details: | It is recommended to use carton or wooden case for samples or wholesale goods to protect the solar inverter in transportation. |
| Warranty: | 12 months | Package preview: | |
| Input voltage: | 24V/48V | Output current: | 60A |
| Protect: | Overload/overvoltage/short circuit protection | Battery Type: | Lead Acid/Gel/AGM/LiFePO4 |

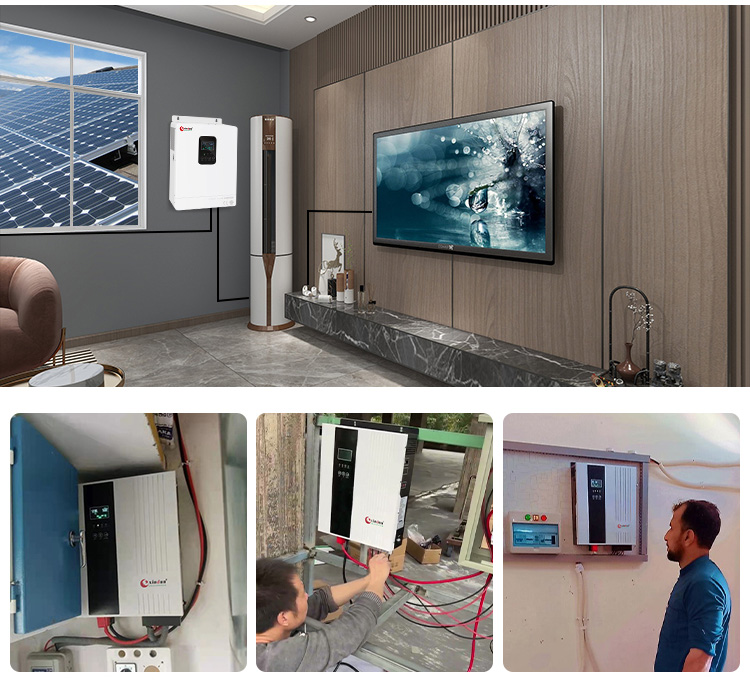

| application: | Solar inverters for air conditioners, refrigerators, rice cookers | output type: | single |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Processing: | Accept OEM |
| The output voltage: | 220v/230v/240v | Output frequency: | 50/60 Hz |
| rated power: | 6000w 5kw 1000w 5000w 3kva 3000w 5kw 3000w | size: | 400*320*100mm~433*320*100mm |
| Controller type: | MPPT controller inverter | communicate: | RS485/Wifi (optional) |
| model: | XD-HP Pro-T Solar Inverter |
1 High frequency design, high power density, small size, high efficiency, low no-load loss.

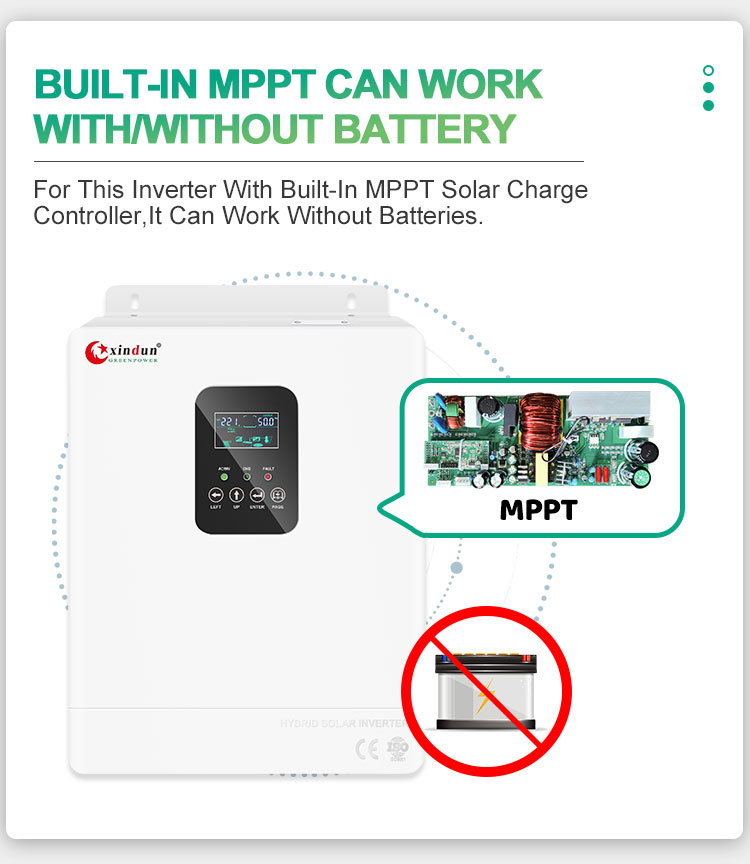

2 Optional built-in MPPT solar charge controller.
3 Pure sine wave output, suitable for various loads.
4 The battery charge and discharge voltage parameters are adjustable, suitable for different types of batteries, which can prolong battery life and improve system performance.
5 Three working modes are adjustable: AC priority, battery priority, and photovoltaic priority.
6 Output voltage/frequency adjustable function to adapt to different power grid environments.
7 Ultra-wide voltage and frequency input range, supporting mains or generator.

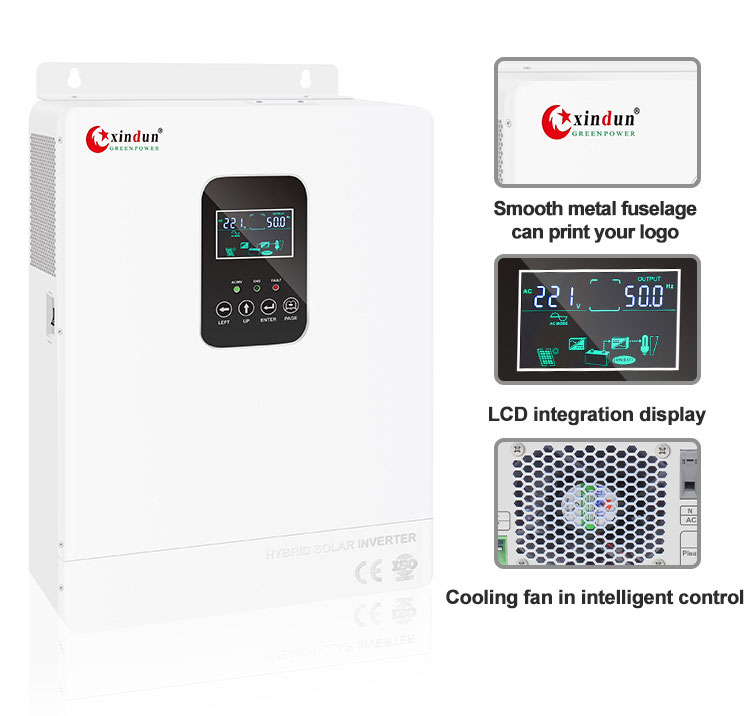

8-digit LED+LCD display, convenient for operation and data viewing, and can directly set various functions and data.
9 Multiple protection functions (overload, over temperature, short circuit protection, etc.).
10 RS485 communication ports/APP optional.
| Specification | ||||
| Model: HP PRO-T | 32224 | 50248 | ||
| rated power | 3200W | 5000W | ||
| battery voltage | 24V DC | 48VDC | ||
| Product size (length*width*height) | 400x320x100 | 433x320x100 | ||
| installation method | Wall-mounted | |||
| Photovoltaic | charging method | MPPT | ||
| Rated photovoltaic input voltage | 360VDC | |||
| MPPT tracking voltage range | 120V-450V | |||

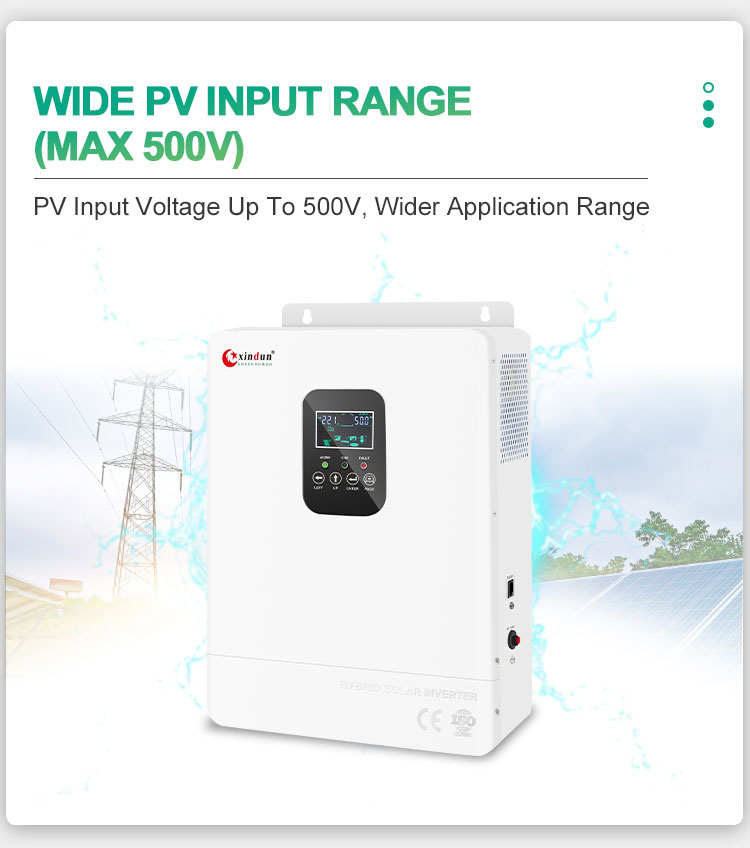

| Maximum PV input voltage Voc (at lowest temperature) | 500V | |||
| Photovoltaic array maximum power | 4000W | 6000W | ||
| MPPT tracking channel (input channel) | 1 | |||
| enter | DC input voltage range | 21-30VDC | 42-60VDC | |
| Rated AC input voltage | 220VAC / 230VAC /240VAC | |||
| AC input voltage range | 170VAC-280VAC (UPS mode) / 120VAC-280VAC (INV mode) | |||
| AC input frequency range | 45Hz~55Hz (50Hz), 55Hz~65Hz (60Hz) | |||
| output | Output Efficiency (Battery/PV Mode) | 94% (peak) | ||
| Output Voltage (Battery/PV Mode) | 220VAC+2% /230VAC±2% /240VAC±2% | |||
| Output frequency (battery/photovoltaic mode) | 50Hz±0.5 or 60Hz±0.5 (INV mode) | |||
| Output Waveform (Battery/PV Mode) | pure sine wave | |||
| Efficiency (AC Mode) | ≥99% | |||
| Output Voltage (AC Mode) | follow input | |||
| Output frequency (AC mode) | follow input | |||
| Output Waveform Distortion (Battery/PV Mode) | ≤3% (linear load) | |||
| No load loss (battery mode) | ≤1% rated power | |||
| No-load loss (AC mode) | ≤0.5% rated power (charger does not work in AC mode) | |||
| Battery | Battery Type | VRLA battery | Charging voltage: 13.8V; floating charging voltage: 13.7V (single battery voltage) | |
| custom battery | The charging and discharging parameters of different types of batteries can be customized according to user requirements (the charging and discharging parameters of different types of batteries can be set through the operation panel) | |||
| Maximum AC charging current | 60A | 60A | ||
| Maximum Photovoltaic Charging Current | 100A | 100A | ||
| Maximum charging current (mains + PV) | 100A | 100A | ||
| charging method | Three-stage (constant current, constant voltage, float charge) | |||
| Protect | Low battery voltage alarm | Battery undervoltage protection value +0.5V (single battery voltage) | ||
| Battery low voltage protection | Factory default: 10.5V (single battery voltage) | |||
| Battery overvoltage alarm | Constant charging voltage +0.8V (single battery voltage) | |||
| Battery Overvoltage Protection | Factory default: 17V (single battery voltage) | |||
| Battery Overvoltage Recovery Voltage | Battery overvoltage protection value -1V (single battery voltage) | |||
| Overload Power Protection | Automatic protection (battery mode), circuit breaker or fuse (AC mode) | |||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or fuse (AC mode) | |||
| temperature protection | >90°C (off output) | |||
| Operating mode | Mains/solar/battery priority (configurable) | |||
| connecting time | ≤4ms | |||
| exhibit | LCD+LED | |||
| thermal method | Intelligent control cooling fan | |||
| Communication (optional) | RS485/APP (WIFI monitoring or GPRS monitoring) | |||
| environment | Operating temperature | -10℃~40℃ | ||
| Storage temperature | -15℃~60*C | |||
| noise | ≤55dB | |||
| altitude | 2000m (greater than derating) | |||
| humidity | 0%~95% (no condensation) | |||
|
Special voltage, power, and appearance can be customized according to user requirements. Accept OEM/ODM. |
||||
|

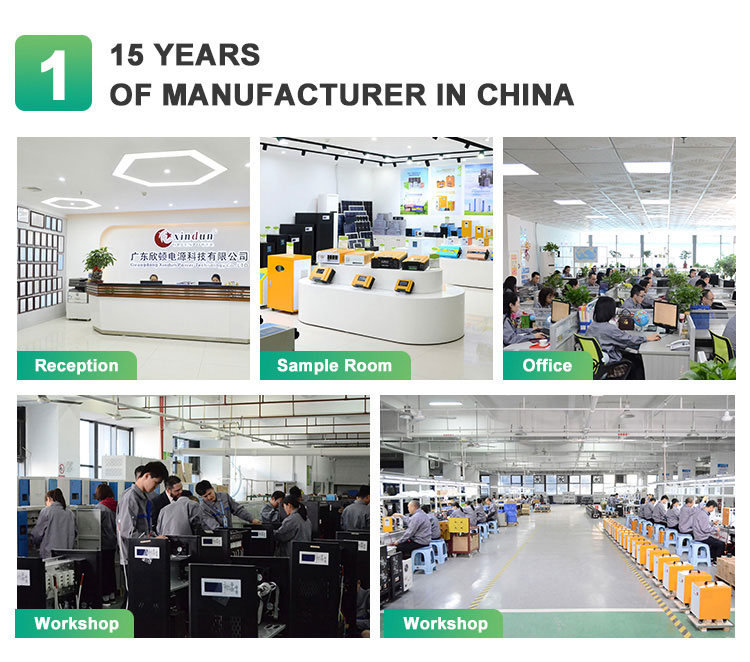

We never use inferior products in the market. China's Most Trusted Inverter Manufacturer. 15 years of production and sales experience. Suitable for personal use or for an agency to select a vendor.
|
Q1: Do you support OEM?
A1: Yes. OEM and ODM are available.
Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on different models. 1~10pcs sample order is available. Welcome to sample test.
Q3: What kind of certificates do you have?
A3: ISO, CE, IEC, etc. All series of products pass different laboratory tests according to your special requirements.
Q4: How about your after-sales service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have dedicated after-sales service engineers to provide professional after-sales service and technical support.
Q5: Does your company also provide other solar products besides inverters?
A5: Yes, we also provide other solar products for the whole solar power system, such as solar charge controllers, solar panels, off-grid solar inverters, on-grid/off-grid integrated inverters, batteries and solar power Other accessories related to the system.
Q6: How to choose a suitable inverter?
A6: Tell us your needs, then our sales will recommend the suitable inverter to you.
Q7 How about the delivery time?
A7: 3- 7 days for samples; 10-20 days for bulk order.
Q8: How to solve technical problems?
A8: 24 hours dedicated to provide you with after-sales service consultation, so that your problems can be easily solved.
