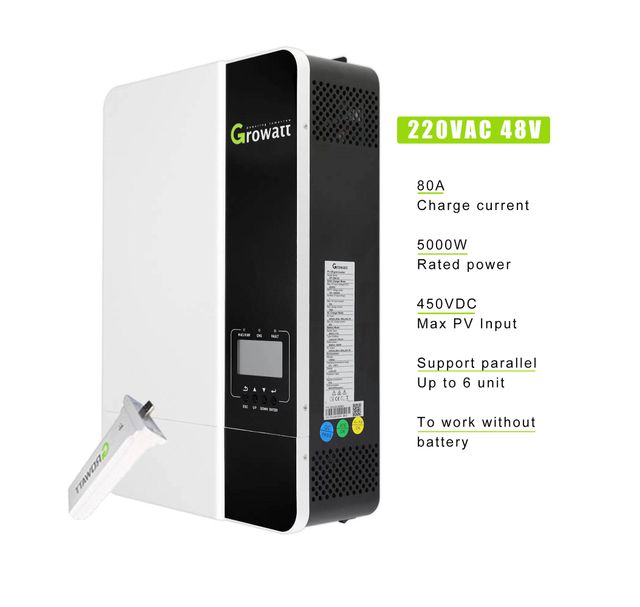

Growatt SPF 5000 ES Off Grid Solar Inverter 48v 5000W Photovoltaic Solar Inverter With Parallel Capability
- $550.00 / 1 - 99 pieces
$500.00 / 100 - 399 pieces
$480.00 / >=400 pieces - 1 piece
- Xiamen Kseng New Energy Tech Co.,Ltd.
- Fujian, China
- Mr
PRODUCT DETAIL
| Packaging Details: | Standard Exhibition Package | Output current: | 80A |
| Inverter efficiency: | 97% | rated power: | 5000VA/5000W |
| Warranty: | 2 years | type: | DC/AC inverter |
| payment terms: | wire transfer | product name: | Off-grid inverter |
| Certificate: | Chief Executive | MPPT range @ working voltage: | 120VDC～430VDC |
| output type: | single | battery voltage: | 48VDC |
| Operating temperature: | 0°C - 55°C | Output frequency: | 50/60Hz |
| Maximum PV array power: | 5500W | model: | SPF 5000ES |
| Input voltage: | 48V | Parallel capability: | 6 units |
| Packaging Preview: | place of origin; place of origin: | Fujian China | |
| The output voltage: | 230V | size: | 485*330*135MM |
| weight: | 14KG | brand: | Growatt |
| Storage temperature: | -15°C - 60°C |

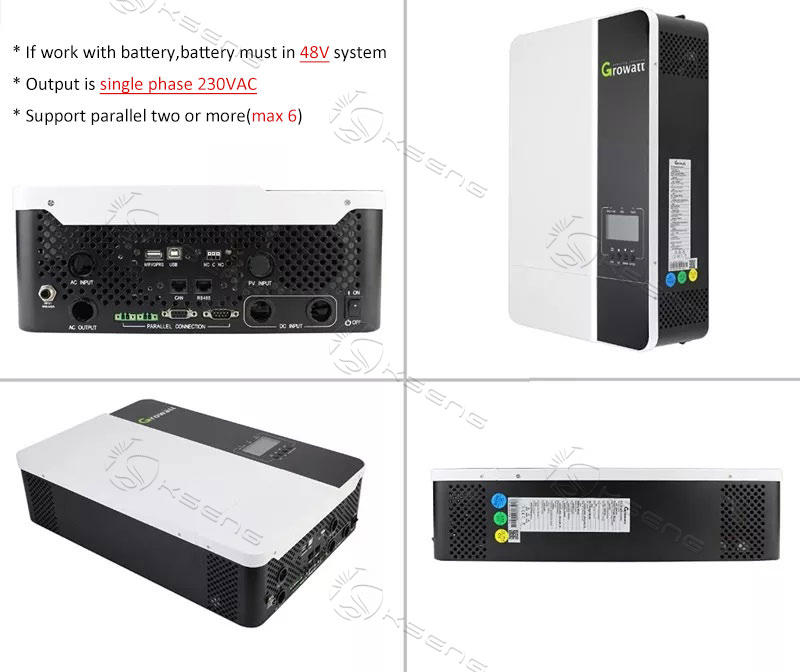

Growatt SPF 5000 ES Off Grid Solar Inverter 48v 5000W Photovoltaic Solar Inverter With Parallel Capability
*After-sales stations are located in more than 20 countries around the world.

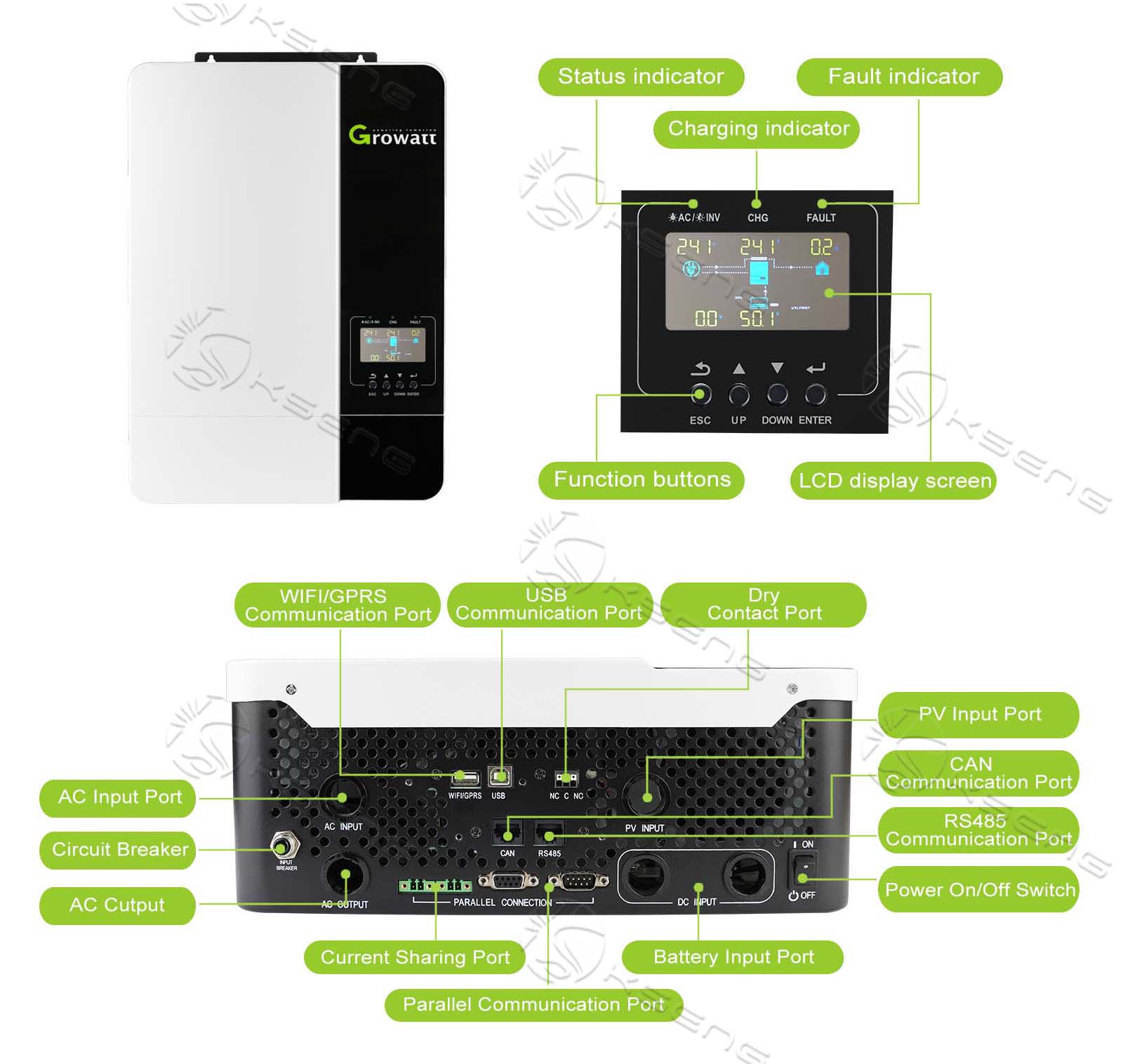

Product Description
SPF5000ES | ||
battery voltage | 48VDC | |
Inverter output | ||
rated power | 5000VA/ 5000W | |
Parallel capability | Yes, 6 units | |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
surge power | 10000VA | |
Efficiency (peak) | 93% | |
waveform | pure sine wave | |
transfer time | 10 ms (for personal computers); 20 ms (for home appliances) | |
solar power charger | ||
Maximum PV array power | 5500W | |
MPPT range @ working voltage | 120VDC～430VDC | |
Maximum PV Array Open Circuit Voltage | 450VDC | |
Maximum solar charging current | 100A | |
maximum efficiency | 97% | |
AC charger | ||
recharging current | 80A | |
AC input voltage | 230 VAC | |
Optional voltage range | 170-280 VAC (for PC); 90-280 VAC (Household Appliances) | |
physical | ||
Dimensions (D/W/H) in mm | 485/330/135 | |
Net weight (kg) | 12 | |
Operating environment | ||
humidity | 5% to 95% relative humidity (non-condensing) | |
Operating temperature | 0°C - 55°C | |
Storage temperature | -15°C - 60°C | |

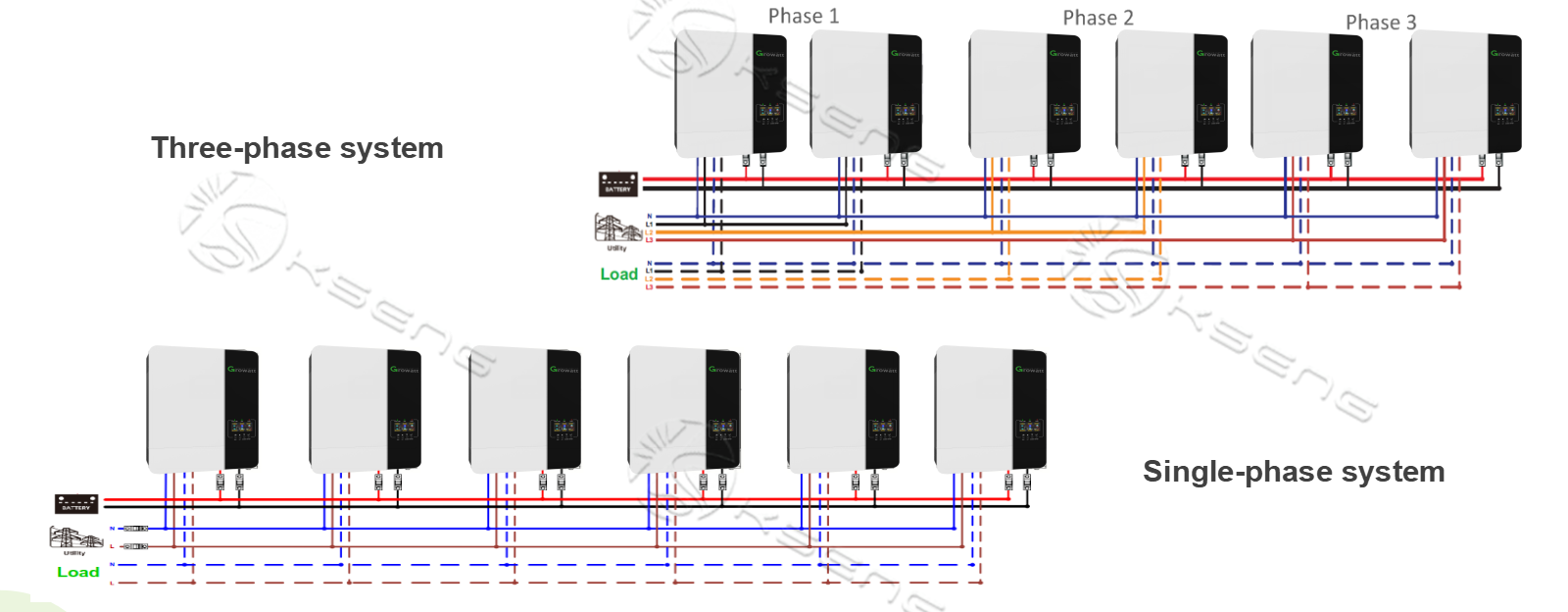

Up to 6 units of 4/5KVA can operate in parallel, the maximum system output can reach 30KW, and it can also be set as a three-phase system

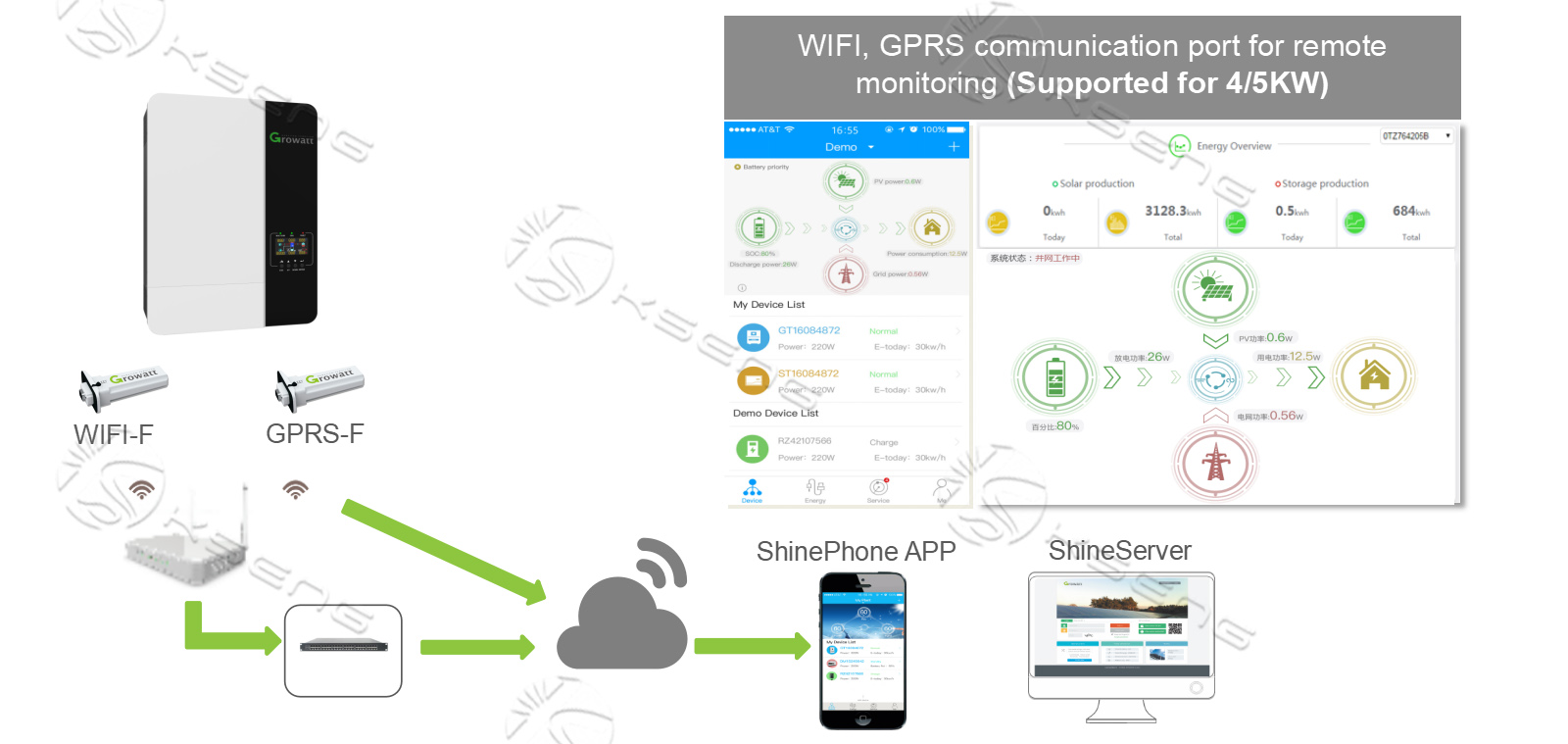

Remote monitoring

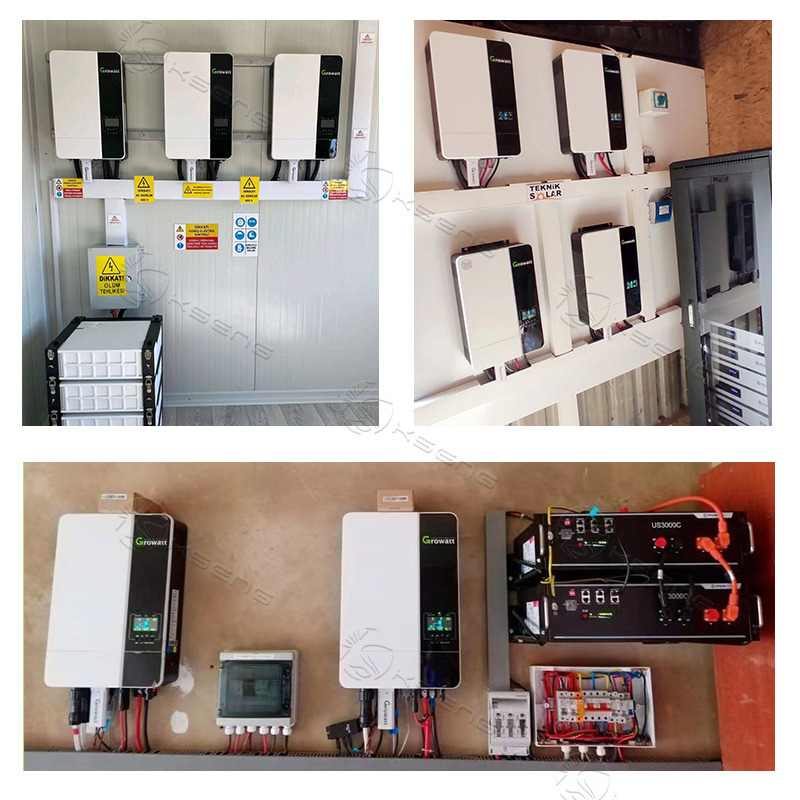

Applications

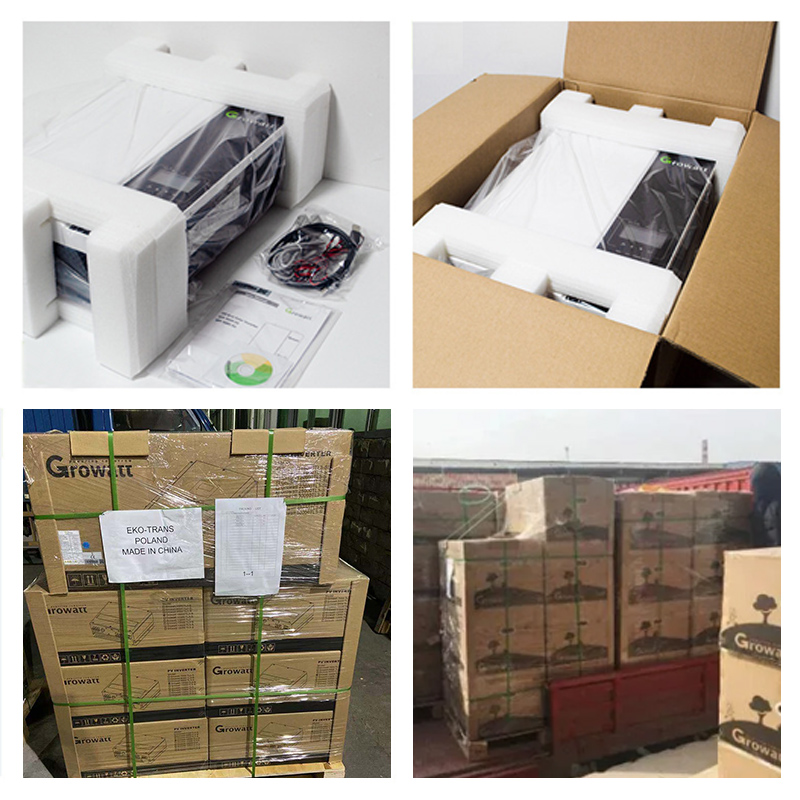

Product packaging

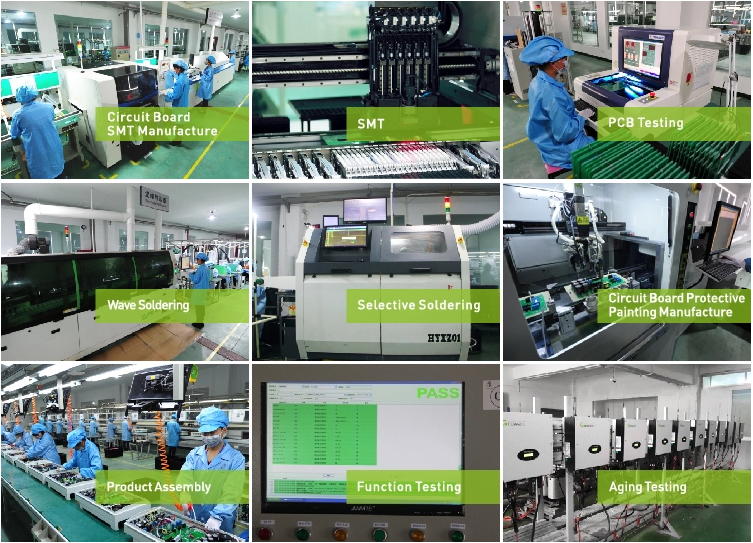

Production Process
Xiamen Kaisheng Metal Technology Co., Ltd. is a national high-tech enterprise with independent intellectual property rights. The annual production capacity can reach 3GW. The company is headquartered in the beautiful coastal city of Xiamen, with branches and offices in Hong Kong Special Administrative Region, Australia, Malaysia, Japan, South Korea, Vietnam and other countries and regions. The company has professional team support to provide customers with safe, reliable, stable and efficient solar photovoltaic power station solutions. Focus on core businesses such as solar energy systems, solar inverters and cleaning equipment, photovoltaic brackets and related accessories, and photovoltaic power station construction business.
