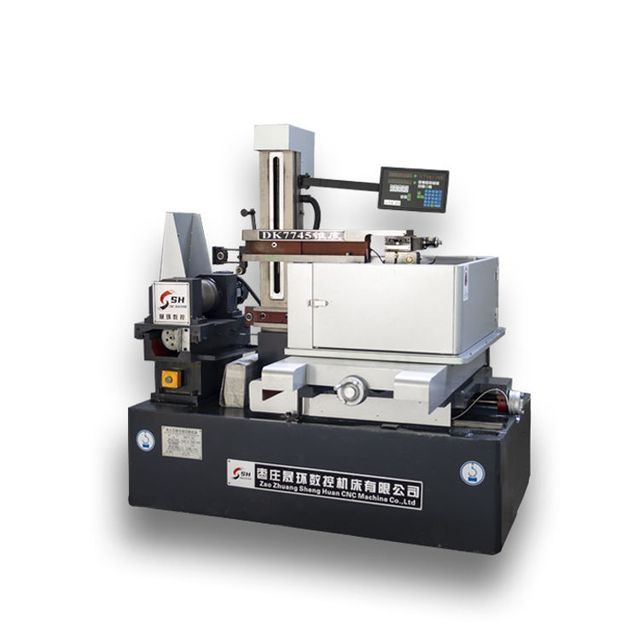

DK7745 High Precision Wire Cutting CNC Machine Tool
- $2000.00 /set
- 1 set
- Zaozhuang Shenghuan Cnc Machine Tool Co., Ltd.
- Shandong, China
- Ms Anna Xie
| brand: | Happy | Showroom location: | Türkiye, Indonesia, India, Russia, Kazakhstan, Ukraine |
| Weight (kg): | 1400 | Processing taper: | custom made |
| Warranty: | 1 year | Health status: | new |
| Type of machine: | Wire EDM | Surface roughness: | Ra<2.5um |
| Table size (mm): | 810*570 | Core component warranty: | 1 year |
| Package preview: | Main selling points: | multifunctional | |
| CNC or not: | CNC | Mechanical test report: | if |
| control method: | CNC system | accurate: | 0.02mm |
| Video shipment inspection: | if | Supply capacity: | 100 sets per week |
| Marketing Type: | New Products 2022 | Dimensions (L*W*H): | 1600*1200*1600 |
| Voltage: | 380 | Year: | 2022 |
| Power (kW): | 2 | Maximum workpiece weight: | 400 kg |
| Applicable industries: | Building materials store, machine repair shop, manufacturing plant, household, energy and mining, construction | Origin: | Shandong China |
| payment terms: | L/C, D/P, D/P | Key words: | Dk7745 High Precision Wire EDM |
| port: | Qingdao Port | Packaging Details: | The outer packaging of tin foil material has better moisture-proof function. The outer box of the machine tool is made of 7mm thick fumigated wood board, which has better protection and moisture-proof performance. Double protection, let customers feel more at ease |
| product name: | DK7745 High Precision Wire Cutting CNC Machine Tool | Core components: | motor, gear |
| color: | customer optional |
DK7745 High Precision Wire Cutting CNC Machine Tool

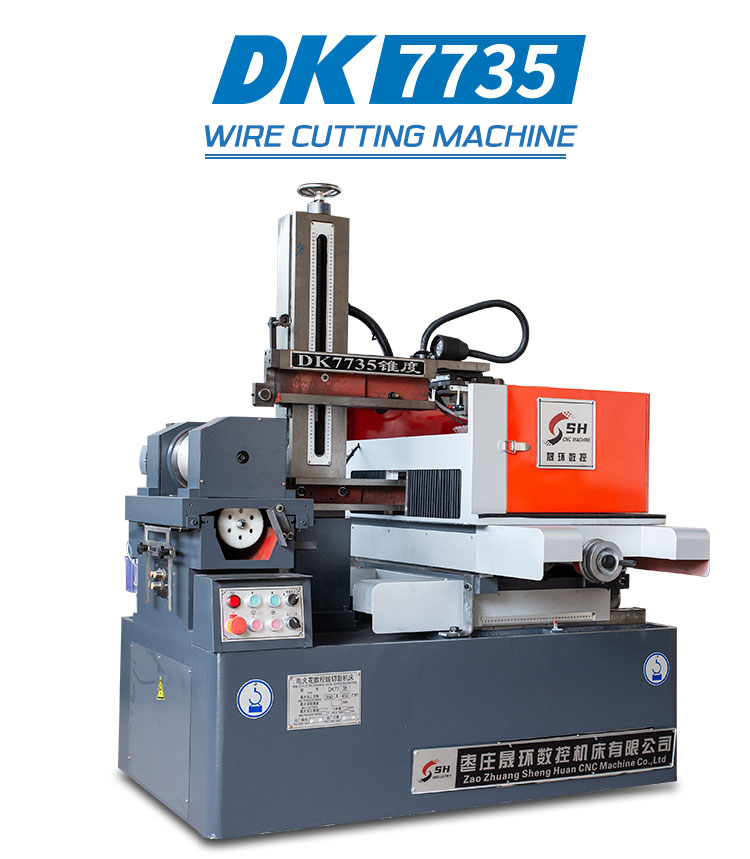

DK7735 series machines:
1. Standard maximum cutting taper: ±6°/80mm; (±15°, ±30°, ±45° optional)
2. Accuracy ≤ 0.02mm, in line with GB7926-2005 standard; (if equipped with linear guide rail, the accuracy can reach 0.01mm)
3. The best surface roughness ≤ Ra2.5μm (single cut), Ra1.5μm (multi-cut);
4. Molybdenum wire diameter: 0.1-0.2mm;
5. Maximum cutting speed ≥ 120mm^2/min;
6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 1.5KW;
7. Working fluid: water-based emulsion.
|
Model |
Table travel (mm) |
Table size(mm) |
maximum. Cutting thickness(mm) |
maximum. Load (kg) |
Dimensions (mm) |
Weight (kg) |
|
DK7720 |
200*250 |
420*270 |
200 |
100 |
1250*950*1250 |
800 |
|
DK7725 |
250*320 |
520*340 |
300 |
200 |
1450*900*1500 |
1000 |
|
DK7735(32) |
350(320)*450(400) |
710*460 |
400 |
300 |
1400*1100*1600 |
1100 |
|
DK7745(40) |
450(400)*550(500) |
810*570 |
400 |
500 |
1600*1200*1600 |
1400 |
|
DK7745F(40F) |
450(400)*630 |
950*600 |
400/600 |
600 |
1600*1580*1600 |
1600 |
|
DK7755(50) |
550(500)*650(630) |
950*650 |
700 |
700 |
2000*1500*1900 |
1800 |
|
DK7755F(50F) |
550(500)*800 |
1140*650 |
700 |
700 |
2000*1650*1900 |
2000 |
|
DK7763 |
630*800 |
1140*750 |
700 |
1000 |
2100*1700*2050 |
2400 |
|
DK7763F |
630*1000 |
1350*750 |
700 |
1200 |
2250*1850*2050 |
2800 |
|
DK7780 |
800*1000 |
1350*980 |
900 |
2000 |
2400*1900*2350 |
4000 |
|
DK7780F |
800*1200 |
1600*1050 |
900 |
2400 |
2550*1950*2400 |
4500 |
