Dual Stage Gas Burner JATE TCM-10M1F Linear Burner with Fan Power 200W

Price:$1020.00 / 1 - 1 pieces
$970.00 / 2 - 4 pieces
$943.00 / >=5 pieces
Min. Order:1 piece
Supplier:Shenzhen Jate Burners Co., Ltd.
Region:Guangdong, China
Contact:Ms Jeanie Liu

PRODUCT DETAIL

Fan power:	200W	place of origin; place of origin:	Guangdong, China
Serve:	Online Video Support	Health status:	new
Burner head:	15.717.230cm	Video external inspection:	if
Supply capacity:	100 pieces per month	deliver goods:	Full payment after 3-5 days shipping
Model:	TCM-10M1F	Main Caliber:	DN15
Warranty:	12 months, 1.5 years	type:	gas stove
port:	Shenzhen	payment terms:	Western Union, T/T, MoneyGram, Online Payment
Packaging Preview:		Applicable industries:	Manufacturing Plants,Construction Engineering,Energy and Mining,Others
Marketing Type:	normal product	Mechanical test report:	if
Weight (kg):	42	brand:	Jet
Showroom location:	not any	Card:	Jet
gross weight:	Volume weight about 99KG	Packaging Details:	Wooden packing
product name:	Linear burner

product description

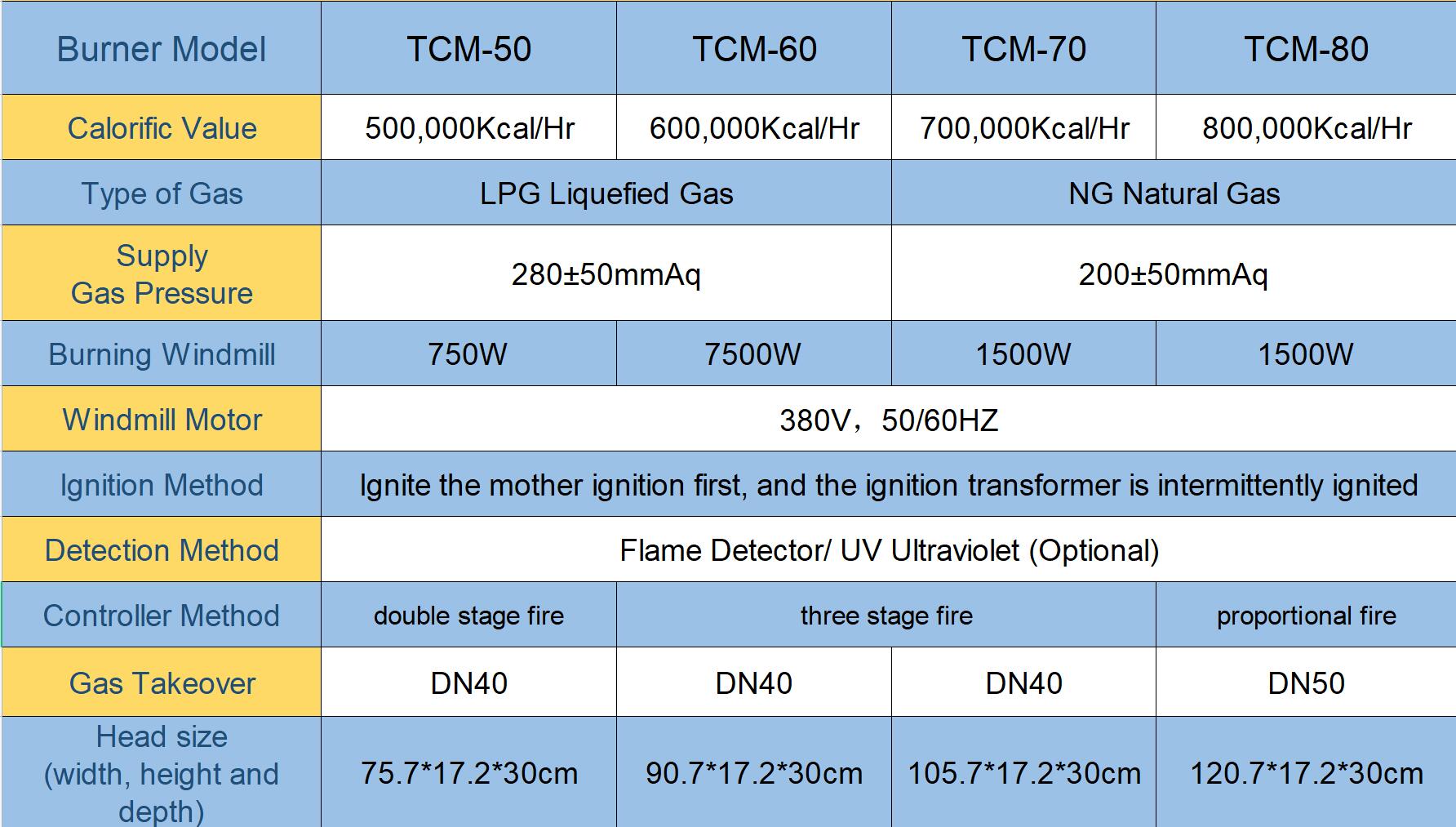

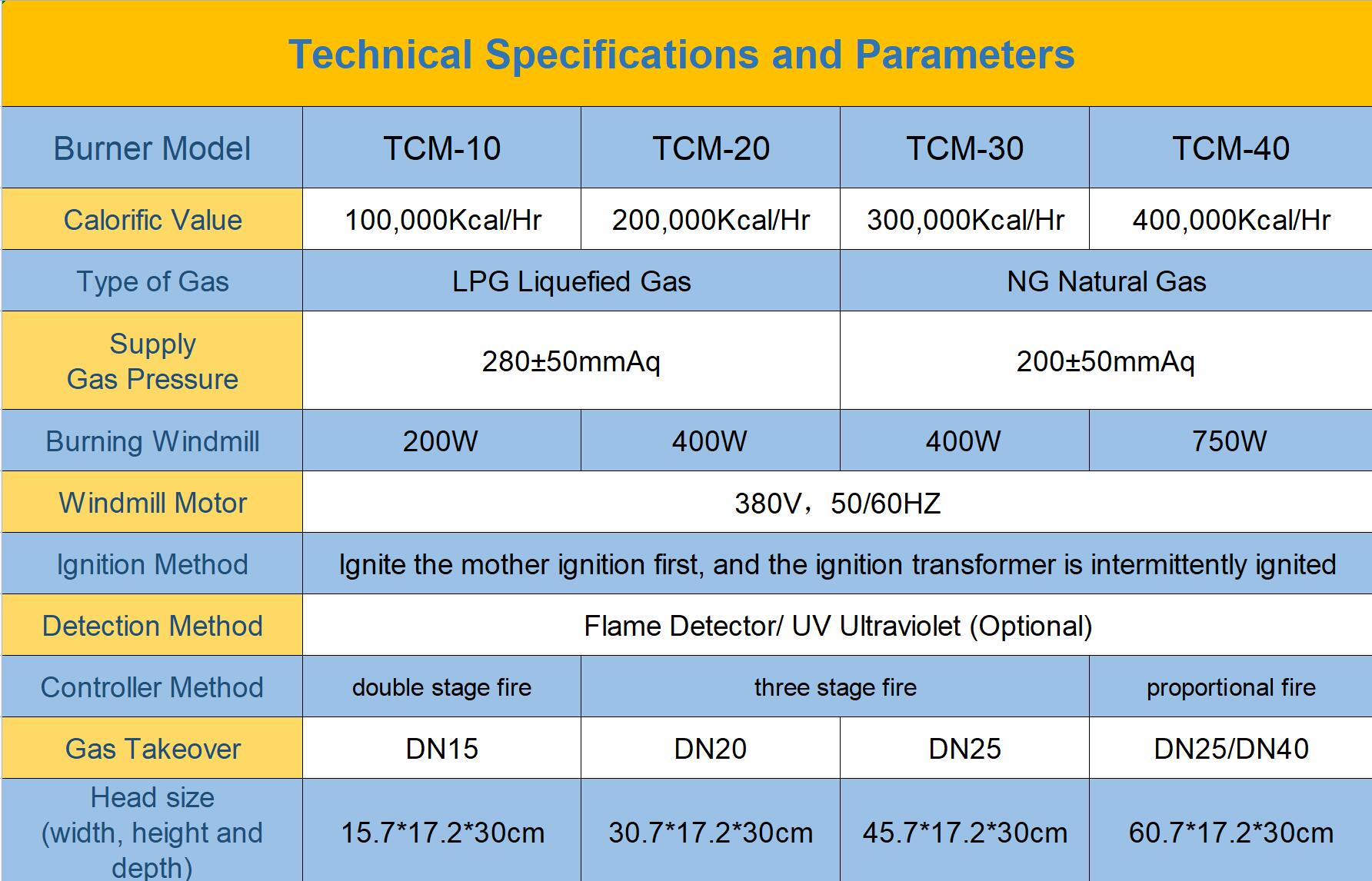

Model	TCM-10M1F
gross weight	Volume weight about 99KG
burner	15.717.230cm
fan power	200W

basic introduction:

It is a linear burner, and the design of the linear gas nozzle makes the heat energy evenly distributed in the hot air system;  High proportion stepless fire power adjustment, energy saving, can achieve precise temperature control, rapid heating and energy saving.  High-efficiency air-heated fully automatic gas burner, a new type of burner designed to generate a large amount of hot air during industrial production. Using a variety of gas-gas mixed combustion methods, the combustion is complete and energy (gas) is saved, which is unmatched by ordinary gun burners.  A complete combustion fan is installed behind the steel casing of the burner. By supplying appropriate air volume and air pressure, when the flow velocity in the air duct varies within a wide range, the fan can run stably without installing a deflector around the burner.

Function list

 Proportional adjustment to achieve a high turn-down ratio of 40:1;  Short flame design, about 0.5m under standard conditions, safe burning distance of 2m;  Simple operation, reliable operation year after year, small maintenance, easy maintenance;  Integrated  Low-cost industrial-grade burner, simple adjustment and setting of burner, good uniformity of hot air;  Stable combustion, wide application range, simple structure of igniter, reliable action;  Modular anti-corrosion design, can adapt to harsh environment, long service life;

Dual stage gas burner Jet TCM-10M1F Linear burner with fan power 200W

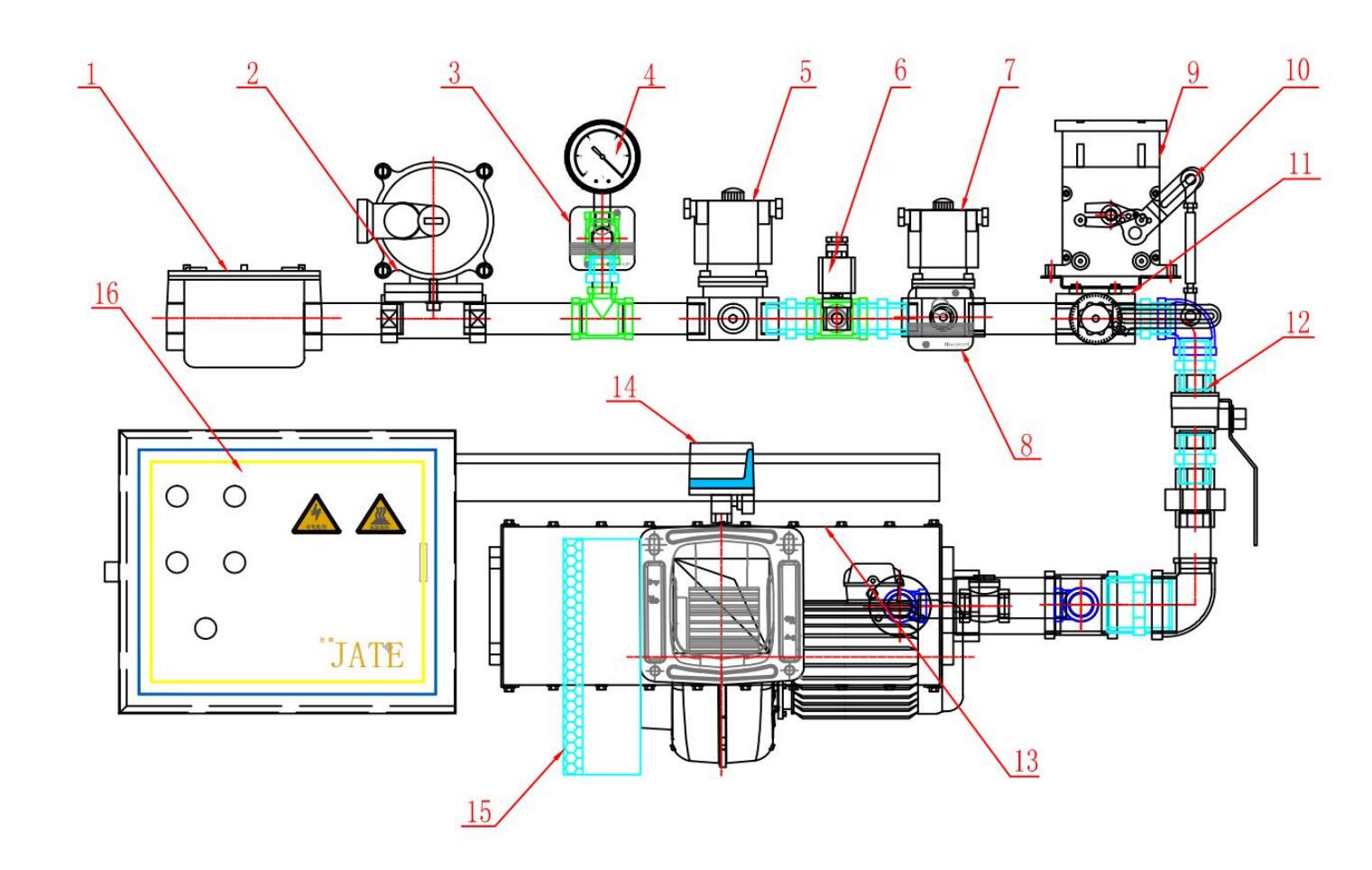

Working principle: After the power supply system is turned on, the gas and air pressures are detected synchronously, and the combustion-supporting fan starts to purge the furnace for 30 seconds. After everything passes normally, the ignition transformer discharges according to the set time, and the main safety solenoid valve and the mother fire solenoid valve are turned on. The gas enters the nozzle from the main fire line. When encountering the ignition electrode to release an open flame, the gas is ignited and mixed with air thoroughly. The flame detection rod or UV photocell stably detects the flame signal. After the ignition is successful, the main gas valve is opened, and the burner enters the normal working state.

 After the burner enters the normal working state, the PID adjustment method is adopted after detecting the oven temperature, and the gas flow rate is adjusted by the proportional motor to realize the oven temperature control. The safety system has been tracking and monitoring the flame signal, gas pressure and combustion air pressure signals. If the flame is extinguished halfway or the gas pressure does not reach the specified value, the gas supply will be automatically cut off and an alarm will be issued. The burner will not automatically re-ignite after an alarm and must be manually reset and checked. Only after the cause of the failure is identified and cleared, can a new round of ignition procedure be entered, and the new round of ignition procedure will repeat the entire ignition process to ensure the safety of personnel and equipment to the greatest extent.

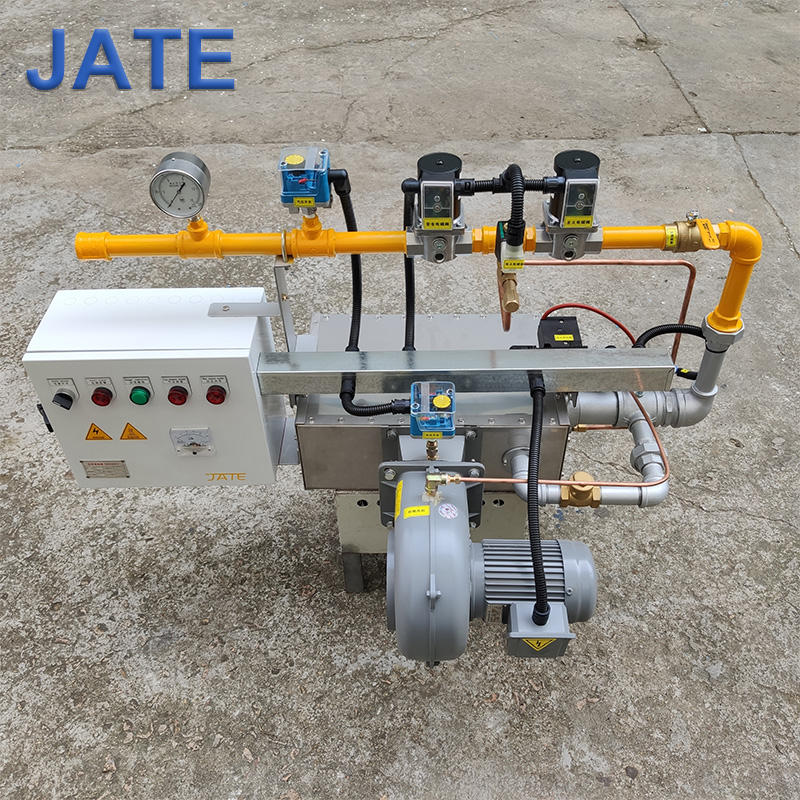

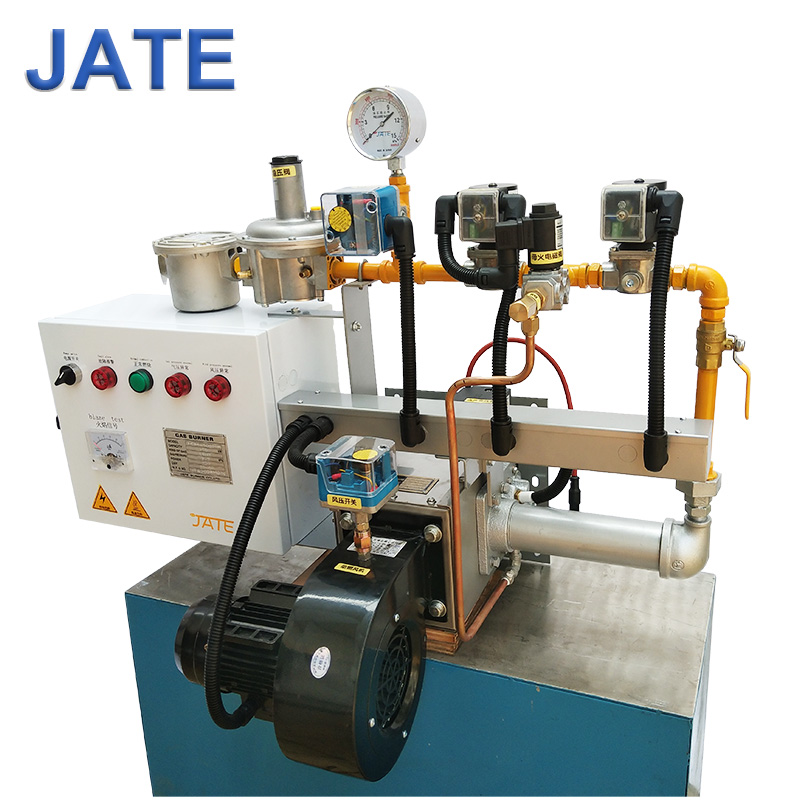

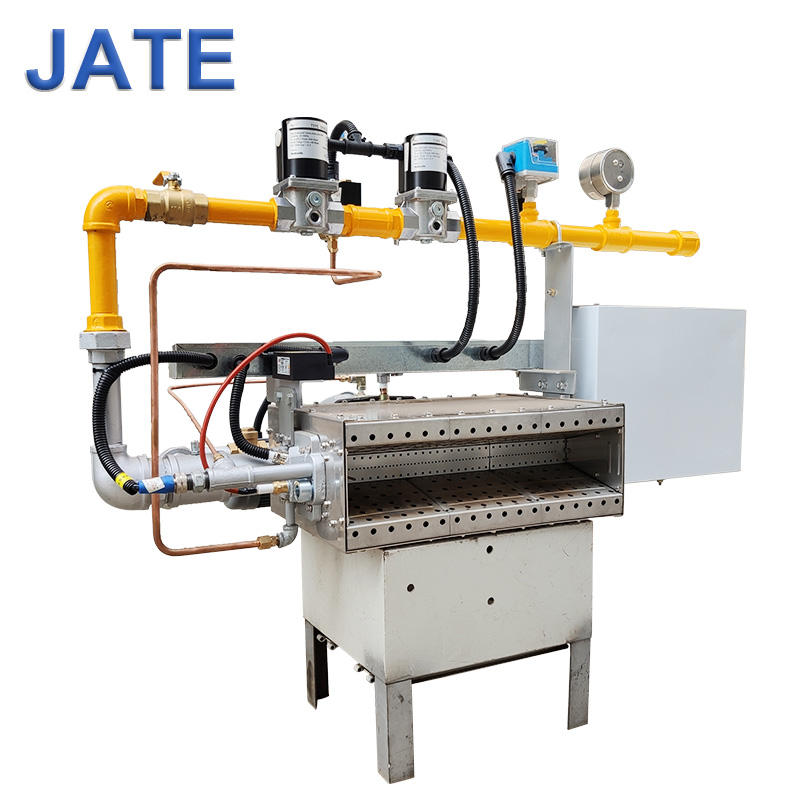

frontal image

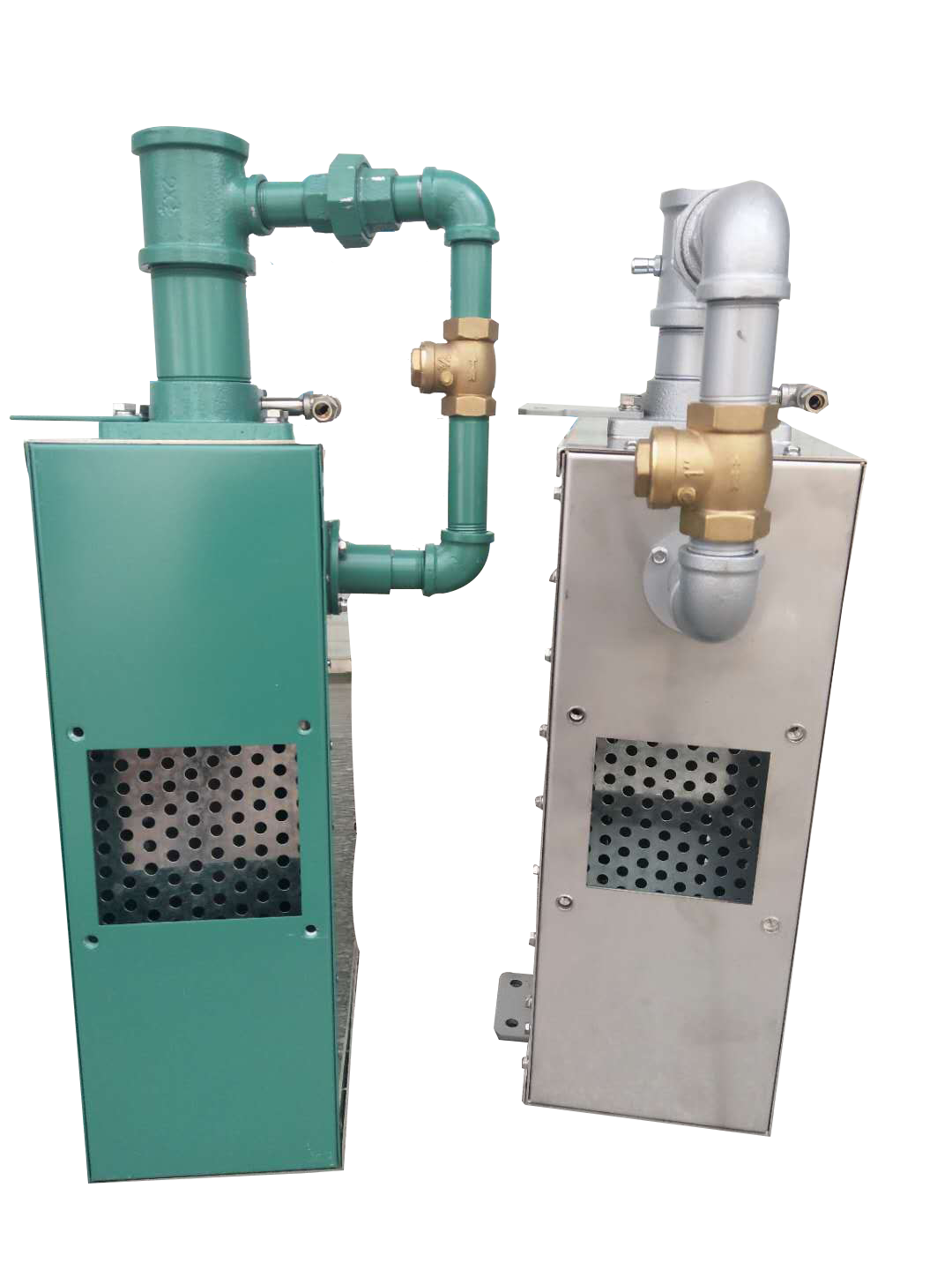

back to image

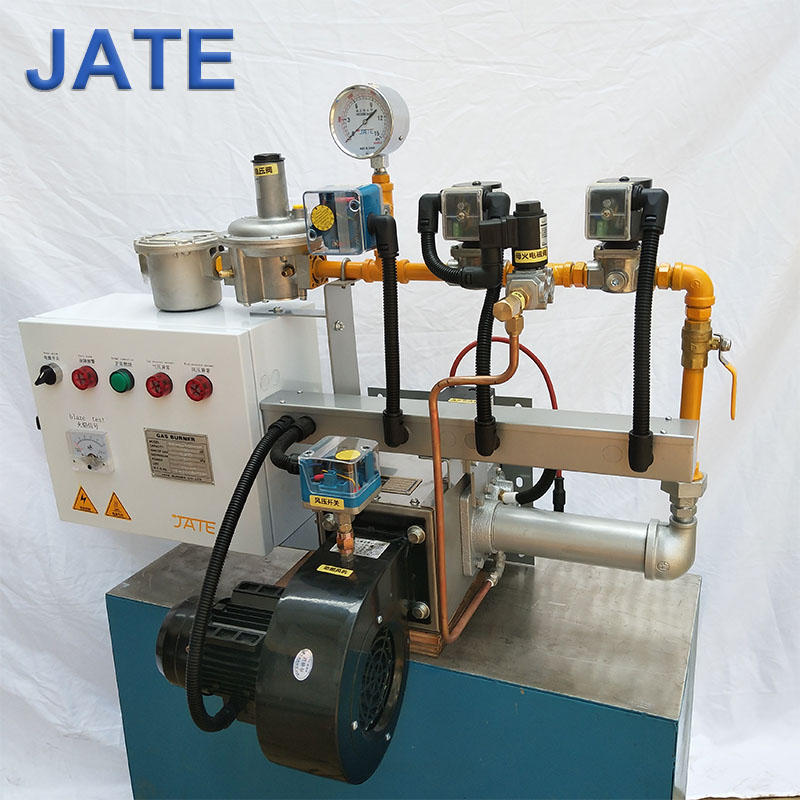

real image

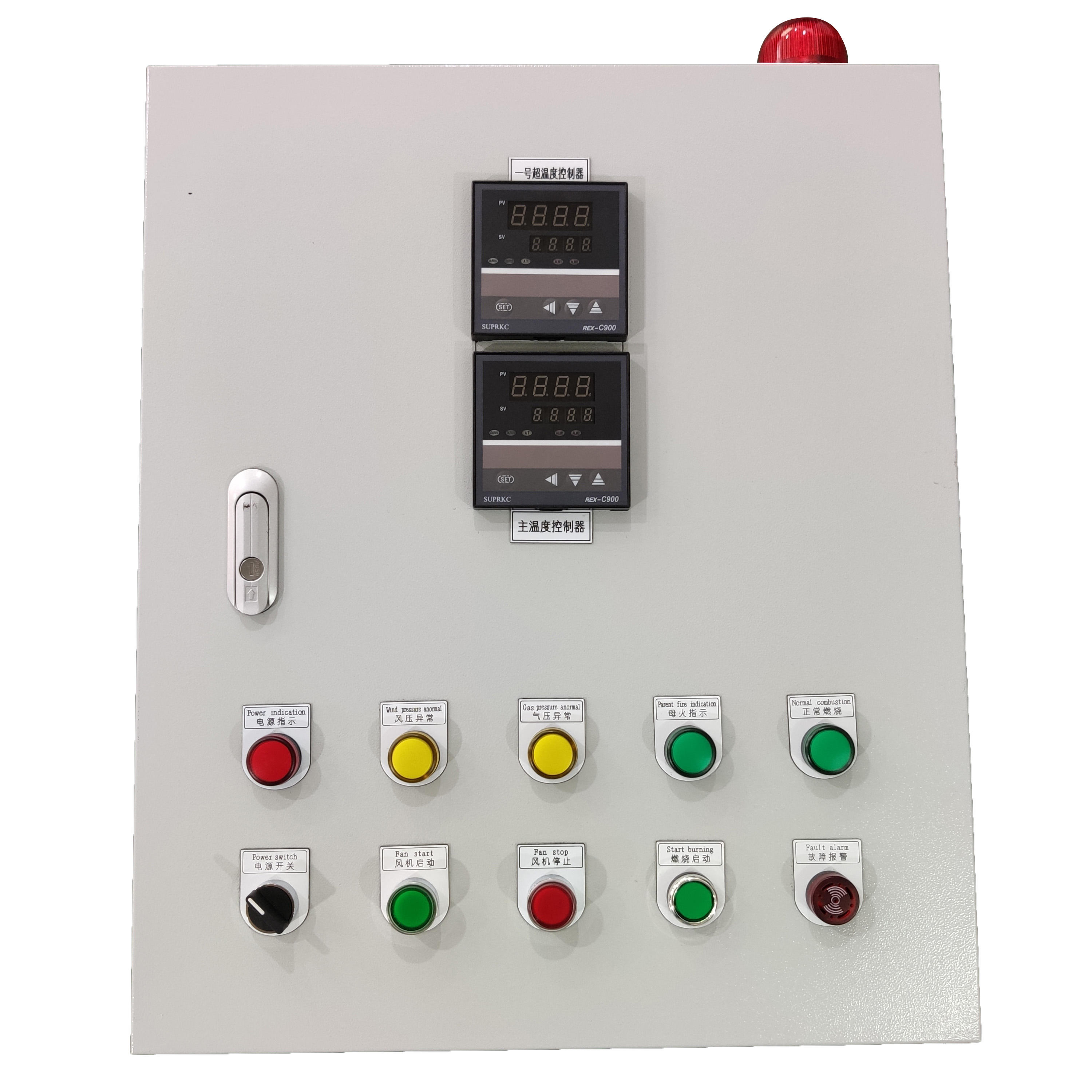

Introduction of control method:double fire: Two outputs of large fire and small fire, the small fire is also ignited as the mother fire, and the permanent fire works according to the instructions of the thermostat (switch). Adjustment.

Three stages of fire:There are three types of output: mother fire, small fire, and big fire. The mother fire is ignited as a permanent fire, and the rest work according to the instructions of the thermostat (switch). Shutdown adjustment.

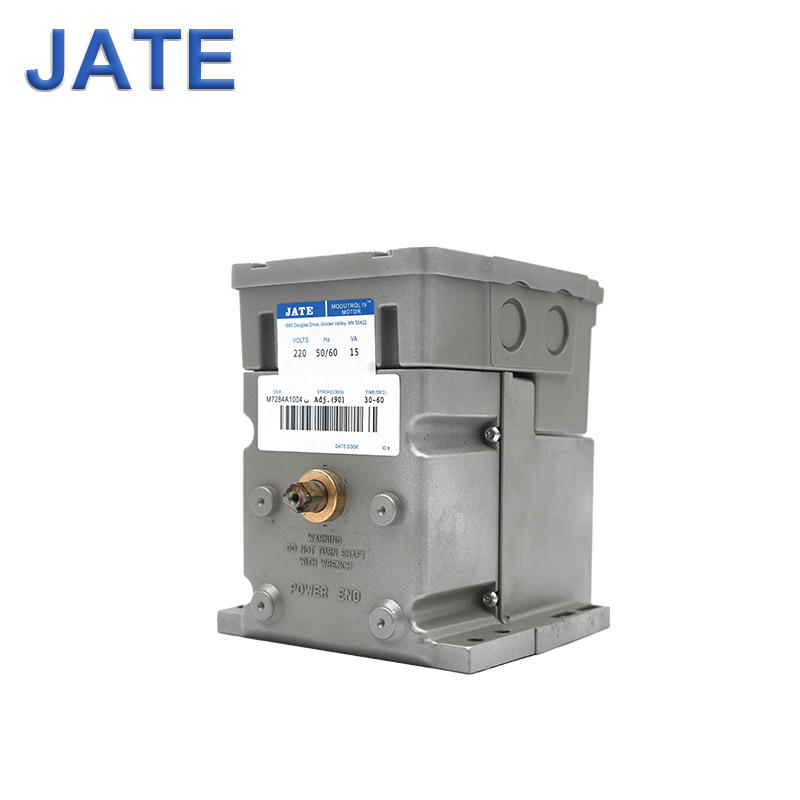

proportional adjustment: On the basis of standard progressive combustion, a proportional motor and a proportional butterfly valve are added to become a proportional adjustment type burner, so that the burner can stay at any point within the working range according to the signal of the sensor (thermostat 4-20MA current). , the system can always work in a balanced state, the firepower rotates smoothly, and the adjustment range is large.

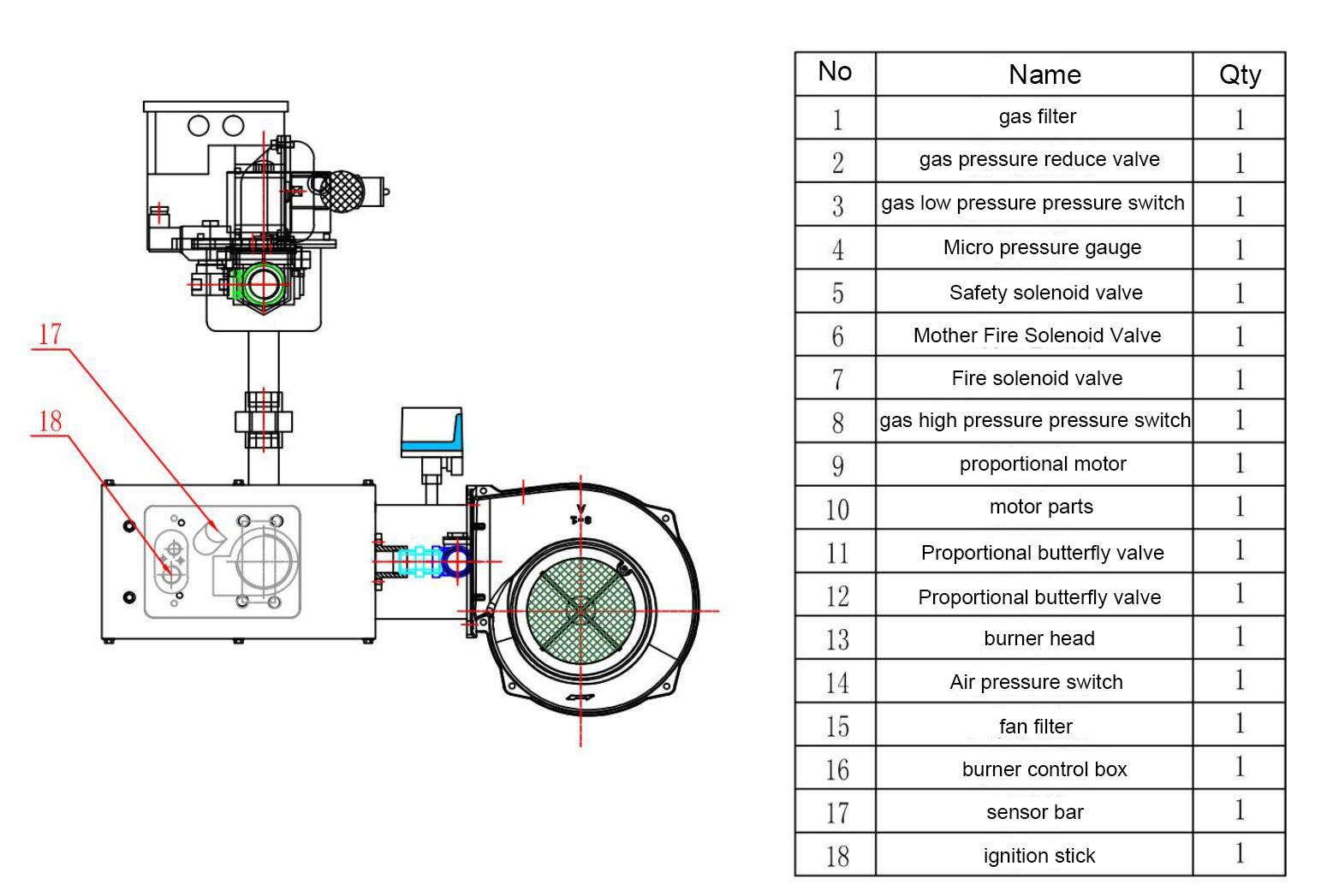

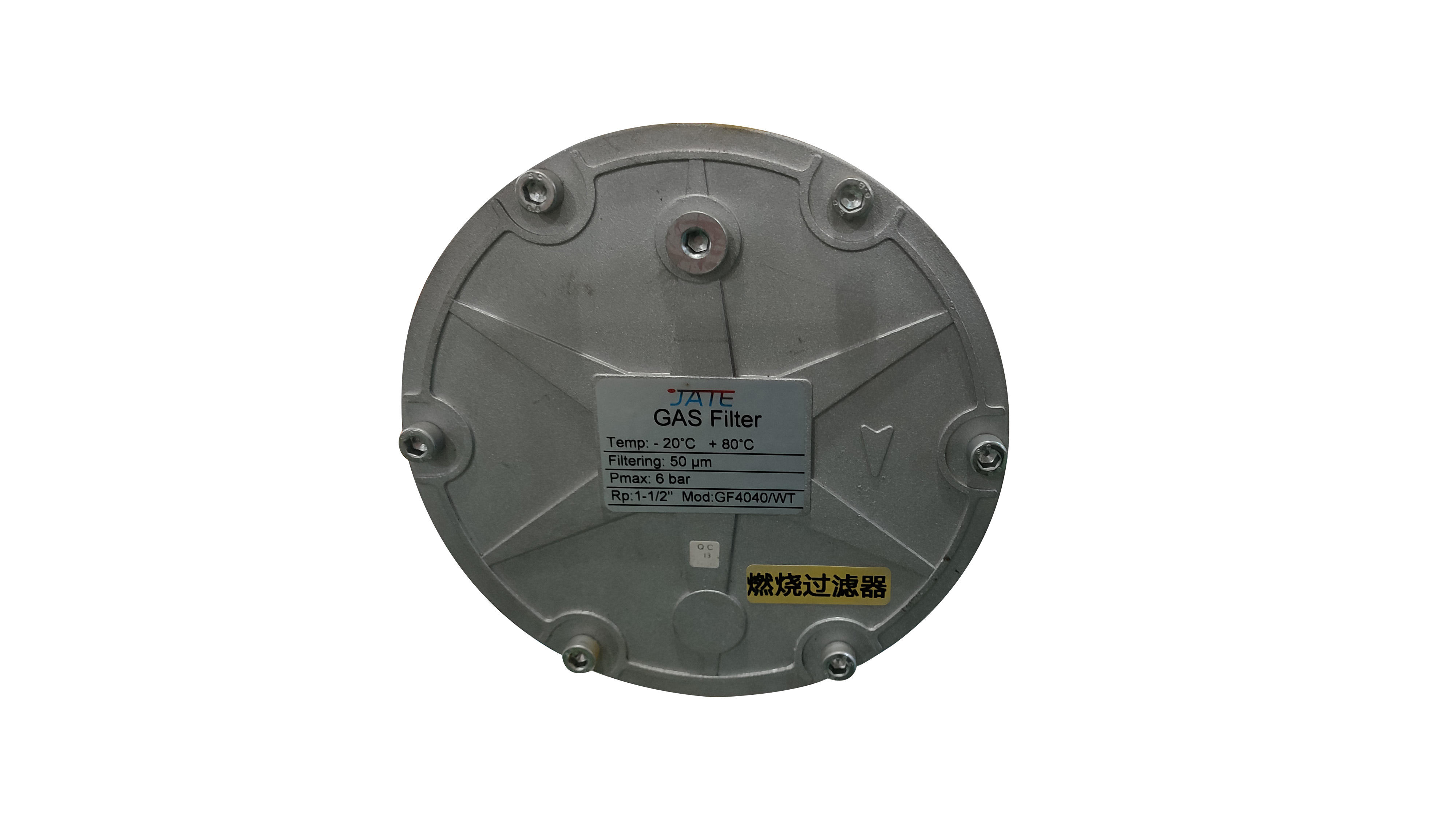

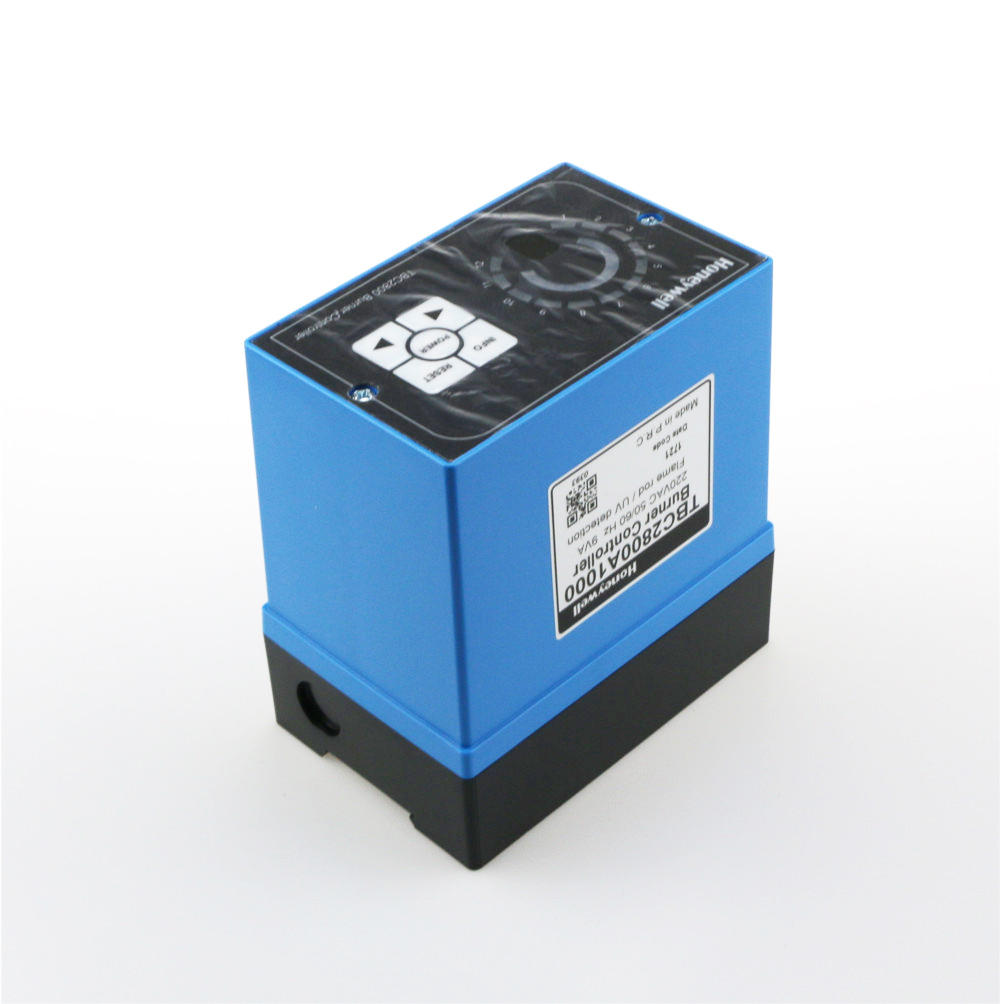

Product configuration
