ELP 1080P 2MP Webcam Full HD USB Camera 30fps 60fps 120fps Mini USB Camera with Manual Zoom 5-50mm Zoom Lens
- $54.60 / 1 - 49 pieces
$53.56 / >=50 pieces - 1 piece
- Shenzhen Ailipu Technology Co., Ltd.
- Guangdong, China
- Ms Webcam ELP
PRODUCT DETAIL
| payment terms: | Western Union, Wire Transfer, Paypal | OTG: | Support OTG function |
| lens: | Standard CS 5-50mm zoom lens | place of origin; place of origin: | Guangdong, China |
| Packaging Preview: | Image Sensor: | 1/2.7 inch CMOS Ov2710 | |
| Imaging sensor: | CMOS | Maximum resolution: | 1920*1080 |
| interface: | USB2.0 | HD Support: | 1080p (Full HD) |
| Maximum frame rate: | 720p 60fps, 640X480 120fps | brand: | ELP |
| Video compression: | mjpeg,yuy2 | model: | ELP-USBFHD01M-SFV(5-50mm) |
| media type: | Micro SD | Support free driver: | USB Video Class (UVC) |
| Additional features: | camera function, dynamic jpeg | optical zoom: | < 10 times |
| Certification: | Federal Communications Commission | Packaging Details: | Carton, 2/inner box, 48 inner box/carton |

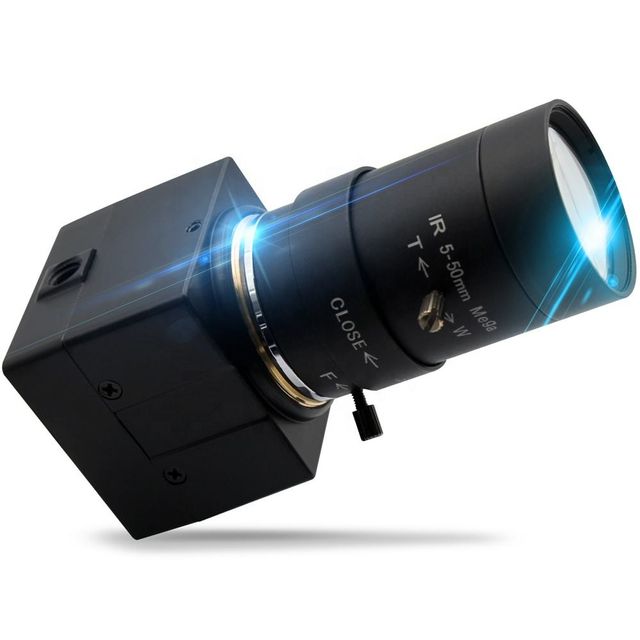

ELP 1080P Webcam Full HD USB Camera 30fps 60fps 120fps Mini USB Camera with Manual Zoom 5-50mm Zoom Lens
Model: ELP-USBFHD01M-SFV
Model: ELP-USBFHD01M is a 2.0megapixel 1920(H)X1080(V) high resolution USB camera, suitable for operating systems such as Linux Android Windows. VGA@120fps
Product Description
main feature
*High-speed 1080P HD USB camera
* Equipped with standard CS mount, 5-50mm zoom lens
*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P
*CMOS OV2710 sensor enables high image quality and low power consumption.
*High-speed USB 2.0 interface for high-resolution PC camera interface.
*High pixel technology, clear image and accurate color reproduction.
*Ultra-small and ultra-thin form factors for embedded applications.
* High quality footage, true and undistorted color images.
*UVC is for Linux, Windows XP, WIN CE, MAC, SP2 or higher.
*Camera with UVC.
* Equipped with standard CS mount, 5-50mm zoom lens
*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P
*CMOS OV2710 sensor enables high image quality and low power consumption.
*High-speed USB 2.0 interface for high-resolution PC camera interface.
*High pixel technology, clear image and accurate color reproduction.
*Ultra-small and ultra-thin form factors for embedded applications.
* High quality footage, true and undistorted color images.
*UVC is for Linux, Windows XP, WIN CE, MAC, SP2 or higher.
*Camera with UVC.
Product parameters
Model: ELP-USBFHD01M-SFV(5-50mm) | ||||||
Resolution & frame rate | 320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps | |||||
sensor | CMOS OV2710 | Image Format | MJPEG or YUY2(YUYV) | |||
Sensor size | 1/2.7 inch | Mini Lighting | 0.05 lux | |||
pixel size | 3 microns x 3 microns | Lens parameters | CSA installation, 2.8-12mm zoom lens, or 5-50mm lens, 10x zoom | |||
image area | 5856μm x 5856μm | cable | Standard 3M/ Optional 2m, 1m, 5m | |||
maximum. Resolution | Full HD 1920(H)x1080(V) pixels | board size/ weight | about 400 grams | |||
interface | USB2.0 high speed | shutter type | Roller blinds/ frame exposure | |||
free driver | USB Video Class (UVC) | Tunable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Exposure White balance, backlight contrast | |||
USB protocol | USB2.0 high speed/full speed | special function | Lens Correction/ Defective pixel correction/ black sun canceled | |||
OTG protocol | USB2.0 OTG | AEC, AEB, AGC | support | |||
power supply | DC 5V | Operating temperature | 0~60 degrees | |||
Working current | 120mA~220mA | Storage temperature | -20~75 degrees | |||
night vision | not support | LED board power supply Connector | Support 2P-2.0mm socket | |||
Supported operating systems | WinXP/Vista/WIN7/WIN8/ Linux with UVC Mac-OS X 10.4.8 or later Wince using UVC, Android 4.0 or above | |||||
ELP 1080P Hi-Speed USB Camera
* 5-50mm zoom lens
* Sensor: 1/2.7" CMOS OV2710
* High-speed 120fps webcam
* Maximum resolution: 1920x1080@30fps
* Adjustable parameters:
brightness
Compared
color saturation
definition
Gamma
World Bank

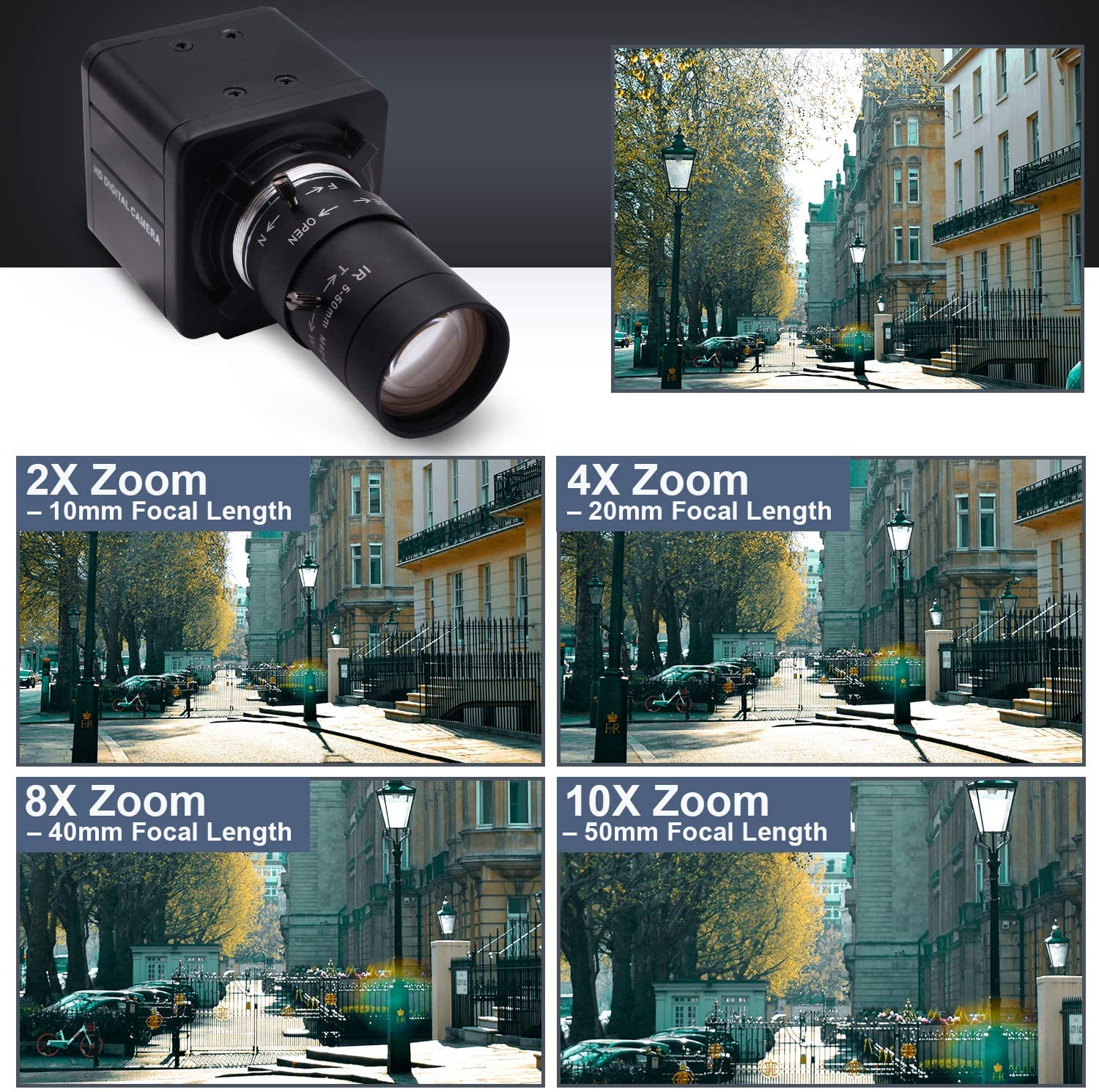

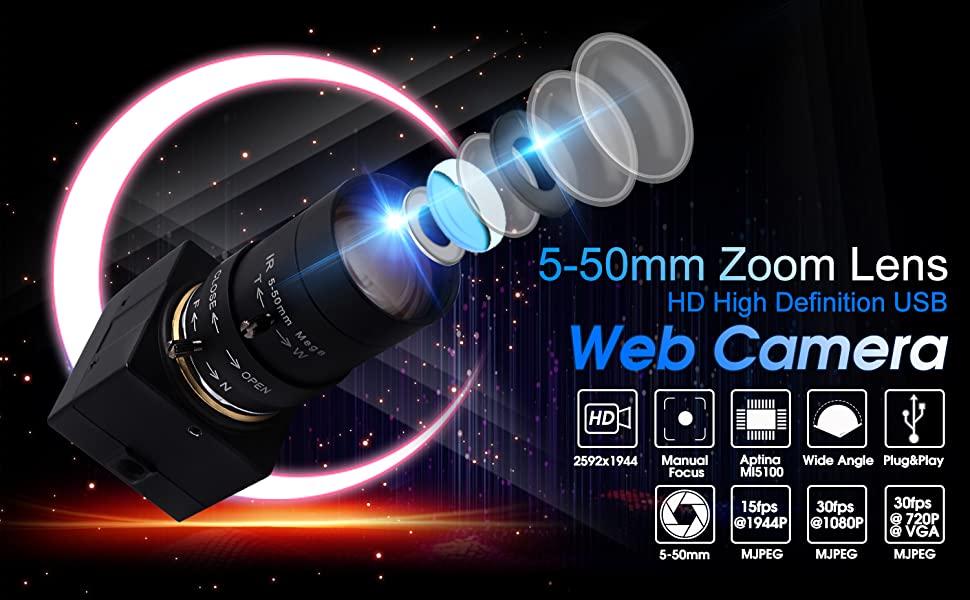

ELP 1080p USB Webcam with 5-50mm Zoom Lens - CS Mount 10x Zoom
CS Mount 5-50mm Zoom Lens USB Webcam Built-in IR Cut Filter, Adjustable Sharpness,
Brightness and focal length, enjoy high-definition views in a variety of environments.
You can easily focus close or long distance shots and capture HD and different views
Brightness and focal length, enjoy high-definition views in a variety of environments.
You can easily focus close or long distance shots and capture HD and different views

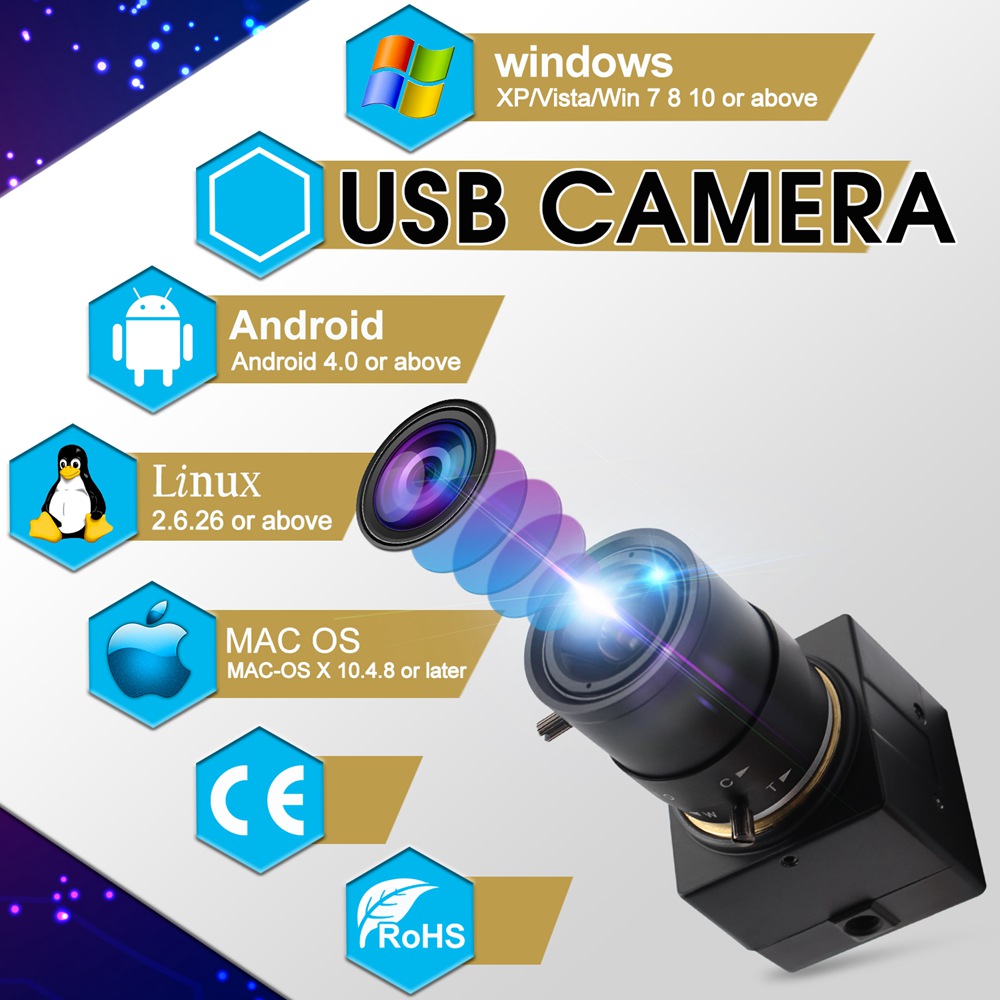

ELP 1080P webcam is highly compatible with multiple systems
Mini USB camera is highly compatible with WinXP/Vista/Win7/Win8/Win 10/Linux with UVC/
Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or later
A portable USB camera with an aluminum housing and a 3m USB cable.
Uniquely designed compact appearance.
Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or later
A portable USB camera with an aluminum housing and a 3m USB cable.
Uniquely designed compact appearance.
detailed picture
ELP 1080P Webcam Full HD USB Camera Module 30fps 60fps 120fps Mini USB Camera with Manual Zoom 5-50mm Zoom Lens UVC Compatible Webcam Support Most Operating Systems, Focus Adjustable

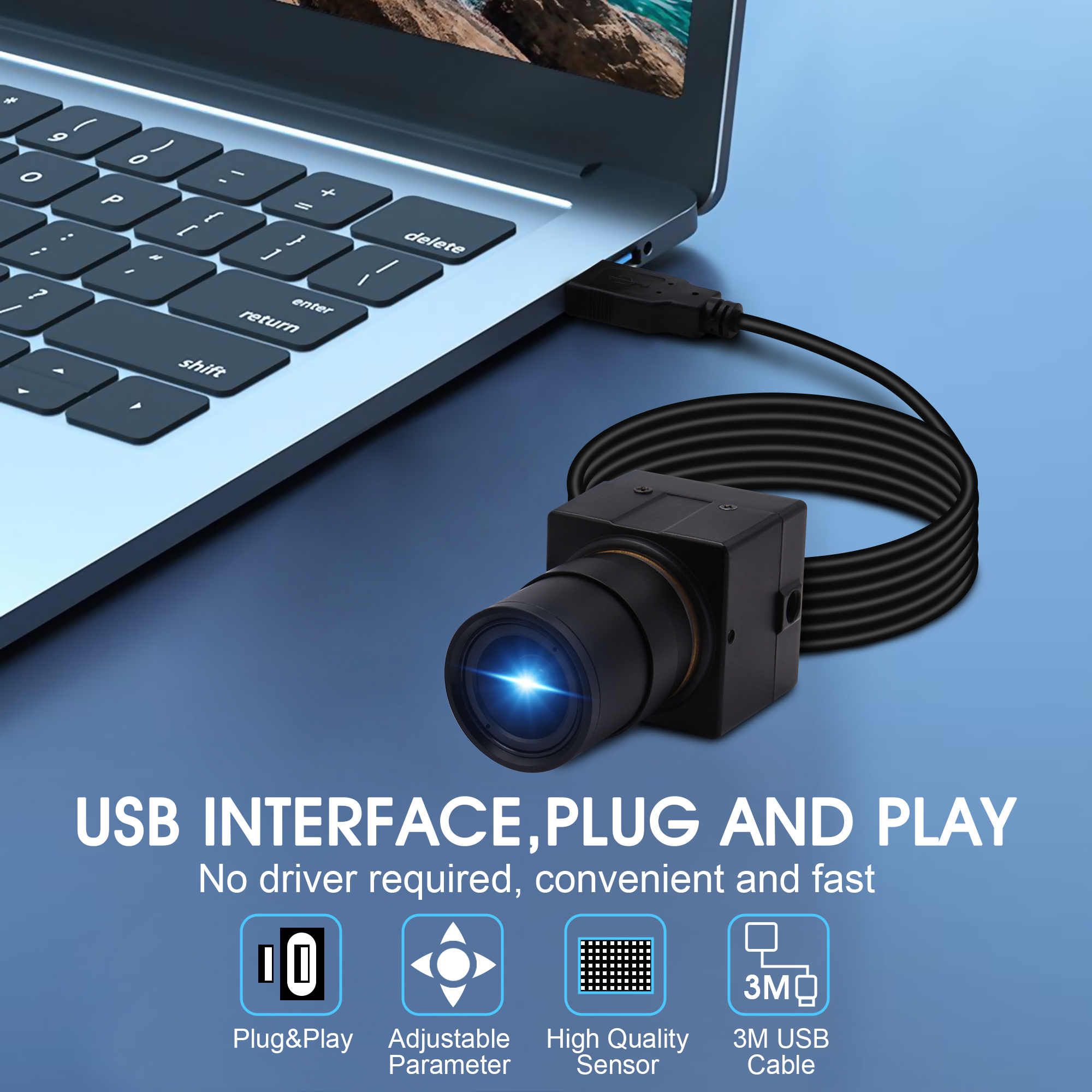

ELP Plug and Play USB Webcam
There is no need to download or install complex driver software, just plug the camera into the USB interface of the computer, and run the software to perform video display and recording work.
There is no need to download or install complex driver software, just plug the camera into the USB interface of the computer, and run the software to perform video display and recording work.

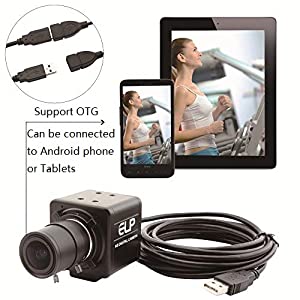

ELP 2MP webcam supports OTG
* Can be connected to an Android phone or tablet.
* Default 3m USB cable.
* Can be connected to an Android phone or tablet.
* Default 3m USB cable.

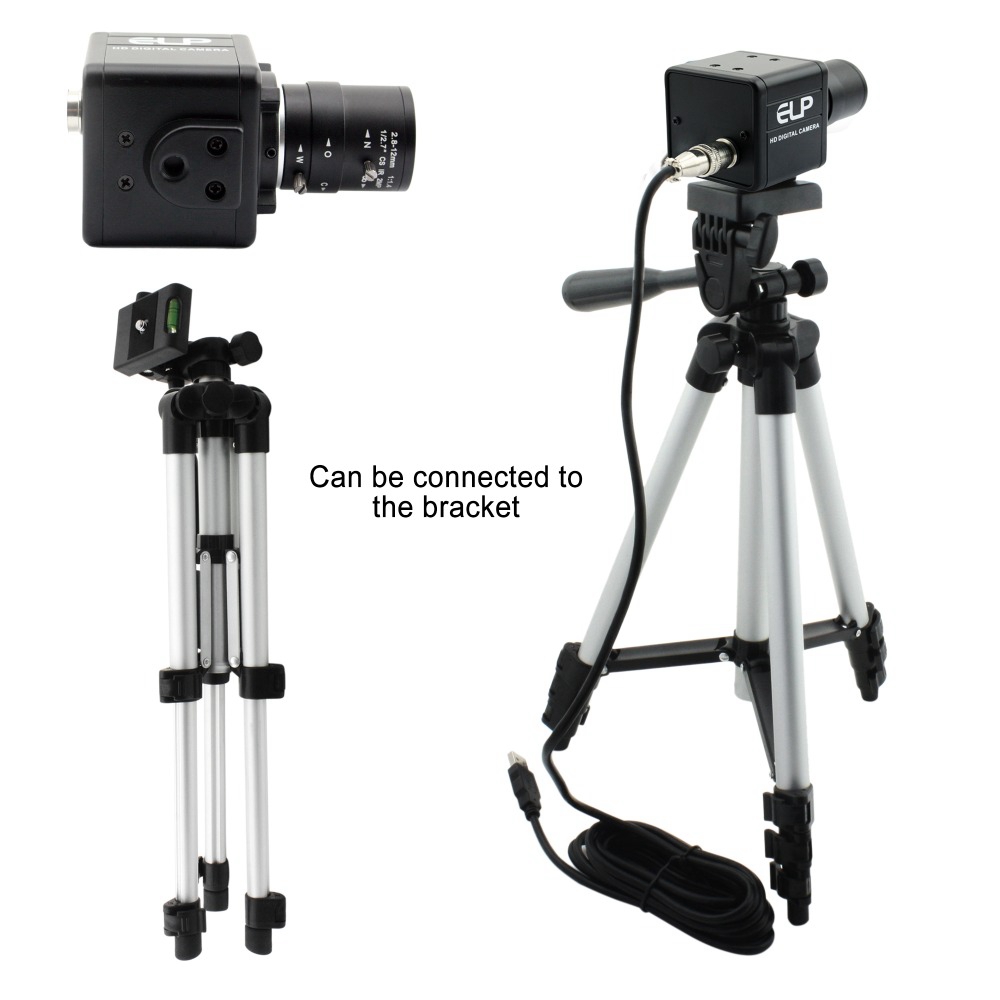

ELP webcam
* Suitable for long distance vision
* Can be attached to the stand.
* Suitable for long distance vision
* Can be attached to the stand.
Product use
Mini USB camera with high definition and low color reproduction bias, clear image, accurate information, keep
Purity of color.
Purity of color.
Wide range of applications in different fields:
Support major live broadcast platforms, online teaching/video calls/network calls/portrait collection, etc. can be easily used
many other fields.
The USB camera module is suitable for the operation of video intercom, safe, electron microscope, medical equipment, security system, etc.
system.
Support major live broadcast platforms, online teaching/video calls/network calls/portrait collection, etc. can be easily used
many other fields.
The USB camera module is suitable for the operation of video intercom, safe, electron microscope, medical equipment, security system, etc.
system.
