ELP 1080P CMOS OV2710 180 degree Wide Angle Fisheye Lens USB Camera Internet Module for PC for Android Windows Linux Raspberry Pi
- $43.05 / 1 - 19 pieces
$42.20 / 20 - 49 pieces
$41.35 / 50 - 99 pieces
$40.52 / >=100 pieces - 1 piece
- Shenzhen Ailipu Technology Co., Ltd.
- Guangdong, China
- Mr
PRODUCT DETAIL

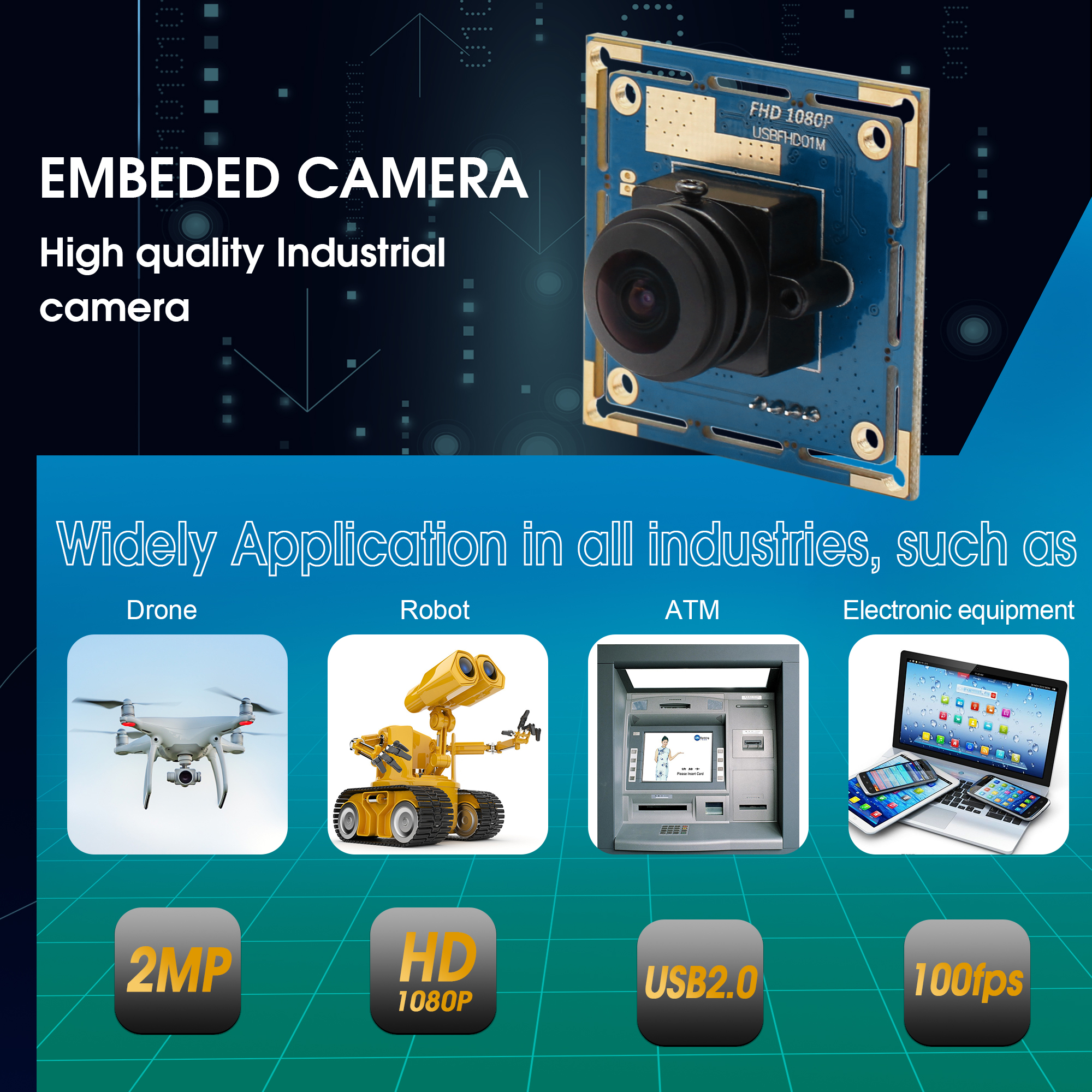

| optical zoom: | Fixed focal length lens | application: | Industrial machine vision, robotic vision, ATMs, kiosks |
| interface: | USB2.0 | Packaging Preview: | |
| HD Support: | 1080p (Full HD) | model: | ELP-USBFHD01M-L180 |
| Wide angle: | 180° | brand: | ELP |
| product name: | 1080P USB Camera Module | Cameras with UVC: | Free driver, plug and play |
| Imaging sensor: | CMOS | High frame rate: | MJPEG 1080P 30fps, 720P 60fps, 480P 100fps |
| Private model: | Yes | Maximum resolution: | 1080P(1920x1080) |
| Packaging Details: | Carton, 2/inner box, 48 inner box/carton | Image Sensor: | 1/2.7" CMOS OV2710 |
| place of origin; place of origin: | Guangdong, China | payment terms: | wire transfer |
| Additional features: | Interchangeable lens camera, wide angle fisheye lens | USB cable: | Standard 1m (2m/3m/5m optional) |
| Certification: | CE FCC Rohs | Supported Operating Systems: | AndroidLinux Windows MAC OS |
| lens: | 180 degree fisheye lens |
Product Description

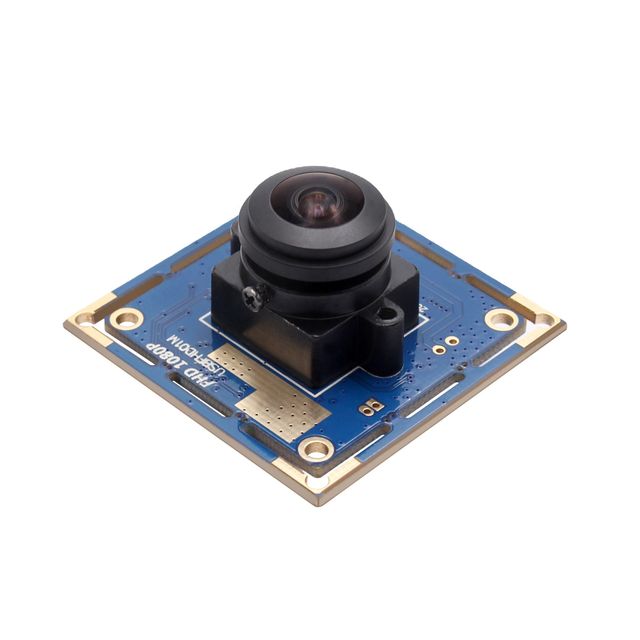

ELP 1080P CMOS OV2710 180 Degree Fisheye Lens Wide Angle PC Webcam USB Camera Module for Android Windows Linux Raspberry Pi

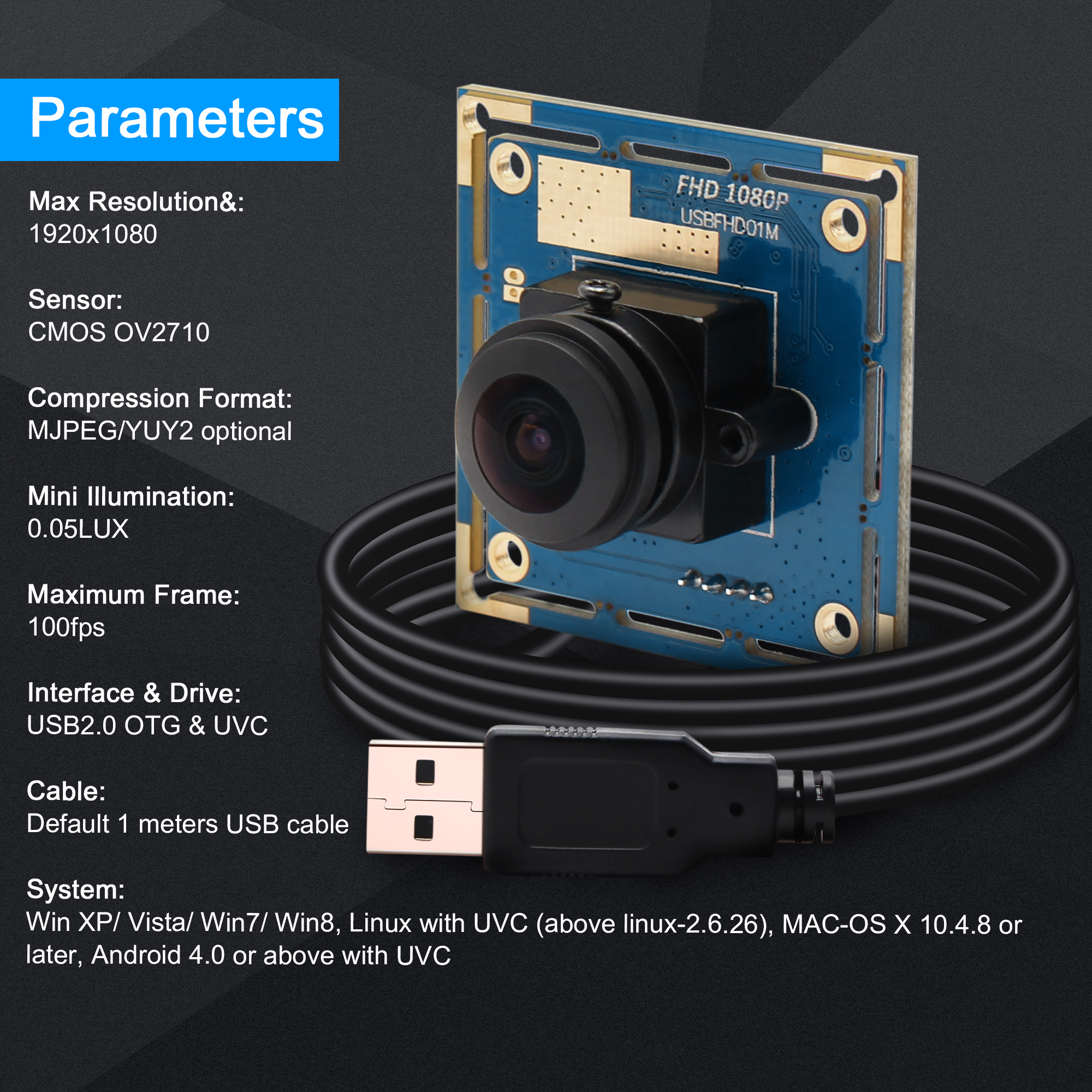

Specification
Optional models | ELP-USBFHD01M-L180 |
sensor | 1/2.7" CMOS OV2710 |
maximum. Resolution | Full HD 1920(H)X1080(V) |
pixel size | 3 microns x 3 microns |
Image Format | MJPEG/YUY2 |
USB protocol | USB2.0 high speed/full speed, USB1.1 full speed |
Support free driver | USB Video Class (UVC) 1.1 |
Auto Exposure AEC | support |
Auto White Balance AEB | support |
frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps 352(H) x 288(V) pixels MJPEG 100fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 100fps YUY2 30fps |

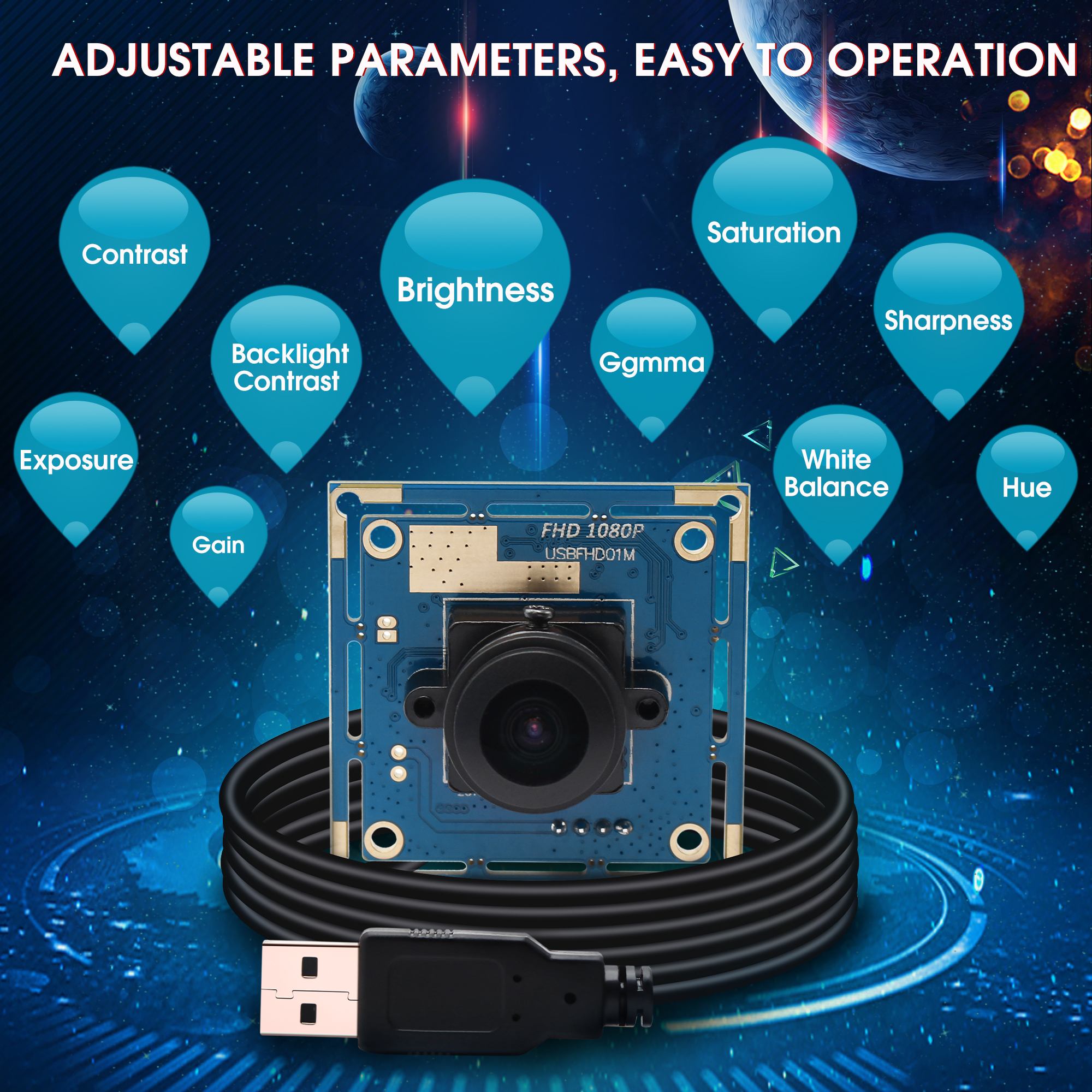

Tunable parameter | Brightness/Contrast/Color Saturation/Sharpness/Gamma/WB |
night vision | Optional, with optional IR board |
lens | Wide angle 180 degree fisheye lens |
Voltage | DC 5V |
current | 150 mA |
Operating temperature | Degree (-20~70) |

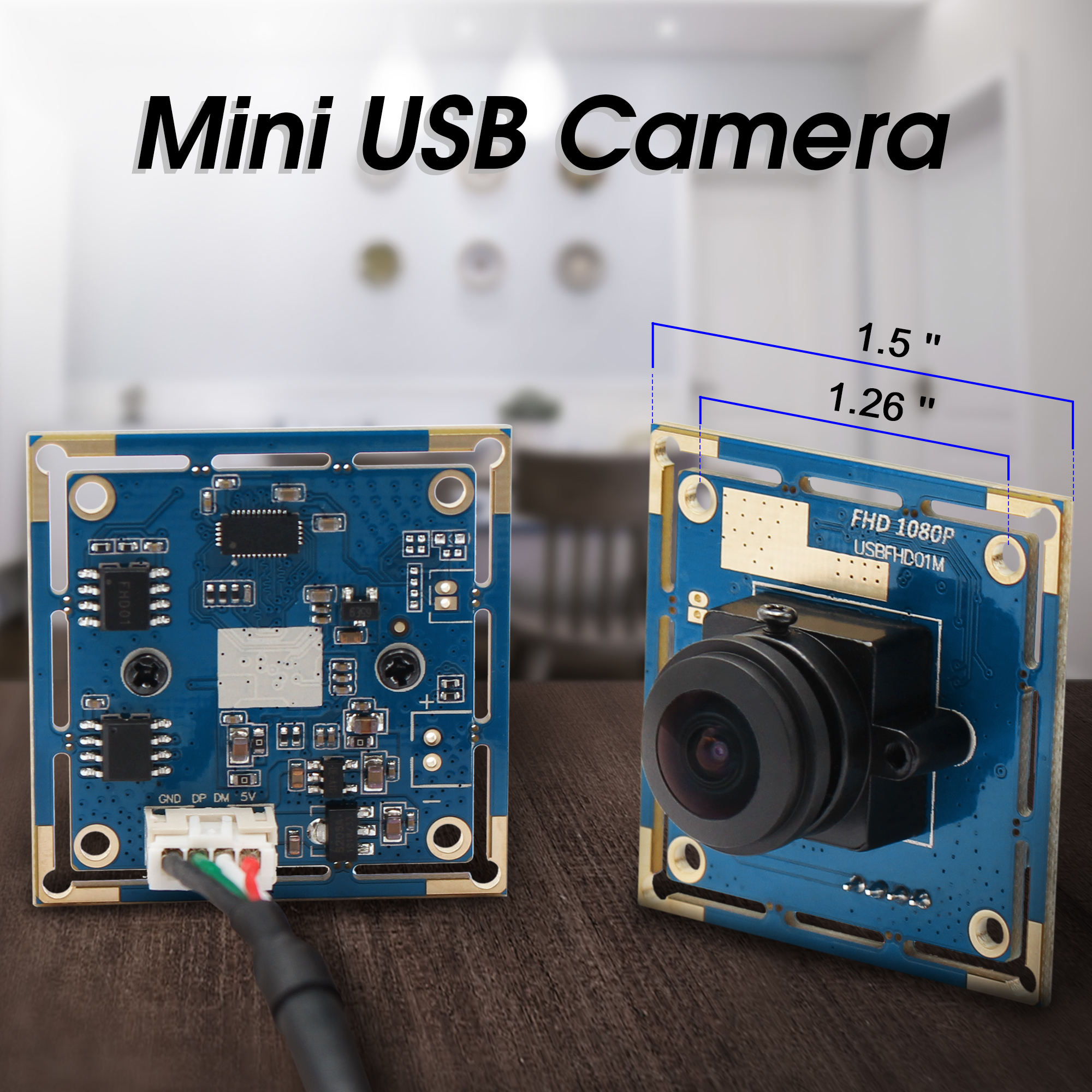

size | 32x32mm/38*38mm |

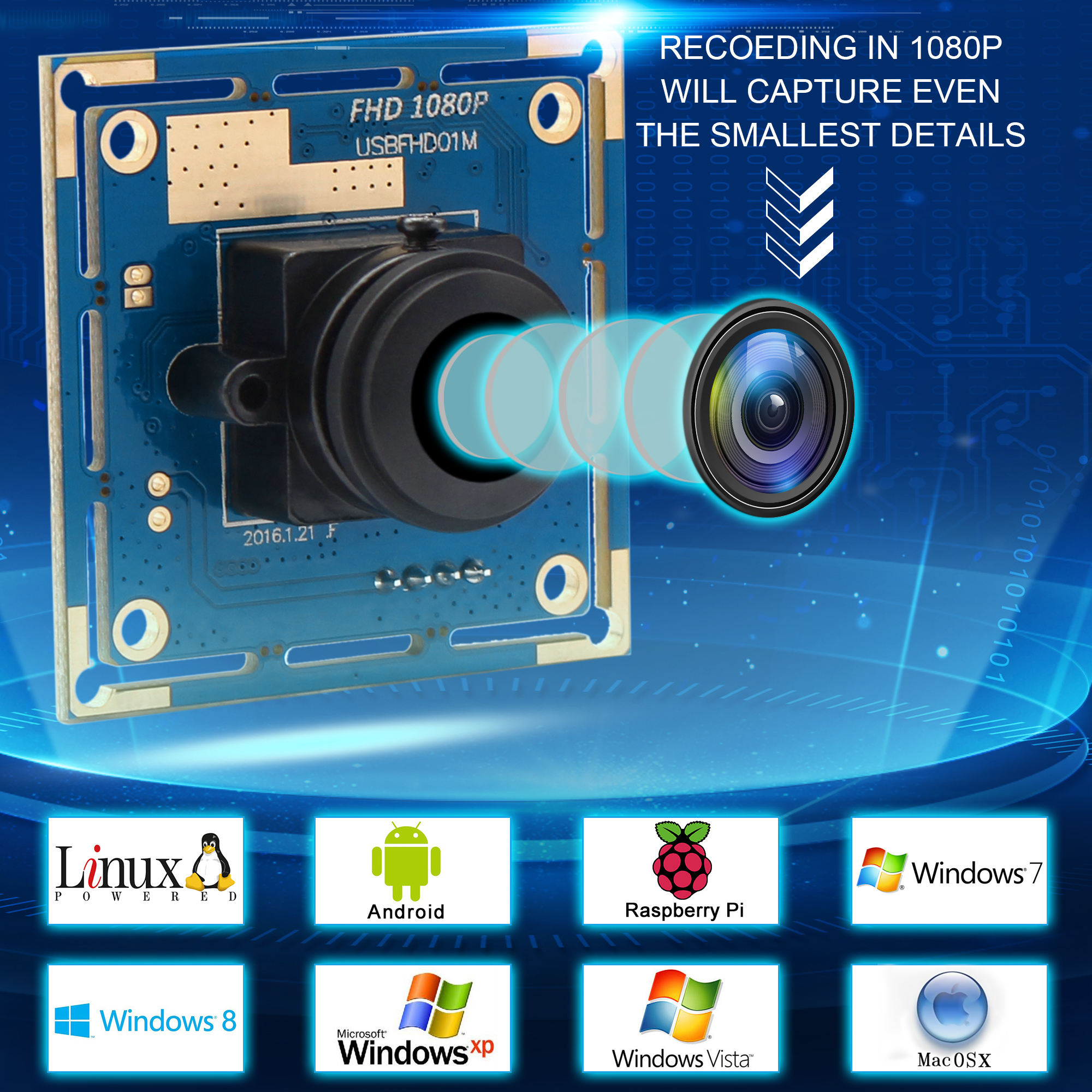

Supported operating systems | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
Main features

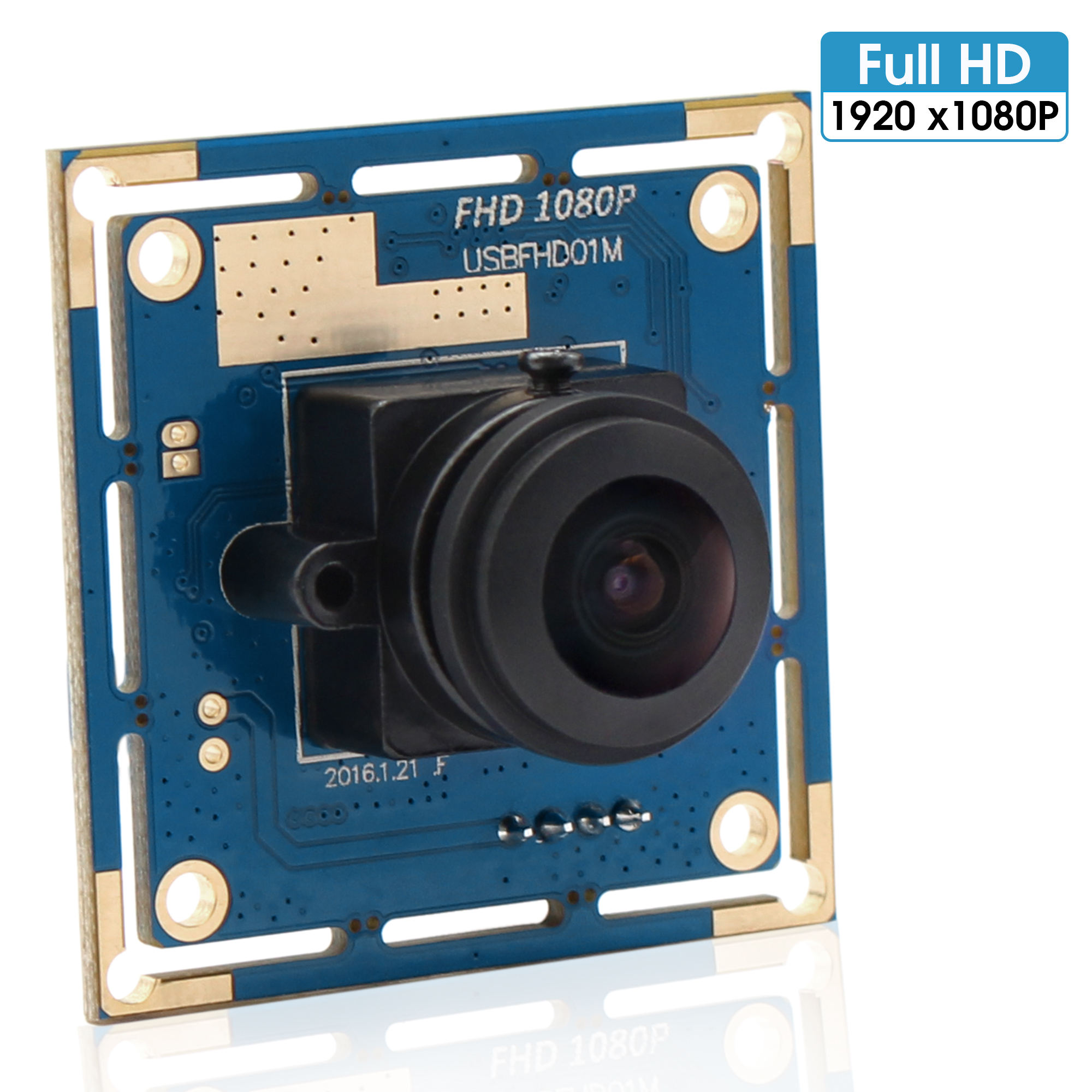

*high speed1080P Full HDUSB camera

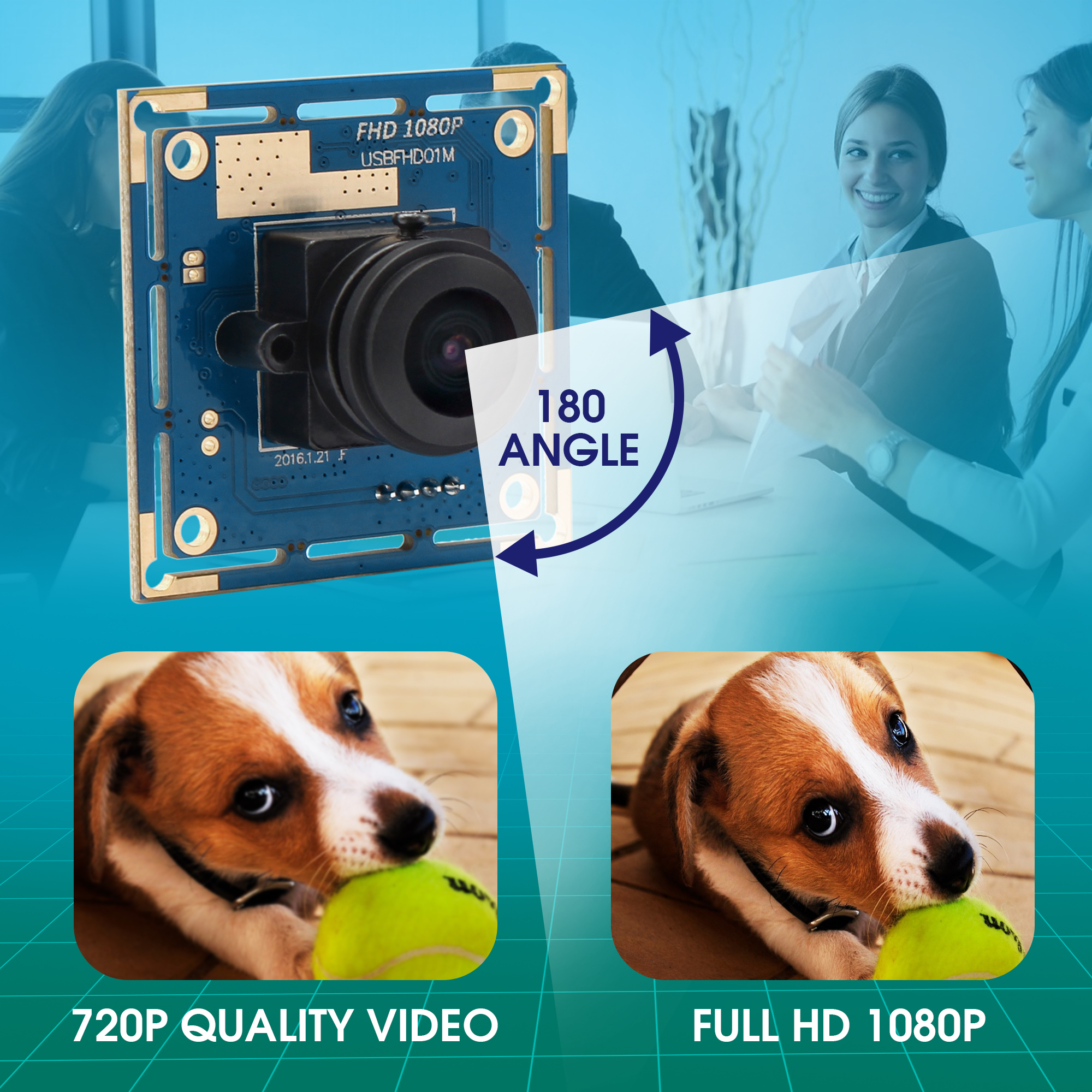

*Equipped180 degree wide angle fisheye lens

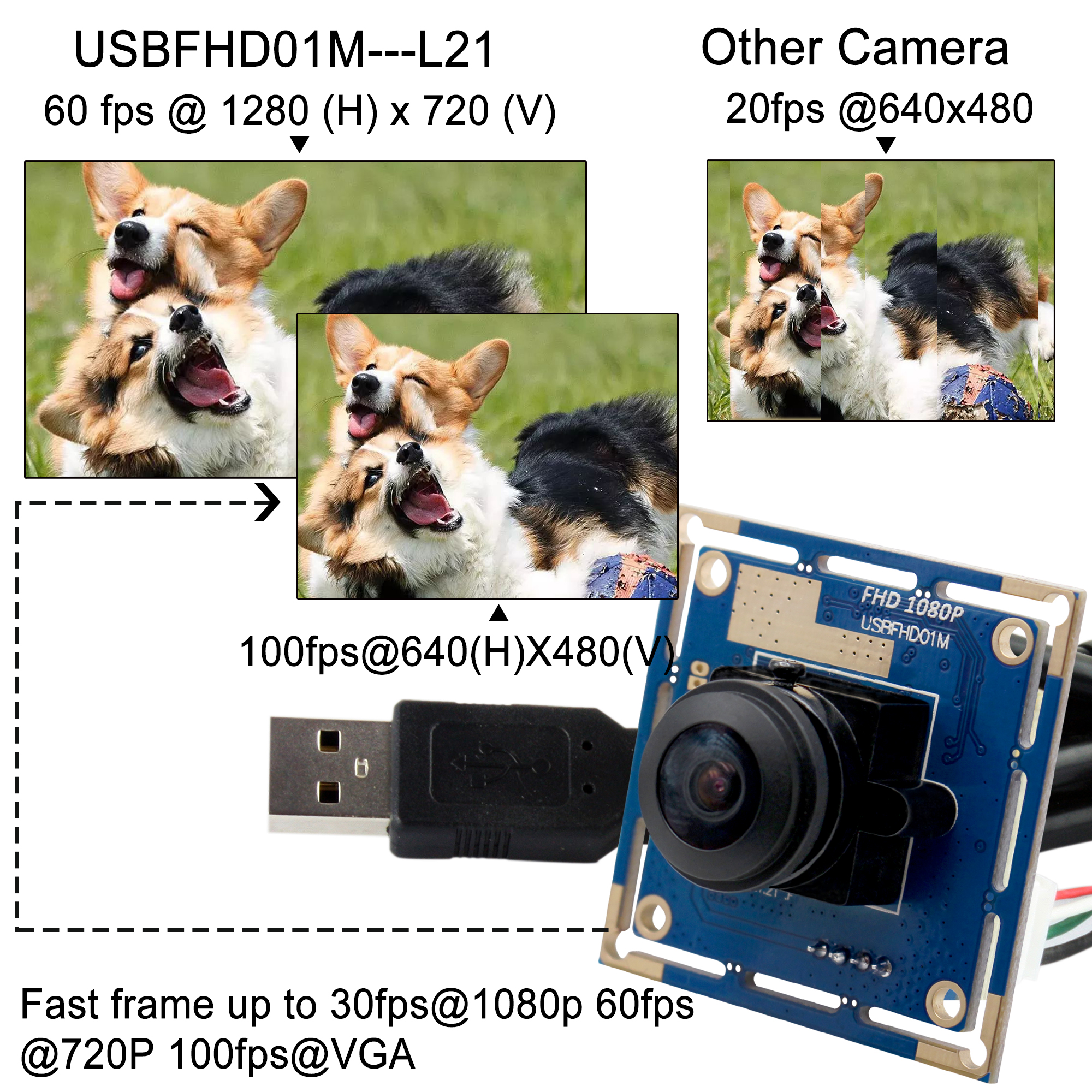

*high frame rate– Provide 30fps@1080P and 60fps@720p, 100fps@480P
*CMOS 1080P OV2710 sensor enables high quality image and low power consumption.
*Hi-Speed USB 2.0 interfaceFor high resolution PC camera interface.
*High pixel technology, clear image and accurate color reproduction.
* Low light performance - suitable for any lighting conditions.
*Ultra-small and ultra-thin form factors for embedded applications. 38*38/32*32mm
* High quality footage, true color images.
* Low power consumption - ideal for portable devices.
*UVC is for Linux, Windows XP, WIN CE, MAC, SP2 or higher.
*Camera with UVC.
*high frame rate– Provide 30fps@1080P and 60fps@720p, 100fps@480P
*CMOS 1080P OV2710 sensor enables high quality image and low power consumption.
*Hi-Speed USB 2.0 interfaceFor high resolution PC camera interface.
*High pixel technology, clear image and accurate color reproduction.
* Low light performance - suitable for any lighting conditions.
*Ultra-small and ultra-thin form factors for embedded applications. 38*38/32*32mm
* High quality footage, true color images.
* Low power consumption - ideal for portable devices.
*UVC is for Linux, Windows XP, WIN CE, MAC, SP2 or higher.
*Camera with UVC.

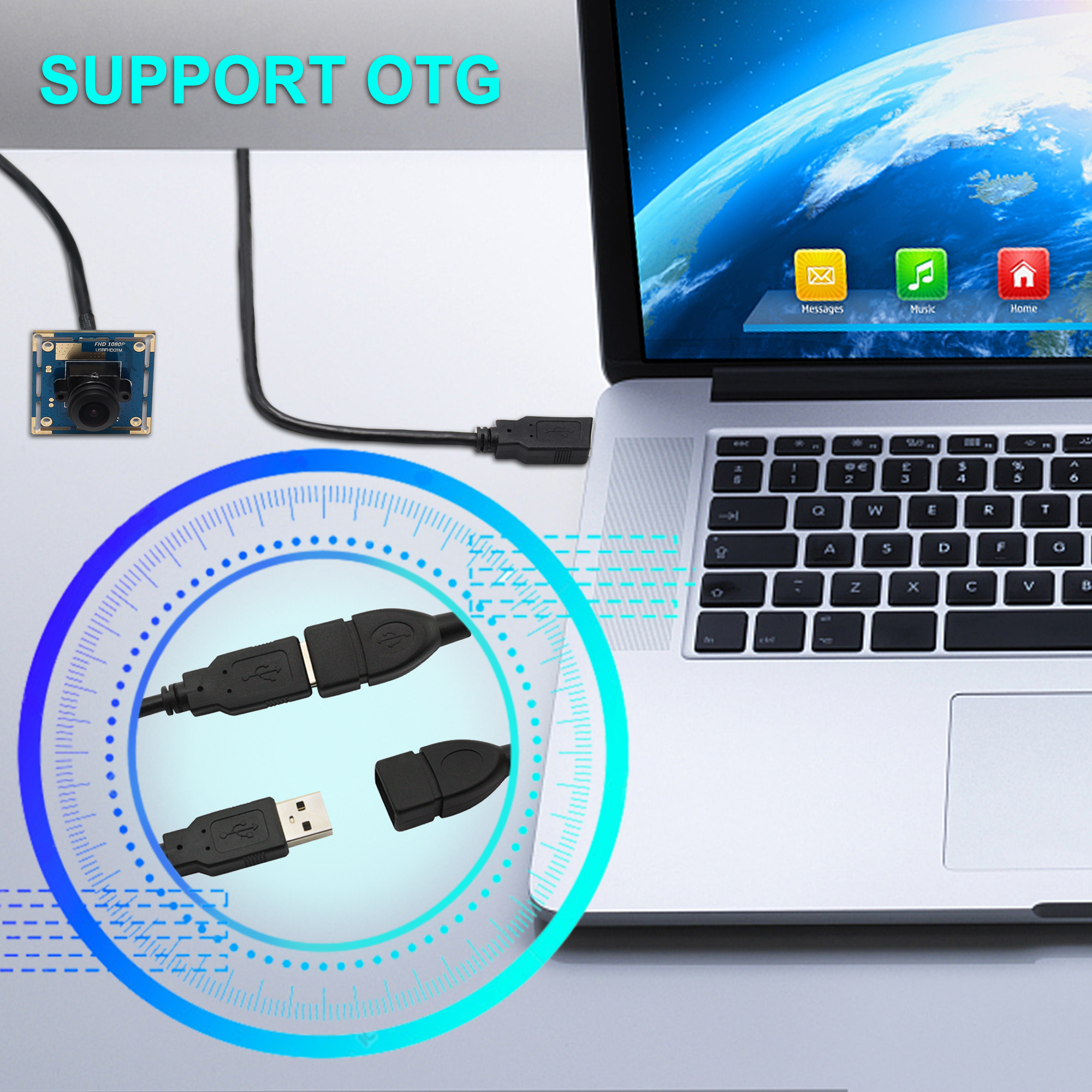

*Support OTG, can connect to Android phone

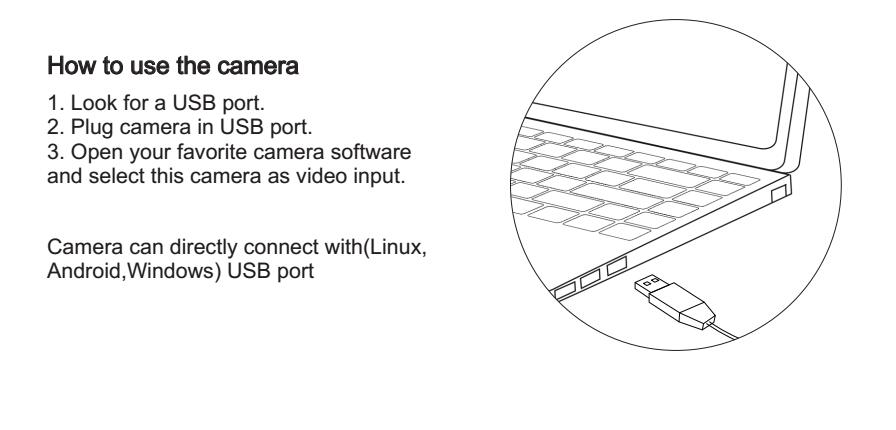

Installation Notes
