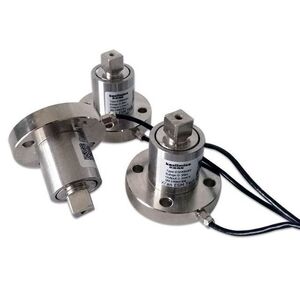

ESMSNJ01 Square torque wrench static torque force sensor rectangular wrench
- $80.00 /piece
- 1 piece
- Xi'an ESM Tech Co., Ltd.
- Shaanxi, China
- Ms Shawn Lin
| Brand Name: | Kexlimice; | Sensitivity: | 1.0~1.5 mV/V; |
| Measuring range: | 0-1000N.m; | Comprehensive Accuracy: | 0.1 0.2 0.3 (linear + hysteresis + repeatability); |
| Insulation Resistance: | > 5000 MΩ; | Model Number: | ESMSNJ01; |
| Single gross weight: | 2.000 KG; | Type: | Torsion meter; |
| Creep: | ± 0.05% F.S / 30min; | Packaging Detail: | Standard packing/As customer request; |
| Selling Units: | Single item; | Zero output: | ±1%F.S; |
| Name: | Square torque wrench static torque force sensor rectangular wrench; | Single package size: | 25X25X20 cm; |
| Supply voltage: | 10VDC; | Place of Origin: | Shaanxi, China; |
| Operating Temperature: | -20 ℃ ~ + 65 ℃; | Safety overload rate: | 150%F.S; |
 |
 |
 |
 |
 |
 |

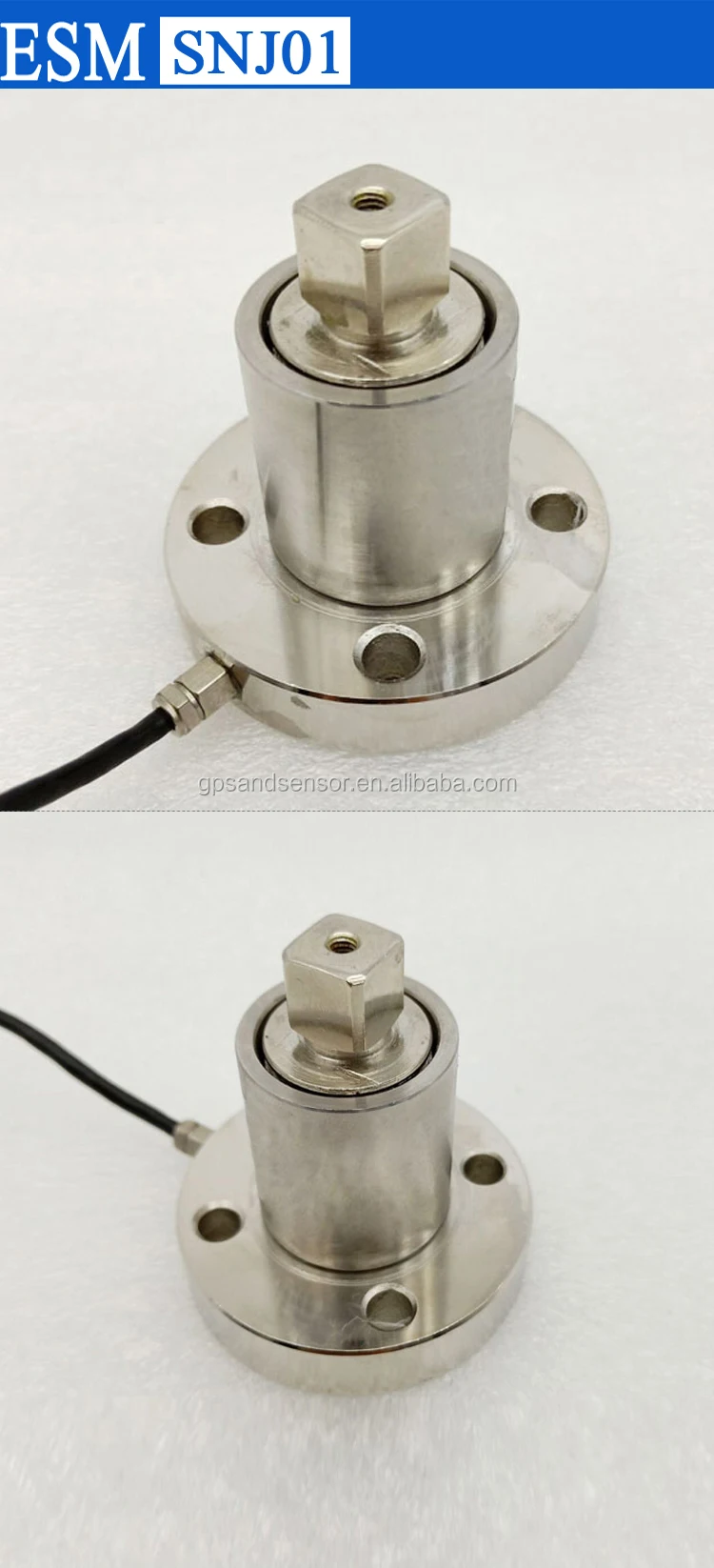

ESMSNJ01 Square torque wrench static torque force sensor rectangular wrench
Features:
Suitable for static, non-continuous rotation torque measurement. The shaft and the outer casing are integral and cannot be rotated. The strain principle is the voltage output generated by the torque to make the shaft slightly deformed. Measuring torque force in a static state, torque value measurement of non-continuous rotation, high precision, accurate measurement

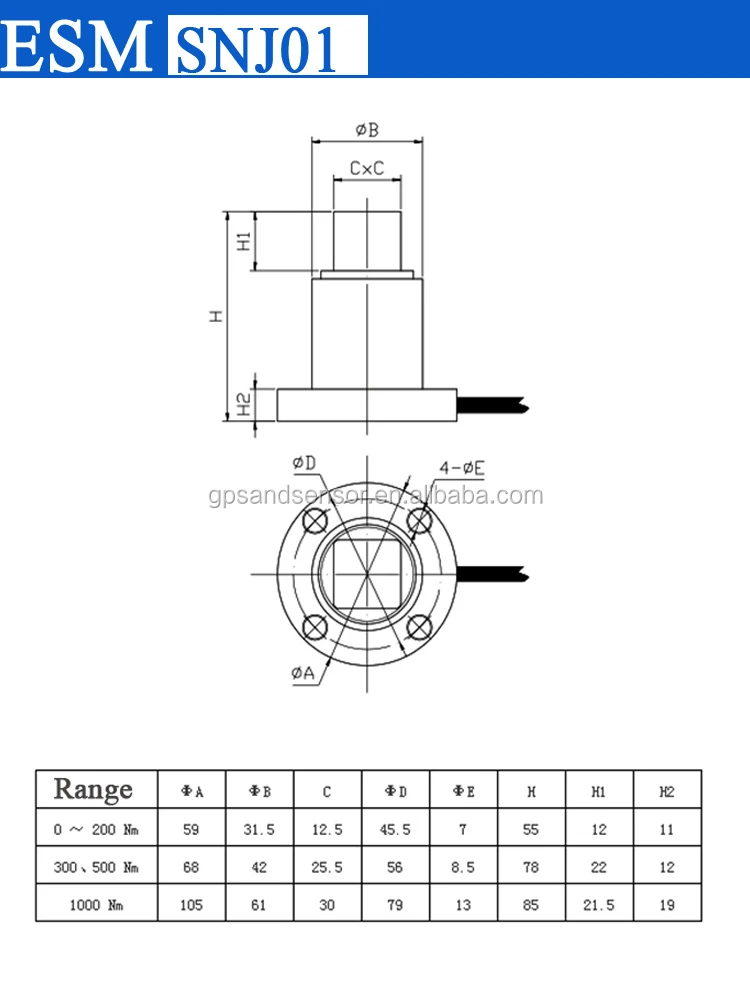

Technical Parameters:
|
Rated load |
0-1000N.m (large range customization) |
|
Comprehensive precision |
0.1% (linear + hysteresis + repeatability) |
|
Sensitivity |
1.0~ 1.5 mV/V |
|
Creep |
±0.1~±0.3 %F•S/30min |
|
Zero output |
±1%F•S |
|
Zero temperature effect |
±0.1~±0.3 %F•S/10°C |
|
Output temperature effect |
±0.1~±0.3 %F•S/10°C |
|
Operating temperature |
-20℃~+65℃ |
|
input resistance |
750±30Ω |
|
Output impedance |
700±10Ω |
|
Insulation resistance |
5000 MΩ |
|
Safety overload |
150% F·S |
|
Bridge voltage |
10VDC |
|
Material |
alloy steel |
|
Wiring |
Power (+) red line power (-) green line |
|
Output (+) yellow line output (-) white line |
