Exported PVC Trunking Wiring Systems
- $0.06 / >=5000 meters
- 5000 meters
- G And N Fortune Limited
- Guangdong, China
- Ms Sophia Nee
| size: | 10x10, 16x16... | length: | According to your requests |
| standard: | EN/13245-2/2005 | thickness: | Thickness: 0.6mm 0.8mm, 1.0mm 1.2... |
| Material: | High Density PVC | Shipping Details: | 20 days after receiving the advance payment |
| brand: | GN | payment terms: | L/C, T/T, Western Union, MoneyGram |
| color: | white/blue white | sample: | Provide free samples |
| business type: | manufacturer | Types of: | hard |
| Supply capacity: | 30000 meters per day (if in stock) | place of origin; place of origin: | Guangdong, China |
| application: | wire installation | Performance: | With stickers or without stickers |
| Packaging Details: | 25pcs/pack, plastic film packaging | model: | GN50637 |
| port: | Shenzhen |
Electrical PVC trunking wiring system
1. Mainfeature
1) Impact strength: compression and impact resistance, suitable for embedding in concrete
2) Non-conductive: good insulation, can withstand 25KV voltage, to ensure system safety.
3) Fire resistance: with self-extinguishing function
4) Corrosion resistance: resistant to acids, alkalis and salts, ensuring lower maintenance costs and
Longer service life.
5) Smooth surface: small friction, strong flow capacity, to ensure the smooth passage of cables
6) Easy installation: light weight, easy to cut, transport, bend and handle; easy connection by solvent
Cement and threaded connections are leak-free
2. Specifications
The following sizes are our current sizes, custom sizes are also accepted.

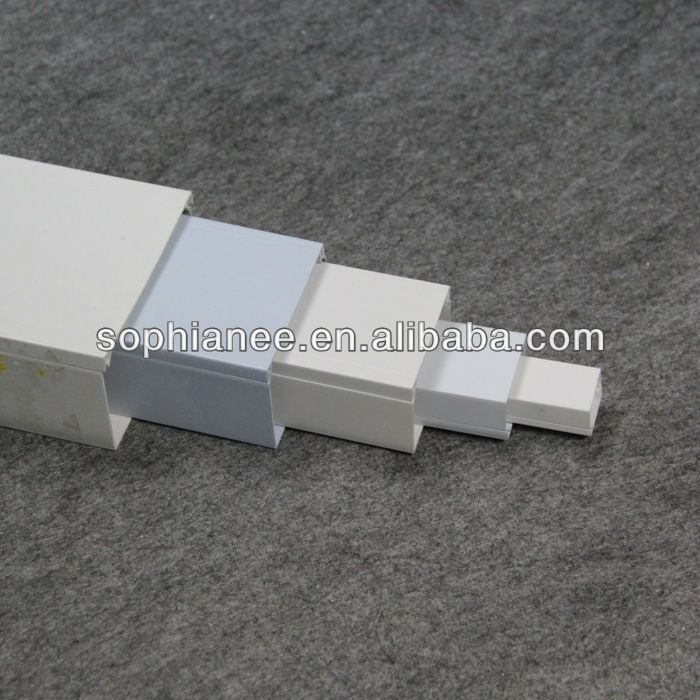

Plastic PVC Trunking Projects and Pictures | Dimensions (W*H)mm | Thickness (mm) |
Plastic PVC trunking | 10x10 mm | 0.60 |
| 15x10 mm | 0.55/0.80 | |
16x16 mm | 0.58/0.63/0.80/1.00 | |
| 18x9mm | 0.40 | |
| 20x10 mm | 0.45/0.55/0.70 | |
| 20x12 mm | 0.50/0.60/0.80 | |
| 23x13mm | 0.65/0.75 | |
| 24x14 mm | 0.65/0.7 | |
| 25x16mm | 0.63/0.72/1.00 | |
| 25x25mm | 0.75/0.95 | |
| 30x15 mm | 0.60/0.76 | |
| 39x19 mm | 0.75/0.90 | |
| 40x16 mm | 0.60/0.80/1.00 | |
| 40x25 mm | 0.68/0.76/1.00/1.20 | |
| 40x30 mm | 1.00/1.20 | |
| 40x40 mm | 1.38 | |
| 50x25 mm | 1.00 | |

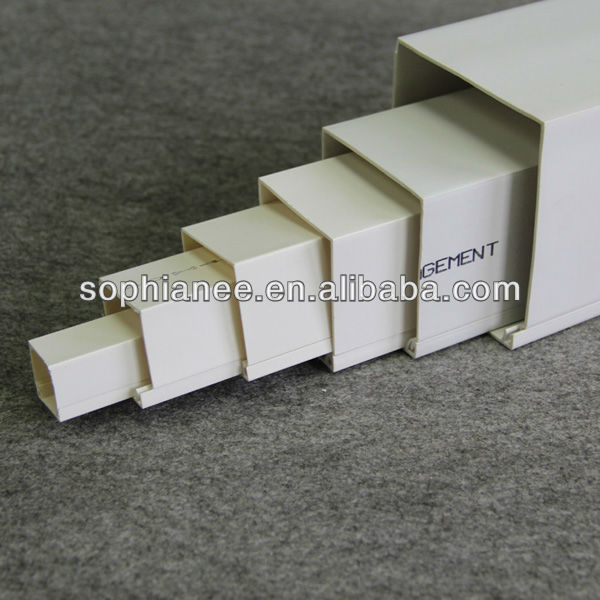

Square plastic PVC trunking
| 50x50mm | 1.10/1.25 |
| 59x22mm | 0.85/1.10 | |
| 60x30mm | 1.10 | |
| 60x40 mm | 1.20/1.40 | |
| 60x60 mm | 1.68 | |
| 75x50mm | 1.25 | |
| 75x75mm | 1.30/1.50 | |
| 80x40 mm | 1.35 | |
| 80x50 mm | 1.40/1.70 | |
| 99x27 mm | 0.90/1.20 | |
| 100x40 mm | 1.35/1.50 | |
100x50mm | 1.35/1.70 | |
| 100x60mm | 1.65/1.90 | |
| 100x75 mm | 1.65/2.00 | |
| 100x100 mm | 1.60/2.00 | |
| 100x150 mm | 2.00 | |

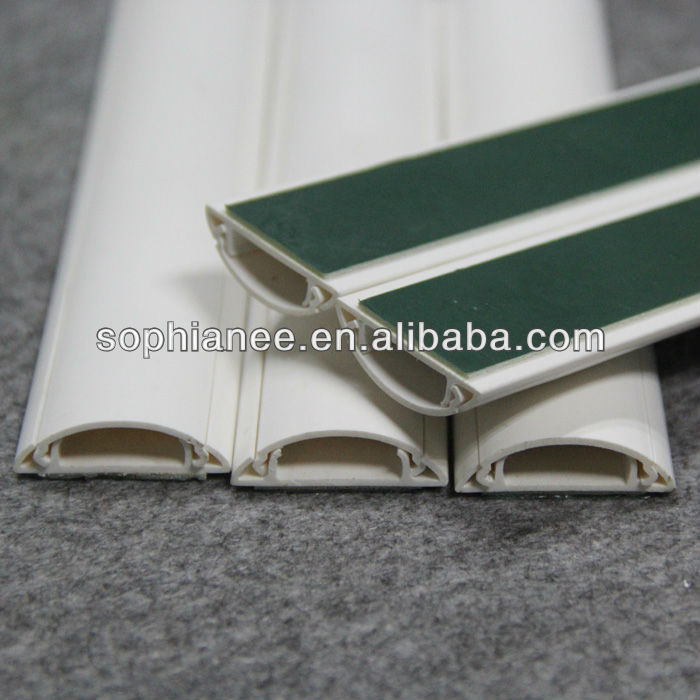

PVC ARC-floor trunking
| 35x10 mm | 1.75 |
| 50x15 mm | 1.60 | |
| 70x20 mm | 2.00 | |

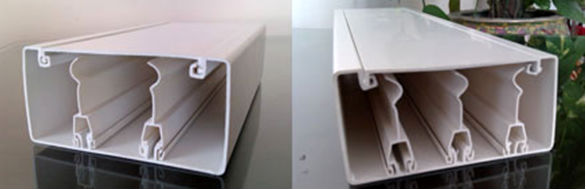

Special PVC trunking | 100x50 mm | 1.35 (three spacers) |
100x50mm | 1.35 (four spacers) |

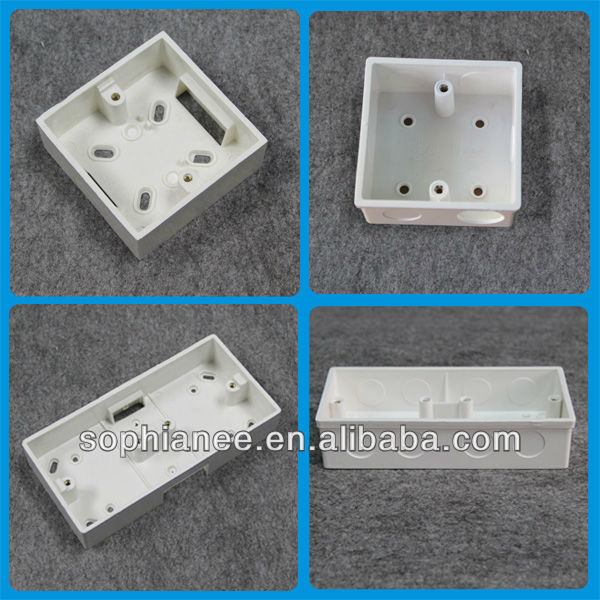

3.PVC trunking fittings
4. Company advantage
mechanical: More than 60 advanced extruders and 30 injection molding machines up to 500T.
experience: More than 30 years experience in thermoplastic extrusion and injection, e.g. runningtemperature control and continuousBuddhaFormula optimization.
quality assurance: 24-hour strict QC team, in line with ISO 9001 certification;
Large mold workshop: There are 4 senior mold designers and a group of experienced mold manufacturing technicians.
international project: Supply of construction and irrigation projects in Asia, Africa, Middle East, Russia and other countries.

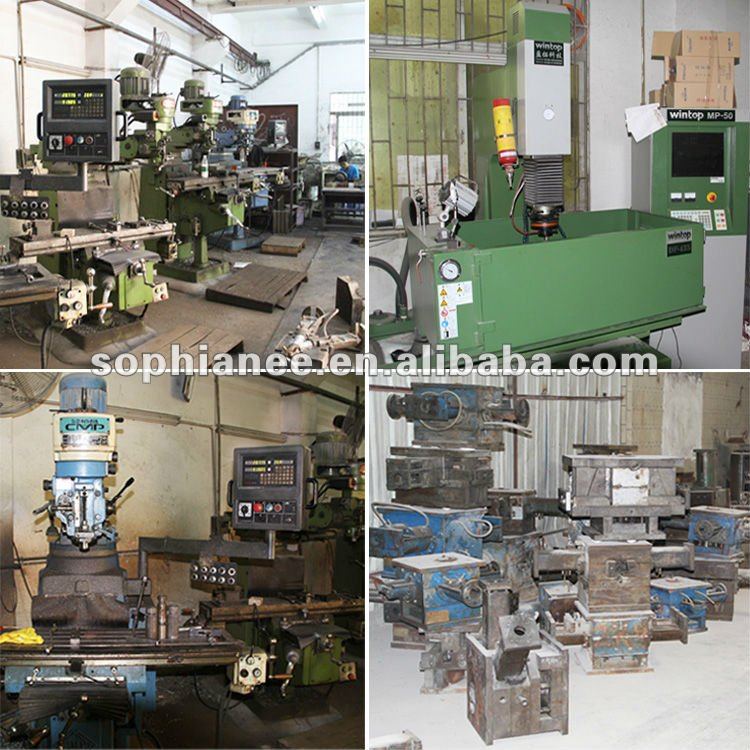

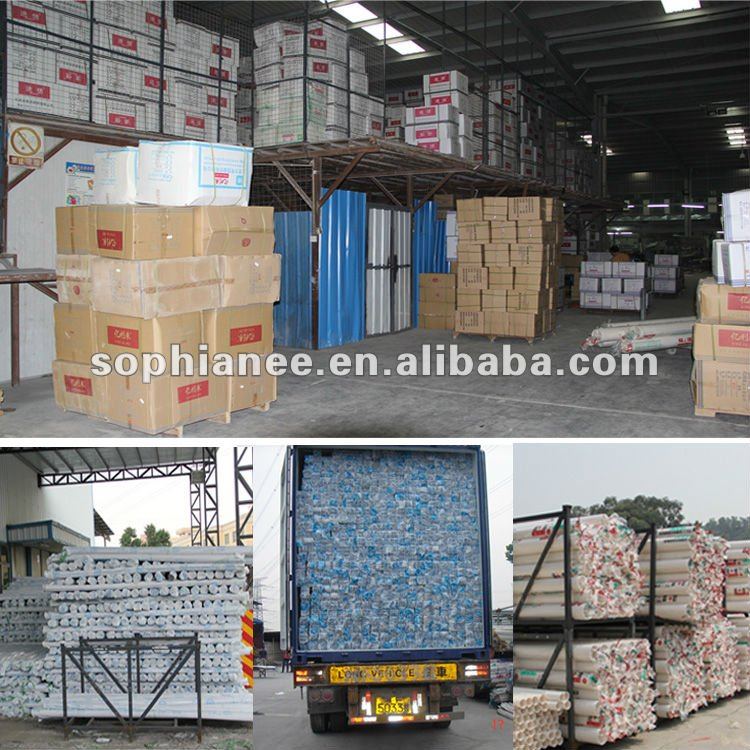

5. Factory overview
6. Company certification
