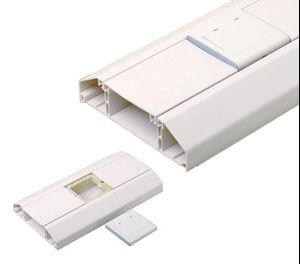

Plastic Electrical Cable Routing Conduit PVC Perimeter Trunking 3 Compartment Conduit
- $0.11 / >=3000 pieces
- 3000 pieces
- Foshan Broadjoy Household Building Material Co., Ltd.
- Guangdong, China
- Ms Fannie He
PRODUCT DETAIL
| payment terms: | L/C, Western Union, T/T, Cash | Origin: | Guangdong, China |
| port: | Shunde, China/Guangzhou, China/Shenzhen, China | brand: | Baiyue |
| length: | 2mtr. / 2.9mtr./ 4mtr. or meet customer requirements | application: | wire installation |
| size: | 180x50mm | Material: | pvc |
| type: | hard | model: | BYT18050 |
| appearance: | Smooth | color: | white |
| Packaging Details: | 1 regular quantity in polybag; 1 carton regular quantity; or as per customer's requirement | standard: | IEC 61084-2-1 |
| Advantage: | Flameproof | Package preview: | |
| Supply capacity: | 5,000,000 pieces per month | pack: | Plastic bag or carton or meet customer requirements |
| Certification: | ISO9001 |

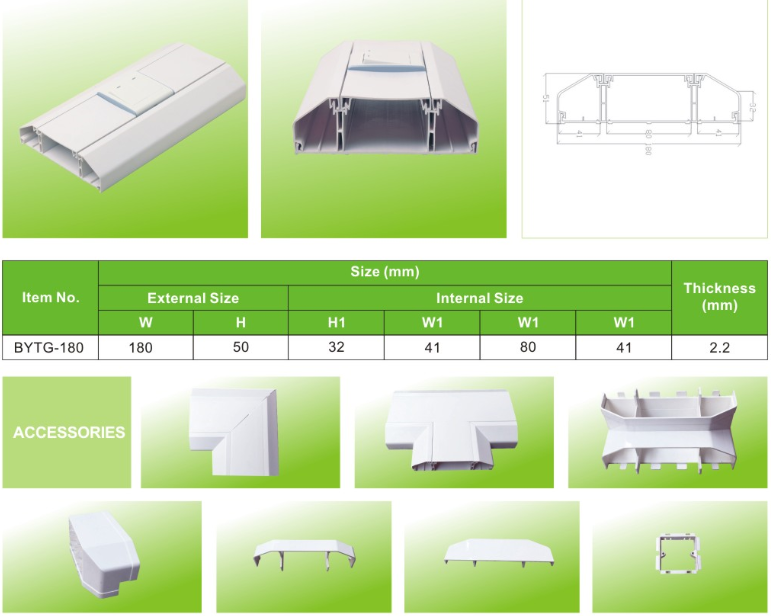

Product parameters
notes:
1. Can be made in different lengths, thicknesses or colors according to customer requirements.
2. Size and thickness have tolerances.
Product Description
1. Name: PVC compartment cable trunking
2.The details are shown in the table above.
3. Material: PVC4. Standard: IEC1084-2-1, IEC61084-2-1
5. Flammability grade: FV-0; FV-1
6. Application: home, hotel, office, school, factory, etc. Protect and manage indoor electrical wiring
7. Working temperature: -40ºC to 65ºC
8. Color: White or other colors are available upon request
9. Length: 2m, 2.9m, 4m or according to customer requirements.
10. Features:
A. Non-conductive: good insulation, can withstand 25kv voltage, to ensure system safety.
B. Fire resistance: self-extinguishing, not combustion-supporting.
C. Corrosion resistance: resistant to acids, alkalis and salts, ensuring lower maintenance costs and longer service life.
D. Impact strength: compression and impact resistance, no cracks due to tightening.
E. Elegant appearance: beautiful appearance, suitable for indoor installation.
F. Easy installation: light weight, easy to transport, handle and install.
G. Good breaking resistance: the nails on the slots will not break.
11. Quotation is subject to our final confirmation.
12. Payment terms: 30% deposit, 70% T/T before shipment or 100% L/C at sight.
13. Delivery time: about 20-25 days after receiving the deposit.

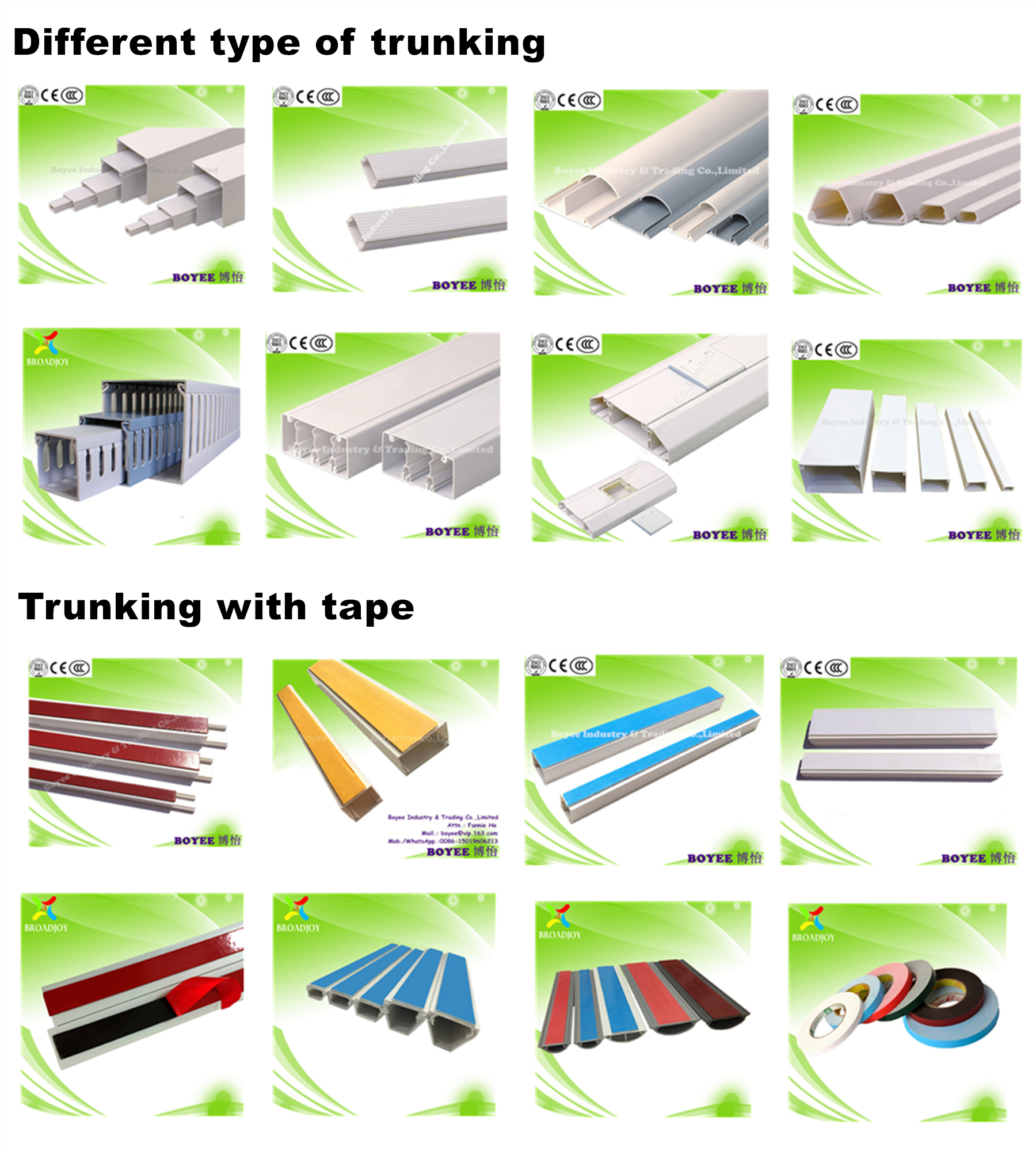

Different types of pvc trunking
