FNIRSI 1013D Two Channel Digital Flat Panel Oscilloscope 100m 2CH Bandwidth 1GS Sampling Rate Small Flat Panel Oscilloscope

PRODUCT DETAIL
Number of channels:2 channelsMaximum real-time sample rate:1GSa/s
50mV/div ~ 500V/div:184mm x 124mm x 50mmbrand:FNIRSI
Analog Bandwidth:100MHz*2Input resistance:1M
Vertical Sensitivity:50mV/div ~ 500V/divport:Hongkong
type:oscilloscopeexhibit:7 inches——800*480
operate:Capacitive touch screen + gesturespower supply:6000mAh lithium battery
Maximum test voltage:40 V (1X probe), 400 V (10X probe)model:1013D
place of origin; place of origin:Guangdong, ChinaSupply capacity:100000 pieces/month
payment terms:wire transfer
Product Description



Main features:

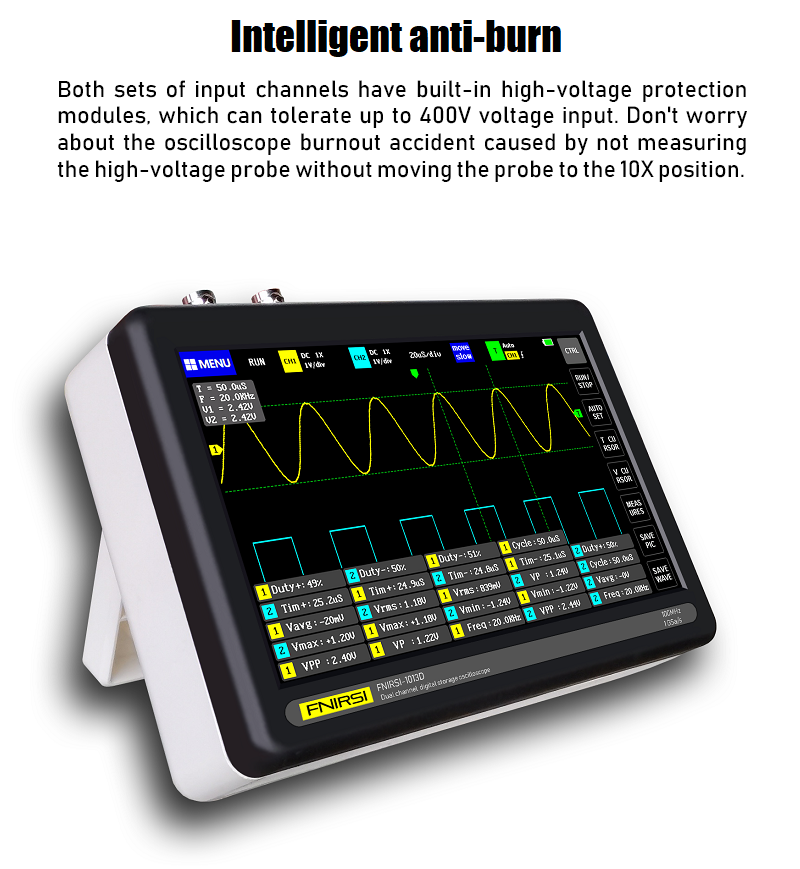

1: Intelligent anti-burn, 1X can withstand voltage up to 400V

2: 100MHz analog bandwidth@100GSa/s sampling rate (1X = 5MHz, 10X = 100MHz)

3: Fully fit 7 inch 800*480 resolution color TFT LCD display with vivid colors and high contrast

4: Capacitive touch screen, the same as that of modern mobile phone ipad, not the resistive touch screen operated by ancient nails

5: High measuring voltage range, 1X can measure 0~40V, 10X can measure 0~400V, 100X can measure 0~4000V

6: Up to 12 parameter measurements: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period

7: Cursor measurement function, convenient for manual measurement of cycle, frequency, voltage

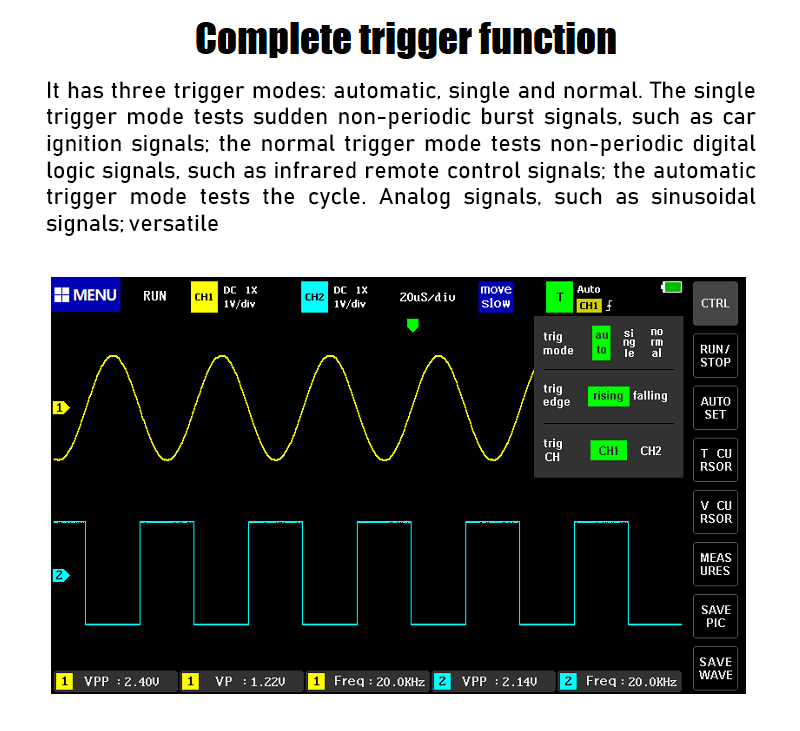

8: Full trigger function (single, normal, automatic)

9: Freeze waveform display at any time (pause function)

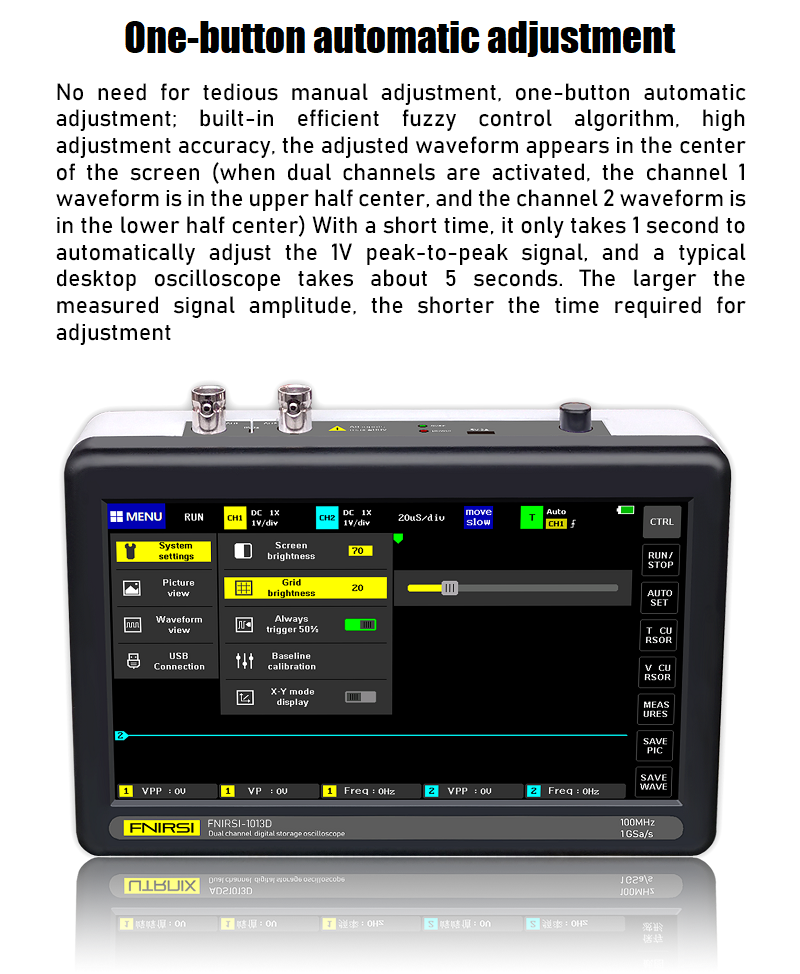

10: Equipped with efficient one-button automatic

11: One-click waveform storage and screenshot

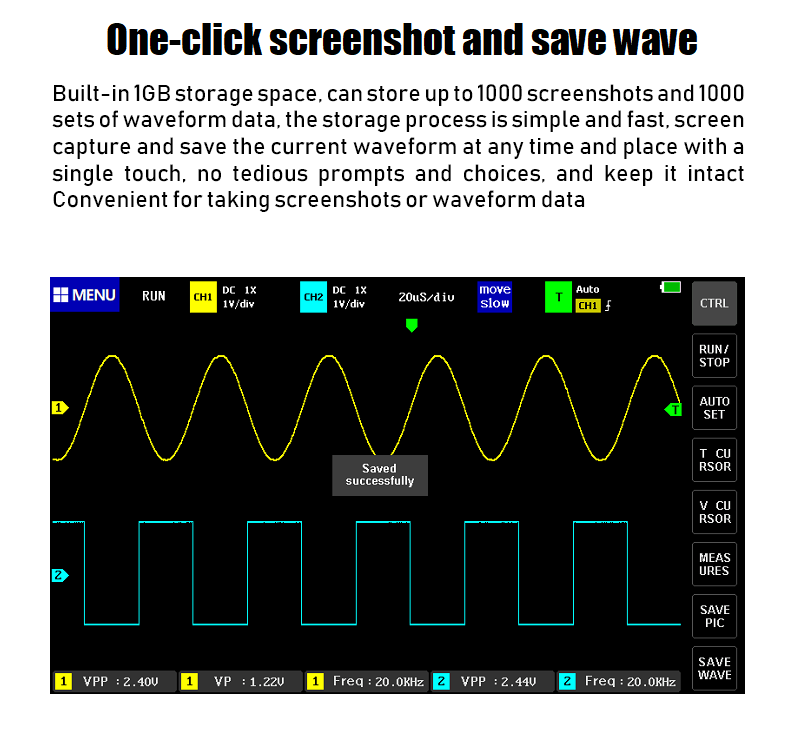

12: Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

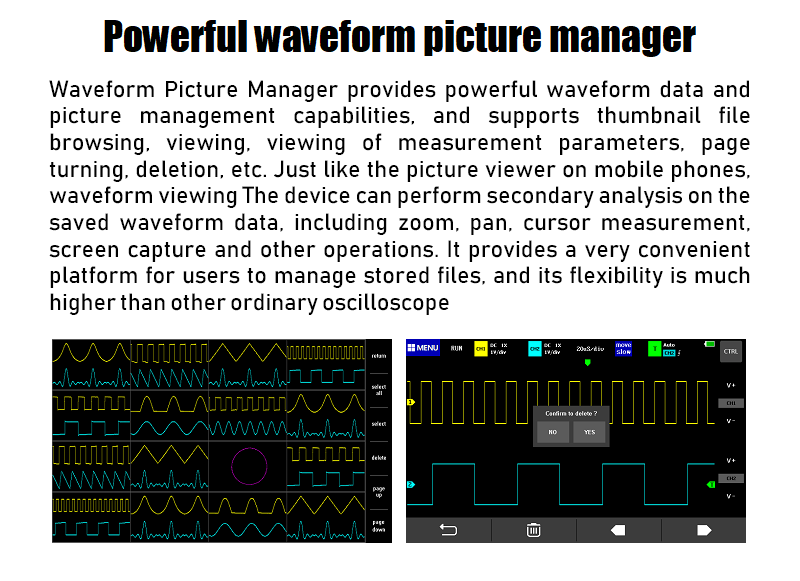

13: Powerful waveform picture manager, supports thumbnail browsing, viewing, detailed viewing, page turning, deletion, and waveform zoom in, zoom out, move, etc.

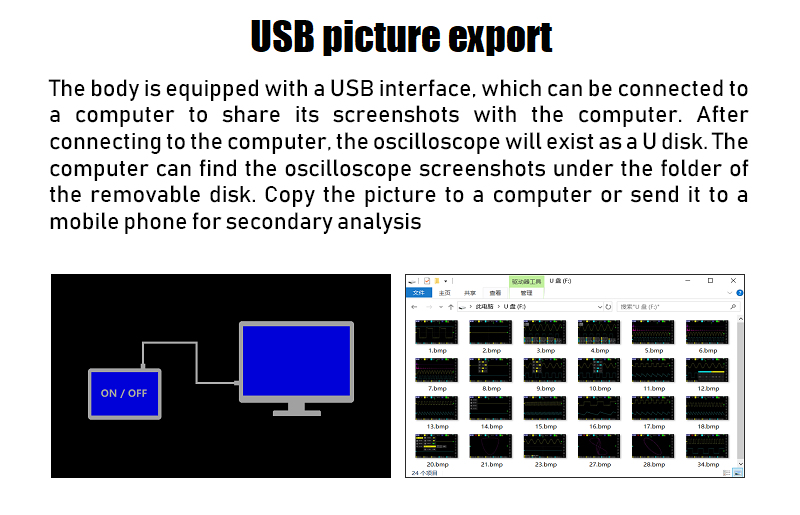

14: Equipped with a USB interface, which can be connected to a computer to share screenshots with the computer, which is convenient for secondary analysis

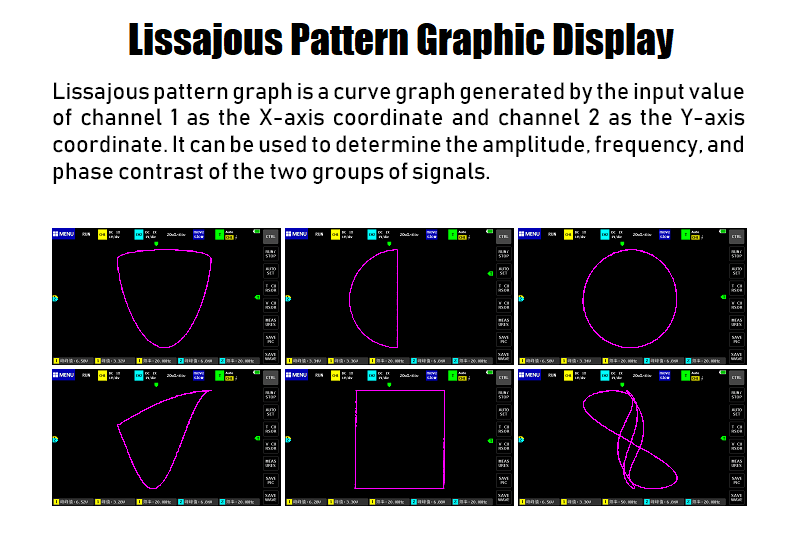

15: Lissajous digital graphic display function, which can be used to determine the amplitude, frequency and phase contrast of two sets of signals

16: FFT display function, which can analyze the spectral characteristics of the signal

17: Built-in 6000mAh rechargeable lithium battery, which can be used continuously for 4 hours when fully charged at the highest screen brightness

18: Memory compression technology, waveform refresh screen does not flicker

19: Screen brightness adjustment

20: Background grid brightness adjustment

21: Ultra-thin, easy to carry

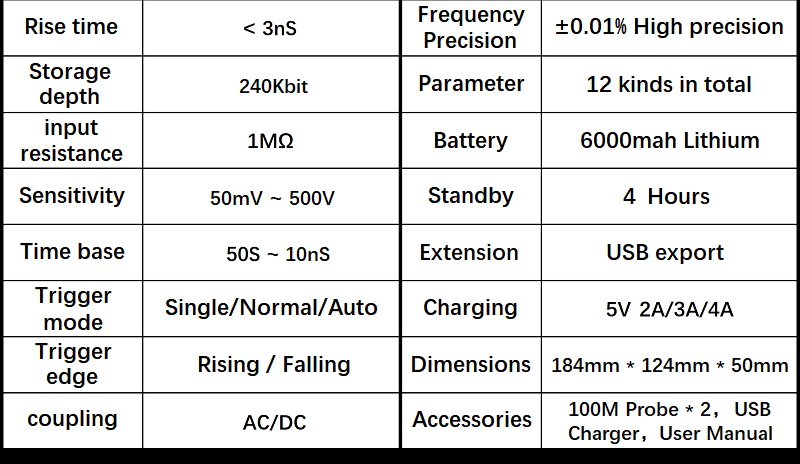

Specification:
1: Analog bandwidth: 100MHz*2
2: Number of channels: 2 channels
3: Maximum real-time sampling rate: 1GSa/s
4: Vertical sensitivity: 50 mV/div ~ 500 V/div
5: Horizontal time base range: 50S/div ~ 10nS/div
6: Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
7: Storage depth: 240Kbit
8: Input resistance: 1M
9: ADC accuracy: 8bits
10: Coupling mode: AC/DC
11: Trigger mode: single, normal, automatic
12: Trigger edge: rising edge/falling edge
13: External trigger voltage 0 – 40 V
14: Display screen: 7 inch-800*480
15: Operation: capacitive touch screen + gesture
16: Extended interface: USB image export
17: Power supply: 6000mAh lithium battery
18: Dimensions: 184mm x 124mm x 50mm
19: Total weight: 650g

The package includes:
1 x FNIRSI-1013D oscilloscope main unit
2 matched 100MHz probes (1X and 10X)
1 x 5V2A Charger (includes USB cable)
1 x User Manual (English)
