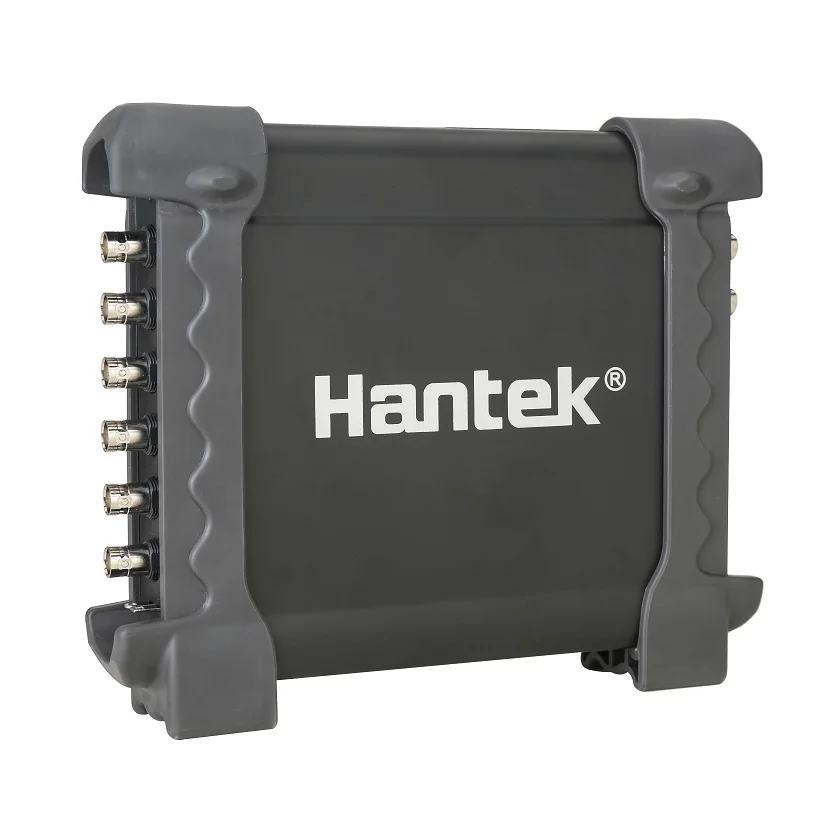

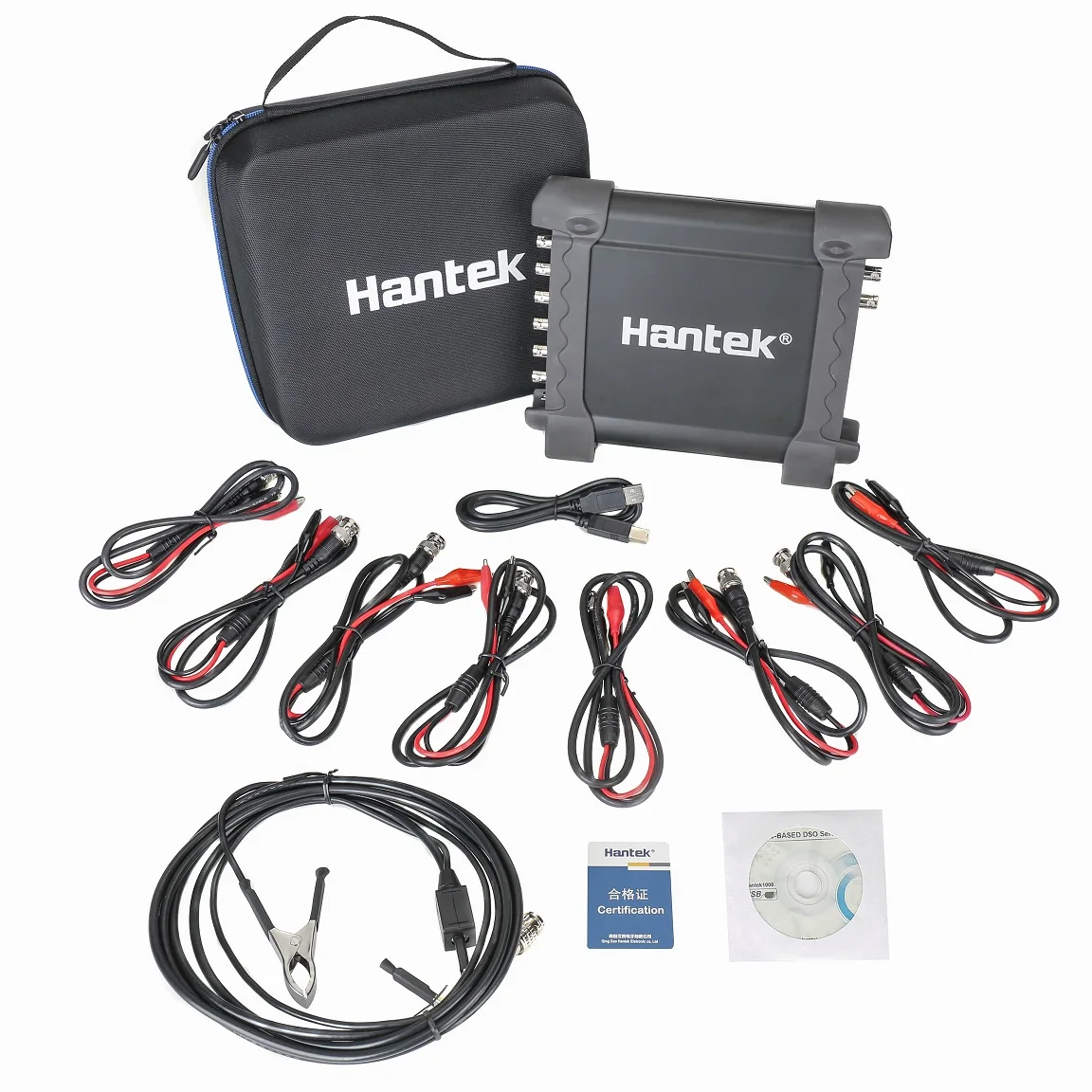

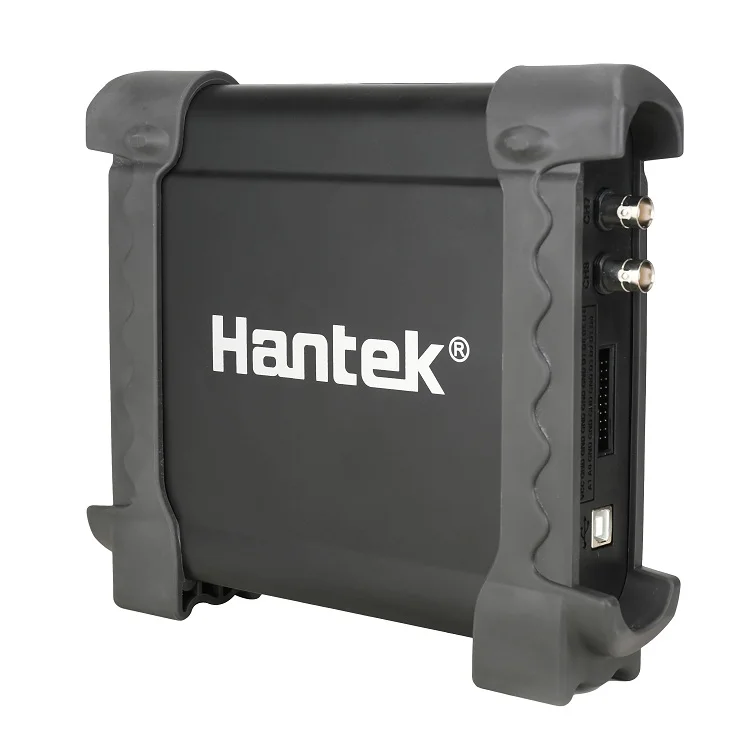

Hantek 1008C 8 Channels Oscilloscope Vehicle Testing Automotive Diagnostic Equipment USB Automotive Oscilloscope

  • $97.43 / 2 - 19 pieces
    $81.19 / 20 - 99 pieces
    $76.91 / >=100 pieces
  • 2 pieces
  • Shenzhen Kuaiqu Electronic Co., Ltd.
  • Guangdong, China
  • Mr James Zhang
PRODUCT DETAIL
Single package size:20X25X15 cm;keywords:hantek 1008C;
Single gross weight:2.0 KG;Brand Name:Hantek;
Model Number:Hantek1008C;Selling Units:Single item;
Place of Origin:China;Input Sensitivity:10mV/div to 5V/div;
Type:8 channels oscilloscope for vehicle testing;Payment:TT;
Color:Picture;Input Impedance:Resistance: 1MΩ;
Product Name:hantek automotive oscilloscope;Name:PC USB Oscilloscope;
MOQ:1;Channel:8CH;
Warranty:1 Year;

Hantek 1008C 8 Channels Oscilloscope Vehicle Testing Automotive Diagnostic Equipment USB Automotive Oscilloscope

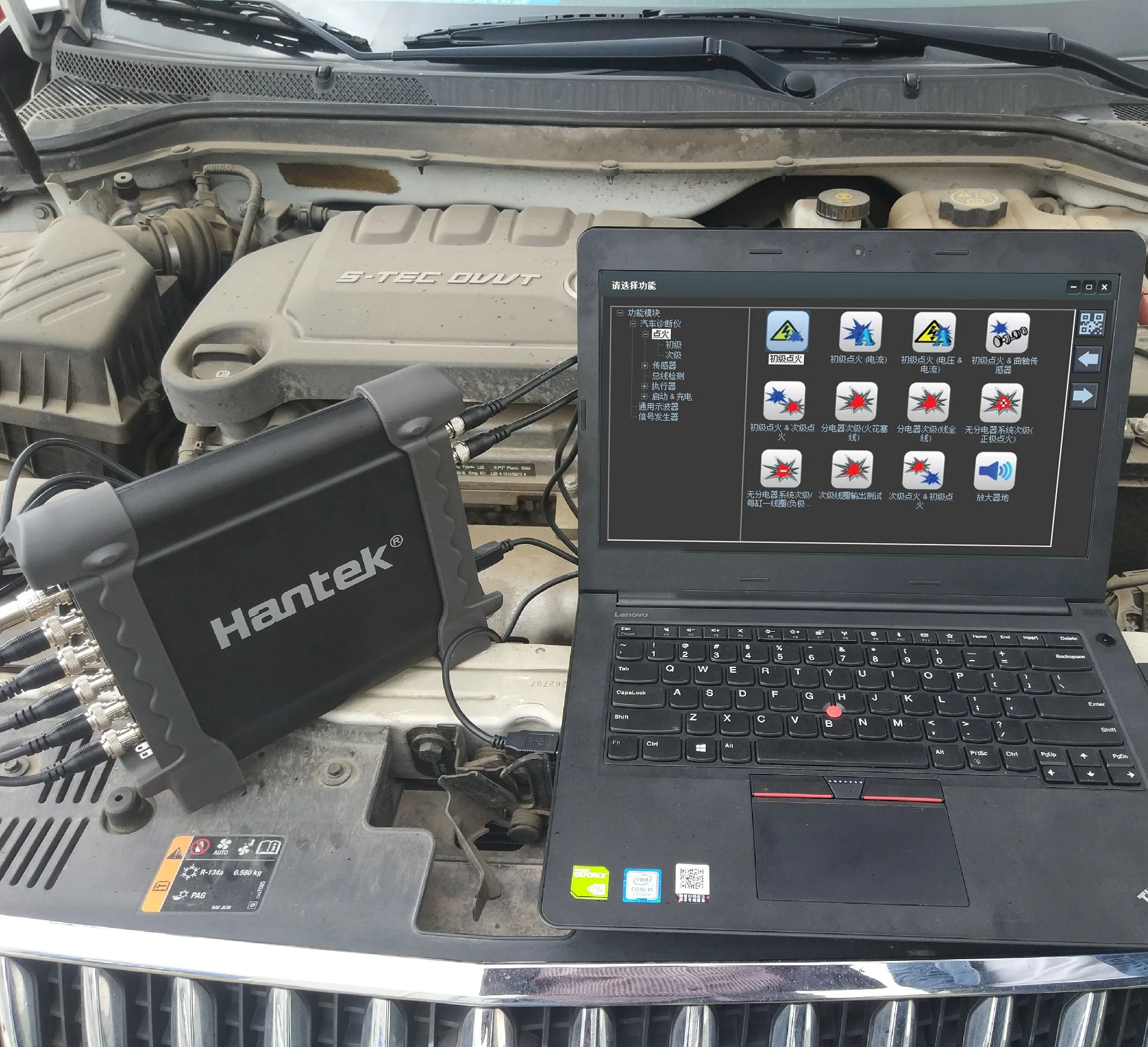

Vehicle Diagnosis Vehicle Diagnostic Function Ignition Primary Ignition (Voltage)
Primary Ignition(current)
Primary Ignition(Voltage& Current)
Primary Ignition (Crankshaft Senser)
Primary Ignition&SecondaryIgnition
Secondary Secondary Ignition Distributor Type (Plug Lead)
Secondary Ignition Distributor Type (King Lead)
Secondary DIS (Positive-fired)
Secondary DIS or CPC (Negative-fired))
Secondary Coil Output Diagnosis
Secondary Ignition&Primary Ignition
Sensors Air Flow Meter Air Flow Meter (Hot Wire)
Air Flow Meter (Air Vane)
Air FlowSensor (BOSCH Diesel)
Air Intake PressureSensor (BOSCH Diesel)
Camshaft Camshaft (Inductive)
Camshaft (AC Excited)
Camshaft (Hall Effect)
Camshaft (BOSCH Common Rail Diesel)
Crankshaft Crankshaft Inductive Running
Crankshaft Inductive Cranking
Crankshaft Hall Effect
Crankshaft Sensor &Primary Ignition
Distributor Distributor Pick-up (Hall Effect)
Distributor Inductive Pick-up Cranking
Distributor Inductive Pick-up Running
Lambda Sensors Lambda Sensor Titania
Lambda Sensor Zirconia
Lambda Sensor Zirconia Pre & Post cat
Throttle Position Throttle Position Potentiometer
Throttle Position Switch
Throttle Pedal Switch (Bosch Diesel)
ABS Digital Speed Sensor
ABS Analog Speed Sensor
Coolant Temperature (5V)
Coolant Temperature (GM/Vauxhall Simtec
Crash Sensor
MAP Analog
MAP Digital
Hall Effect Road Speed Sensor
Accelerator Pedal (Bosch Diesel)
Bus Diagnosis CAN Bus CAN Bus Data View
CAN Bus Signal Integrity
CAN Bus LH Long Capture
LIN Bus LIN Bus
Engine Petrol Single-point Injector (Voltage)
Single-point Injector (Current)
Multi-point Injector (Voltage)
Multi-point Injector (Current)
Injector Voltage & Current
Injector Current & Primary Ignition
Diesel Common Rail Diesel (Current)
Injector Bosch CDi 3 (Current)
Injector Bosch Diesel (Idling)
Injector Bosch Diesel (Accelerating)
  Diesel Glow Plugs
Electronic Fuel Pump
Carbon Canister Solenoid Valve
ERG Recirculation Solenoid Valve
Stepper Motor Example 1
Stepper Motor Example 2
Idle Speed Control Valve (Rotary)
Idle Speed Control Valve (Electromagmetic)
Throttle Servomotor (Idling)
Throttle Servomotor (Accelerating)
Bosch CDi3 Quantity Control Valve
Bosch CDi3 Pressure Regulator Valve
Variable-Speed Cooling Fan On
Variable-Speed Cooling Fan Off
Variable Camshaft Valve Timing
Startup & Charge Charging Circuits Charging Circuits Current/Voltage
Charging Circuits Current/Voltage Starting 24V
Charging Circuits Current/Voltage Idling 24V
Charging Circuits Alternator AC Ripple/Diode Diagnosis
  Relative Compression Petrol
Relative Compression Diesel
Starting Voltage Drop
General Oscilloscope Model  Hantek1008C
Analog Channel 8
Input Impedance Resistance: 1MΩ
Input Sensitivity 10mV/div to 5V/div
Input Coupling DC
Resolution 12 bits
Memory Depth 4K
Max. Input 400V (DC+AC Peak)
Real-Time Sampling Rate 2.4MSa/s
Time BaseRange 1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision ±50ppm
Trigger Source CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Trigger Mode Edge
X-Axis Input CH1
Y-Axis Input CH2
Voltage Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process +,- , x,÷, FFT, Invert
Voltage Range 10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1
Current Range 100mA to50.0A/div @ CC65(20A)
1000mA to500.0A/div @ CC65(65A)
1A to100.0A/div @ CC650(60A)
1A to200.0A/div @CC1100(100A)
10A to2000.0A/div @CC1100(1100A)
FFT Rectangular, Hanning, Hamming, Blackman Window
Math Addition, subtraction, multiplication, division
Interface USB 2.0(Full Speed)




Programmablesignal generator Channel 8CH
Output Level LVTTL
Frequency Range 0-250kHz
