Factory Circuit Board Multilayer LED Aluminum Metal Core PCB
- $3.50 / 1 - 999 pieces
$1.50 / 1000 - 4999 pieces
$0.50 / 5000 - 9999 pieces
$0.10 / >=10000 pieces - 1 piece
- Jinhua Technology (Shenzhen) Co., Ltd.
- Guangdong, China
- Ms Rosia Cao
PRODUCT DETAIL
| Copper thickness: | 1 oz | Board Dimensions: | 300*1500mm, or can be customized |
| Plate thickness: | 1.6mm | custom made: | usable |
| Key words: | LED aluminum substrate | model: | JH-MCPCB-001 |
| Minute line spacing: | 800w | application: | Consumer electronics products |
| Minute Hole Size: | 0.5mm | PCBA service: | SMT&DIP&BGA |
| port: | Shenzhen | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| layer: | 1~4 floors | brand: | Jinhua |
| Surface treatment: | half low frequency | Substrate: | Aluminum/Metal/Copper |
| Certificate: | ISO9001/Iso14001/CE/ROHS | Package preview: | |
| Packaging Details: | Bubble bag, pearl cotton bag, anti-static bag, vacuum bag | Serve: | Provide OEM service |
| product name: | Metal core PCB | Minute line width: | 800w |
| Testing service: | 100% AOI test | type: | metal core pcb |
| Origin: | Guangdong, China | MOQ: | 1 |
| Supply capacity: | 60000 pieces per month |
Why is JH-PCBA used in MCPCB manufacturing?
.For regular MCPCB, we can customize the thermal conductivity within the range of 1W/MK to 5W/MK.

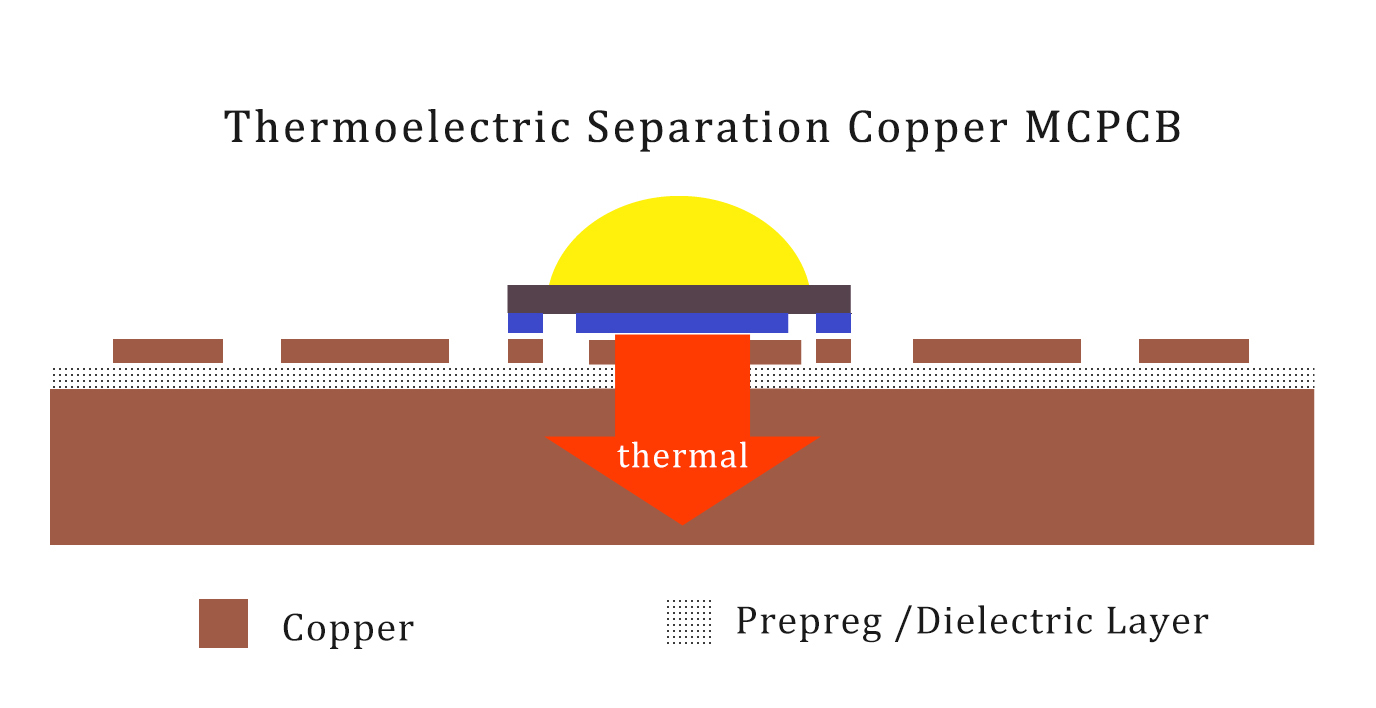

.Master the core technology of copper MCPCB thermoelectric separation.
.We have realized the fully automatic manufacturing of 1.5m ultra-long Alu PCB mass production.
.Jinhua also supports other substrate materials, such as copper and FR4 substrate PCB, copper and ceramic substrate PCB, etc.
.Provides assembly services from design to completion, along with conformal coating, IC programming, mechanical box and assembly.
Product Description
| Jinhua Aluminum PCB Capacity | ||
| thing | process | ability |
| 1 | layers | 1-4L |
| 2 | plate thickness | 0.4-5.0mm |
| 3 | copper thickness | 0.5oz-4oz |
| 4 | Material | Aluminum base, Boyu, PTTC, Bergquist, TOTKING, sun ink, resin filled |
| 5 | Thermal Conductivity | 1-5W/MK |
| 6 | thermoelectric separation | Up to 200W/MK |
| 7 | Board size | Maximum: 650*1500mm, Minimum: 10*10mm |
| 8 | Minimum trace width/spacing | 1oz copper is 8/8mil |
| 9 | Hole to Line or Pad Spacing | Minimum 0.3mm |
| 10 | drilling | The minimum finished hole diameter is 0.5mm |
| 11 | Solder mask | Thickness 25-30um |
| 12 | Color: green, white, black, etc. | |
| 13 | The reflectivity is 85%, and the mirror aluminum plate reaches 95% | |
| 14 | silk screen | Color: white, black, yellow, red...etc |
| 15 | analyze | Contour tolerance: +/-0.1mm |
| 16 | V-CUT angle: 30 degrees and 45 degrees | |
| 17 | V-CUT remaining thickness 0.4+/-0.05mm | |
| 18 | surface treatment | ENIG, HASL & HASL-LF, Immersion Tin, Immersion Silver, OSP |
| 19 | bow and twist | ≤0.03mm |
| 20 | standard | ISO9001, ISO14001, IPC-600,6012, Class II and Class III |

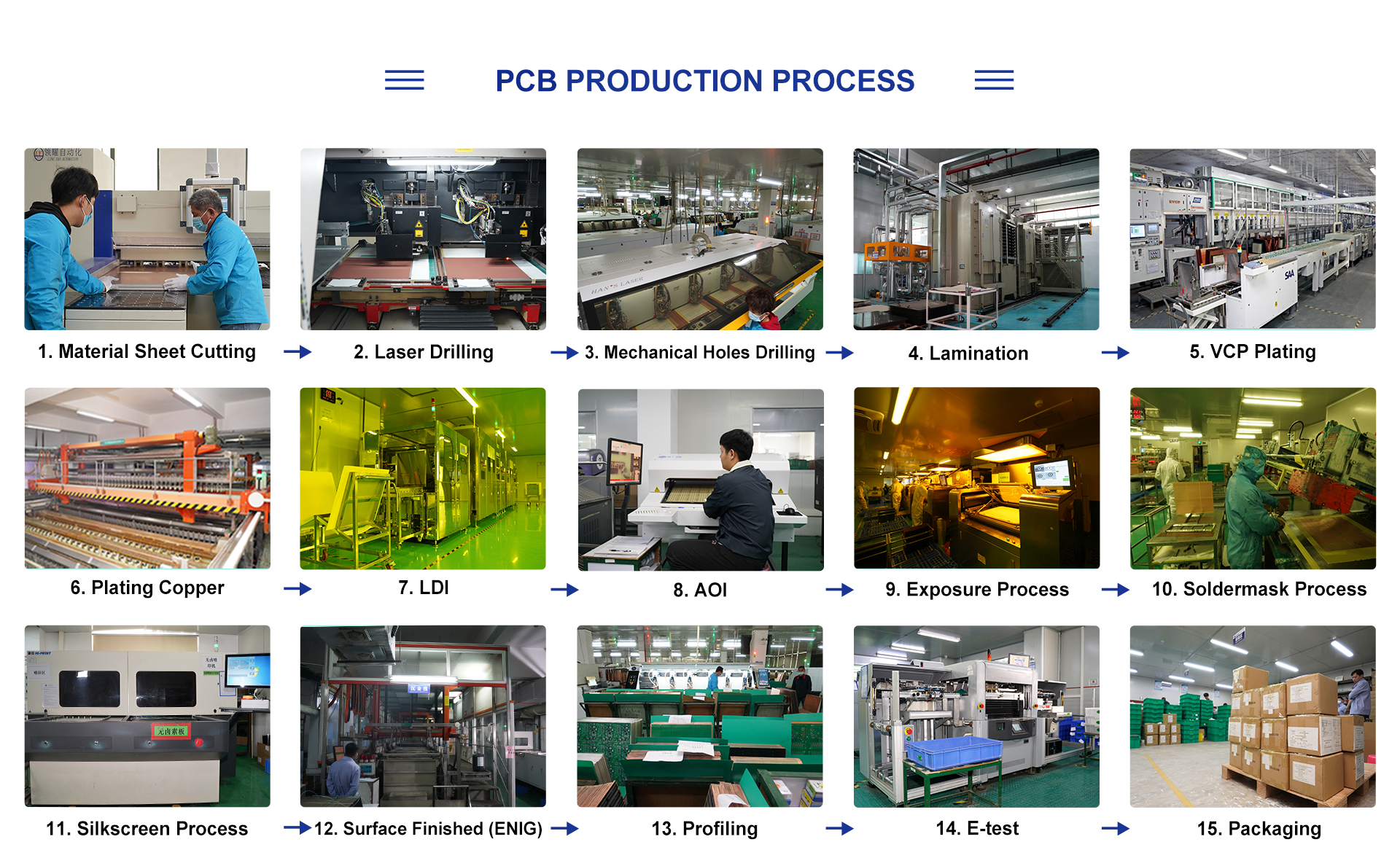

production process
