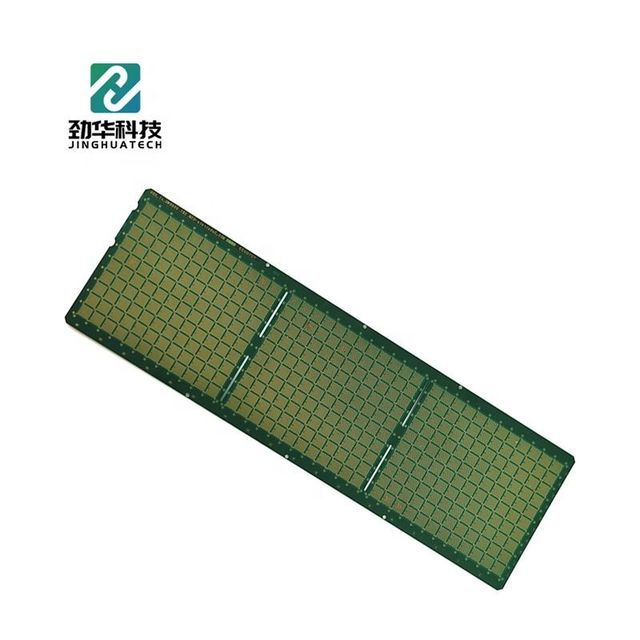

Support oem prototype custom pcb board maker design and assembly clone pcb
- $3.50 / 1 - 999 pieces
$1.50 / 1000 - 2999 pieces
$0.50 / 3000 - 9999 pieces
$0.10 / >=10000 pieces - 1 piece
- Jinhua Technology (Shenzhen) Co., Ltd.
- Guangdong, China
- Ms Rosia Cao
| Certificate: | ISO9001 | Copper thickness: | custom |
| thing: | custom circuit board | port: | Shenzhen/Hong Kong |
| Material: | FR4/Aluminum/Ceramic CEM1 | Packaging Details: | Bubble bag, pearl cotton bag, anti-static bag, vacuum bag |
| type: | Electronic board, heavy copper pcb | Plate thickness: | custom |
| Origin: | Guangdong, China | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| model: | circuit board | Serve: | One-stop service |
| application: | Electronic equipment | product name: | PCB Assembly |
| Name: | PCB board production | Substrate: | custom |
| Solder Mask: | green | usage: | Foundry Electronics |
| brand: | Jinhua | Supply capacity: | 60000 pieces per month |

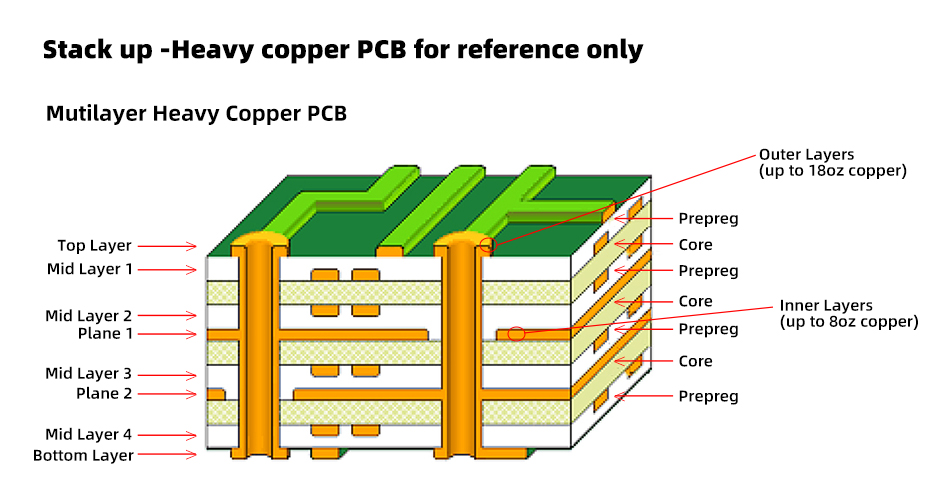

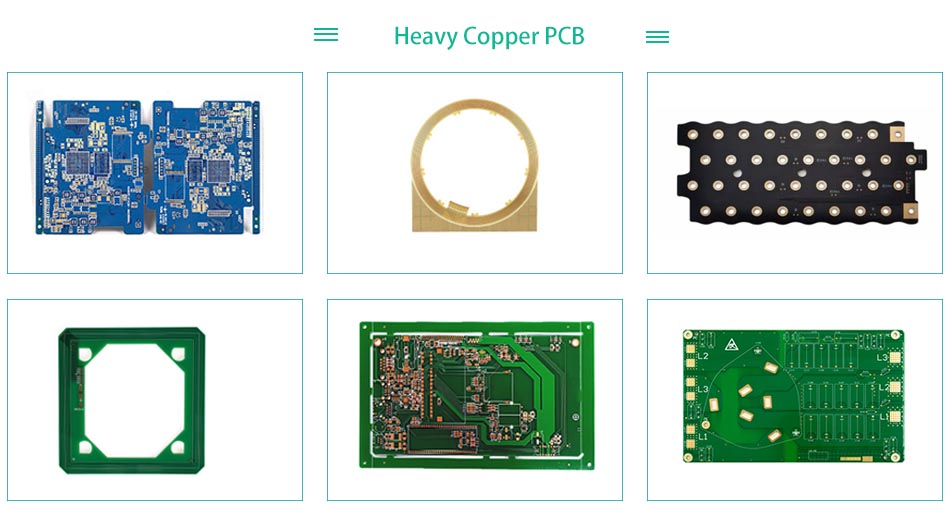

Heavy copper PCB is a circuit board with copper thickness ≥3oz per sq. ft in both outer and inner layers. The reason for classifying a board as a heavy copper PCB is its thicker plating. During the production of thick copper PCBs, copper thickness is increased by plating holes and sidewalls.
Why choose thick copper PCB for your application
.Can withstand frequent contact with excessive current
.High tolerance
.Excellent heat resistance and strain capacity
.better electrical conductivity
.can withstand repeated thermal cycles
.Smaller PCB size due to copper layer
.Reduce failure rate
.Increase the strength of the connector
.reduce manufacturing cost
.Excellent mechanical strength in connector locations and PTH holes.

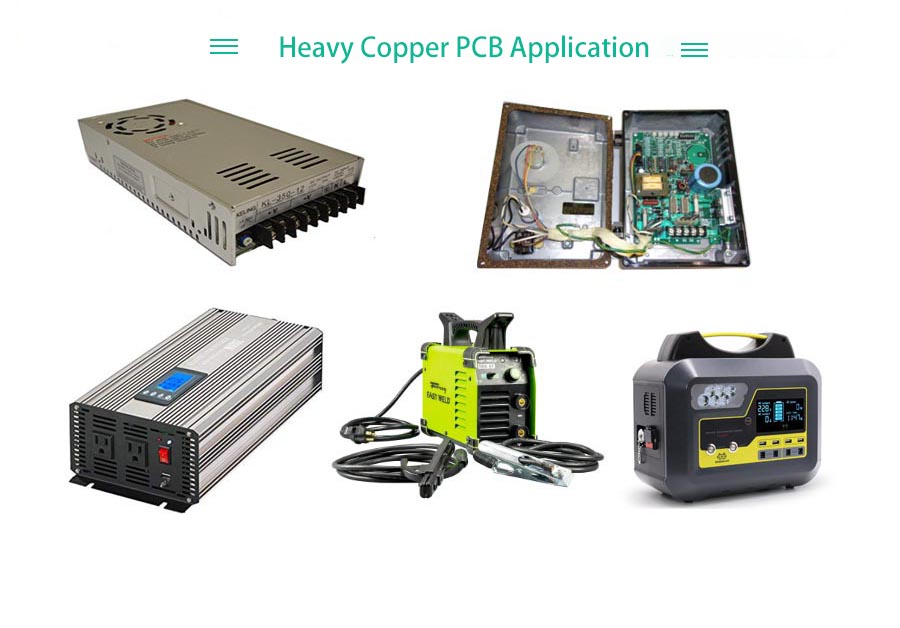

Application of thick copper PCB
Heavy copper PCBs have some excellent properties that make them ideal for certain applications. For example:
Rail traction systems, UPS systems, solar inverters, automotive industry, nuclear power industry
Power line motors, welding equipment, military equipment, safety and signaling systems, protective relays
