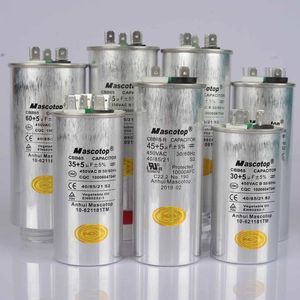

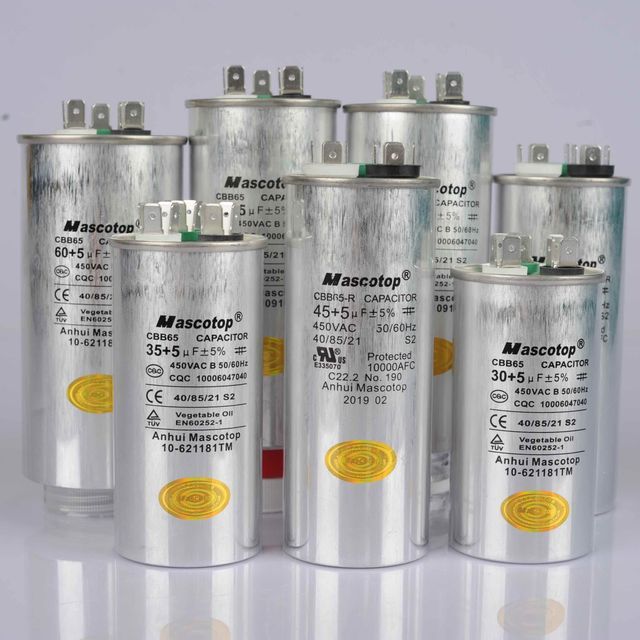

Factory quality condenser
- $0.10 / >=500 pieces
- 500 pieces
- Anhui Mascotop Electronic Co., Ltd.
- Anhui, China
- Mr Chris Qiu
PRODUCT DETAIL
| Operating temperature: | 40/85/21 | Operation class: | Class A: 30000 hours, Class B: 10000 hours, Class C: 3000 hours |
| Certification: | UL, CE, TUV, VDE, CQC | port: | Ningbo, Shanghai, Guangzhou and other Chinese ports |
| Rated voltage: | 250-450VAC | shell: | Aluminum shell |
| type: | Polypropylene Film Capacitors, Metallized Polypropylene Film Capacitors | Supplier type: | original factory |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash | type of packaging: | surface mount |
| model: | cbb65-2020032401 | Protection class: | S1.S2.S3 |
| Supply capacity: | 50000 pieces per day | Origin: | China |
| terminal: | 2+4PIN/2+2PIN/4+4PIN | feature: | low dissipation |
| Packaging Details: | Individual color box, 50 pcs in a sturdy carton with insulating paper, tray | brand: | mascot, eagle, star |
| temperature range: | -40°C to 105°C | Available media: | Data Sheets, Photos |
| use: | Compressor/Air Conditioner | capacitance: | 5-120uF; |
| tolerant: | +5% |
Product Description
Applications
The capacitor has the advantages of low loss, high insulation resistance, good self-healing property, anti-shock current, strong overload capacity, stable electrical performance, safe and reliable built-in explosion-proof device, etc. It is suitable for air conditioners, refrigerators, motors, compressors, etc., and helps the motor start and run.
Specification | ||||||
ambient temperature. | - 40~85(℃) | Rated voltage | 150~500VAC | |||
Capacitance range | 1~100uF (single channel) 1+1~80+15uF (double) | Test voltage: | TT: 2Un/2S Thermocouple: ≥2200VAC/2S(VAC) | |||
Dissipation factor | tanδ≤0.002(100Hz) | working frequency | 50/60 Hz | |||
Executive standard: IEC60252, UL810.EN60252, VDE0560-8, GB3667.1-2005 Capacitance tolerance: ±3% or as required. | ||||||
main feature
1) Low loss, high insulation resistance, good self-healing property, anti-shock current, strong overload capacity, stable electrical performance
2) Design personalized color box according to customer requirements
3) All sizes can be produced according to customer requirements
4) OEM special design
5) With internal explosion-proof device
