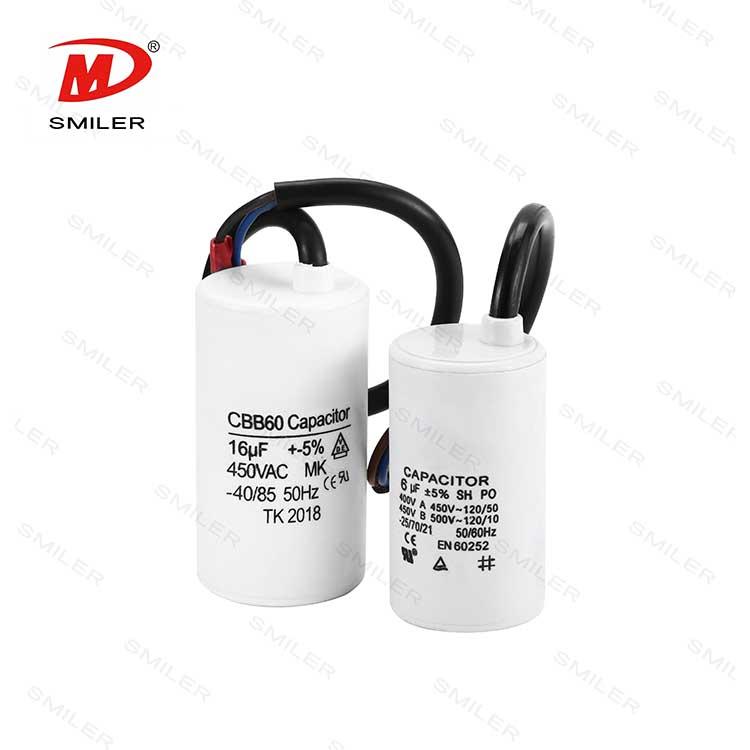

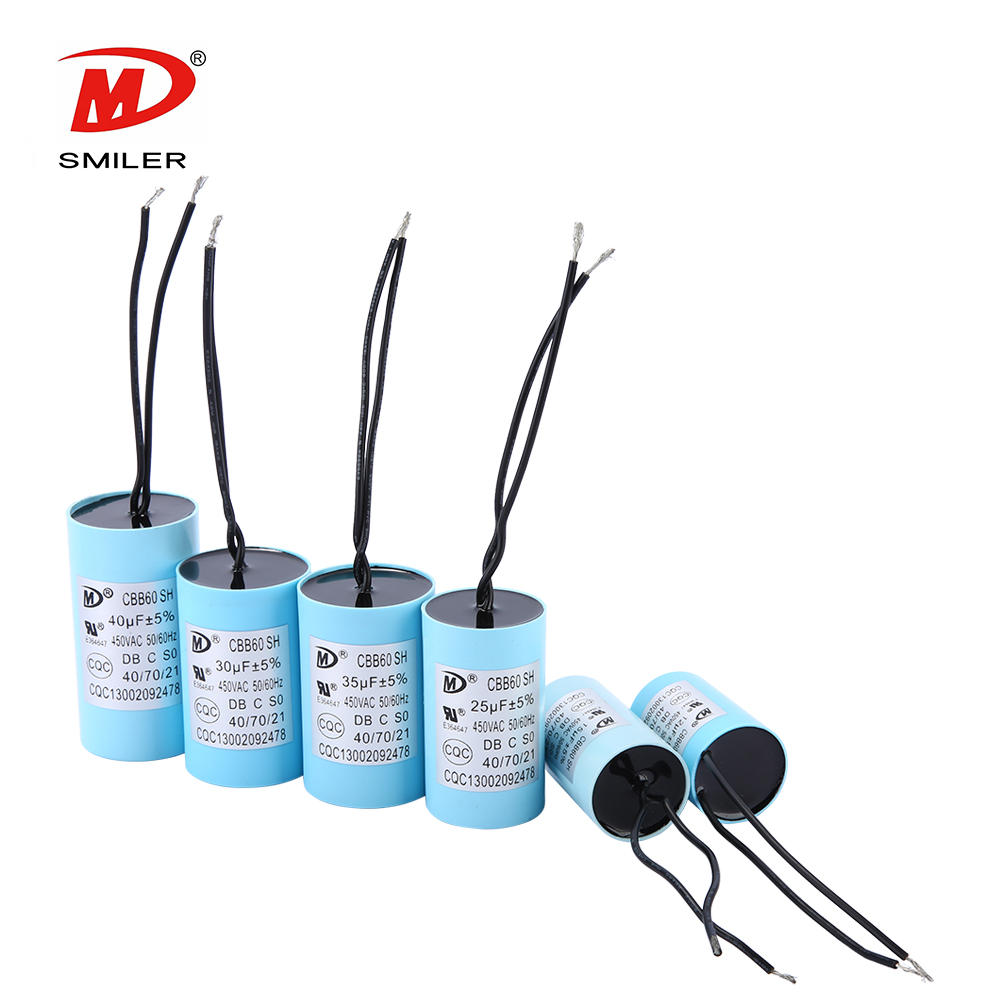

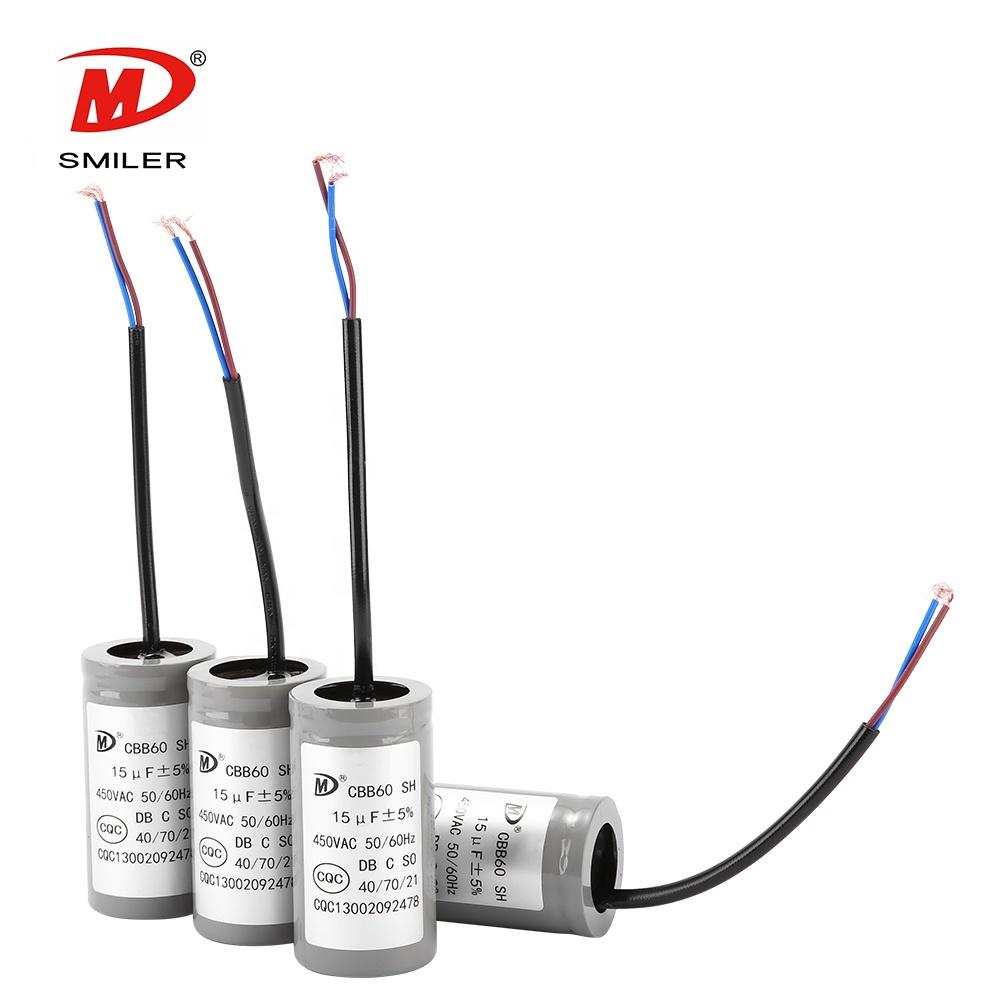

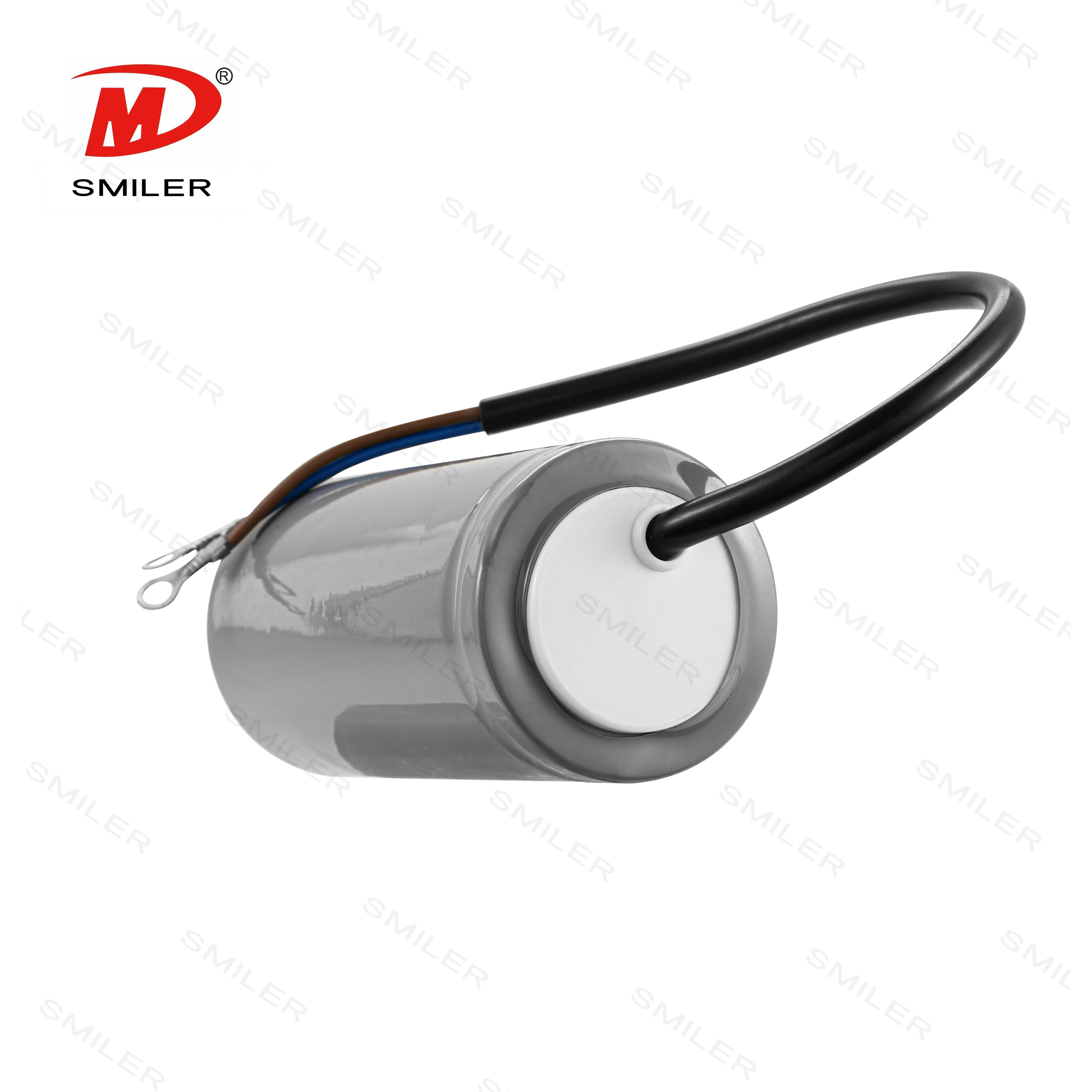

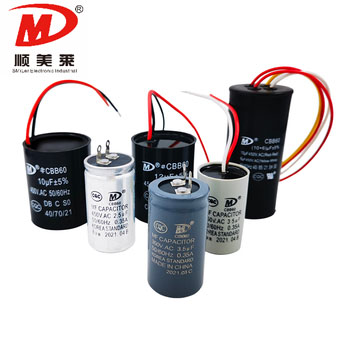

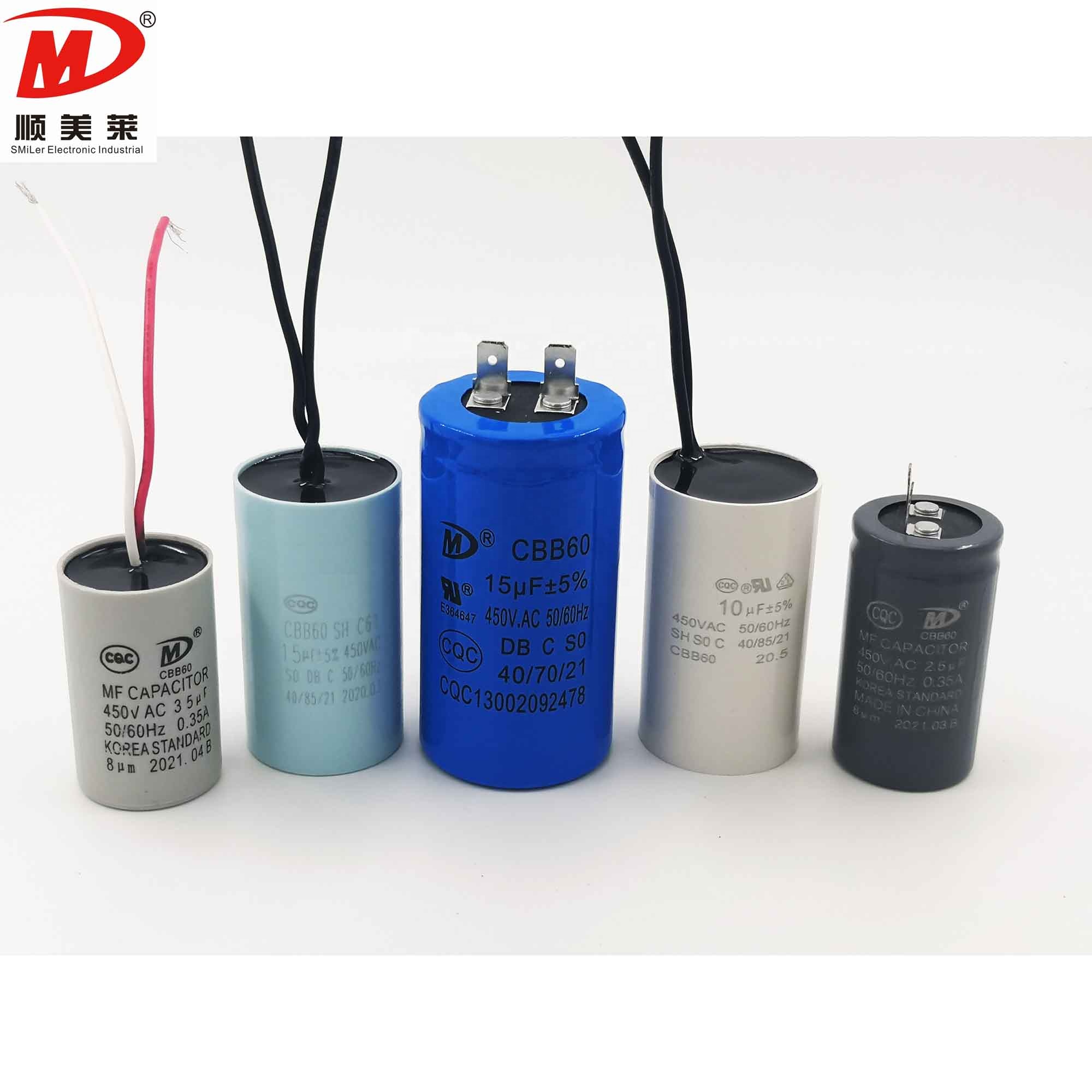

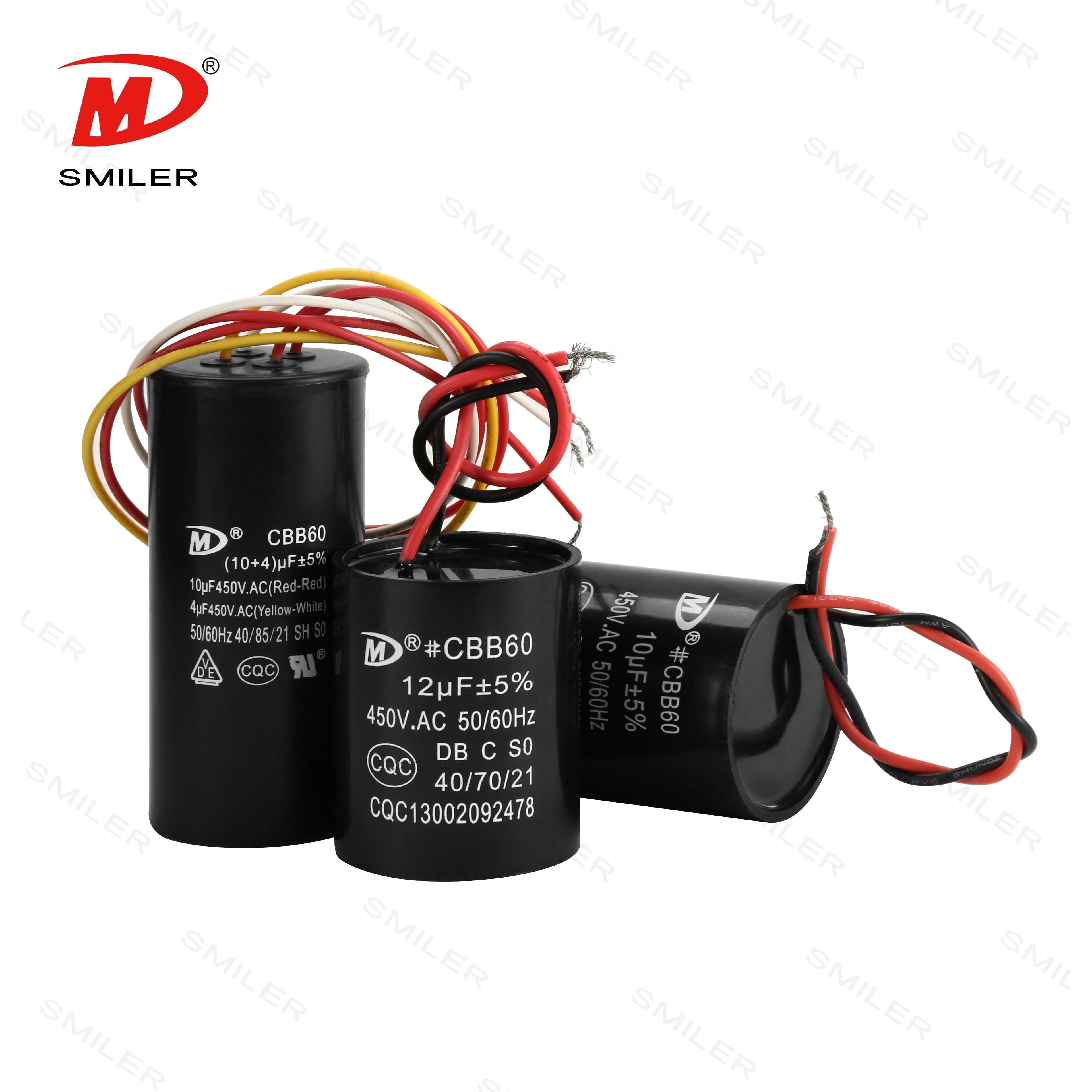

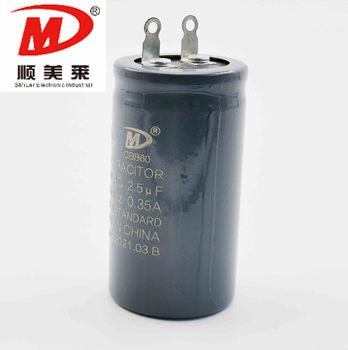

capacitor washer for ac motor start capacitors 1-100uf 450V in cbb60
- $0.65 / 50 - 299999 pieces
$0.25 / >=300000 pieces - 50 pieces
- Smiler Electronic Industry Co., Ltd.
- Guangdong, China
- Mr ruifeng zheng
PRODUCT DETAIL
| type of packaging: | Aluminum shell | Rated voltage: | 150VAC~600VAC(50-60Hz) |
| model: | CBB60 Motor Capacitor, CBB60 Motor Capacitor | Accreditation standard: | GB/T3667/EN60252 |
| brand: | Smailer | Media available: | data sheet, photo |
| Rated voltage: | 150VAC~600VAC(50-60Hz) | Payment/Payment: | 2021-60 |
| ESR (equivalent series resistance): | >=2000MΩ,UF(500VDC,5s) | Voltage - Rating: | 150VAC~600VAC(50-60Hz) |
| describe: | CBB60 motor capacitor | Types of: | Polypropylene Film Capacitors |
| Specification: | Not applicable | port: | Shenzhen, Guangdong |
| application: | Motors, fans, air conditioners, etc. | Packaging Details: | CBB61: 50/100 plastic bags/inside, multiple pieces in one box CBB60/65: one piece in one box, multiple pieces in one box CD60: one piece in one box, multiple pieces in one box Core number: 500-1000 pieces packed in a vacuum Bag, multiple sheets in one carton Film: vacuum bag packing, multiple sheets in one carton |
| Operating temperature: | 25/70/21, 25/85/21 | Voltage - Breakdown: | Not applicable |
| Supplier type: | Original factory, ODM | Package preview: | |
| Climate category: | 25/70/21, 25/85/21 | between terminals: | >=2000MΩ,UF(500VDC,5s) |
| Circuit type: | bus | Supply capacity: | 30000 pieces per day |
| Current - Leakage: | 10,000AFC | Safety protection level: | S0/S3 |
| safety certificate: | CQC/VDE/TUV/CE | Temperature Coefficient: | 25/70/21, 25/85/21 |
| payment terms: | L/C, Western Union, T/T, MoneyGram | impedance: | >=2000MΩ,UF(500VDC,5s) |
| Loss tangent (20°C): | <=0.002(100Hz) | Cross reference: | CBB60 |
| tolerant: | +_5%(J),+_10%(K),+10%(U),-5%(U) | Capacitance range: | 1uf-100uf |
| place of origin; place of origin: | Guangdong, China | Between terminals: | 2*Un(VAC)/5s |
| capacitance: | 1uf~80uf | application: | Motors, fans, air conditioners, etc. |
Recommended ProductsView more>>
https://shunmeilai.en.alibaba.com/product/1600668950802-828391229/ready_capacitor_cbb60_china_original_manufacturer_water_pump_capacitor.html
https://shunmeilai.en.alibaba.com/product/1600659185482-828391229/Motor_Running_Capacitor_microwave_oven_capacitor_CBB60_capacitor.html
https://shunmeilai.en.alibaba.com/product/1600320806343-828391229/CBB60_Running_Capacitor_with_TUV_CE_CQC_Certificate.html
https://shunmeilai.en.alibaba.com/product/1600285237922-828391229/Smiler_cbb60_cbb60_40_70_21_capacitor_para_ventilador_de_techo_condensador_de_marcha_cbb60.html
https://shunmeilai.en.alibaba.com/product/1600432787714-828391229/Manufacture_Washing_machine_CBB60_capacitors_AC_motor_capacitor_250VAS_capacitors_twin_tub.html
https://shunmeilai.en.alibaba.com/product/1600376669107-828391229/High_Quality_Cbb60_Motor_Running_Capacitor_Water_pump_Capacitor_35_80UF.html
model: | CBB60 motor capacitor | |||
Types of | Polypropylene Film Capacitors | |||
safety certificate: | CQC/UL/VDE/TUV/CE | |||
Accreditation standard | GB/T3667, UL810, EN60252 | |||
climate category | 25/70/21, 25/85/21 | |||
Rated voltage | 150VAC~600VAC(50-60Hz) | |||
Capacitance range | 1uf~80uf | |||
Capacitance tolerance | +_5%(J),+_10%(K),+10%(U),-5%(U) | |||
Test voltage | ||||
Between terminals | 2*Un(VAC)/5s | |||
Between terminal and shell | 2*Un+1000(VAC)/5s(>=2000VAC) | |||
Insulation resistance (20℃) | ||||
Between terminals | >=2000MΩ,UF(500VDC,5s) | |||
Loss Tangent(20℃) | <=0.002(100Hz) | |||
Safety protection level | S0/S3 | |||
place of origin; place of origin | China | |||
Package | More pieces are packed in an inner box or polybag according to customer requirements. | |||
color | accept customization | |||
supplier type | OEM factory | |||

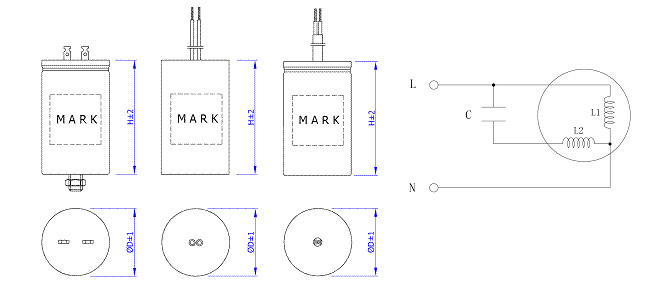

Capacitance (uf) | 250/300VAC | 300VAC | 400-450VAC | 500VAC | ||||||||
Ding | h | Ding | h | Ding | h | Ding | h | |||||
6uf | 30 | 50 | / | / | 30 | 60 | / | / | ||||
8uf | 30 | 60 | / | / | 35 | 60 | / | / | ||||
10uf | 30 | 60 | / | / | 40 | 60 | 40 | 70 | ||||
12uf | 30 | 60 | 35 | 60 | 40 | 60 | / | / | ||||
15uf | 35 | 60 | / | / | 40 | 70 | / | / | ||||
18uf | 35 | 60 | / | / | 45 | 70 | / | / | ||||
20uf | 40 | 60 | 40 | 70 | 45 | 70 | 45 | 80 | ||||
25uf | 40 | 60 | 45 | 70 | 45 | 80 | / | / | ||||
30uf | 40 | 70 | 45 | 80 | 45 | Post-90s | 50 | Post-90s | ||||
35uf | / | / | / | / | 50 | Post-90s | / | / | ||||
40uf | 45 | 70 | 45 | Post-90s | 50 | 100 | 55 | 110 | ||||
FAQ:1. What style of capacitor lead wire do you offer?The pinouts of our supplied capacitors are wires, pins, inserts and terminals. Terminals are divided into 187# (4.8mm wide) and 250# (6.3mm wide). Meanwhile we accept customization.2. What styles of capacitor mounting hangers do you have?We have the styles of mounting hangers available in the market. Please refer to the picture below for details. Meanwhile we accept customization.
3. What color plastic case do you have?
The general colors are black, white, blue and so on.
Meanwhile we accept customization.
4. What certificate do you have?
In the company, we have nearly 15 honorary certificates from the government and customers. The main certificate is high-tech
Enterprises approved by the government.
At the same time, it has nearly 20 production and product patent certificates.
From the point of view of products, we have nearly 20 certificates, such as CQC, TUV, UL VDE and so on.
5. What are the main parameters of the capacitor?
There are the main parameters of capacity and voltage.
6. The unit of capacitor capacity is F (farad).
The conversion formula for F (farad) is:
1F (farad) = 1000000μF (microfarad)
1μF (microfarad) = 1000000pF (picofarad)
The amount of F is very large, and μF and pF are generally used as the unit of capacitance.
7. What does CBB mean?
CBB is the abbreviation of China Metallized Polypropylene Film Capacitor.
8. What do PO and P2 in the capacitor mean?

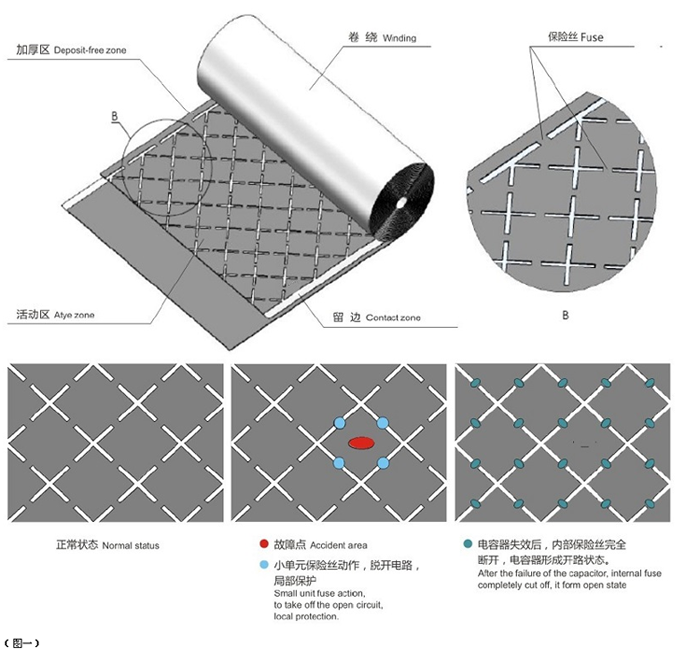

P0 in the capacitor means not explosion-proof, and P2 means explosion-proof. Principle of safety explosion protection
film capacitors. The metallized electrode adopts a micro-fuse network structure (as shown in Figure 1). When the capacitor fails,
The micro-fuse disconnects, automatically cuts off the power supply, and prevents the fault from expanding
To achieve the purpose of self-safety protection.
The general colors are black, white, blue and so on.
Meanwhile we accept customization.
4. What certificate do you have?
In the company, we have nearly 15 honorary certificates from the government and customers. The main certificate is high-tech
Enterprises approved by the government.
At the same time, it has nearly 20 production and product patent certificates.
From the point of view of products, we have nearly 20 certificates, such as CQC, TUV, UL VDE and so on.
5. What are the main parameters of the capacitor?
There are the main parameters of capacity and voltage.
6. The unit of capacitor capacity is F (farad).
The conversion formula for F (farad) is:
1F (farad) = 1000000μF (microfarad)
1μF (microfarad) = 1000000pF (picofarad)
The amount of F is very large, and μF and pF are generally used as the unit of capacitance.
7. What does CBB mean?
CBB is the abbreviation of China Metallized Polypropylene Film Capacitor.
8. What do PO and P2 in the capacitor mean?
P0 in the capacitor means not explosion-proof, and P2 means explosion-proof. Principle of safety explosion protection
film capacitors. The metallized electrode adopts a micro-fuse network structure (as shown in Figure 1). When the capacitor fails,
The micro-fuse disconnects, automatically cuts off the power supply, and prevents the fault from expanding
To achieve the purpose of self-safety protection.
