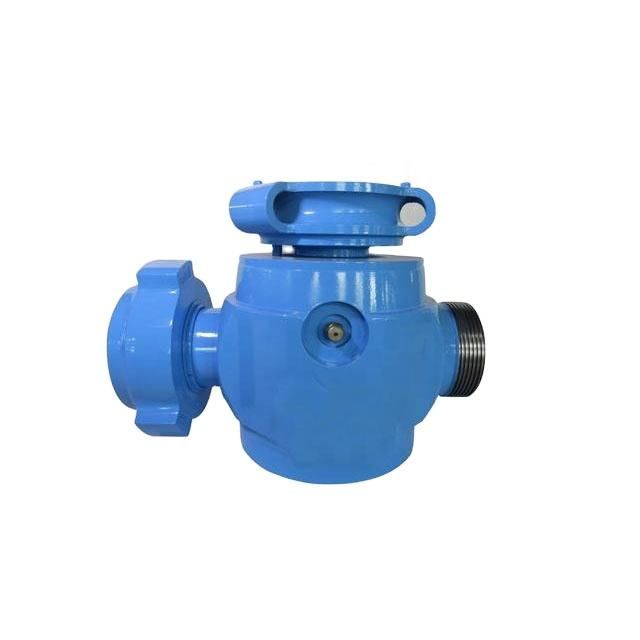

Flow Line Plug Valve API 6A High Pressure Plug Valve
- $800.00 /piece
- 1 piece
- Dongying Lake Petroleum Technology Co., Ltd.
- Shandong, China
- Mr Bing Xin
| Video outbound inspection: | if | color: | Require |
| Work pressure: | 3000~15000psi | weight: | 20 kg |
| Showroom location: | not any | port: | China's main ports |
| Applicable industries: | Manufacturing plants, energy and mining | Origin: | Shandong Province, China |
| Supply capacity: | 100 sets per month | Marketing Type: | New products in 2023 |
| Core components: | valve | Main selling points: | competitive price |
| Material category: | AA-EE | Core component warranty: | 1 year |
| Health status: | new | Packaging Details: | Standard export packaging. |
| product name: | Plug valve | payment terms: | L/C, Western Union, T/T |
| brand: | lake | Certification: | API 6A |
| Warranty: | 1 year | Mechanical test report: | if |
Flow path plug valve is an essential part of high-pressure manifold in cementing and fracturing operations, and it is also the choice of high-pressure fluid control system. It has the advantages of compact structure, convenient maintenance, small torque and fast operation.
feature:

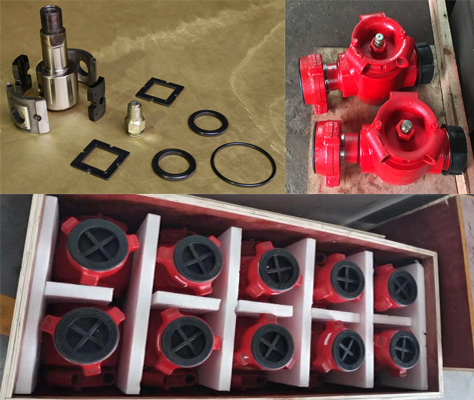

1. The plug valve is composed of a valve body, a plug cover, and a plug.
2. The plug valve has inlet and outlet water union connections, BOX and pin thread connections.
3. The metal-to-metal seal is adopted between the side section and the cylinder plug, which has high sealing precision and high reliability.
4. Suitable for standard, sour gas and low temperature environment.
|
product name |
High pressure plug valve/low torque valve/flow path plug valve |
|
material grade |
AA-EE |
|
working media |
crude oil and natural gas |
|
Processing standard |
API 6A |
|
work pressure |
3000~15000psi |
|
processing type |
forging |
|
performance requirements |
PR1-2 |
|
Product specification grade |
PSL1-3 |
|
Nominal aperture |
1", 2", 3" |
|
Connection Type |
Union, BOX thread, pin thread |
