High quality API standard CDZ drill pipe lifter
- $500.00 /set
- 1 set
- Dongying Lake Petroleum Technology Co., Ltd.
- Shandong, China
- Mr Bing Xin
| Type of machine: | drilling equipment | Health status: | new |
| model: | CDZ 150, CDZ 250, CDZ 350, CDZ 500. | Material: | Carbon steel |
| payment terms: | Letter of credit, wire transfer, Western Union | port: | major ports in china |
| Processing type: | forging | Certification: | application programming interface |
| color: | Red | Applicable industries: | Construction Engineering, Energy and Mining |
| Supply capacity: | 600 sets per month | Packaging details: | Standard export packaging. |
| type: | CDZ type | use: | drilling |
Model | Dimensions (inches) | Rated Capacity |
(short tons) | ||
CDZ-150 | 2 3/8”-5 1/2” | 150 |
CDZ-250 | 2 3/8”-5.1/2” | 250 |
CDZ-350 | 2 7/8”-5 1/2” | 350 |
CDZ-500 | 3 1/2”-5 1/2” | 500 |

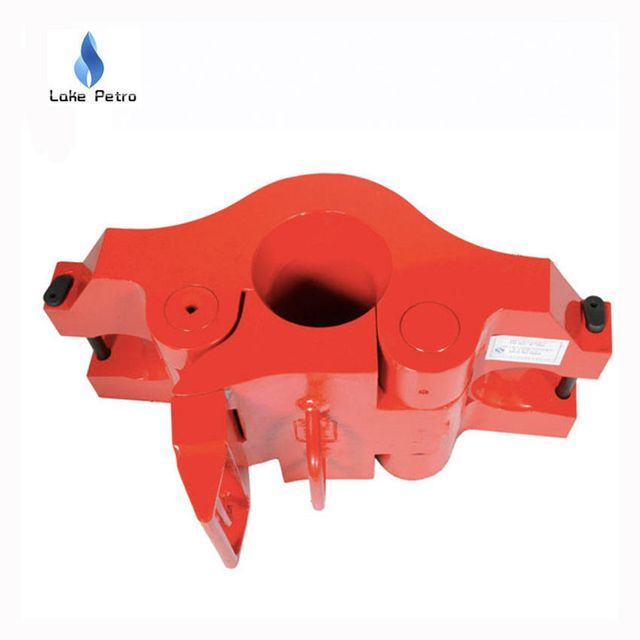

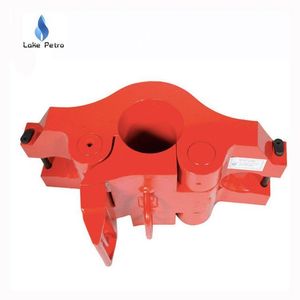

The CDZ drill pipe elevator is mainly used for clamping and lifting 18-degree taper drill pipes and tools in oil and gas drilling and well construction operations. The CDZ drill pipe elevator is forged from high-quality alloy steel and has undergone heat treatment and non-destructive testing. The rated load range is 150t (1350kN) to 500t (4500kN), covering pipe sizes from 2.3/8" to 5.1/2" OD. The product shall be designed and manufactured in accordance with API Spec 8A/8C Drilling and Production Lifting Specifications.
(1). 100% non-destructive testing of key elevator components.
(2). Hydraulic testing is in accordance with API 8C.
(3). Load capacity from 150 tons to 500 tons.
(4). It is easy to operate while drilling, and spare parts are available after sales.
(5). Third-party inspection is also available after sale.
