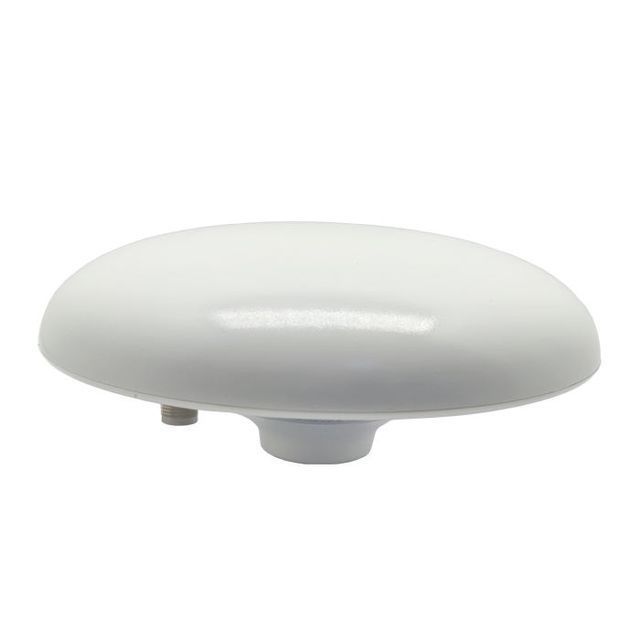

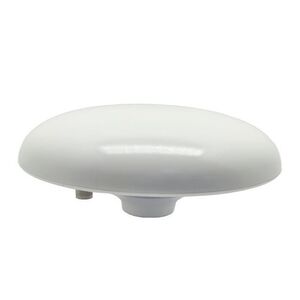

Four-star 4-band active measurement antenna GNSS mapping driving drone m8t M8P RTK GNSS antenna

Product Description

The microstrip network is used to match the antenna, which can obtain better signal-to-noise ratio and standing wave; the positioning accuracy is high, and the antenna part adopts a multi-feed point design scheme to ensure that the phase center coincides with the geometric center, and the influence of the antenna on the measurement error is minimized ; Use GPS L1/L2/B1/B2/B3/GLONASS L1/L2 for comprehensive positioning to further improve the accuracy; the antenna gain is high, and the beam width of the pattern ensures the reception effect at low elevation angles, and it can still be used in some serious shielding occasions Normal reception; the active part has high gain, low noise, low power consumption, and small standing wave, and the extension cable can still ensure the signal-to-noise ratio of the received signal is good; waterproof and anti-ultraviolet shell, anti-lightning strike, providing protection for the long-term field work of the antenna , It can also work normally in harsh outdoor environments.
