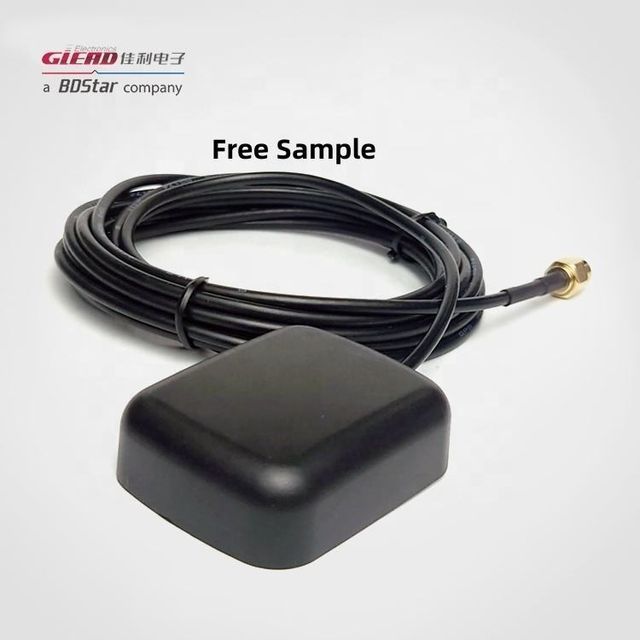

ROHS vehicle waterproof active GPS locator external navigation vehicle antenna GPS antenna
- $2.20 / 5 - 999 pieces
$2.10 / 1000 - 2999 pieces
$2.00 / 3000 - 4999 pieces
$1.90 / >=5000 pieces - 5 pieces
- Harxon Corporation
- Guangdong, China
- Mr Harxon Corporation
PRODUCT DETAIL
| Connector: | SMA male | cable length: | 3M RG174 |
| size: | 48.6*39.2*15.2mm | frequency: | GPS BDS Galileo |
| Packaging Details: | 100 products will be packed into a 630*460*105mm carton. | polarization: | remote control program |
| LNA Gain: | 28 decibels | Maximum income: | 4.5dBic |
| type: | GPS/GNSS antenna | DC voltage: | 3-5 volts |
| Package preview: | Supply capacity: | 10000 pieces per month | |
| weight: | 37.2 grams | model: | DAM1568A4A1LC01_XW03_J3M |
| brand: | Joy | payment terms: | L/C, Western Union, T/T |
| Noise Figure: | 2.0 dB | Origin: | Zhejiang, China |
Product Description
Specification

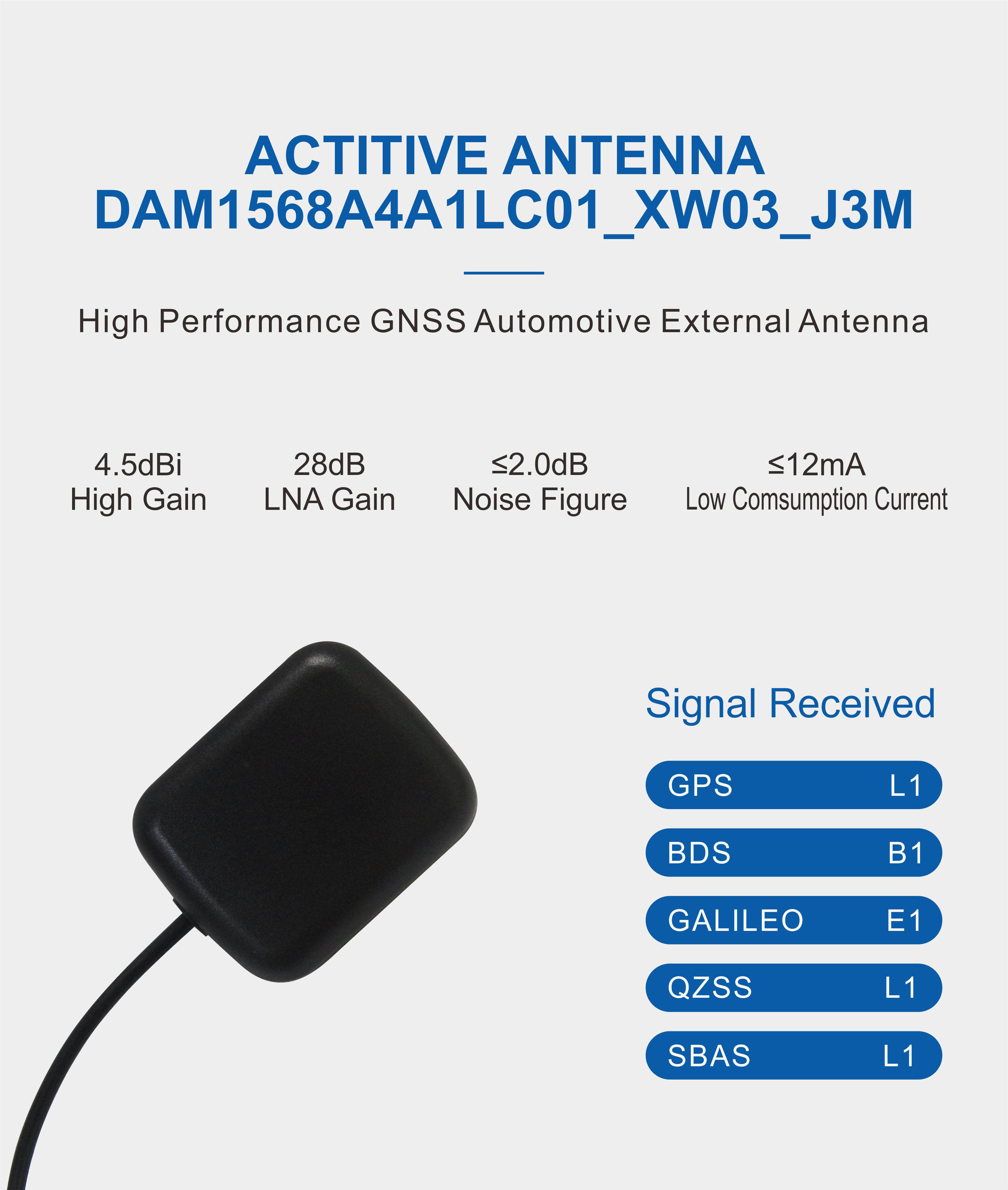

Performance | |
receive signal | GPS L1 Beidou B1 Galileo E1 QZSS L1 SBAS L1 |
Nominal Impedance | 50Ω |
polarization | remote control program |
Axial ratio | ≤3dB |
Zenith gain (90°) | 1559-1577MHz 4.5dBi (maximum) |
low noise amplifier | |
LNA Gain | 28dB (typical value) |
Noise Figure | ≤2.0dB |
Output VSWR | ≤2.0 |
Operating Voltage | +3 to +5VDC |
Working current | 12mA (maximum) |

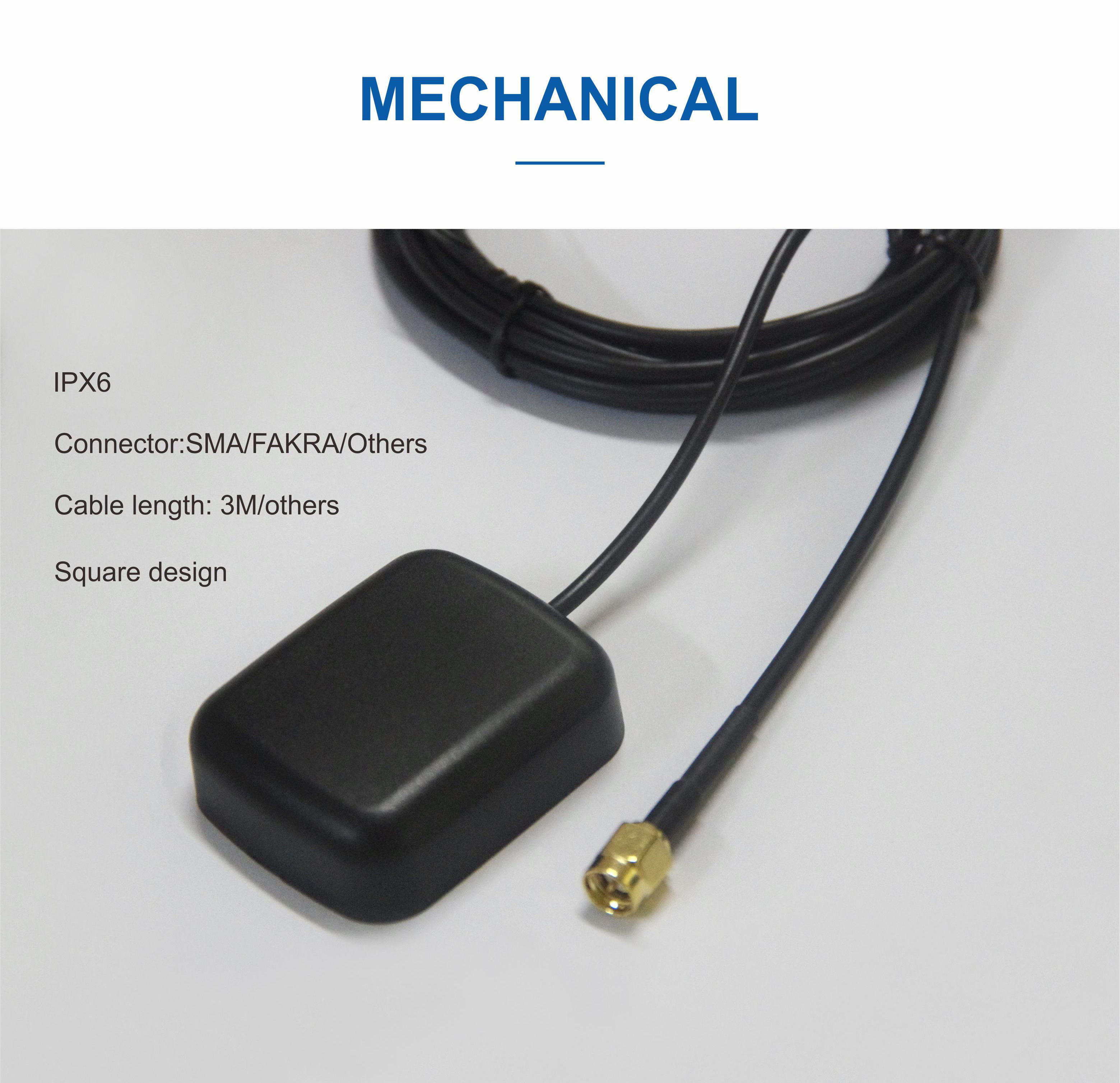

Mechanical | |

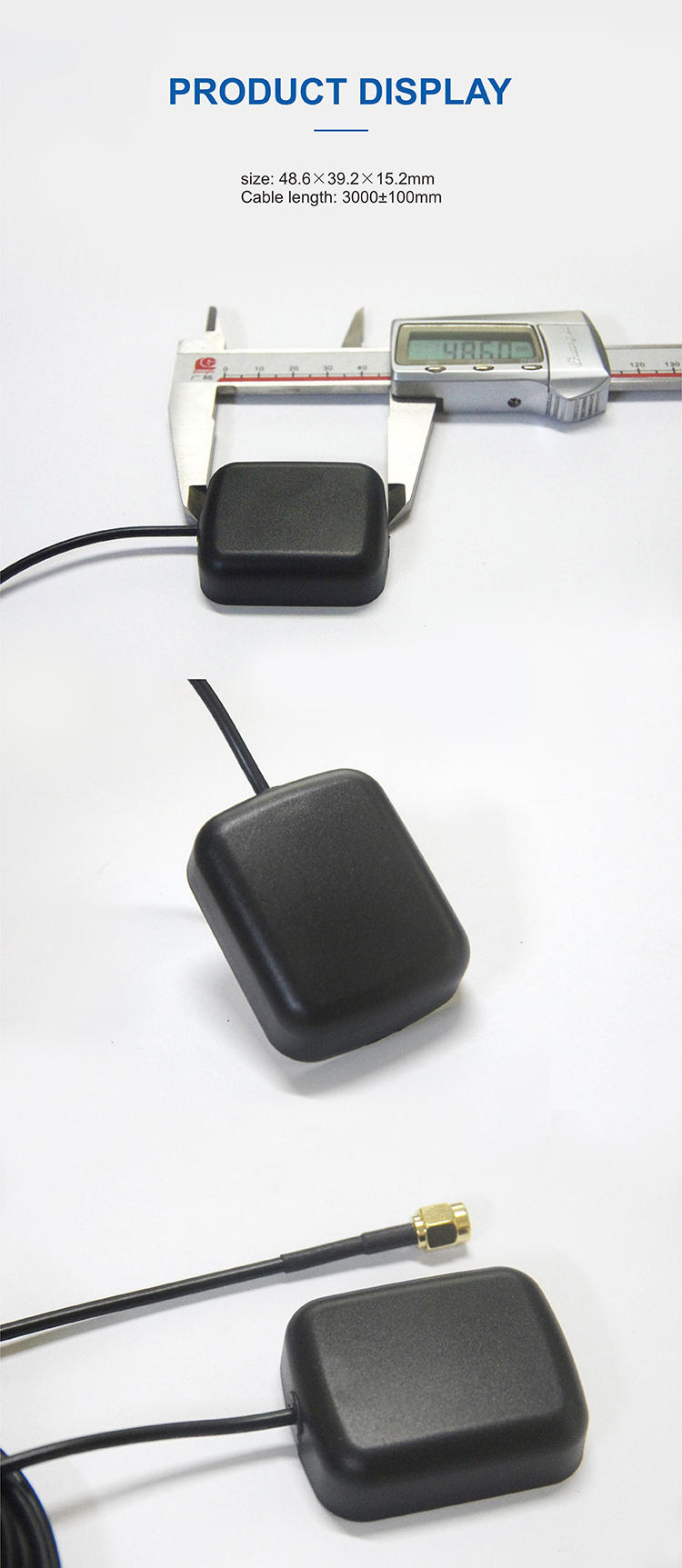

aspect | 48.6*39.2*15.2mm |
Connector | SMA male |
weight | ≈37.2 grams |

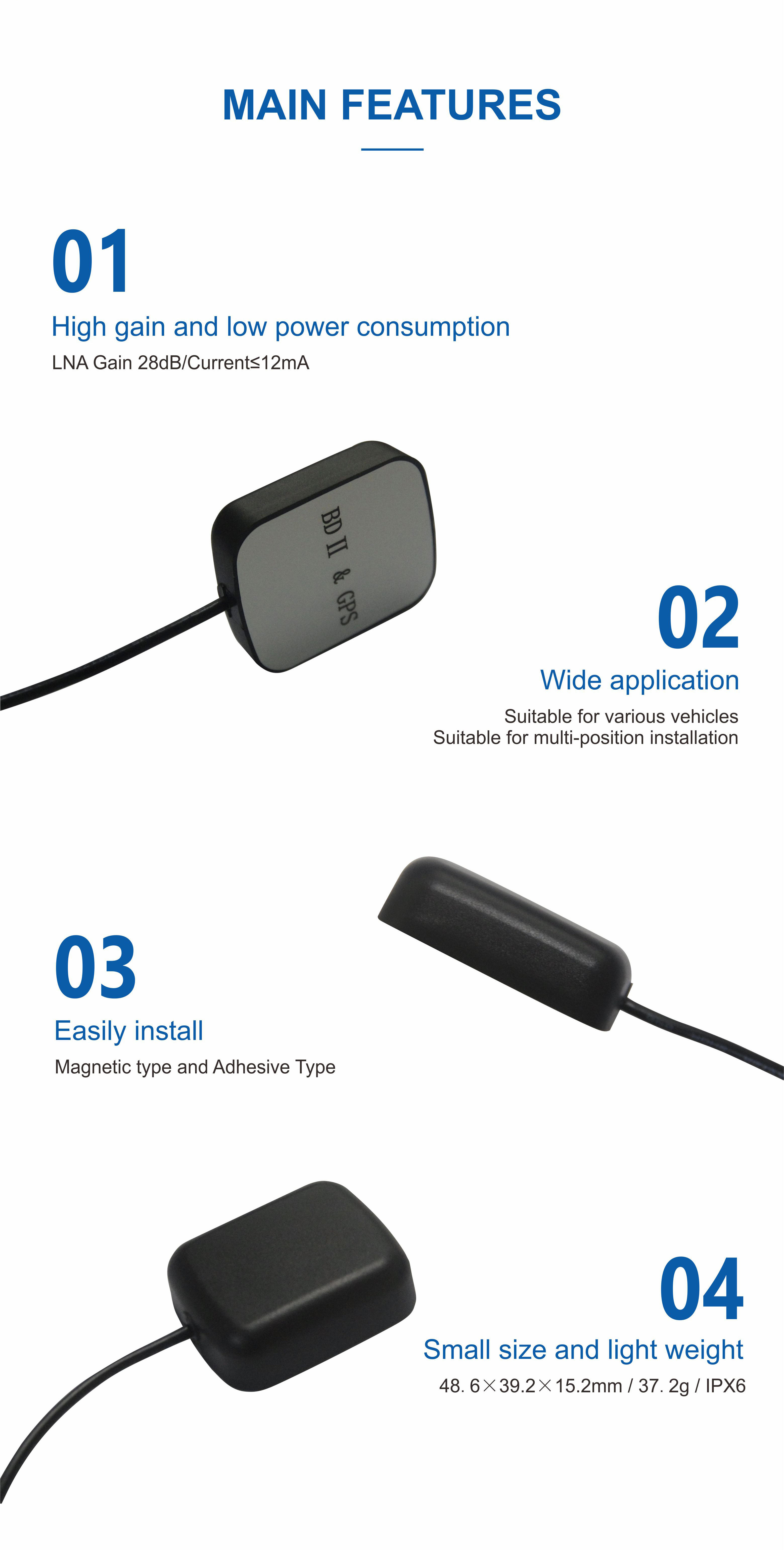

Install | Magnetic and Adhesive |
environmental | |
Operating temperature | -40°C to +85°C |
Storage temperature | -40°C to +85°C |
humidity | 95% non-condensing |
Waterproof and dustproof | IPX6 |
Compliance | RoHS Directive |
