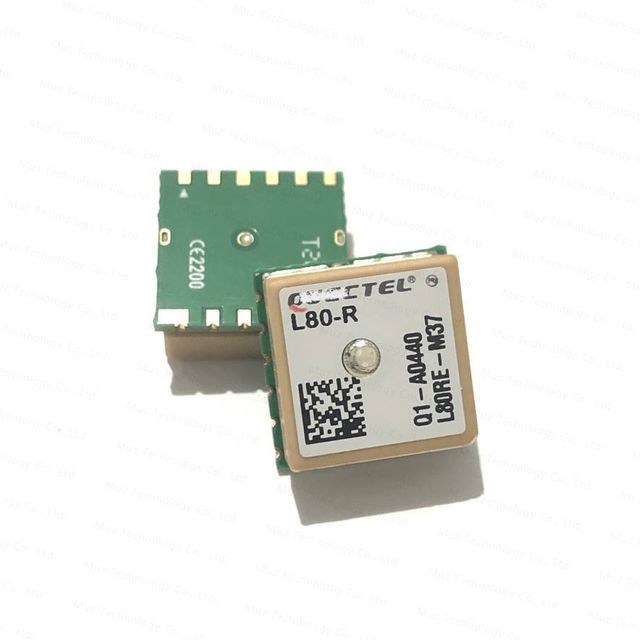

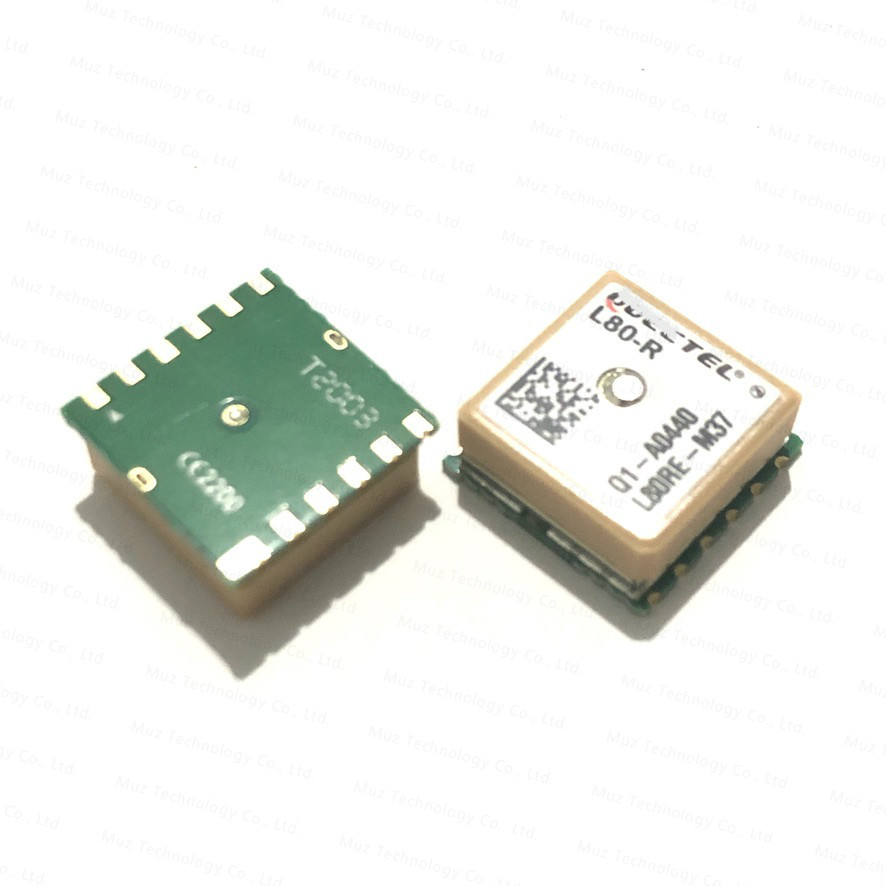

GPS Module with Built-in LNA L80-R Ultra Compact GPS POT (Top Patch) Module with Embedded Patch Antenna
- $1.50 / >=100 pieces
- 100 pieces
- Muz Technology Co., Ltd.
- Hunan, China
- Ms Panda Xiong
PRODUCT DETAIL
| port: | Shenzhen/Hong Kong/Changsha | Health status: | brand new |
| chipset: | L80-R | type: | gps module, GPS module |
| payment terms: | L/C, Western Union, T/T, MoneyGram, Paypal | model: | L80-R |
| Global Navigation Satellite System: | GPS/QZSS | Supply capacity: | 5000 pieces per week |
| aspect: | 15*15*4mm | antenna: | Embedded Patch Antenna |
| Packaging Details: | export standard package | Warranty: | 1 year |
| Operating temperature: | -40°C to +85°C | Packaging Preview: | |
| Country of Birth: | China | Card: | The original |
| application: | IoT, M2M, IoT |
Product Description
The L80-R is an ultra-compact GPS POT (Top Patch) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes the L80-R the perfect module for tiny devices. The L80-R is packaged in an LCC and integrated with a patch antenna for superior performance in acquisition and tracking.
The L80-R incorporates advanced AGPS technology called EASY™ (Embedded Assistance System) for maximum performance and full compliance with industry standards. EASY™ technology ensures that the L80-R can automatically calculate and predict orbits using ephemeris data (up to 3 days) stored in the internal RAM memory, so the L80-R can locate quickly with low power consumption even at indoor signal levels.
The compact design, high precision and high sensitivity of the L80-R make it ideal for a wide range of M2M applications such as portable devices, automotive, personal tracking, security and industrial PDAs, especially for special applications such as GPS mice and OBDs.
main advantage
1> Embedded patch antenna: 15.0mm x 15.0mm x 4.0mm
2> Extremely compact size: 16.0mm x 16.0mm x 6.45mm
3> ROM based version is cost effective
4> Built-in LNA, higher sensitivity
5> EASY™, advanced AGPS technology, no external memory required
6> Ultra-low power consumption in tracking mode, 20mA
7> High sensitivity: 165dBm@Tracking, -148dBm@Acquisition
8> 66 acquisition channels, 22 tracking channels
9> Support QZSS
10> Balloon mode, the highest altitude is 80 kilometers
11> PPS vs. NMEA can be used for time services
12> Anti-jamming, multi-tone active interference canceller
The L80-R incorporates advanced AGPS technology called EASY™ (Embedded Assistance System) for maximum performance and full compliance with industry standards. EASY™ technology ensures that the L80-R can automatically calculate and predict orbits using ephemeris data (up to 3 days) stored in the internal RAM memory, so the L80-R can locate quickly with low power consumption even at indoor signal levels.
The compact design, high precision and high sensitivity of the L80-R make it ideal for a wide range of M2M applications such as portable devices, automotive, personal tracking, security and industrial PDAs, especially for special applications such as GPS mice and OBDs.
main advantage
1> Embedded patch antenna: 15.0mm x 15.0mm x 4.0mm
2> Extremely compact size: 16.0mm x 16.0mm x 6.45mm
3> ROM based version is cost effective
4> Built-in LNA, higher sensitivity
5> EASY™, advanced AGPS technology, no external memory required
6> Ultra-low power consumption in tracking mode, 20mA
7> High sensitivity: 165dBm@Tracking, -148dBm@Acquisition
8> 66 acquisition channels, 22 tracking channels
9> Support QZSS
10> Balloon mode, the highest altitude is 80 kilometers
11> PPS vs. NMEA can be used for time services
12> Anti-jamming, multi-tone active interference canceller
