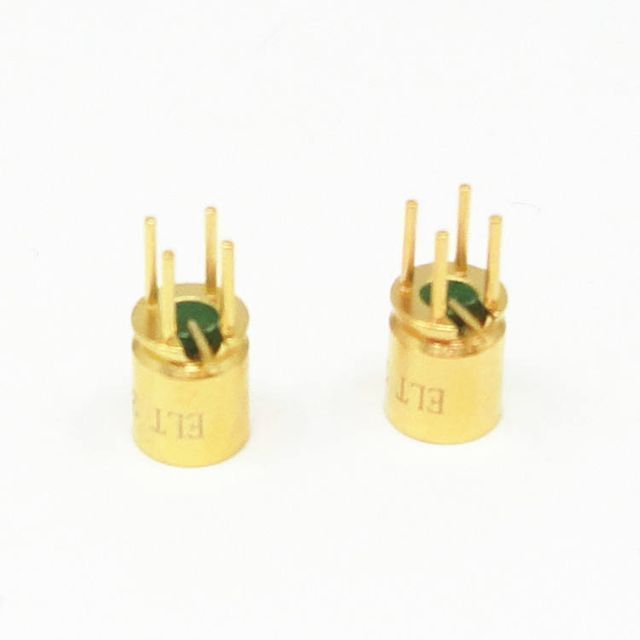

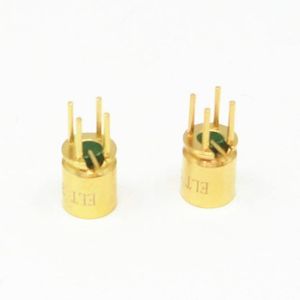

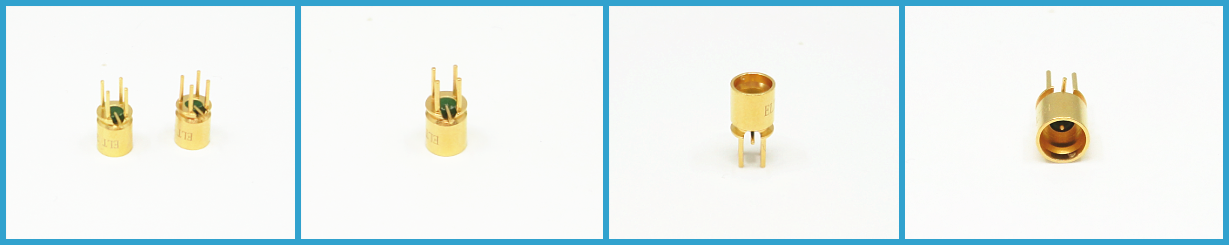

Gold Plated SMP Hermetic (Sealed) Hermetic Male Solder PCB Surface Mount Coaxial Connector
- $10.00 / >=100 pieces
- 100 pieces
- Xi'an Elite Electronic Industrial Co., Ltd.
- Shaanxi, China
- Ms Elite Electronic
| place of origin; place of origin: | Shaanxi, China | Supply capacity: | 30000000 pieces/year |
| Packaging Details: | Gold Plated SMP Hermetic (Sealed) Sealed Male Solder PCB Surface Mount Coaxial Connector: 1. Standard export carton 2. As per customer requirement | Insulation resistance: | ≥2000MΩ |
| model: | SMP(M)-JHD487-WP | Standing wave ratio: | ≤1.5 |
| type: | plug | Rated withstand voltage: | 170VRMS |
| Packaging Preview: | Material: | brass | |
| impedance: | 50 ohms | payment terms: | Letter of Credit, Western Union, T/T, Trade Assurance |
| Insulating medium: | hermetically sealed glass | Bale: | 21.5*15.5*12 |
| Durability: | 500 cycles | Card: | ELT (Elite) |
| Frequency Range: | DC ~ 40GHz |
Gold Plated SMP Hermetic (Sealed) Sealed Male Solder PCB Surface Mount Coaxial Connector
What is an SMP connector?
release agentis a microcosmadvanceThe RF coaxial connector has the characteristics of small size, light weight, good seismic performance and wide working bandwidth. Operating frequency up to 30GHz (ELTof high-performance SMP connectors canup to 40GHz), the plug has three interface forms: full card position, limit card position and smooth (including brake). A variety of interface forms can meet the axial or radial movement required for blind mating in the coupling use of wide-to-wide connectors. Suitable for installations with high reliability and modular intensive requirements.
|
Electrical Characteristics
|
|||
|
impedance
|
50Ω
|
||
|
Frequency Range
|
DC~40GHz
|
||
|
Rated voltage
|
170VRMS
|
||
|
Dielectric withstand voltage
|
500VRMS
|
||
|
Insulation resistance
|
≥2000MΩ
|
||
|
|
outer conductor
|
Air tightness≤4mΩ
|
|
|
center conductor
|
Air tightness≤26mΩ
|
||
|
standing wave ratio
|
DC~18GHz
|
18~26.5GHz
|
26.5~40GHz
|
|
≤1.25
|
≤1.3
|
≤1.5
|
|
|
tightness
|
1.01325×10-3Pa·cm3/s
|
||
OutlineGold Plated SMP Hermetic (Sealed) Sealed Male Solder PCB Surface Mount Coaxial Connector(mm):
otherSMP RF Connector(mm):
1.
| model | describe |

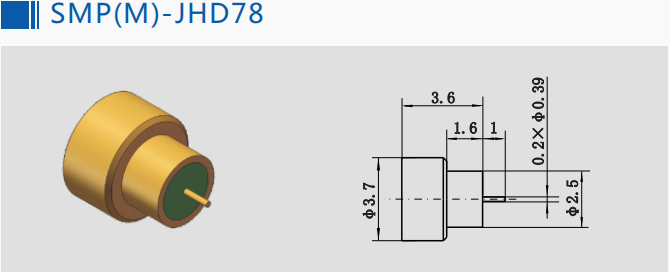

| SMP(M)-JHD78 | Sealed SMP Male Locating RF Connector for PCB |
2.
| model | describe |

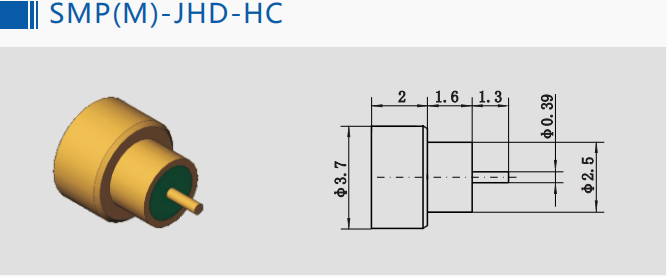

| SMP(M)-JHD-HC | Sealed SMP Male Limit Position RF Connector |
| SMP(M)-JHD-S-HC | Sealed SMP Male Smooth Bore RF Connector |
3.
| model | describe |

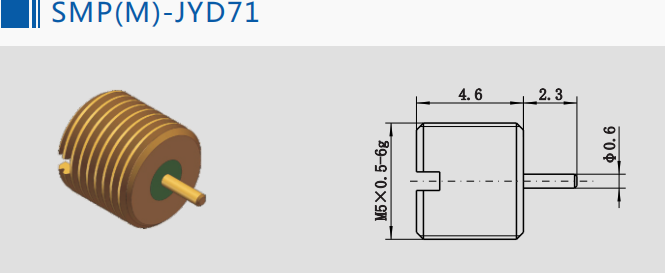

| SMP(M)-JYD71 | Sealed SMP Male Limiting Pawl Bulkhead RF Connectors |
4.
| model | describe |

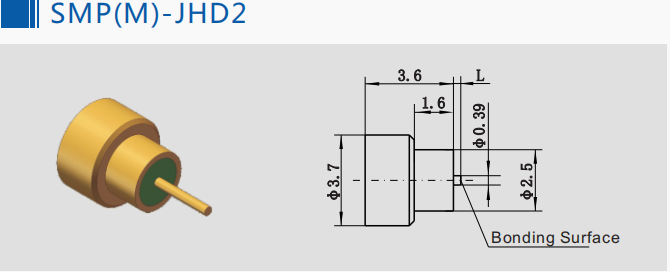

| SMP(M)-JHD2 | Sealed SMP Male Locating RF Connector for PCB |
| SMP(M)-JHD2-S | Sealed SMP Male Smooth Bore RF Connector for PCB |
| SMP(M)-JHD98-S | Sealed SMP Male Smooth Bore RF Connector for PCB |
Main features:
Matching method: push-in and snap-in
Stop System: Full Stop, Limited Stop and Smooth Bore
Available in board-to-board and wire-to-board configurations
High reliability
high mechanical stability
up to 40GHz
* Ability to withstand radial/axial misalignment
* Board Mount, Field Replaceable, Bullet, Sealed and Cable Connector Configurations
* Provide custom connectors
application:
antenna
Broadband
army
5G mobile communication
notes:
We have many typesSMP Sealed ConnectorsFor selection, if you do not find the product you are using, please contact us for a full catalog. Accept custom sizes.
