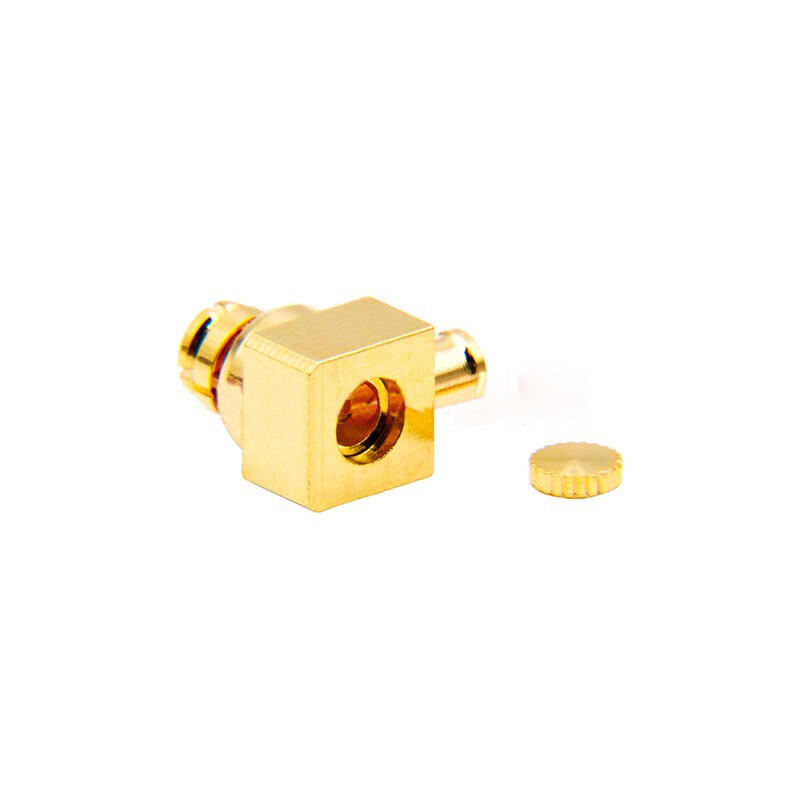

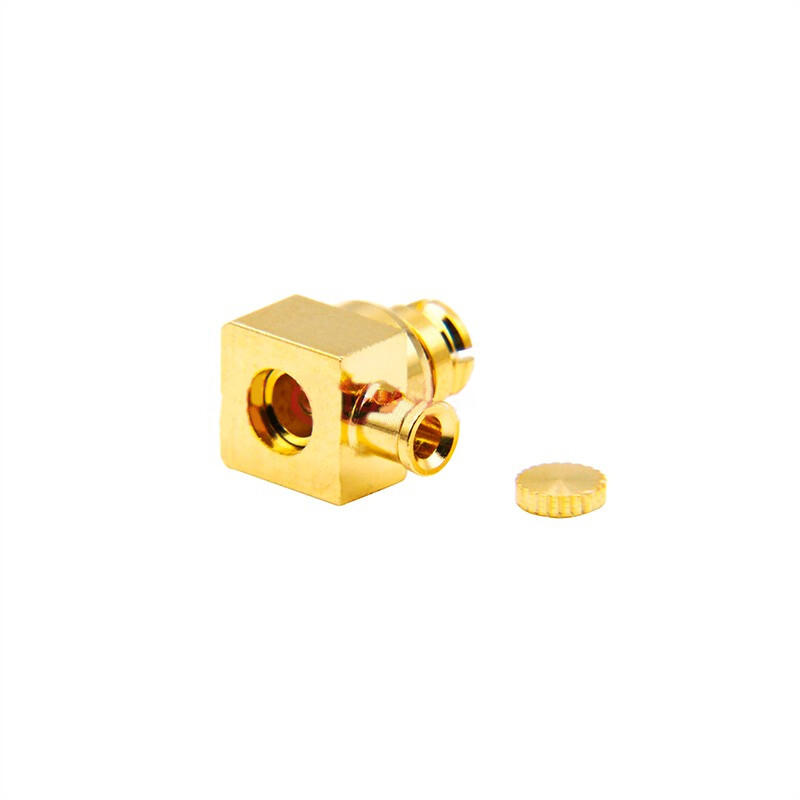

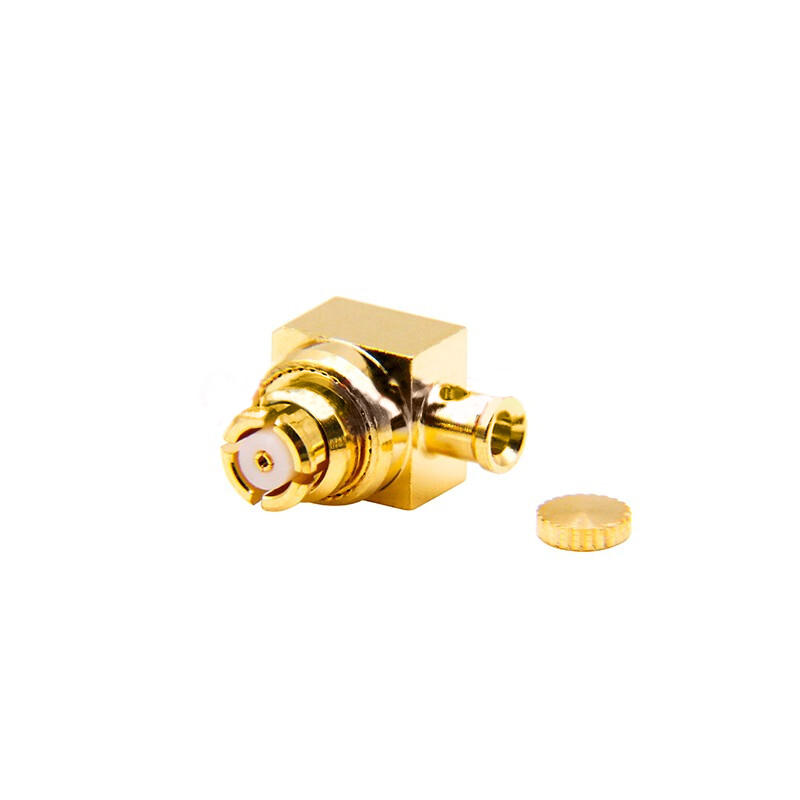

High speed transmission SMP RF connector Coaxial connector Connector adapters for communication equipment
- $14.70 / >=100 pieces
- 100 pieces
- Xi'an Zhongshixing Electronic Technology Co., Ltd.
- Shaanxi, China
- Ms Yola dan
PRODUCT DETAIL
| Insulation resistance: | ≥1000MΩ | Package: | 17*13*5 |
| Origin: | Shaanxi, China | describe: | The SSMA formula has a cable connector |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | usage: | Communication equipment, microwave equipment |
| Durability: | ≥500 times | Package preview: | |
| Feature index: | 50Ω | product name: | SMP connector |
| Dielectric strength: | 750V | brand: | Zhongshengxing |
| Frequency Range: | DC-18GHz | port: | Qingdao Port/Shenzhen Port/Shanghai Port |
| Product Portfolio: | curved structure | VSWR: | ≤1.25(GHz) |
| type: | RF connector | Packaging Details: | Standard export carton or according to customer requirements |
| model: | SMP-KEH76 | Payment/Payment: | / |
| Supply capacity: | 100,000 pieces per year | Body material: | gold plated brass |
Product Description
order number | 220521 | ||||||
product number | SMP-KWH76 | ||||||
category | RF connector | ||||||
type | KTR047/KTG047 | ||||||
product mix | curved structure | ||||||
body material | gold plated brass | ||||||
Frequency Range | DC-18GHz | ||||||
Characteristic index | 50Ω | ||||||
Dielectric strength | 750V | ||||||
Insulation resistance | ≥1000MΩ | ||||||
durability | ≥500 times | ||||||
installation method | / | ||||||
VSWR | ≤1.25(GHz) | ||||||
temperature range | - 55℃ ~ + 155℃ | ||||||
usage | Communication equipment, microwave equipment | ||||||
