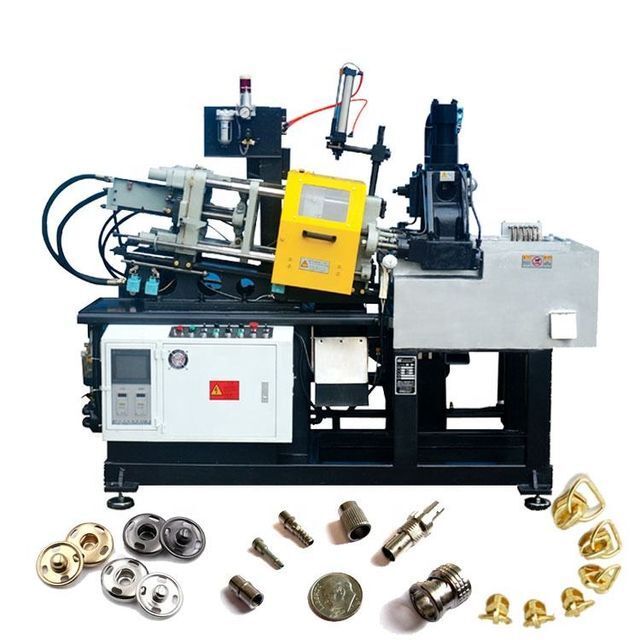

HTD Manufacturer Fully Automatic 20 Ton Hot Chamber Zinc Die Casting Machine For Slider Making

Price:$13198.00 / 1 - 19 sets
$10988.00 / >=20 sets
Min. Order:1 set
Supplier:Guangzhou HTD International Trading Co., Ltd.
Region:Guangdong, China
Contact:Ms Rachel Leung

PRODUCT DETAIL

Final products:	Brass Aluminum Zinc Alloy Products;	Payment Terms:	L/C,T/T;
Min.Thickness of Die Block (mm):	120 mm;	Automatic Grade:	Fully automatic;
Warranty of core components:	1 Year;	Max.Thickness of Die Block (mm):	200 mm;
Port:	GuangZhou,ShenZhen,HangZhou;	Showroom Location:	None;
Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
Features:	Precision Casting;	Condition:	New;
Dimension(LWH):	2491x 1038x 1795 mm;	Ejection Force(kN):	19 kN;
Power (kW):	5.5;	Technology:	Die Casting Technology;
Core Components:	PLC,Motor;	Brand Name:	HTD;
Advantage:	High Effciency, energy saving;	Machine Type:	Hot Chamber Die Casting Machine;
Place of Origin:	Guangdong, China;	Inner Space Between the Bars (Horizontal)(mm):	230mm;
Chamber:	Hot Chamber Die Castimg Machine;	Weight (KG):	1500;
Year:	2021;	Injection Stroke(mm):	70mm;
Injection Force(kN):	19kN;	Marketing Type:	Hot Product;
Ejection Stroke(mm):	25 mm;	Keyword:	Zipper Slider Die Casting Machine;
Die-locking Force (kN):	200kN;	Supply Ability:	1000 Sets per Year;
Key Selling Points:	High Productivity;	Package Preview:	;
Packaging Detail:	Package and Transportation: 1. Standard Packing: Plastic film wrap on the machine & wooden case pack outside. 2. Wooden case packing with fumigation treatment.;	Application:	Metal Casting for sliders, buttons and hardware accessories;
Warranty:	1 Year;	Function:	Die Casting Aluminum, Zinc;
Inner Space Between the Bars (Vertical)(mm):	230mm;	Name:	Die Casting Machine;
Voltage:	380V;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Other;

Product Specification

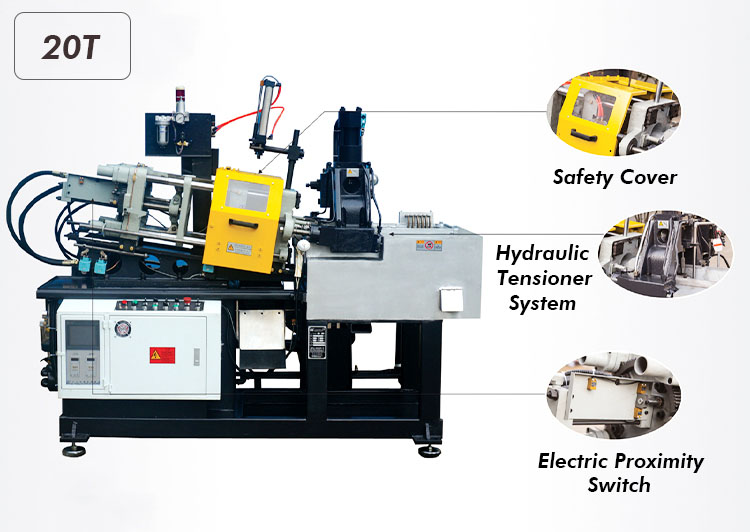

Model Name: 20T Fully Automatic Die Casting Machine

- Fully automatic die casting with high speed

- Automatic mold adjusting

- Electric heating or oil heating

- With PLC control system

Model Application:

- For complex-shaped zipper sliders, buttons and various hardware fittings and accessories

SPECIFICATION

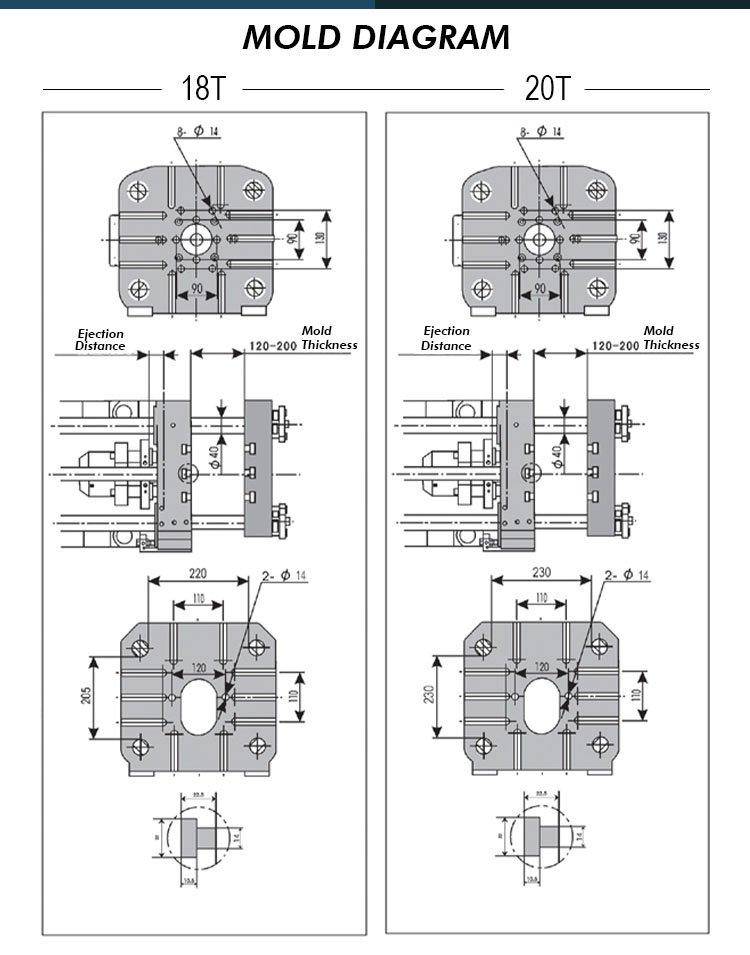

MODEL	18T	20T	25T (NORMAL)	25T (SERVO)
Clamping force	180 KN	200 KN	250 KN	250 KN
Diameter of pull-rod	40 mm	40 mm	50 mm	50 mm
Opening position	140 mm	140 mm	140 mm	140 mm
Inner space between pull-rods	220*205 mm	230*230 mm	275*243 mm	275*243 mm
Thickness range of mould	120~200 mm	120~200 mm	120~250 mm	120~250 mm
Injection vat position	70 mm	70 mm	70 mm	70 mm
Diameter of stuff	32~38 mm	32~38 mm	40 mm	40 mm
Injection force	19 KN	19 KN	30 KN	30 KN
Effcetive injection	150~250 mm	150~250 mm	150~300 mm	150~300 mm
Hydraulic top-Output	19 KN	19 KN	19 KN	19 KN
Hydraulic Ejector Stroke	25 mm	25 mm	40 mm	40 mm
Sweeping position	200 mm	200 mm	250 mm	250 mm
Capacity of crucible	120 kg	120 kg	120 kg	120 kg
Oil pump flux	31 L/min	36 L/min	41 L/min	32 cc/r
Capacity of accumulator	10 L	10 L	10+10 L	10 L
Capacily of oil box	150 L	150 L	160 L	160 L
Empty loop time	3 s	3 s	4 s	4 s
Nozzle electric heated power	1.2 KW	1.2 KW	1.5 KW	1.5 KW
Melt electric heated power	9 KW	9 KW	12 KW	12 KW
Melt fuel dosage	1.5 kg/h	1.5 kg/h	2 kg/h	2 L/h
Motor power	5.5 KW	5.5 KW	5.5 KW	10.3 KW
Working oill pressure	7~10 Mpa	7~10 Mpa	7~10 Mpa	8.5 Mpa
Weight of machine	1.5 ton	1.5 ton	2.3 ton	2.3 ton
Appearance size of machine	2491x 1038x 1795 mm	2491x 1038x 1795 mm	2500x 1100x 1800 mm	2500x1100x 1800 mm

Our Advantages

Company Profile

About Us
1. Founded in 2008, with a home office in Shenzhen, China, branches in Hangzhou, Beijing, Hong Kong, and New York office in theUSA.
2. We are a professional mechanical manufacturing enterprise with research, development, production, and sales, which specialized in making full line machines.
3. We mainly produce automatic zipper machines, mask machines, packaging machines, and other intelligent machines.
4. All of our products have passed through ISO9001:2008 and gained CE certifications.

Product Packaging

1.Wrapping

2.Compression packing

3.Polywood crating

4.Truck loading

FAQ

Q1: Are you a factory or a trading company?
A1: We are a professional machinery manufacturer with experience for more than 11 years.
Q2: Do we have any risk of payment?
A2: We are a standard company with the right to export and import. If you have doubts, we suggest making the order via Alibaba. And we can do LC at sight as well as
Q3: How’s your machines’ quality?
A3: Our machines are all made under strict standards of ISO, CCC, and CE. Keep producing good quality products are our daily task and aim.
Q4: Is there any spare part equipped with machines?
A4: Yes, some wearing spare parts will be provided together with machines.
Q5: Can your technicians come to our factory for installation and training?
A5: Yes, we will arrange our technicians to visit your factory for training and installing according to requirements.
